AP 13" FIA Historic Rear Brake Kit - CP2383 Caliper - Ø264x11mm Discs - Plain Face Design

AP 13" FIA Historic Rear Brake Kit - CP2383 Caliper - Ø264x11mm Discs - Plain Face Design

AP2383-264-11-P

€2138.89 €2630.83
Sale Sold out
  • Feature Icon 13" REAR BRAKE KIT
  • Feature Icon FIA Historic
  • Feature Icon CP2383 CALIPERS
  • Feature Icon Ø264MM - Plain FACING BRAKE DISCS
  • Feature Icon COMPLETE KIT
View full details

Ford Escort FIA Historic spec 13" brake kit. The kit is complete with 2-pot AP Calipers, Ø264 x 11mm brake discs, and all required hardware for mounting to rear fully floating axle.

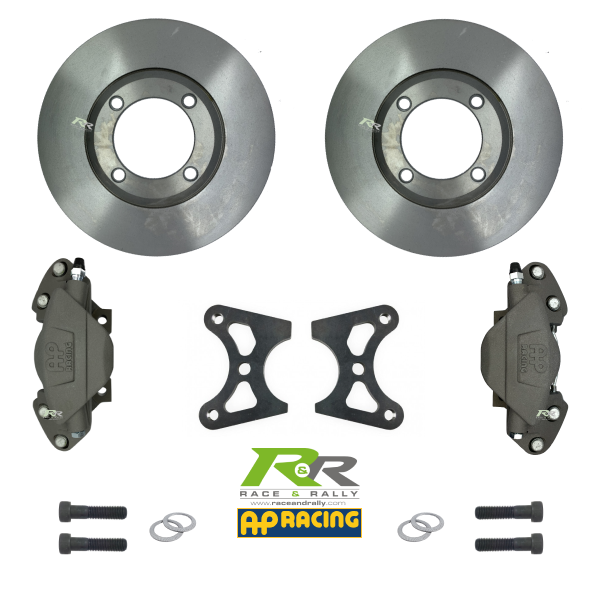

KIT CONTENTS

  • 2x AP Lug Mounted 2 Pot Caliper

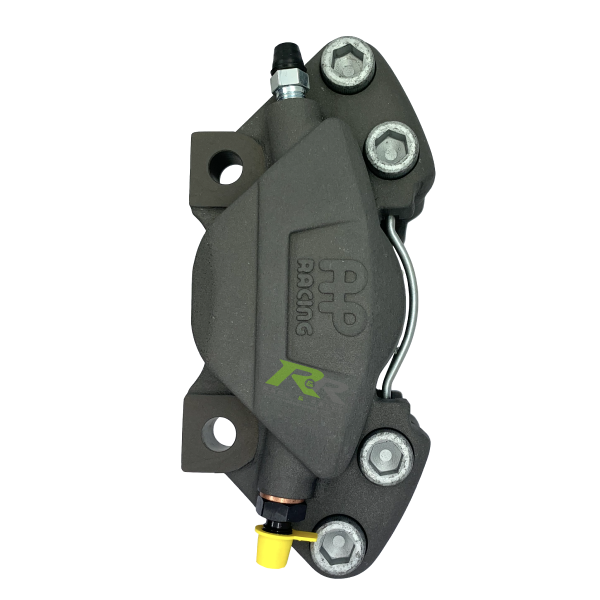

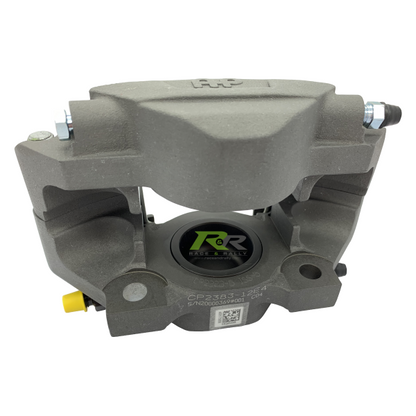

    • CP2383-12E4 - Right-hand Trailing

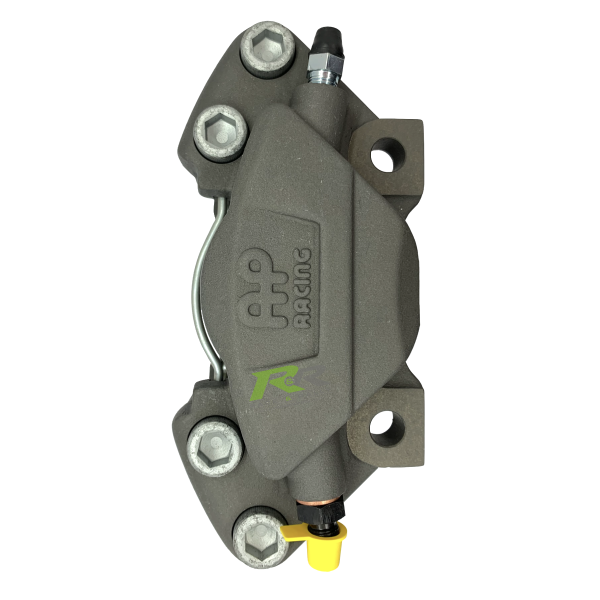

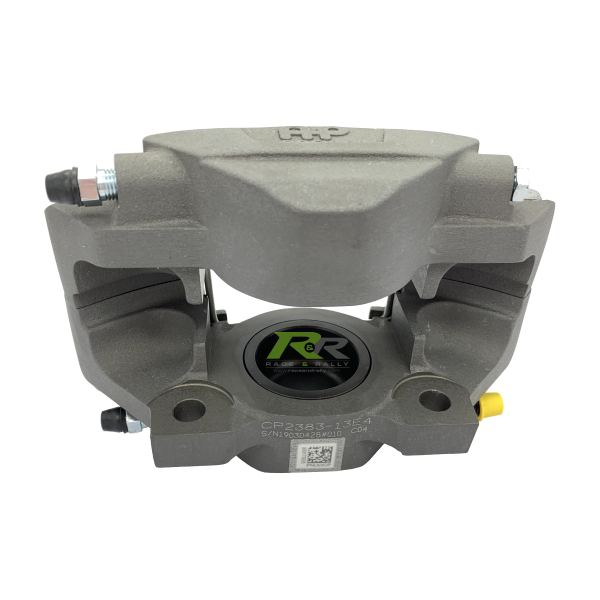

    • CP2383-13E4 - Left-hand Trailing
  • 1x Pair of weld-on caliper mounting brackets machined from Steel
    • RWR2382-3
  • 4x Caliper mounting bolts
    • 4x RNR1030-716-125 - Caliper to mounting bracket
    • 4x RNR1016-716 - Schnoor washers
  • 2x AP Racing brake discs - Ø264x11.1mm

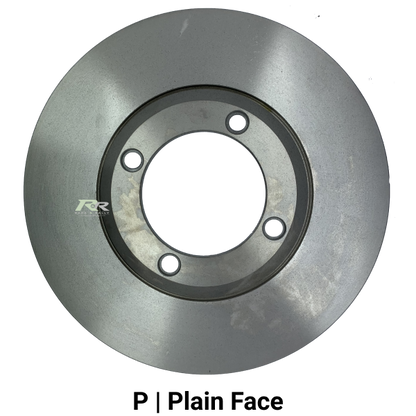

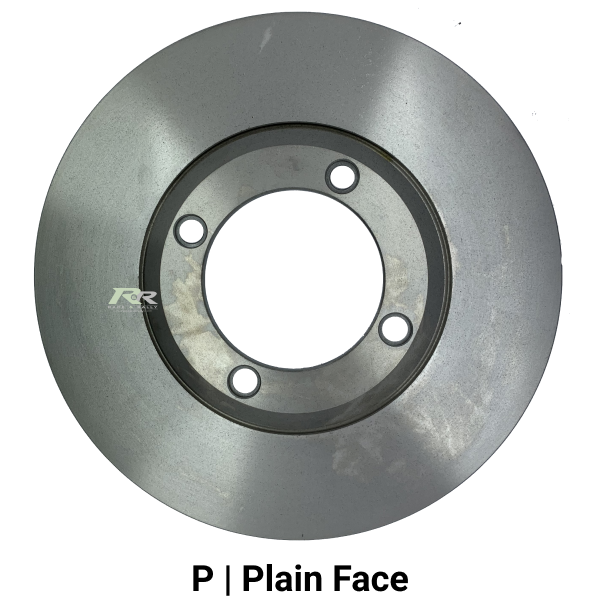

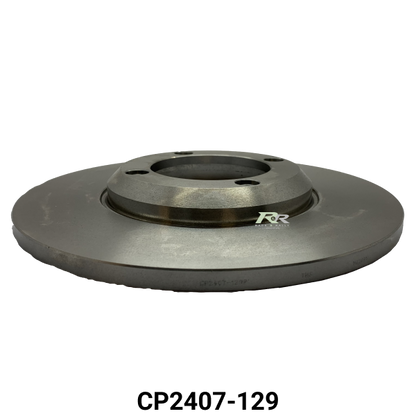

    • CP2407-129P - P | Plain Face
    • Integral Mounting Bell

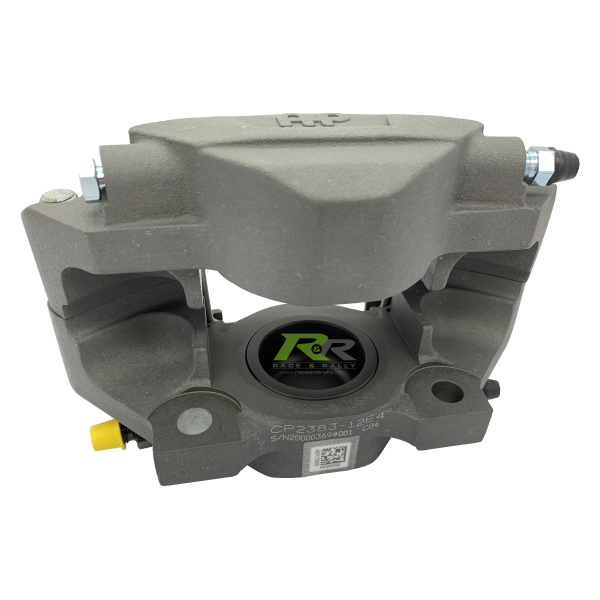

CP2383 2-POT CALIPER

Piston Sizes

2x Ø50.8mm

Weight - No Pads

1.8kg

Hydraulic Threads

3/8" x 24 JIC/UNF

Mounting Type

Lug
88.9mm Mounting Centres
24.9mm Mounting Offset
Ø11.27mm Mounting Hole

'PL' Dimension

54.1mm

Brake Pad Family

AP - CP2372D52
Ferodo - FRP202

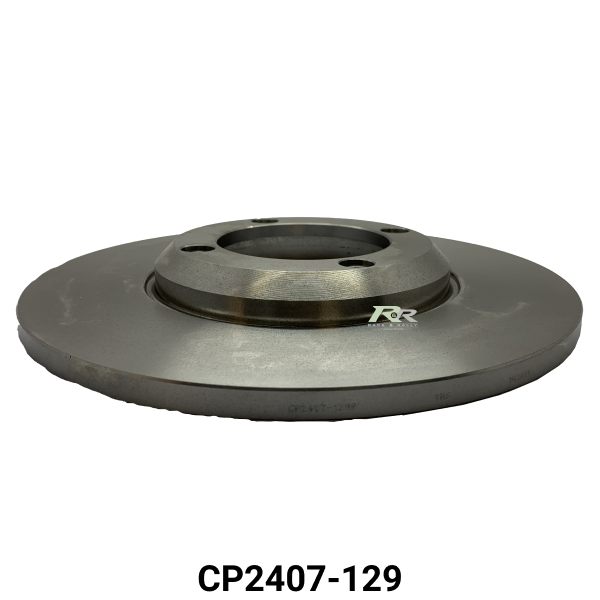

Ø264 X 11.1MM Solid BRAKE DISC with Integral Bell

'A' Outside Diameter

264mm

'B' Thickness

11.1mm

Mounting Details

'M' P.C.D.

108mm

QTY Studs

4

Stud hole diameter

11.6mm
'C' Spigot Diameter

86.36mm

'D' Mounting Face Diameter

133.35mm

'E' Mounting Flange Thickness

7.87mm

'F' Mounting Offset

16.8mm

Max Pad Depth

D52

Weight [per disc]

3.8 KG

Face Types Available

P | Plain
**  'Letter' from above relates to disc drawing below

Brand AP Racing
Option SKU Barcode
Default Title AP2383-264-11-P
