AP 13" Rear Brake Kit - CP2382 Caliper - Ø267x21mm Discs - G4 Face Design

AP 13" Rear Brake Kit - CP2382 Caliper - Ø267x21mm Discs - G4 Face Design

AP2382-267-21-G4

€2242.50 €2758.28
Sale Sold out
  • Feature Icon 13" REAR BRAKE KIT
  • Feature Icon CP2382 CALIPERS
  • Feature Icon Ø267MM - G4 FACING BRAKE DISCS
  • Feature Icon COMPLETE KIT
View full details

Ford Escort 13" brake kit. The kit is complete with 2-pot AP CP2382 Calipers, Ø267 x 21mm brake discs, and all required hardware for mounting to rear fully floating axle.

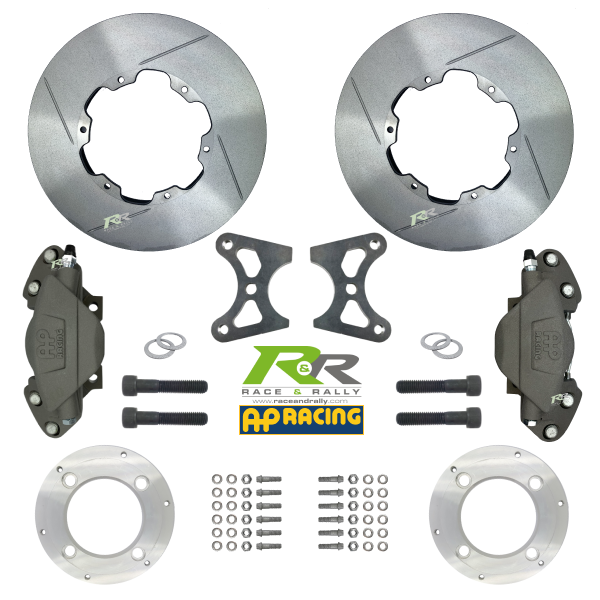

KIT CONTENTS

  • 2x AP Lug Mounted 2 Pot Caliper
    • CP2382-12E4 - Right-hand Trailing
    • CP2382-13E4 - Left-hand Trailing
  • 1x Pair of weld-on caliper mounting brackets machined from Steel
    • RWR2382-3
  • 4x Caliper mounting bolts
    • 4x RNR1030-716-125 - Caliper to the mounting bracket
    • 4x RNR1016-716 - Schnoor washers
  • 2x AP Racing brake discs - Ø267x21mm
    • CP4136-48G4 - G4 | 4-Straight Forward Grooves Face Design

CP2382 2-POT CALIPER

Piston Sizes

2x Ø50.8mm

Weight - No Pads

1.8kg

Hydraulic Threads

3/8" x 24 JIC/UNF

Mounting Type

Lug
88.9mm Mounting Centres
29.7mm Mounting Offset
Ø11.27mm Mounting Hole

'PL' Dimension

54.1mm

Brake Pad Family

AP - CP2372D52
Ferodo - FRP202

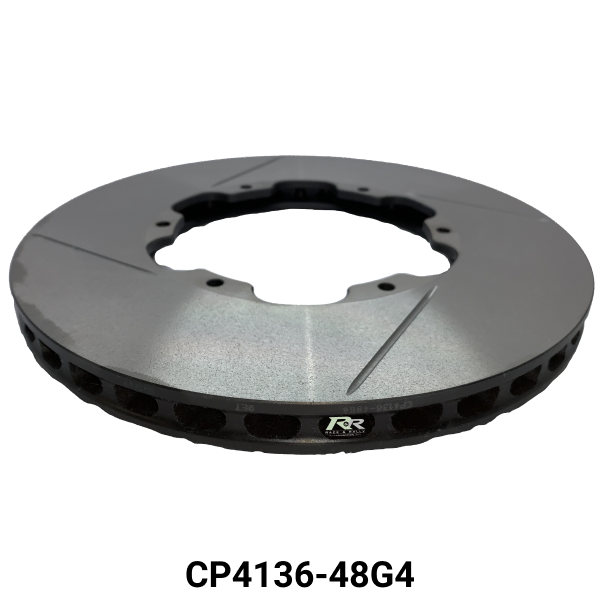

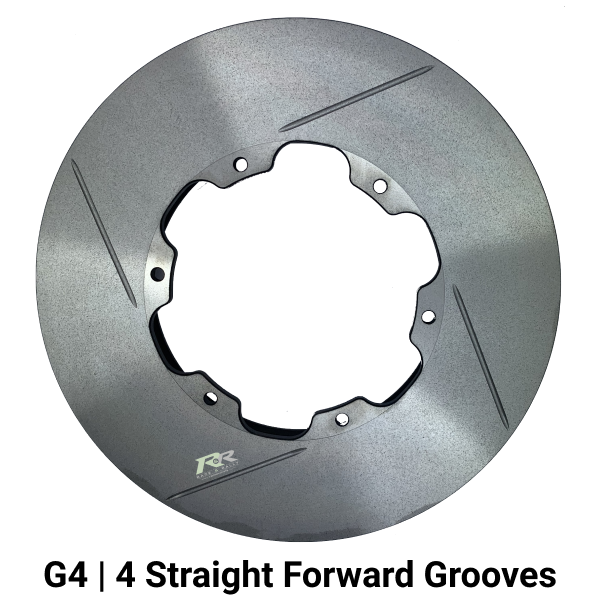

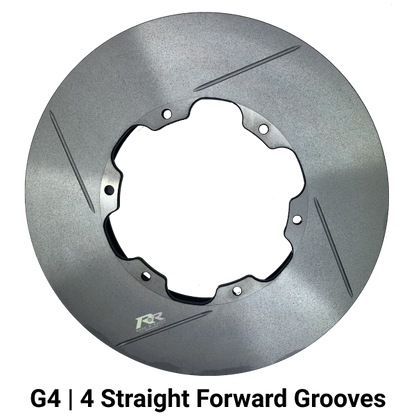

Ø267 X 20.7MM Ventilated BRAKE DISC

'A' Outside Diameter

267mm

'B' Thickness

20.70mm

'M' P.C.D.

139.7mm

Fixing Type: Bolted

6 Bolts
Ø6.40mm Mounting Hole

'C' Eye Diameter

155.0mm

'D' Inside Flange Diameter

125.8mm

'H' Mounting Flange Thickness

5.6mm

Max Pad Depth

D54

Number of Vanes

36

Air Gap

9.3mm

Weight [per disc]

4.4 KG

Face Types Available

G4 | 4 Straight Forward Grooves
**  'Letter' from above relates to disc drawing below

Brand AP Racing
Option SKU Barcode
Default Title AP2382-267-21-G4

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.

Race and Rally are the official AP Racing Distributor for Northern Ireland
