AP 15" Rear Brake Kit - CP7613 Caliper - Ø290x21mm Discs - G4 Face Design

AP 15" Rear Brake Kit - CP7613 Caliper - Ø290x21mm Discs - G4 Face Design

AP7613-290-21-G4

€1836.55 €2258.96
Sale Sold out
  • Feature Icon 15" Rear BRAKE KIT
  • Feature Icon CP7613 CALIPERS
  • Feature Icon Ø290MM - G4 | 4 FORWARD FACING GROOVES BRAKE DISCS
  • Feature Icon COMPLETE KIT
View full details

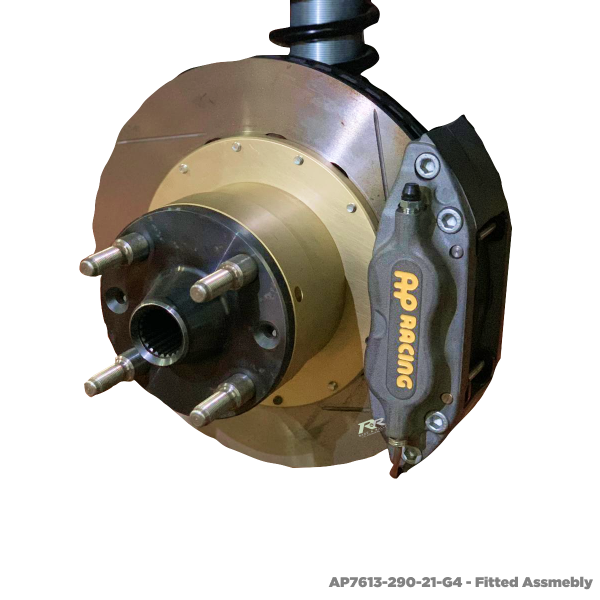

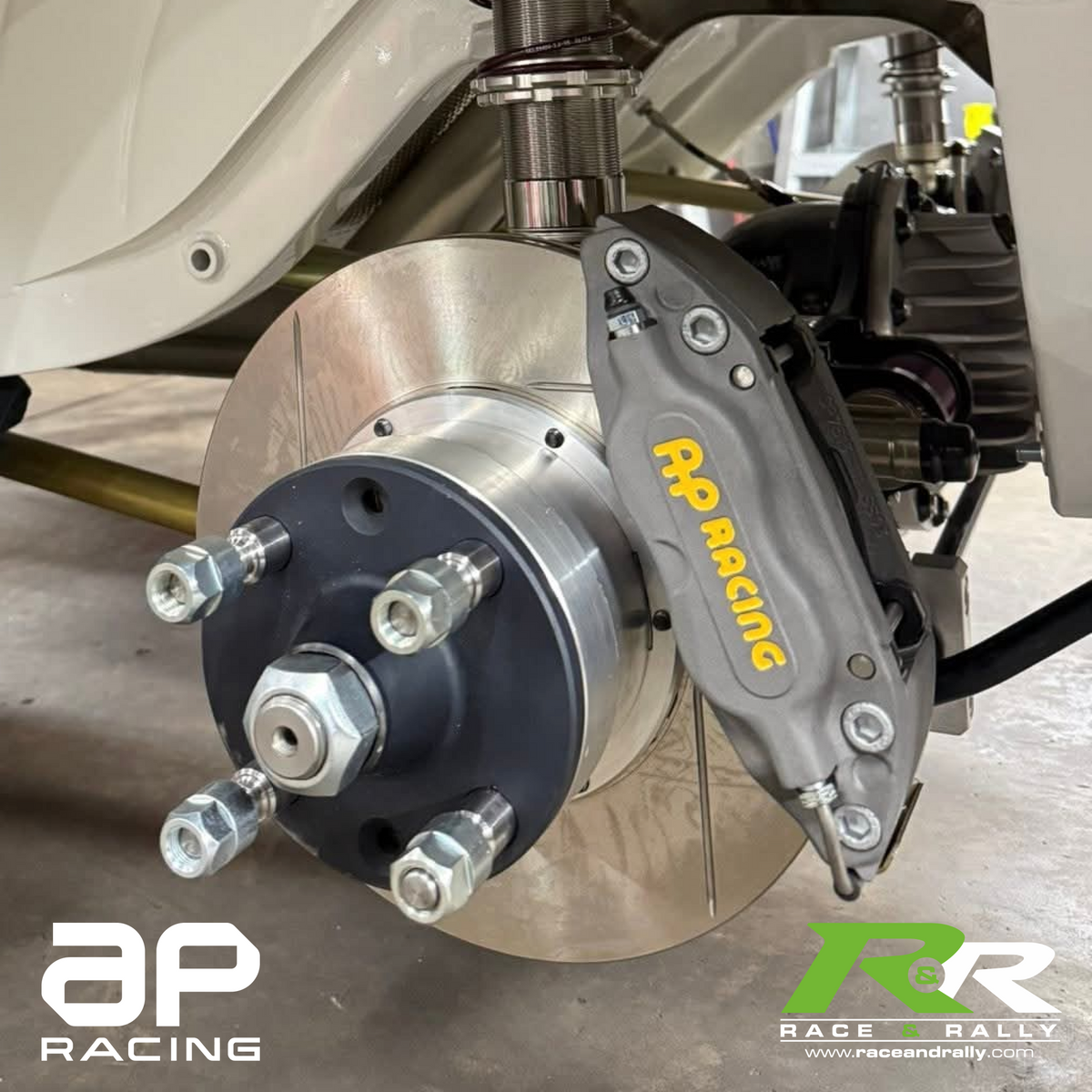

Ford Escort MK2 modern spec 15" rear brake kit. Kit is complete with 4-pot AP Calipers, Ø290 x 21mm AP brake discs and all required hardware for mounting to Fully Floating rear axle.

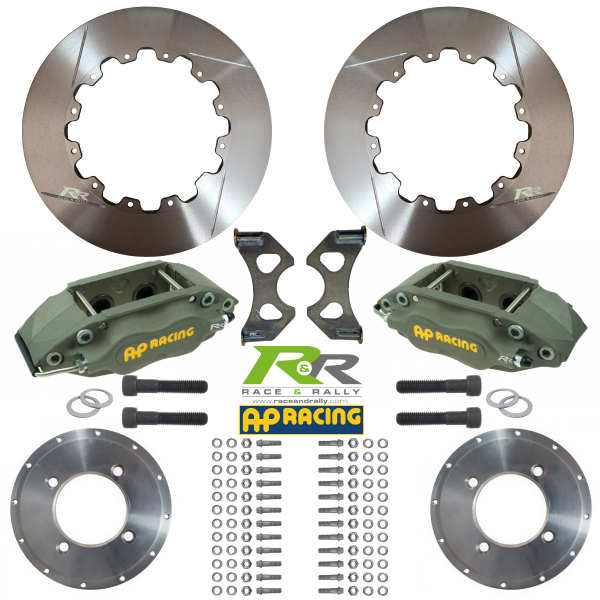

KIT CONTENTS

  • 2x AP Radial Mounted 4 Pot Caliper

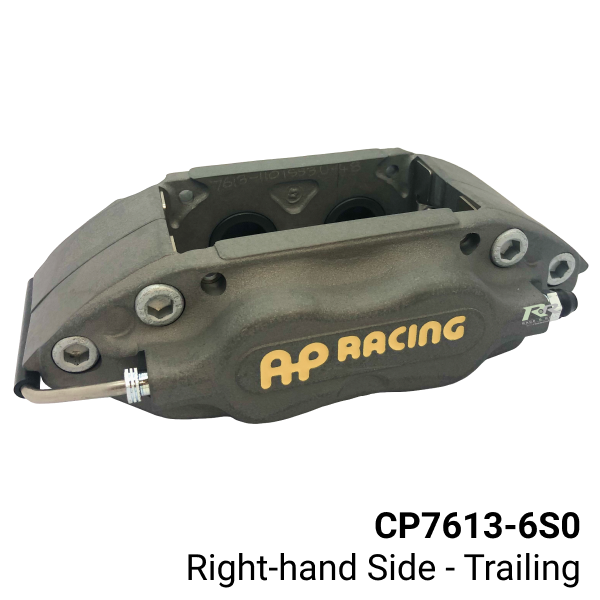

    • CP7613-6S0 - Right hand Trailing

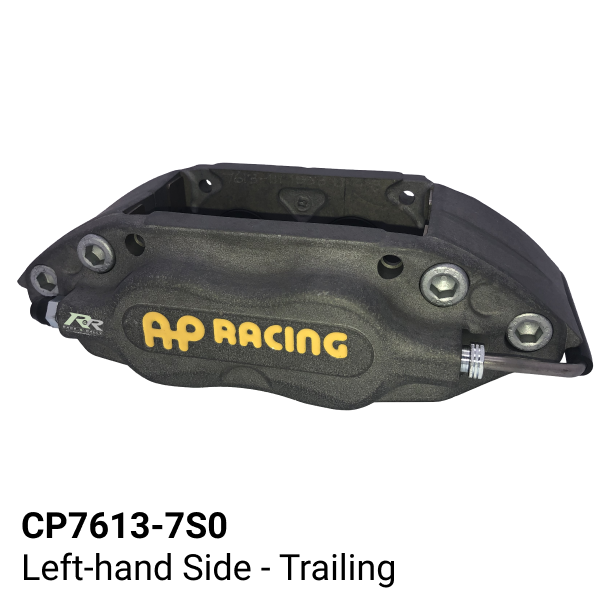

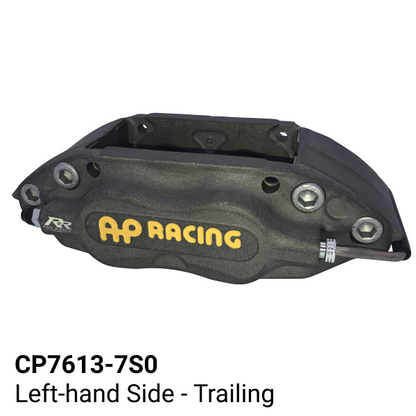

    • CP7613-7S0 - Left hand Trailing

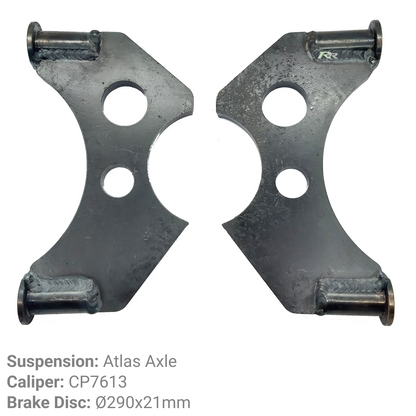

  • 1x Pair of weld-on caliper mounting brackets machined from Steel
    • RWR7613-290
  • 4x Caliper mounting bolts
    • 4x RNR1030-M1075 - Caliper to mounting bracket
    • 4x RNR1016-M10 - Schnoor washers

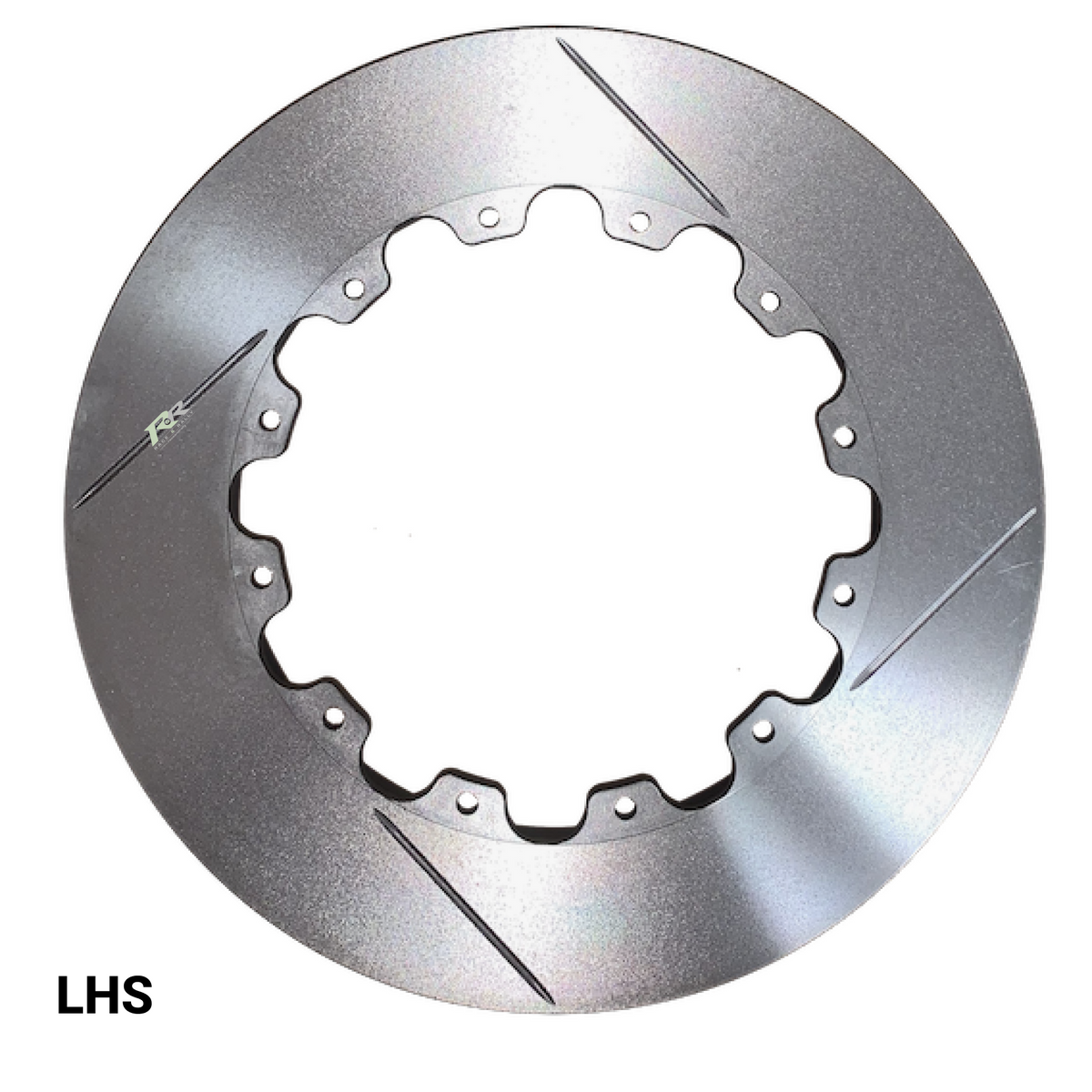

  • 2x AP Racing brake discs - Ø290x21.0mm

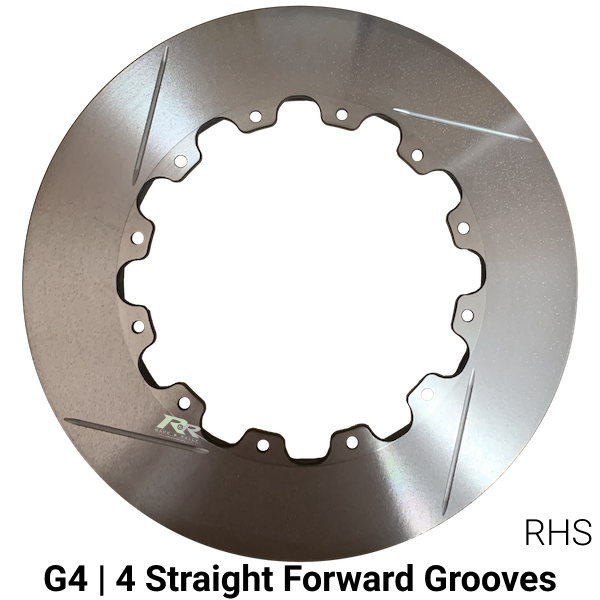

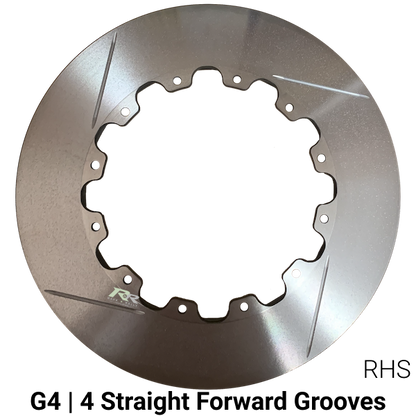

    • CP4348-896G4 - G4 | 4 Forward facing grooves face

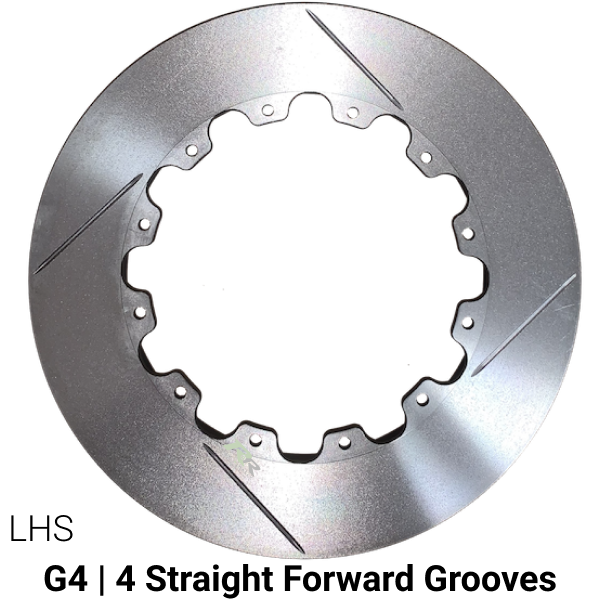

    • CP4348-897G4 - G4 | 4 Forward facing grooves face

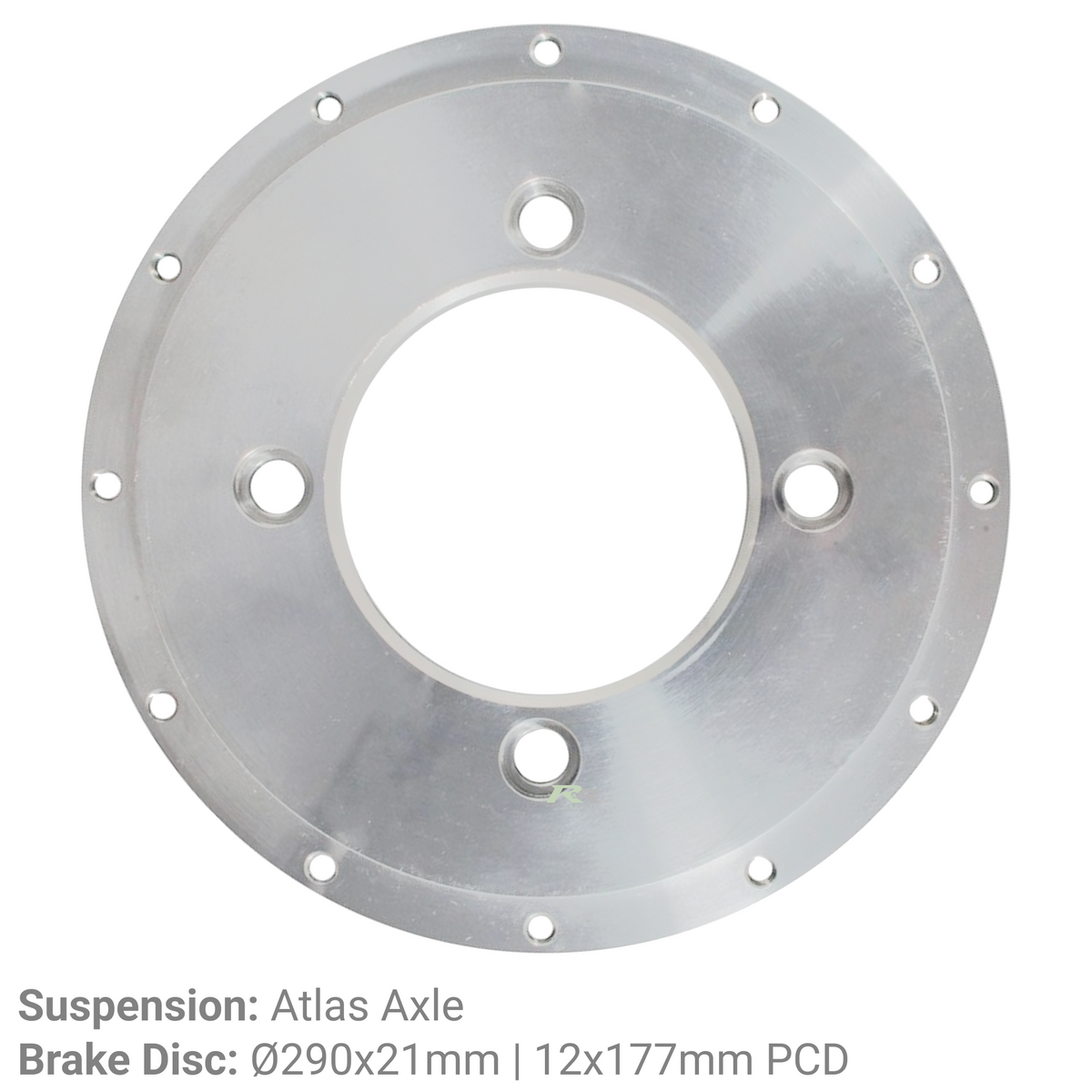

  • 2x CNC Machined aluminium brake disc mounting bells
    • RBR29012F177
  • 2x Brake disc bell mounting kits (12 bolt)

CP7613 4-POT CALIPER

Piston Sizes

4x Ø31.8mm

Piston Area

31.6cm²

Weight - No Pads

1.7kg

Hydraulic Threads

M10 x 1.0

Mounting Type

Radial
130mm Mounting Centres
38.70mm Mounting Offset
Ø10.20mm Mounting Hole

'PL' Dimension

53.0mm

Brake Pad Family

AP - CP7600D46
Ferodo - FRP3085
PFC - 7834


Ø290 X 21.0MM VENTILATED BRAKE DISC

'A' Outside Diameter

290mm

'B' Thickness

20.70mm

'M' P.C.D.

177.8mm

Fixing Type: Bolted

12 Bolts
Ø6.40mm Mounting Hole

'C' Eye Diameter

195.40mm

'D' Inside Flange Diameter

164.30mm

'H' Mounting Flange Thickness

5.47mm

Max Pad Depth

D46

Number of Vanes

48

Air Gap

9.0mm

Weight [per disc]

3.6 KG

Face Types Available

G4 | 4 Straight Forward Grooves
**  'Letter' from above relates to disc drawing below

Brand AP Racing
Option SKU Barcode
Default Title AP7613-290-21-G4
