AP 13" Rear Brake Kit - CP2577 Caliper - Ø264x11mm Discs - Plain Face Design

AP 13" Rear Brake Kit - CP2577 Caliper - Ø264x11mm Discs - Plain Face Design

AP2577-264-11-P

€1230.50 €1513.52
Sale Sold out
  • Feature Icon 13" REAR BRAKE KIT
  • Feature Icon CP2577 CALIPERS
  • Feature Icon Ø264MM - Plain FACING BRAKE DISCS
  • Feature Icon COMPLETE KIT

View full details

Ford Escort 13" brake kit. The kit is complete with 2-pot AP CP2577 Calipers, Ø264 x 11mm brake discs, and all required hardware for mounting to rear fully floating axle.

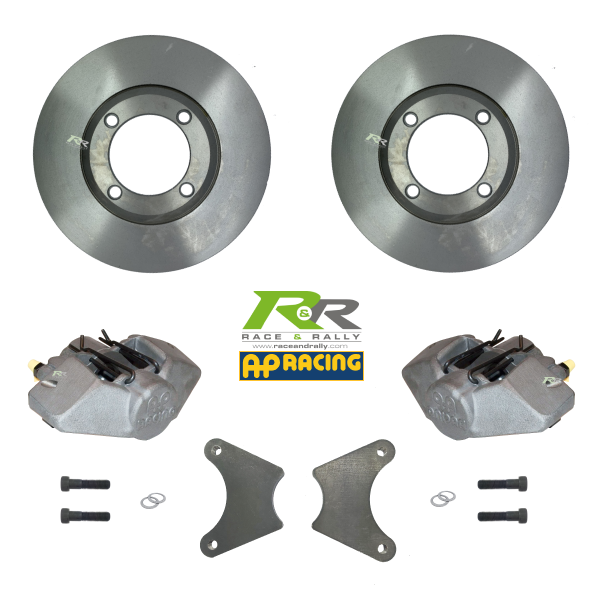

KIT CONTENTS

  • 2x AP Lug Mounted 2 Pot Caliper
    • CP2577-3E0
  • 1x Pair of weld-on caliper mounting brackets machined from Steel
    • RWR2577
  • 4x Caliper mounting bolts
  • 2x AP Racing brake discs - Ø264x11.1mm
    • CP2407-129P - P | Plain Face
    • Integral Mounting Bell

CP2577 2-POT HANDBRAKE CALIPER

Piston Sizes

2x Ø44.5mm

Weight - No Pads

1.1kg

Hydraulic Threads

3/8" x 24 JIC/UNF

Mounting Type

Lug
89.0mm Mounting Centres
24.6mm Mounting Offset
Ø9.6mm Mounting Hole

'PL' Dimension

46.97mm

Brake Pad Family

AP - CP2399D43
Ferodo - FRP825
PFC - 7720

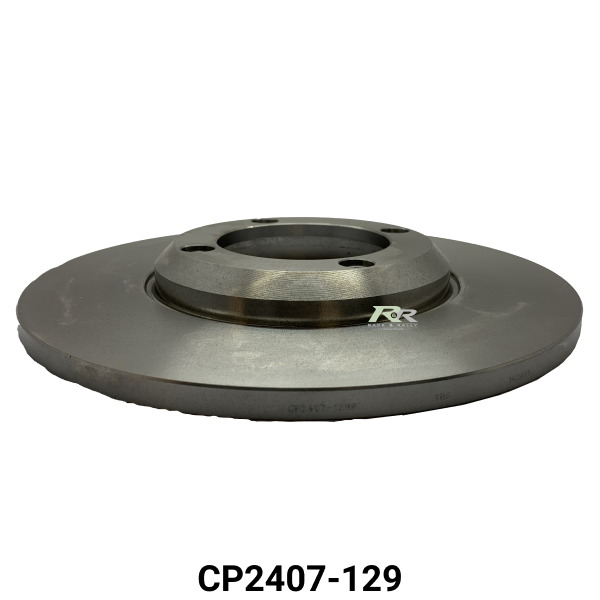

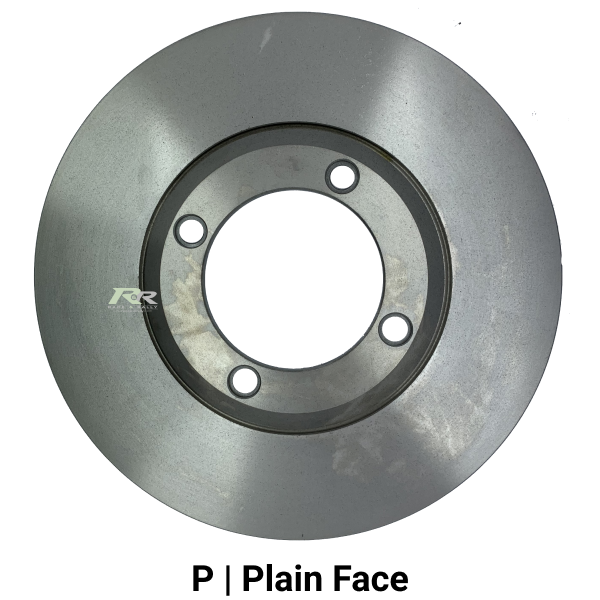

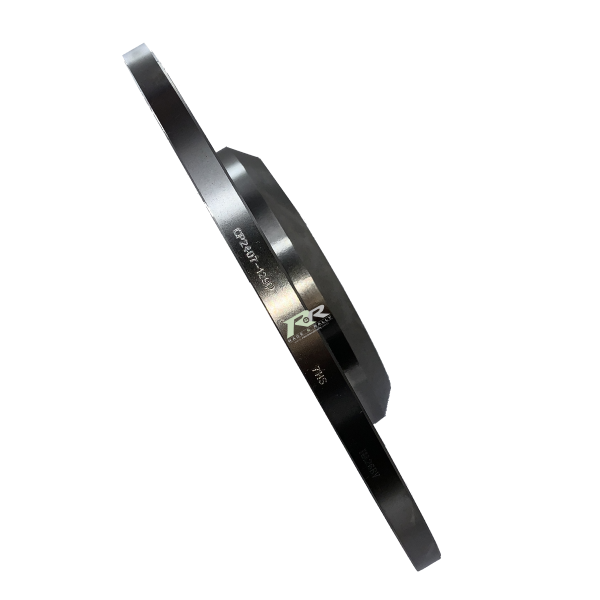

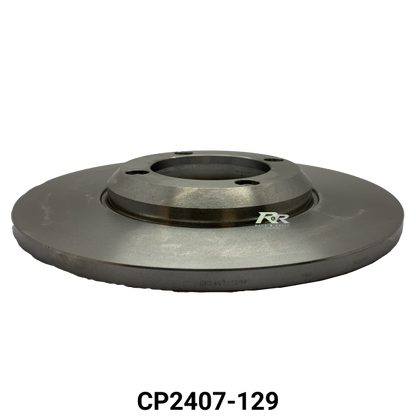

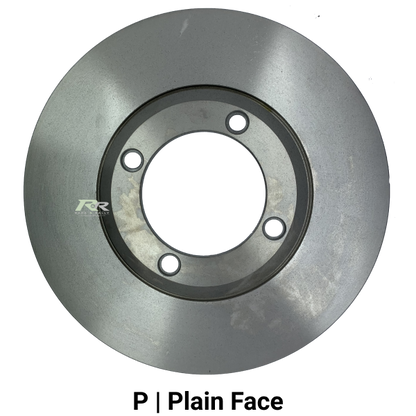

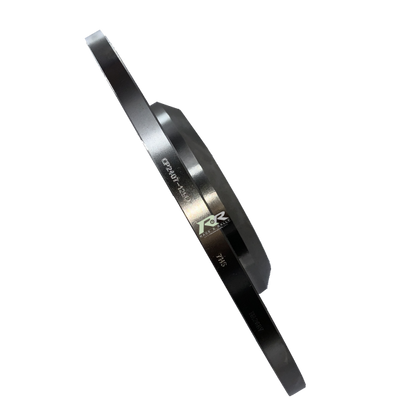

Ø264 X 11.1MM SOLID BRAKE DISC with Integral Bell

'A' Outside Diameter

264mm

'B' Thickness

11.1mm

Mounting Details

'M' P.C.D.

108mm

QTY Studs

4

Stud hole diameter

11.6mm
'C' Spigot Diameter

86.36mm

'D' Mounting Face Diameter

133.35mm

'E' Mounting Flange Thickness

7.87mm

'F' Mounting Offset

16.8mm

Max Pad Depth

D52

Weight [per disc]

3.8 KG

Face Types Available

P | Plain
**  'Letter' from above relates to disc drawing below

Brand:

AP Racing

Manufacturer Part Number:

AP2577-264-11-P
