AP 13" Front Modular Brake Kit - CP4567 Caliper - Ø277x25mm Discs - 'J' Hook Face Design

AP 13" Front Modular Brake Kit - CP4567 Caliper - Ø277x25mm Discs - 'J' Hook Face Design

APM4567-277-25-GA-RIX

€2191.90 €2696.04
Sale Sold out
  • Feature Icon 13" BRAKE KIT
  • Feature Icon CP4567 CALIPERS
  • Feature Icon Ø277MM - GA | 'J' HOOK FACE DESIGN BRAKE DISCS
  • Feature Icon SUITED FOR MODULAR SUSPENSION SETUP
  • Feature Icon COMPLETE KIT
Strut Type
View full details

Ford Escort MK2 modern spec 13" brake kit. The kit is complete with 4-pot AP Calipers (CP4567), Ø277 x 25mm brake discs, and all required hardware for mounting to Escort Modular Strut Setup.

Designed to suit GRP4 or RIX Modular Suspension setups

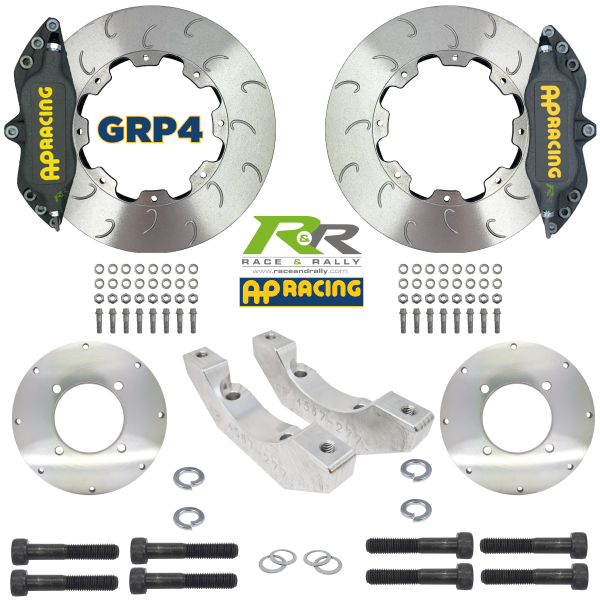

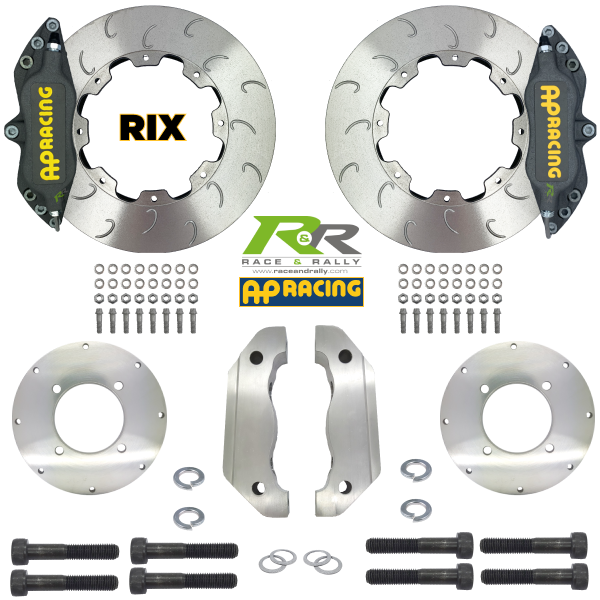

KIT CONTENTS

  • 2x AP Radial Mounted 4 Pot Caliper

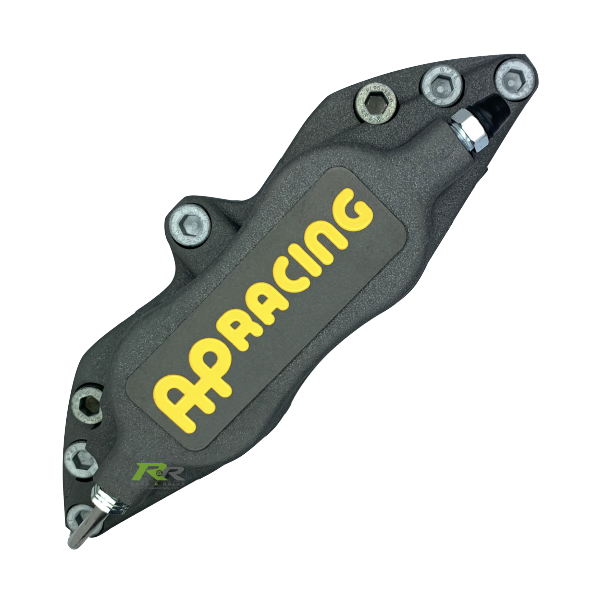

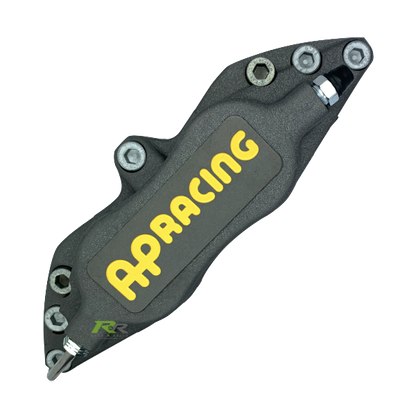

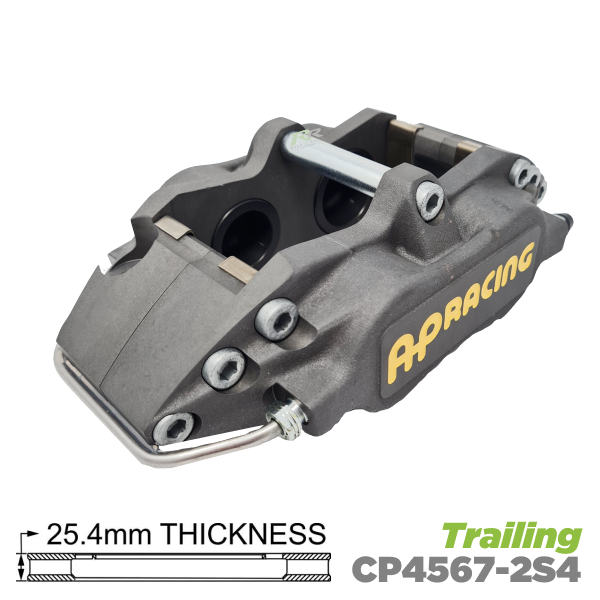

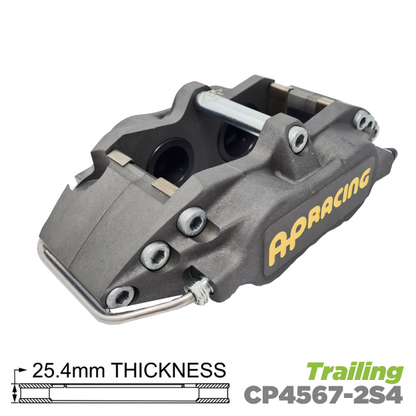

    • CP4567-2S4 - Right hand

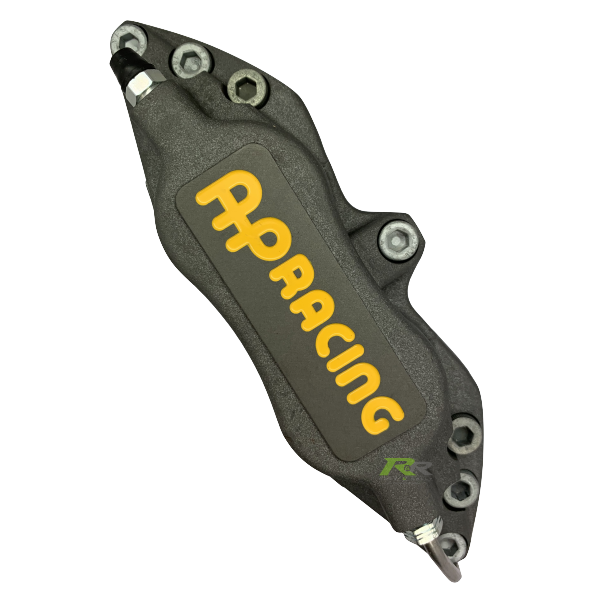

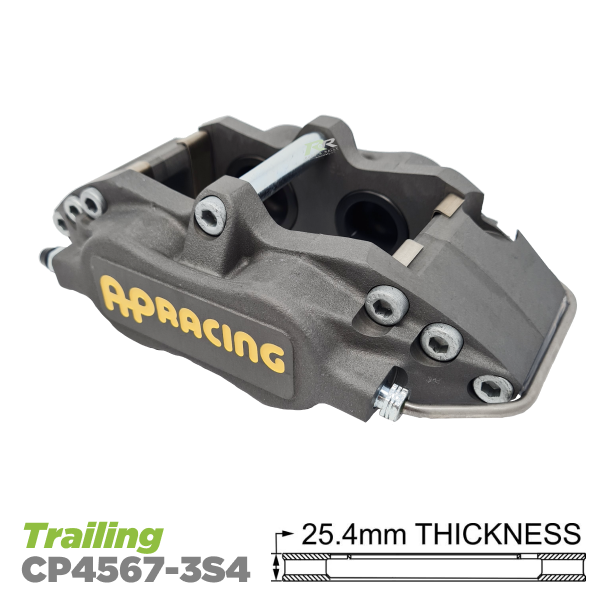

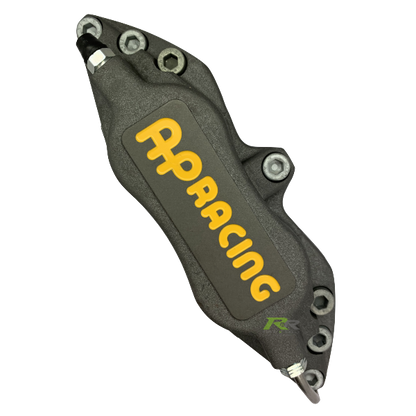

    • CP4567-3S4 - Left hand

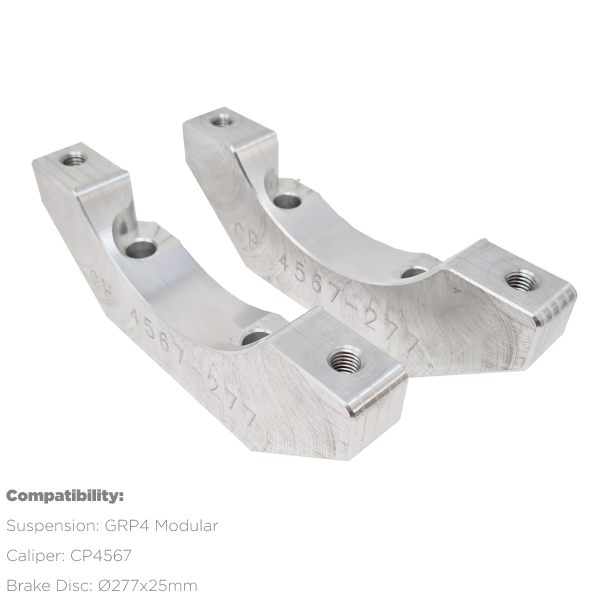

  • 1x Pair of caliper mounting brackets machined from Aluminium to suit the selected setup
    • RCMR456727725-RIX
    • RCMR456727725-GRP4
  • 8x Caliper mounting bolts & washers
  • 2x AP Racing brake discs - Ø277x25.40mm

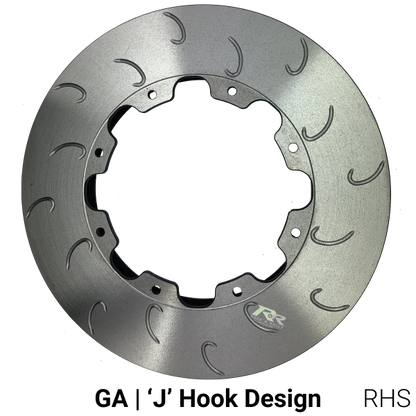

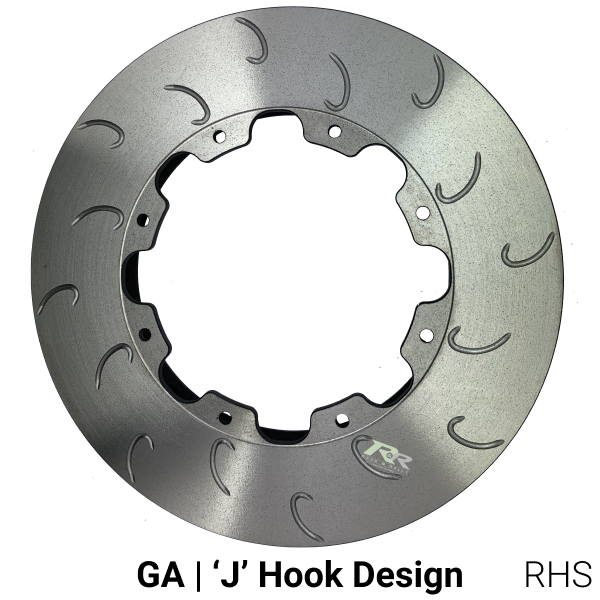

    • CP4448-410GA - Right hand ventilated brake disc - GA | 'J' Hook Face Design

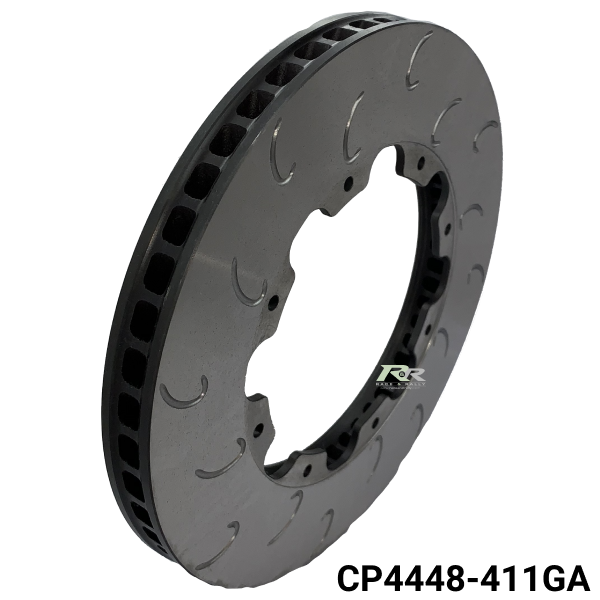

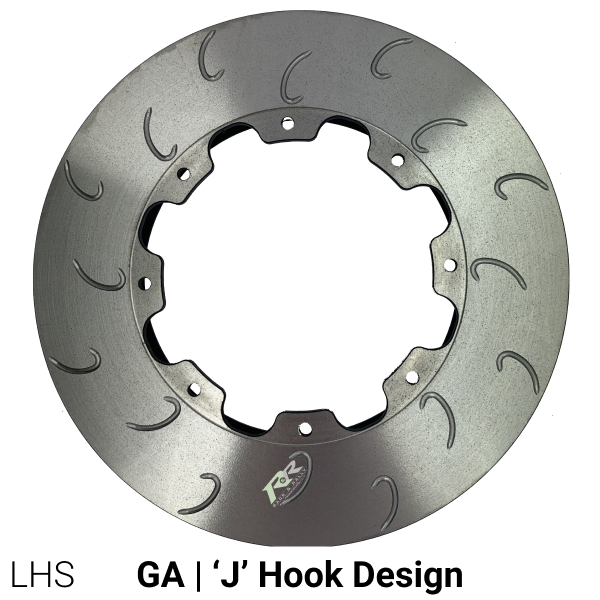

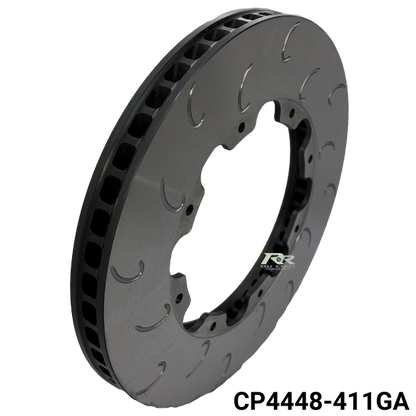

    • CP4448-411GA - Left hand ventilated brake disc - GA | J' Hook Face Design
  • 2x CNC Machined aluminum brake disc mounting bells
    • RBMR27708B158
  • 2x Brake disc bell mounting kit
    • CP3845-100K08

CP4567 4-POT CALIPER

Piston Sizes

2x Ø34.9mm
2x Ø41.3mm

Piston Area

45.92cm²

Weight - No Pads

1.60kg

Hydraulic Threads

M10 x 1.0

Mounting Type

Radial
152mm Mounting Centres
30mm Mounting Offset
Ø10.20mm Mounting Hole

'PL' Dimension

50.5mm

Brake Pad Family

AP - CP3345D44
Ferodo - FRP219
CL Brakes - 5007W43T16
PFC - 7745

Ø227 X 25.4MM VENTILATED BRAKE DISC

'A' Outside Diameter

277mm

'B' Thickness

25.40mm

'M' P.C.D.

158.80mm

Fixing Type: Bolted

8 Bolts
Ø6.40mm Mounting Hole

'C' Eye Diameter

174.10mm

'D' Inside Flange Diameter

141.00mm

'H' Mounting Flange Thickness

4.82mm

Max Pad Depth

D50

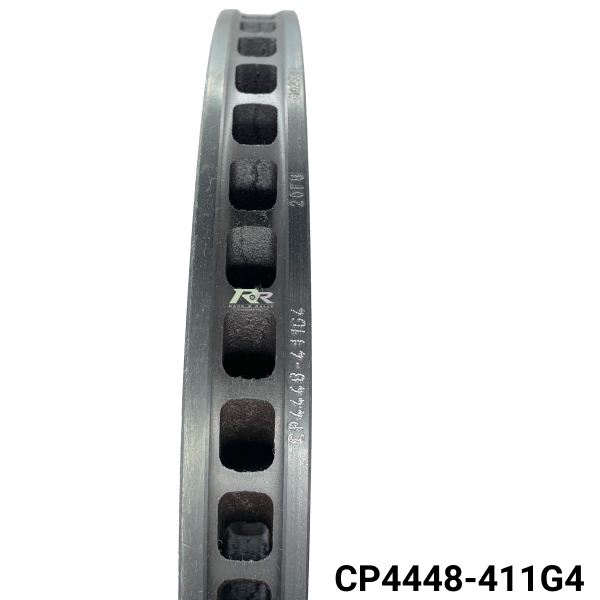

Number of Vanes

48

Air Gap

10.50mm

Weight

4.20 kg [per disc]

Face Types Available

GA | 'J' Hook Face Design
**  'Letter' from above relates to the disc drawing below

Brand AP Racing
Option SKU Barcode
RIX Modular Suspension APM4567-277-25-GA-RIX
GRP4 Modular Suspension APM4567-277-25-GA-GRP4

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.

Race and Rally are the official AP Racing Distributor for Northern Ireland
