AP 15" Front Modular Brake Kit - CP9440 Caliper - Ø304x28mm Discs - 'J' Hook Face Design

AP 15" Front Modular Brake Kit - CP9440 Caliper - Ø304x28mm Discs - 'J' Hook Face Design

APM9440-304-28-SGA-RIX

€2619.21 €3221.63
Sale Sold out
  • Feature Icon 15" BRAKE KIT
  • Feature Icon CP9440 Pro 5000 R CALIPERS
  • Feature Icon Ø304MM - GA | 'J' HOOK FACE DESIGN BRAKE DISCS
  • Feature Icon SUITED FOR MODULAR SUSPENSION SETUP
  • Feature Icon COMPLETE KIT
Strut Type

View full details

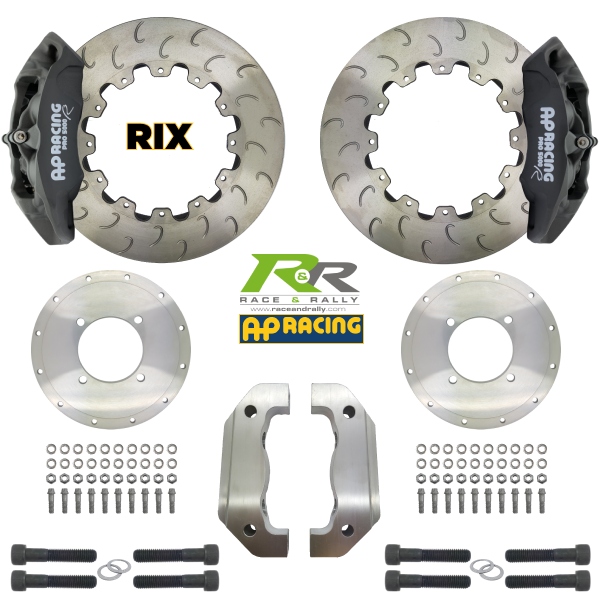

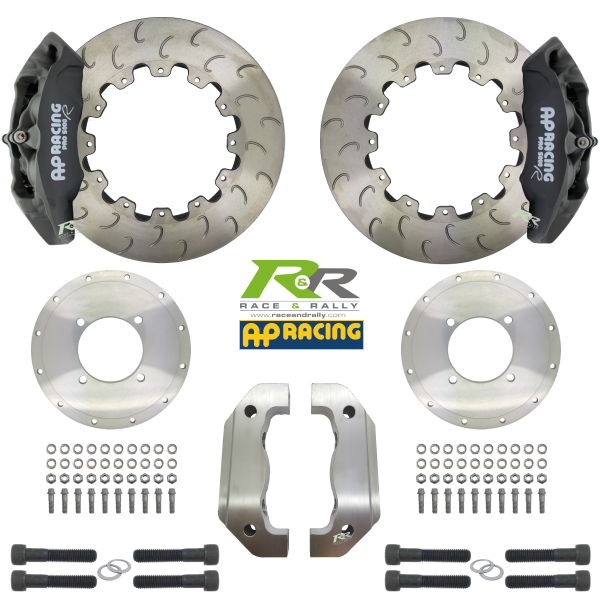

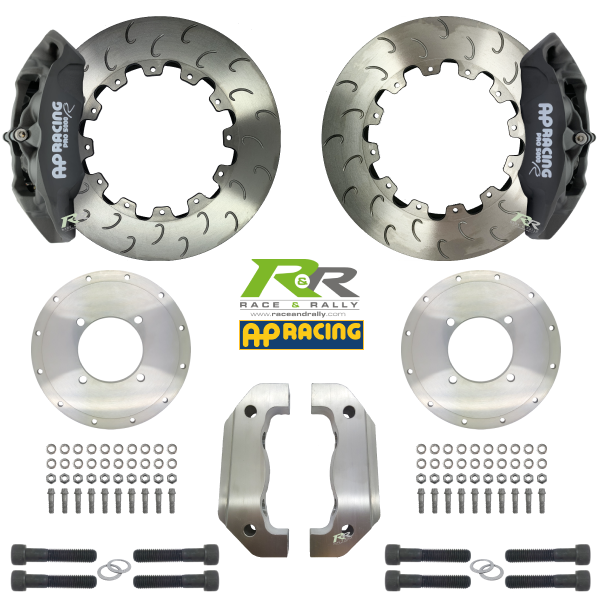

Ford Escort MK2 modern spec 15" brake kit. Kit is complete with 4-pot AP Calipers (CP9440), Ø304 x 28mm brake discs, and all required hardware for mounting to Escort Modular Strut Setup.

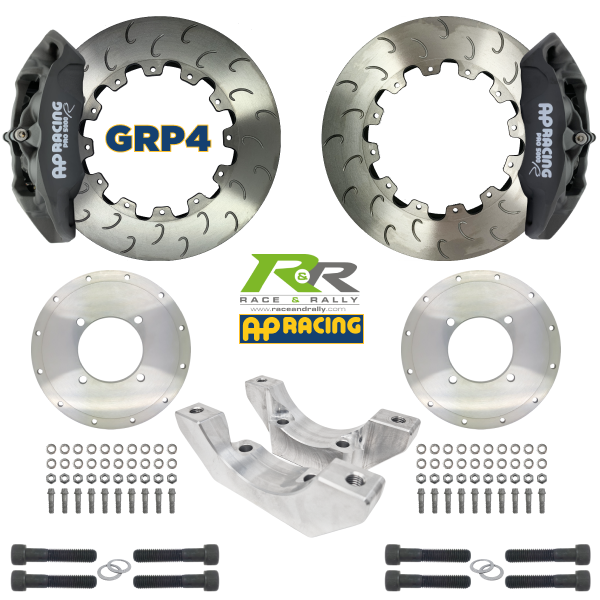

Designed to suit GRP4 or RIX Modular Suspension setups

Lightweight brake disc options available (54 Vanes)

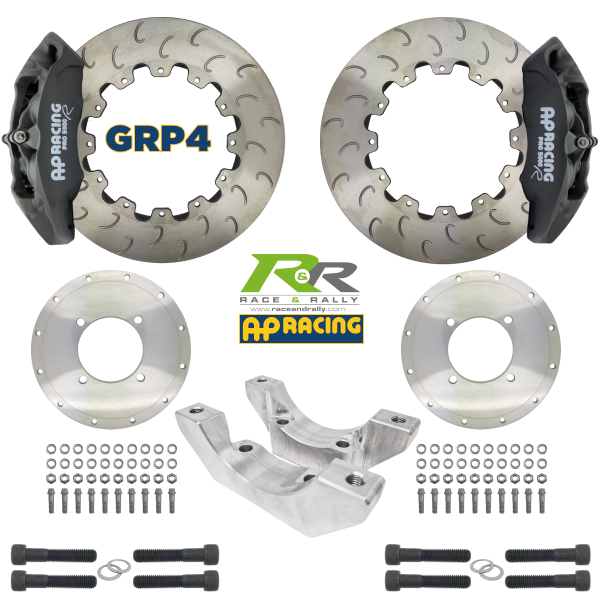

KIT CONTENTS

  • 2x AP Radial Mounted 4 Pot Caliper

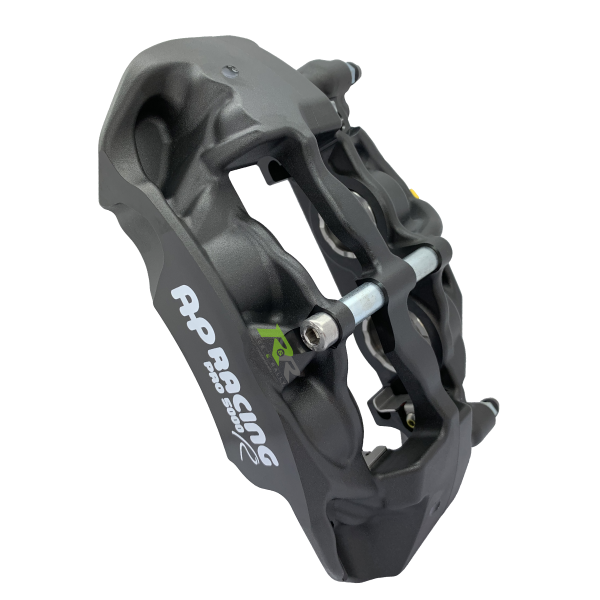

    • CP9440-2S4L - Right hand
    • CP9440-3S4L - Left hand
  • 1x Pair of caliper mounting brackets machined from Aluminium to suit the selected setup
    • RCMR504030428-RIX
    • RCMR504030428-GRP4
  • 8x Caliper mounting bolts & washers
  • 2x AP Racing brake discs - Ø304x28mm
    • Standard: 48 Vanes (5.20 Kg)

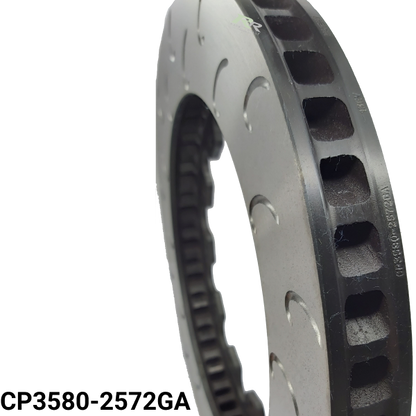

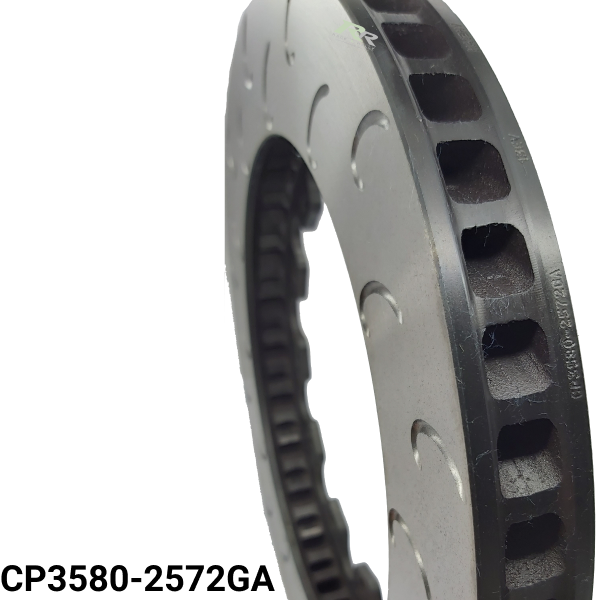

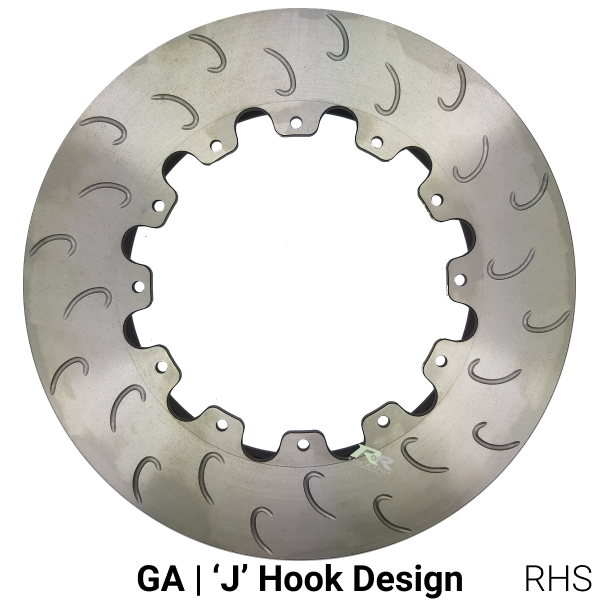

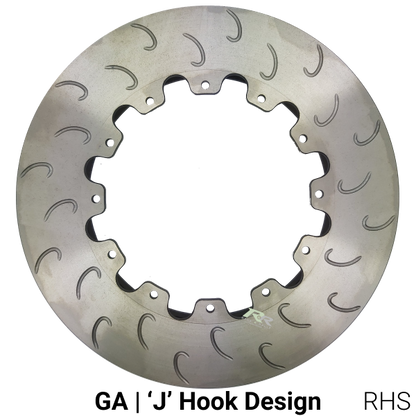

      • CP3580-2572GA - Right hand ventilated brake disc - GA | 'J' Hook Face Design

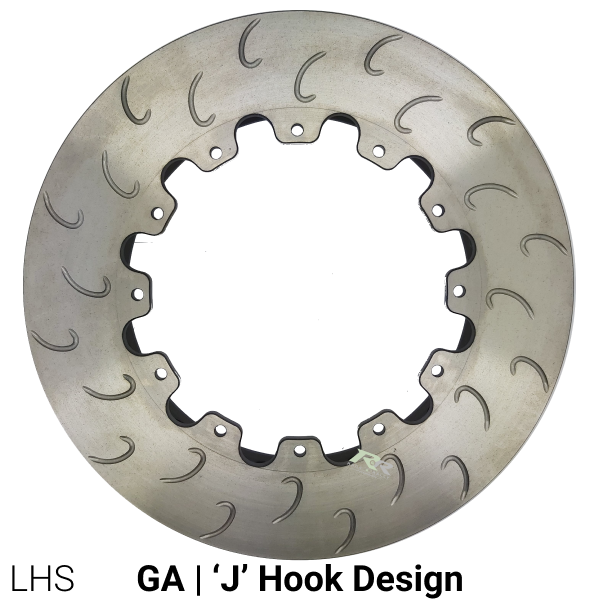

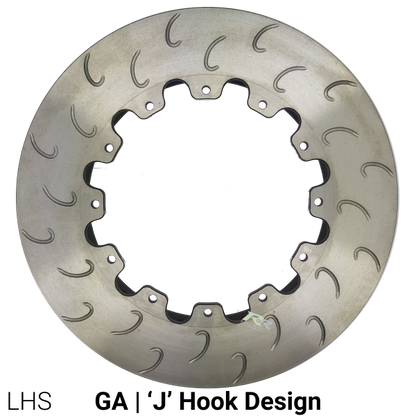

      • CP3580-2573GA - Left hand ventilated brake disc - GA | J' Hook Face Design

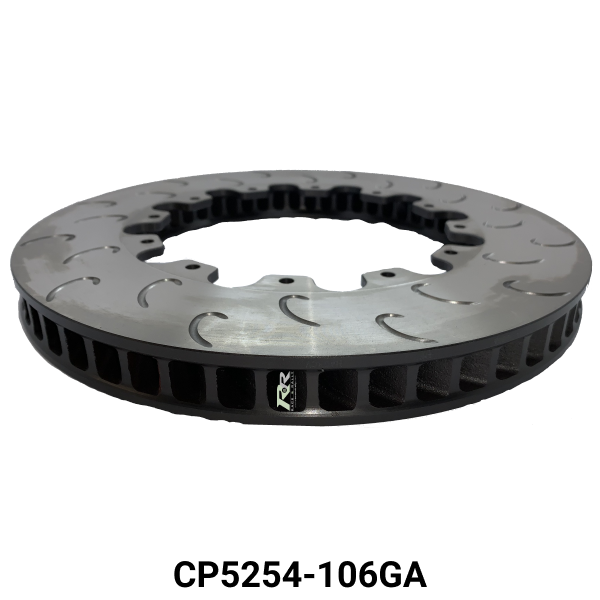

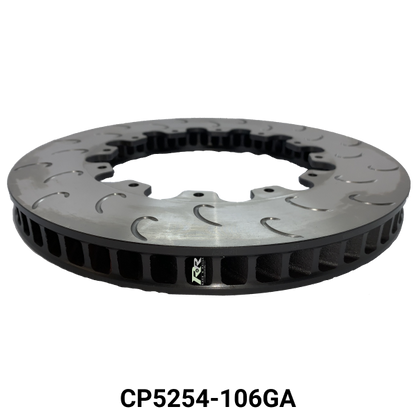

    • Lightweight: 54 Vanes (4.60 Kg)

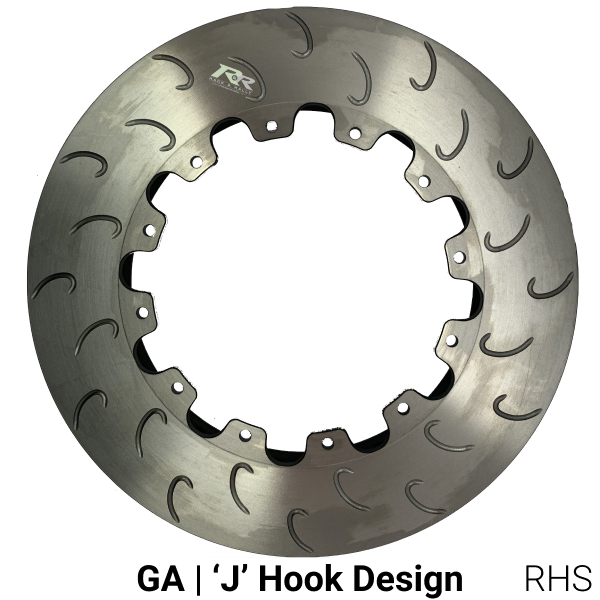

      • CP5254-106GA - Right hand ventilated brake disc - GA | 'J' Hook Face Design

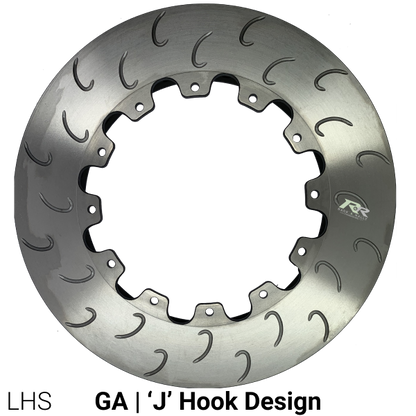

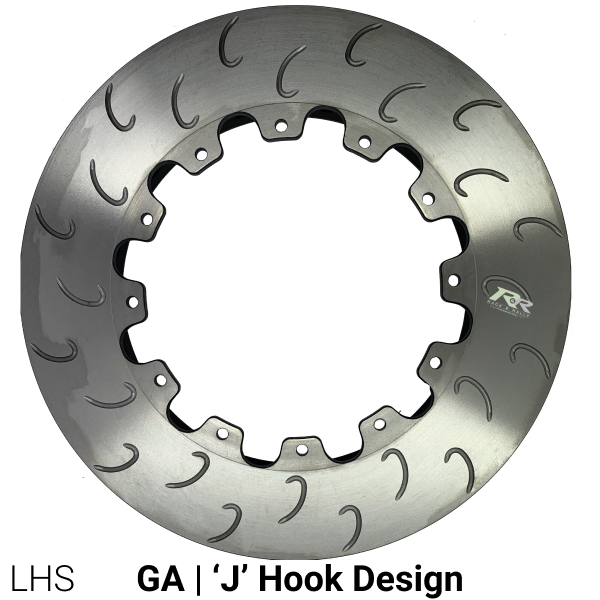

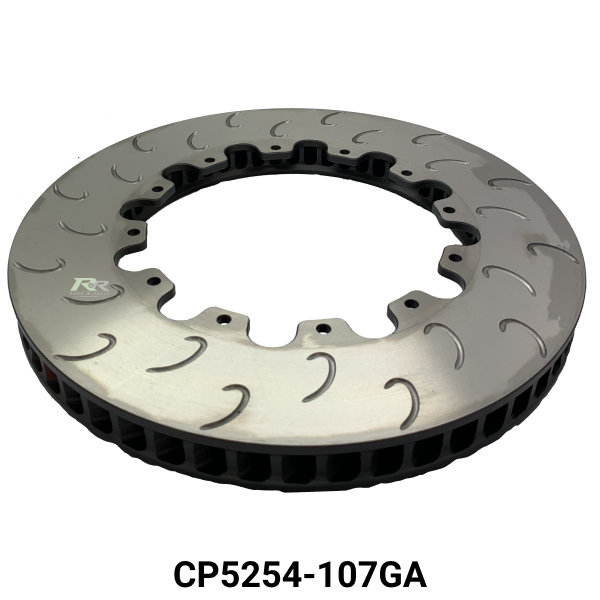

      • CP5254-107GA - Left hand ventilated brake disc - GA | J' Hook Face Design
  • 2x CNC Machined aluminum brake disc mounting bells
    • RBMR30412B177
  • 2x Brake disc bell mounting kit
    • CP3845-100K12

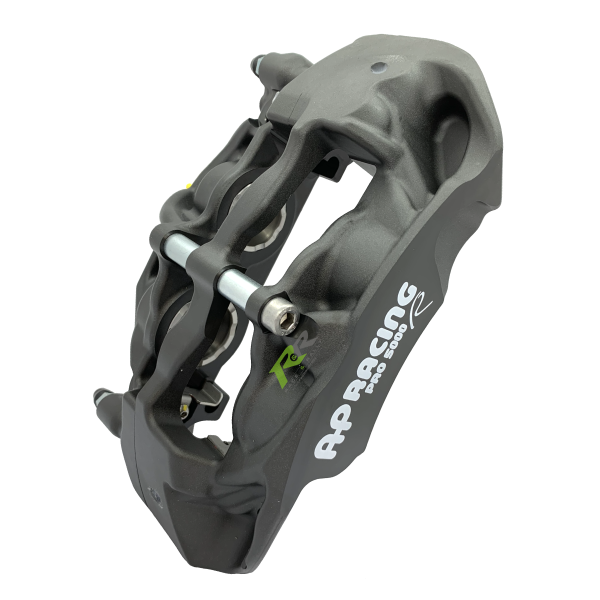

CP9440 4-POT CALIPERPRO 5000 R

Piston Sizes

2x Ø36.0mm
2x Ø41.3mm

Piston Area

47.12cm²

Weight - No Pads

2.16kg

Hydraulic Threads

M10 x 1.0

Mounting Type

Radial
152mm Mounting Centres
44.10mm Mounting Offset
Ø12.20/12.10mm Mounting Hole

'PL' Dimension

57.8mm

Brake Pad Family

AP - CP3215D50
Ferodo - FRP216
CL Brakes - 5004W50T17
PFC - 7767

Ø304 X 28.0MM VENTILATED BRAKE DISC

'A' Outside Diameter

304mm

'B' Thickness

28mm

'M' P.C.D.

177.8mm

Fixing Type: Bolted

12 Bolts
Ø6.40mm Mounting Hole

'C' Eye Diameter

203.20mm

'D' Inside Flange Diameter

48 Vanes: 164.0mm
54 Vanes: 161.0mm

'H' Mounting Flange Thickness

5.60mm

Max Pad Depth

48 Vanes: D48
54 Vanes: D50

Number of Vanes

48
54

Air Gap

48 Vanes: 14.0mm
54 Vanes: 16.0mm

Weight

48 Vanes: 5.20 kg [per disc]
54 Vanes: 4.20 kg [per disc]

Face Types Available

GA | 'J' Hook Face Design
**  'Letter' from above relates to the disc drawing below

Brand:

AP Racing

Manufacturer Part Number:

APM9440-304-28-SGA-RIX, APM9440-304-28-SGA-GRP4
