AP 15" Ultimate Front Modular Brake Kit - CP6840 Caliper - Ø310x32mm Discs - 'J' Face Design

AP 15" Ultimate Front Modular Brake Kit - CP6840 Caliper - Ø310x32mm Discs - 'J' Face Design

APM6840-310-32-GA-GRP4

€5157.14 €6343.28
Sale Sold out
  • Feature Icon 15" BRAKE KIT
  • Feature Icon CP6840 Fiesta R5 CALIPERS
  • Feature Icon Ø310MM - GA | 'J' HOOK FACE DESIGN BRAKE DISCS
  • Feature Icon SUITED FOR MODULAR SUSPENSION SETUP
  • Feature Icon COMPLETE KIT
Strut Type

View full details

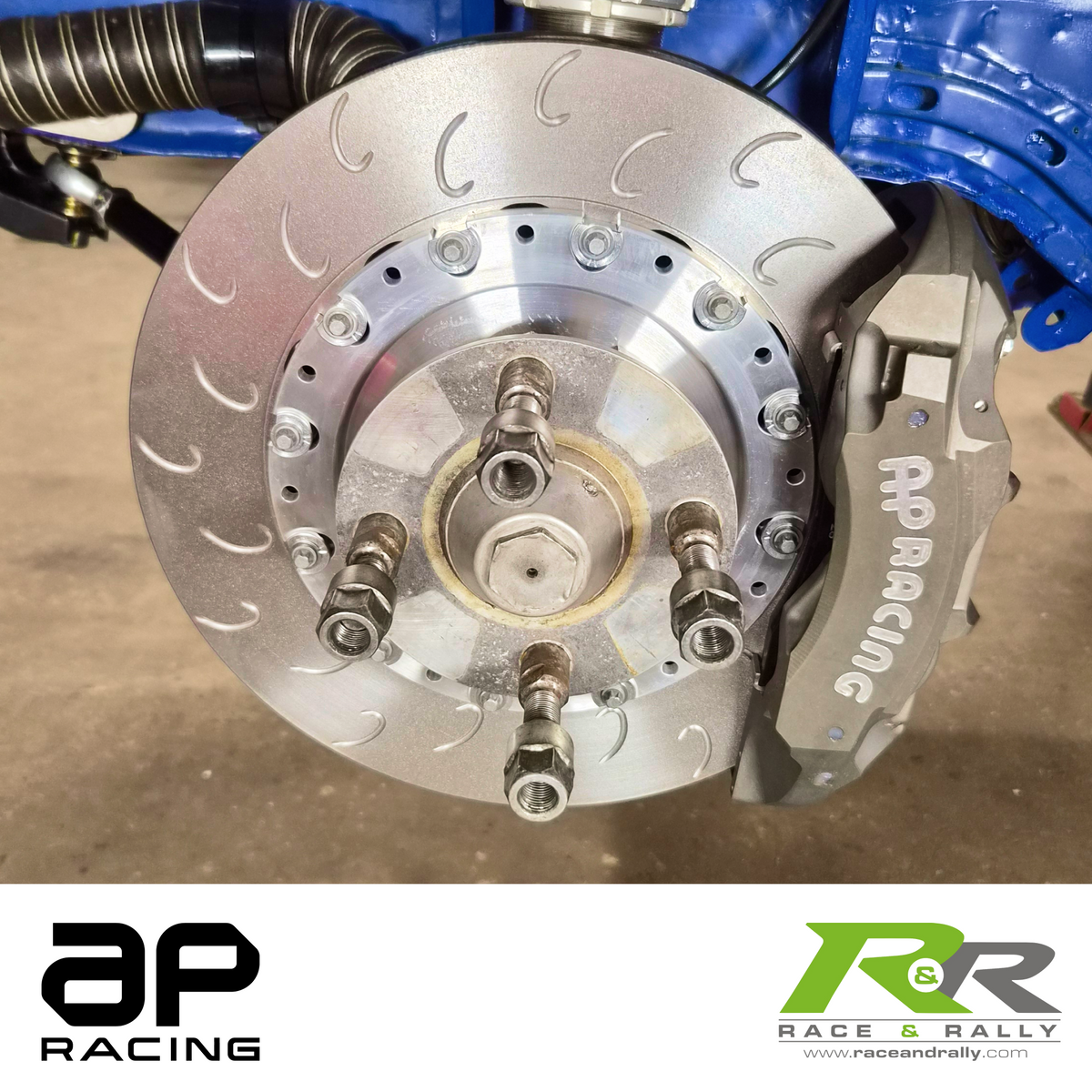

Ford Escort MK2 modern spec 15" brake kit. Kit is complete with 4-pot AP Calipers (CP6840) as used on M-Sport Fiesta R5 MKI Evo, Ø310 x 32mm brake discs and all required hardware for mounting to Escort Modular Strut Setup.

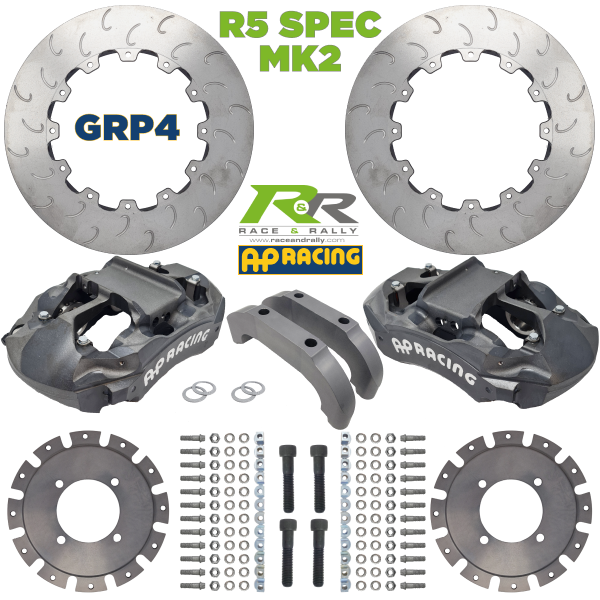

Designed to suit GRP4 or RIX Modular Suspension setups

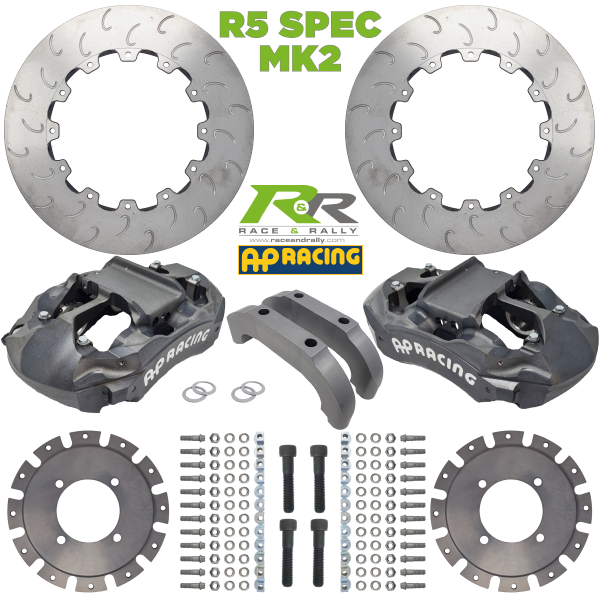

KIT CONTENTS

  • 2x AP Radial Mounted 4 Pot Caliper

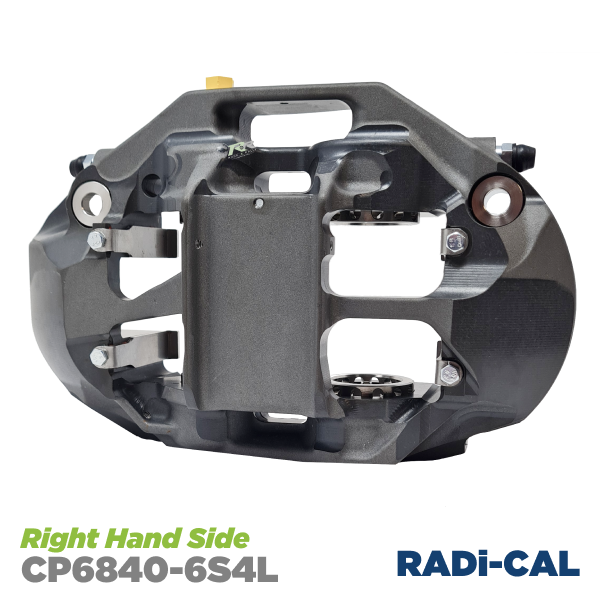

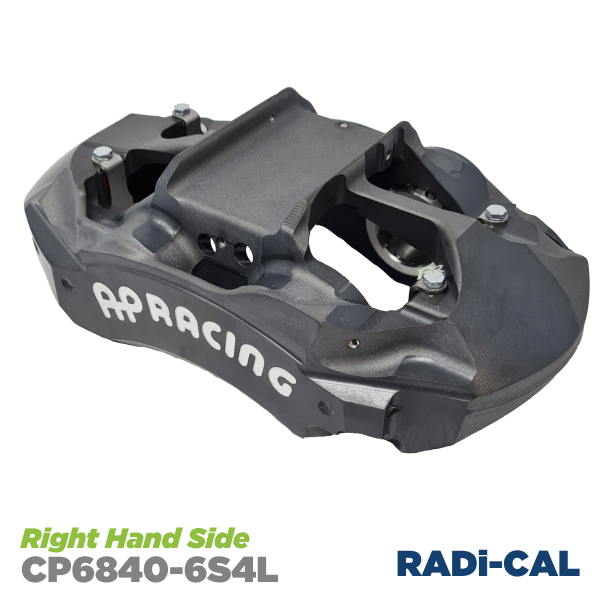

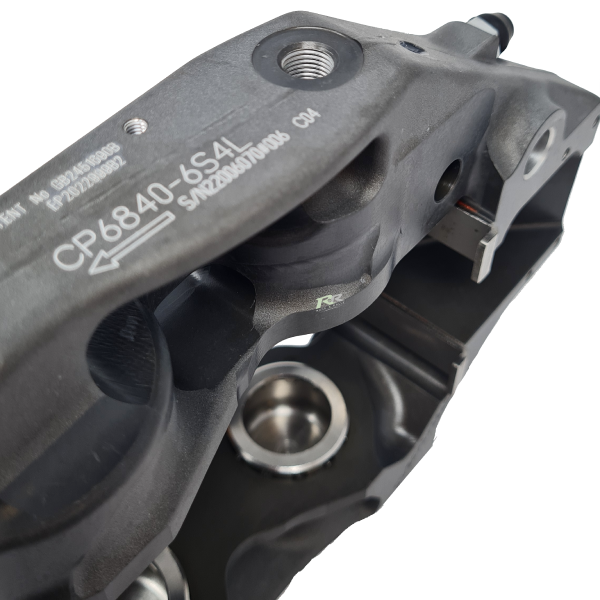

    • CP6840-6S4L - Right hand

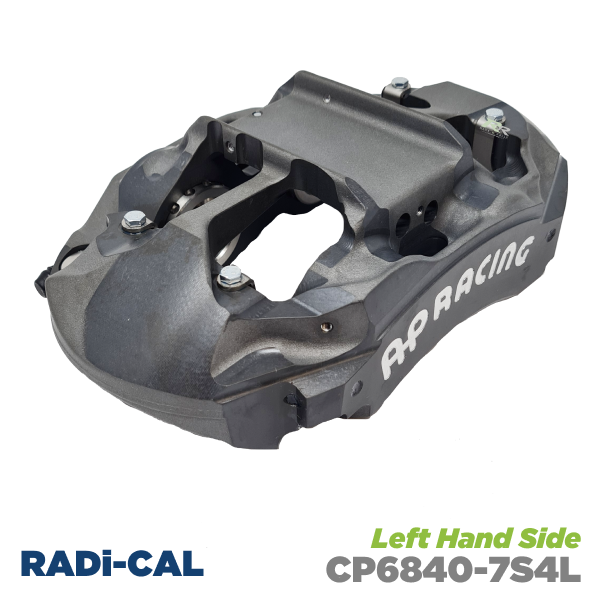

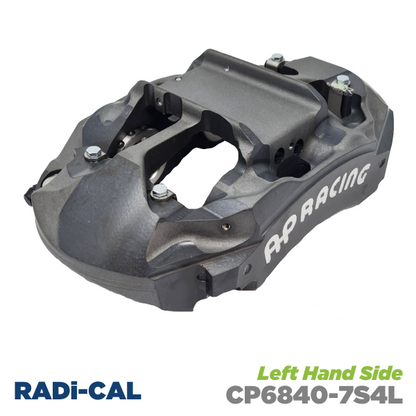

    • CP6840-7S4L - Left hand
  • 1x Pair of R&R designed caliper mounting brackets machined from Aluminium
    • RCMR684031032
  • 8x Caliper mounting bolts & washers
  • 2x AP Racing brake discs - Ø310x32mm
    • CP3047-426GA - Right hand ventilated brake disc - GA | 'J' Hook Face Design
    • CP3047-427GA- Left hand ventilated brake disc - GA | J' Hook Face Design
  • 2x CNC Machined aluminum brake disc mounting bells designed in-house
    • RBMR31012F188
  • 2x Brake disc bell mounting kit
    • CP4015-101K12

CP6840 4-POT CALIPERAs used on Fiesta R5 MKI EVO

Piston Sizes

2x Ø34.9mm
2x Ø41.3mm

Piston Area

45.9cm²

Weight - No Pads

2.16kg

Hydraulic Threads

M10 x 1.0

Mounting Type

Radial
180mm Mounting Centres
42.0mm Mounting Offset
Ø10.175mm Mounting Hole

'PL' Dimension

57.5mm

Brake Pad Family

AP - CP6820D46 / D48
Ferodo - FRP3140
CL Brakes - 5036W50T16
PFC - 7770

Ø310 X 32.0MM VENTILATED BRAKE DISC

'A' Outside Diameter

310mm

'B' Thickness

32mm

'M' P.C.D.

188mm

Fixing Type: Bolted

12 Bolts
Ø6.40mm Mounting Hole

'C' Eye Diameter

206mm

'D' Inside Flange Diameter

204.2mm

'H' Mounting Flange Thickness

4.50mm

Max Pad Depth

D50.6

Number of Vanes

48

Air Gap

21mm

Weight

4.5 kg [per disc]

Face Types Available

GA | 'J' Hook Face Design
**  'Letter' from above relates to disc drawing below

Brand:

AP Racing

Manufacturer Part Number:

APM6840-310-32-GA-GRP4, APM6840-310-32-GA-RIX
