AP 15" Front Modular Brake Kit - CP5040 Caliper - Ø304x28mm Discs - 'J' Hook Face Design

AP 15" Front Modular Brake Kit - CP5040 Caliper - Ø304x28mm Discs - 'J' Hook Face Design

APM5040-304-28-SGA-RIX

€2515.76 €3094.38
Sale Sold out
  • Feature Icon 15" BRAKE KIT
  • Feature Icon CP5040 Pro 5000 CALIPERS
  • Feature Icon Ø304MM - GA | 'J' HOOK FACE DESIGN BRAKE DISCS
  • Feature Icon SUITED FOR MODULAR SUSPENSION SETUP
  • Feature Icon COMPLETE KIT
Strut Type

View full details

Ford Escort MK2 modern spec 15" brake kit. Kit is complete with 4-pot AP Calipers (CP5040), Ø304 x 28mm brake discs, and all required hardware for mounting to Escort Modular Strut Setup.

Designed to suit GRP4 or RIX Modular Suspension setups

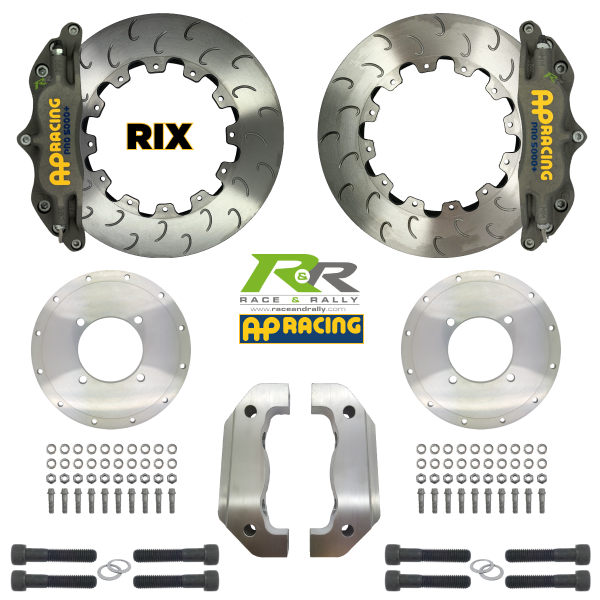

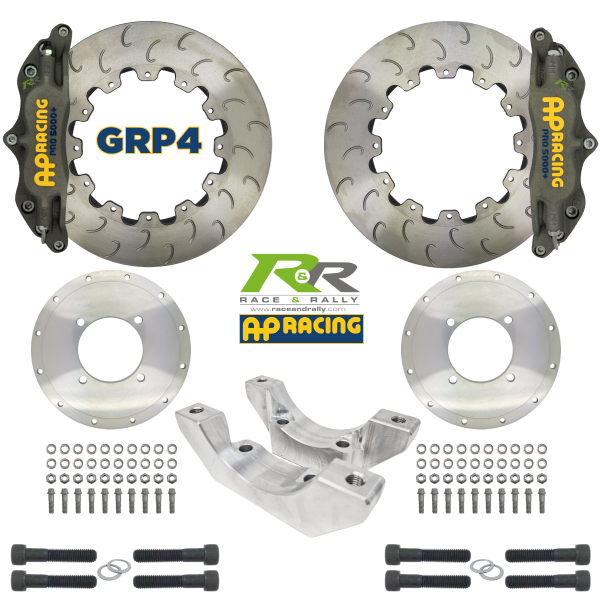

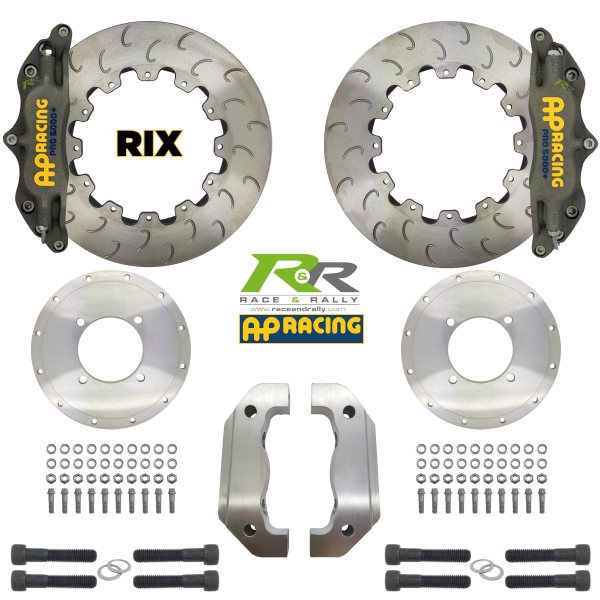

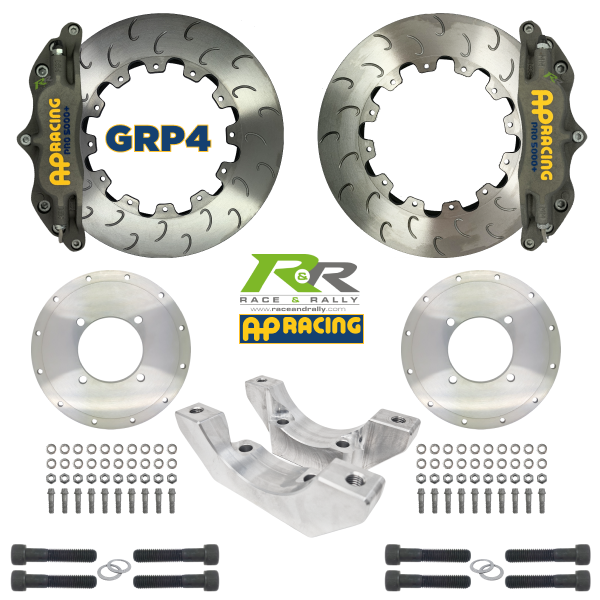

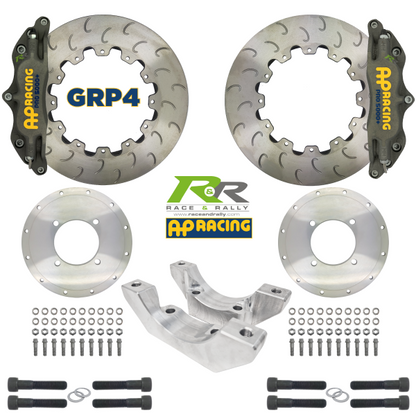

KIT CONTENTS

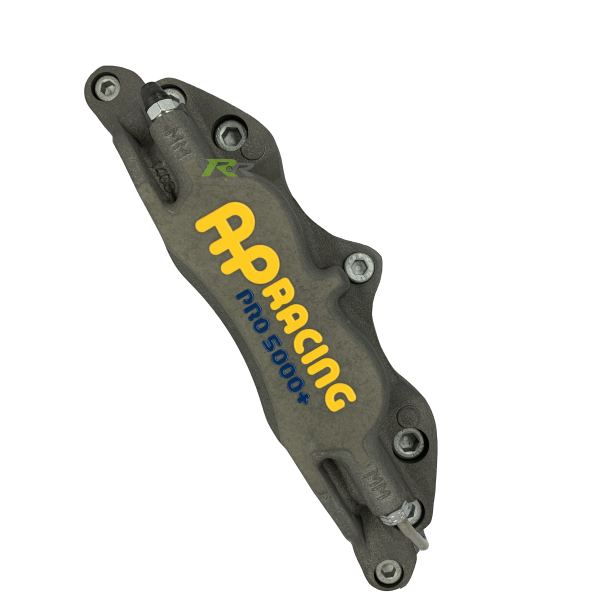

  • 2x AP Radial Mounted 4 Pot Caliper
    • CP5040-2S4L - Right hand
    • CP5040-3S4L - Left hand

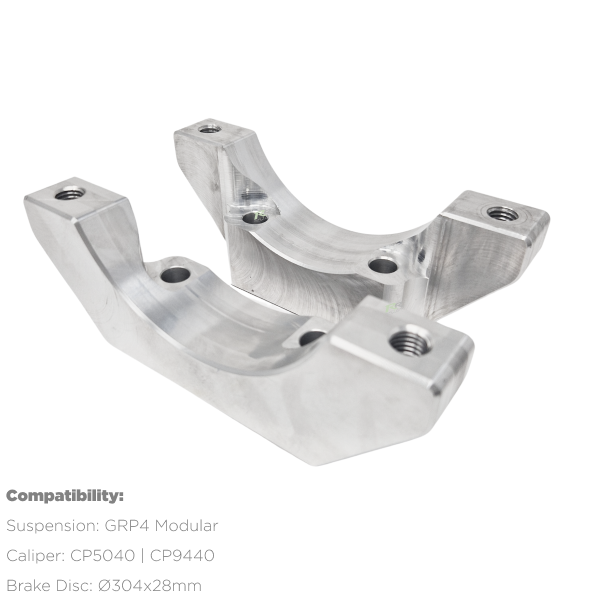

  • 1x Pair of caliper mounting brackets machined from Aluminium to suit the selected setup
    • RCMR504030428-RIX
    • RCMR504030428-GRP4
  • 8x Caliper mounting bolts & washers

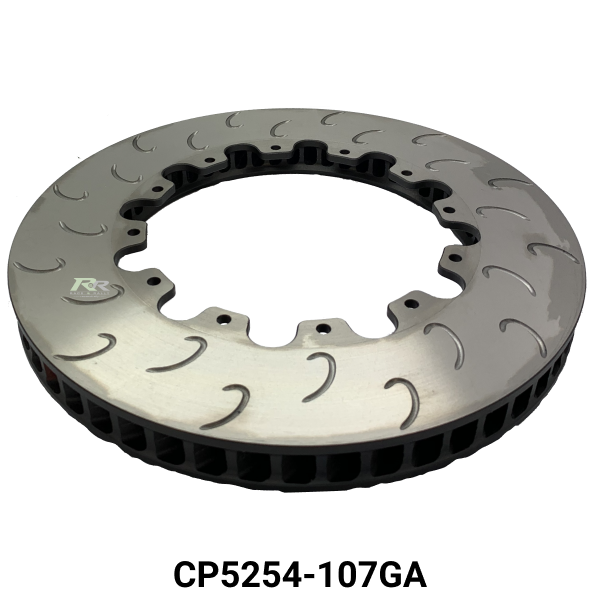

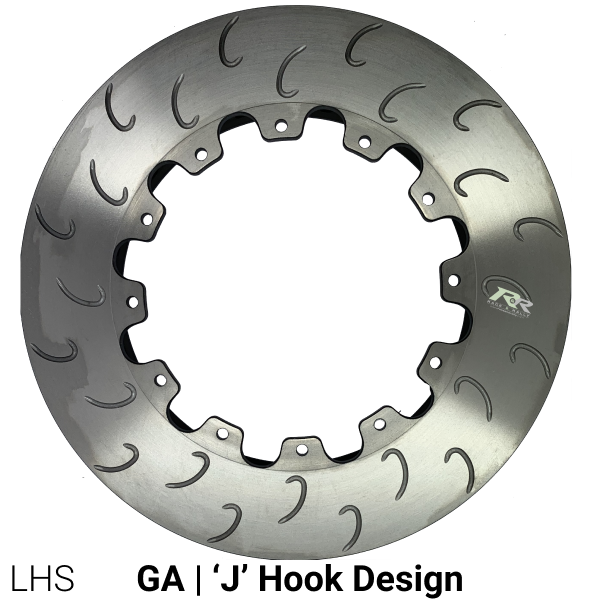

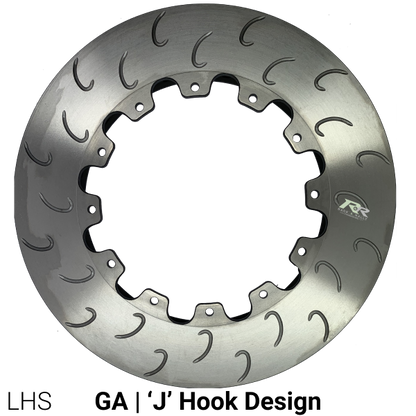

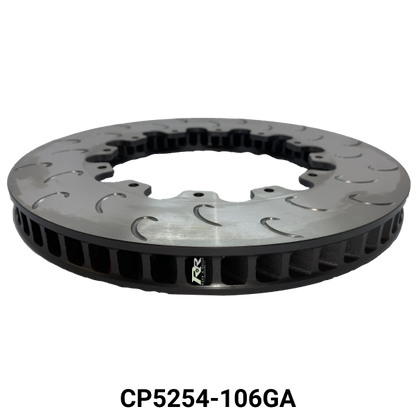

  • 2x AP Racing brake discs - Ø304x28mm

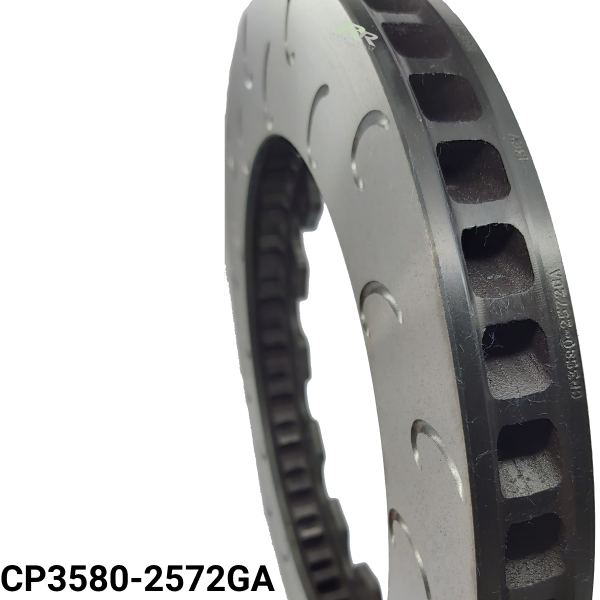

    • Standard: 48 Vanes (5.20 Kg)

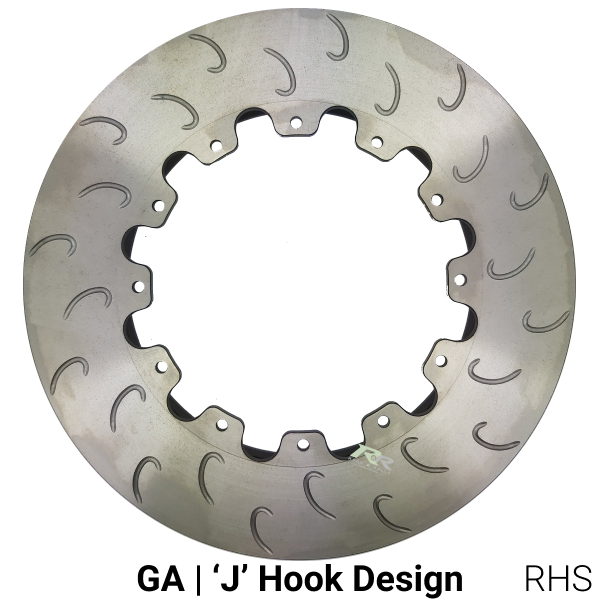

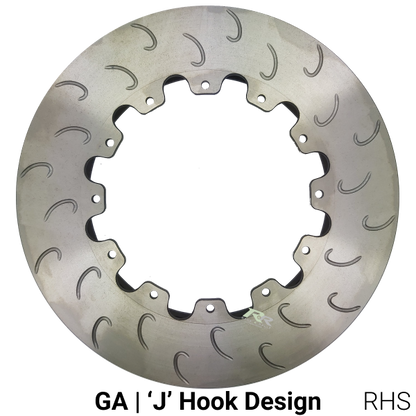

      • CP3580-2572GA - Right hand ventilated brake disc - GA | 'J' Hook Face Design

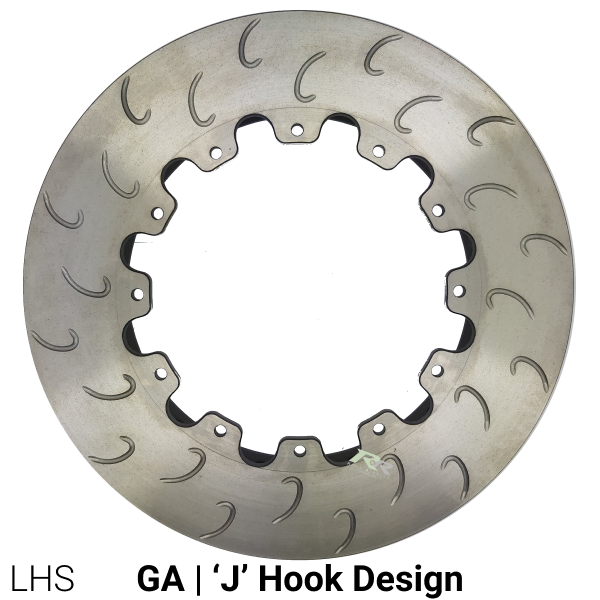

      • CP3580-2573GA - Left hand ventilated brake disc - GA | J' Hook Face Design
    • Lightweight: 54 Vanes (4.60 Kg)

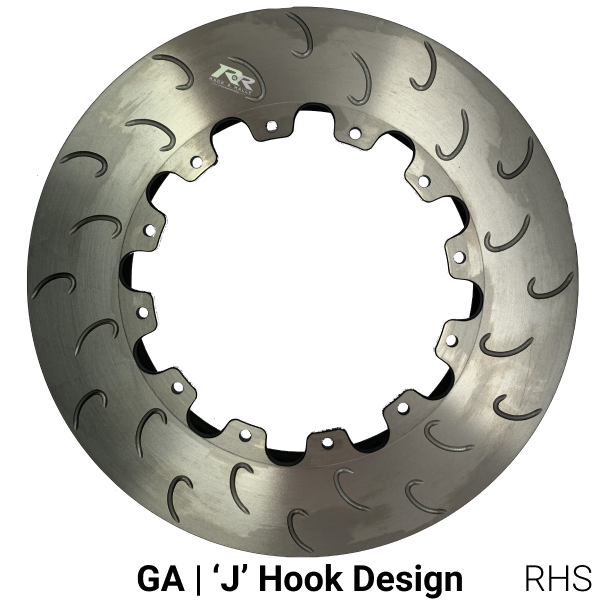

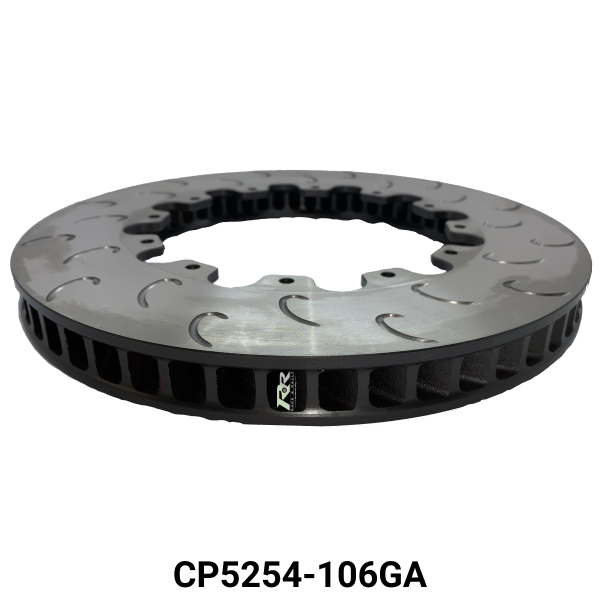

      • CP5254-106GA - Right hand ventilated brake disc - GA | 'J' Hook Face Design
      • CP5254-107GA - Left hand ventilated brake disc - GA | J' Hook Face Design
  • 2x CNC Machined aluminum brake disc mounting bells
    • RBMR30412B177
  • 2x Brake disc bell mounting kit
    • CP3845-100K12

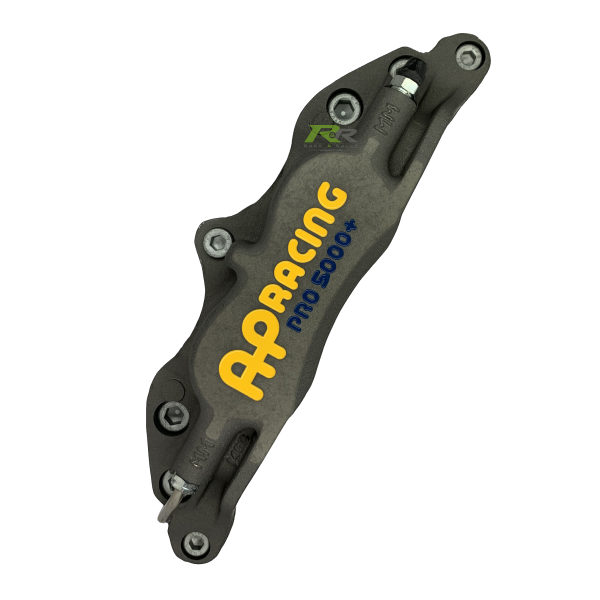

CP5040 4-POT CALIPERPRO 5000+

Piston Sizes

2x Ø38.1mm
2x Ø41.3mm

Piston Area

49.2cm²

Weight - No Pads

2.60kg

Hydraulic Threads

M10 x 1.0

Mounting Type

Radial
152mm Mounting Centres
44.10mm Mounting Offset
Ø12.20mm Mounting Hole

'PL' Dimension

57.8mm

Brake Pad Family

AP - CP3215D50
Ferodo - FRP216
CL Brakes - 5004W50T17
PFC - 7767

Ø304 X 28.0MM VENTILATED BRAKE DISC

'A' Outside Diameter

304mm

'B' Thickness

28mm

'M' P.C.D.

177.8mm

Fixing Type: Bolted

12 Bolts
Ø6.40mm Mounting Hole

'C' Eye Diameter

203.20mm

'D' Inside Flange Diameter

48 Vanes: 164.0mm
54 Vanes: 161.0mm

'H' Mounting Flange Thickness

5.60mm

Max Pad Depth

48 Vanes: D48
54 Vanes: D50

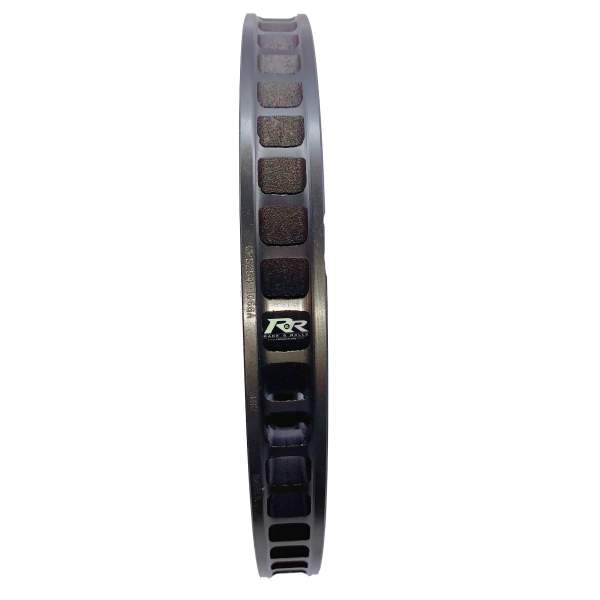

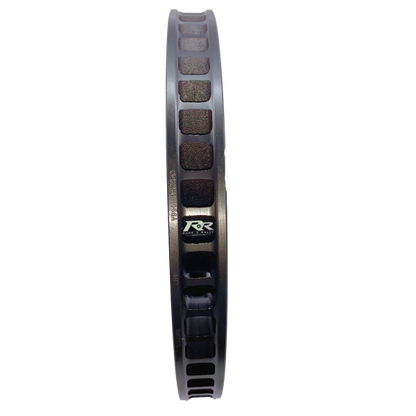

Number of Vanes

48
54

Air Gap

48 Vanes: 14.0mm
54 Vanes: 16.0mm

Weight

48 Vanes: 5.20 kg [per disc]
54 Vanes: 4.20 kg [per disc]

Face Types Available

GA | 'J' Hook Face Design
**  'Letter' from above relates to the disc drawing below

Brand:

AP Racing

Manufacturer Part Number:

APM5040-304-28-SGA-RIX, APM5040-304-28-SGA-GRP4
