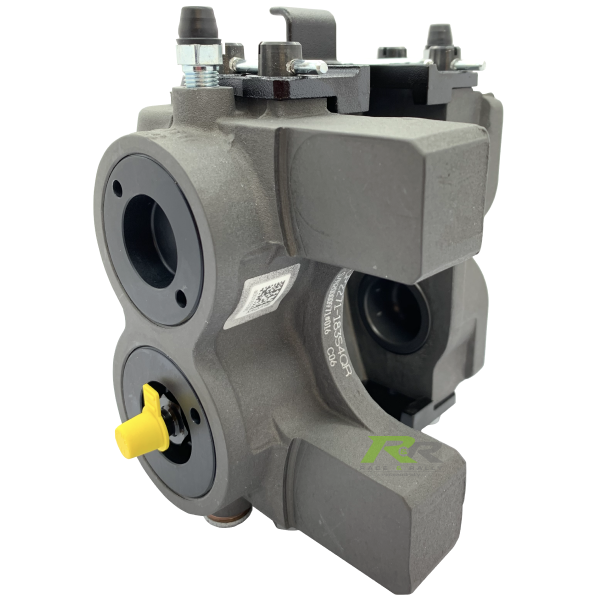

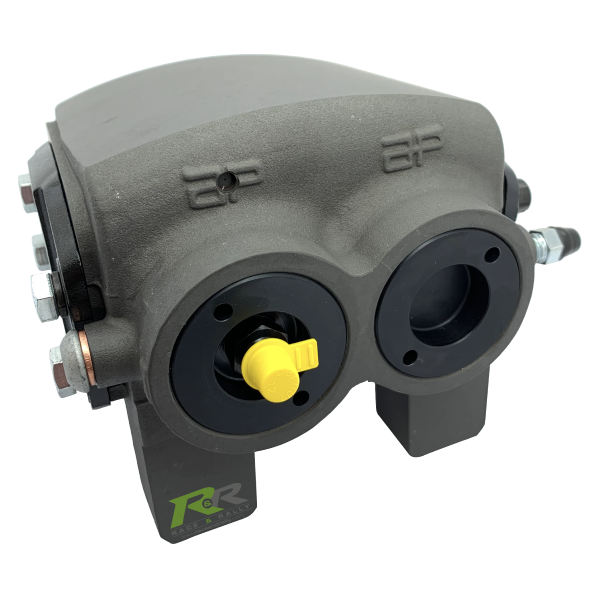

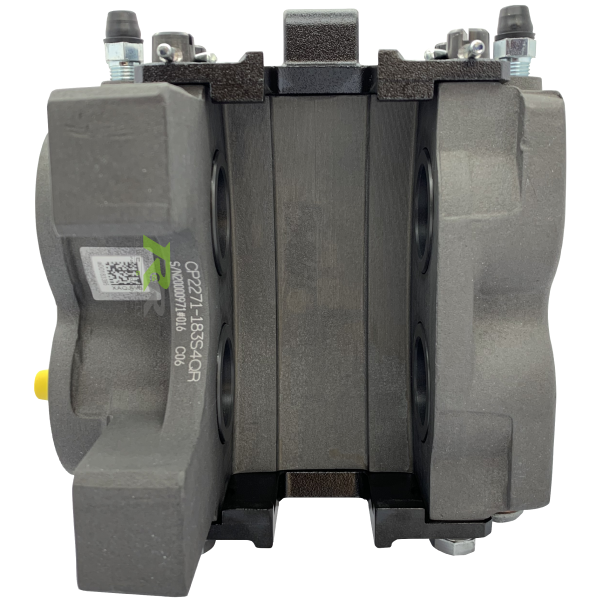

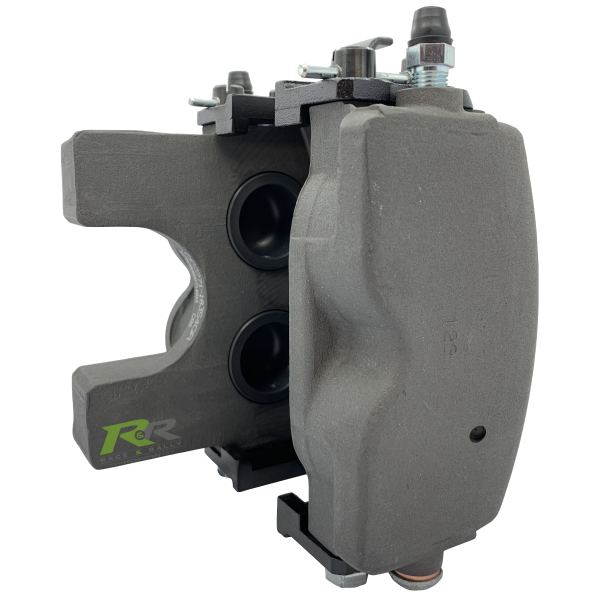

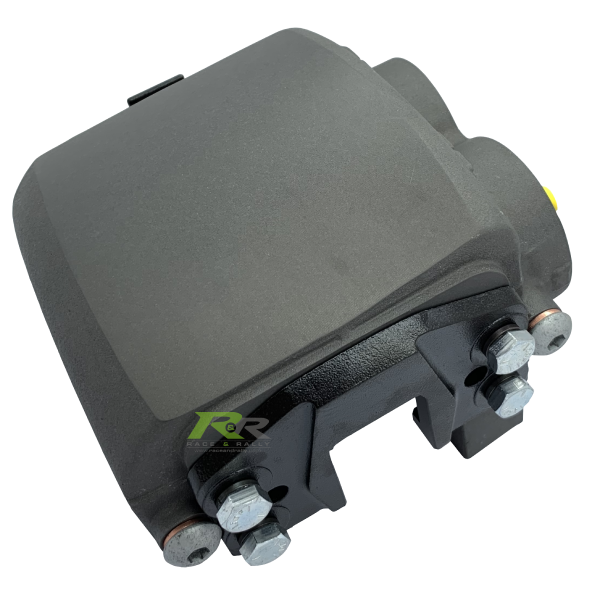

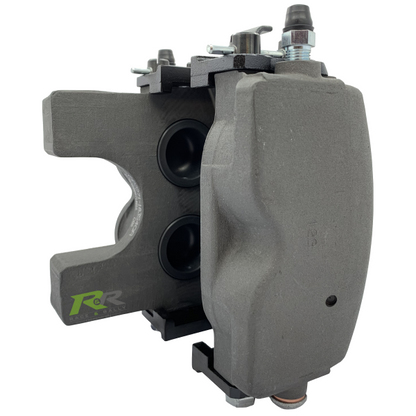

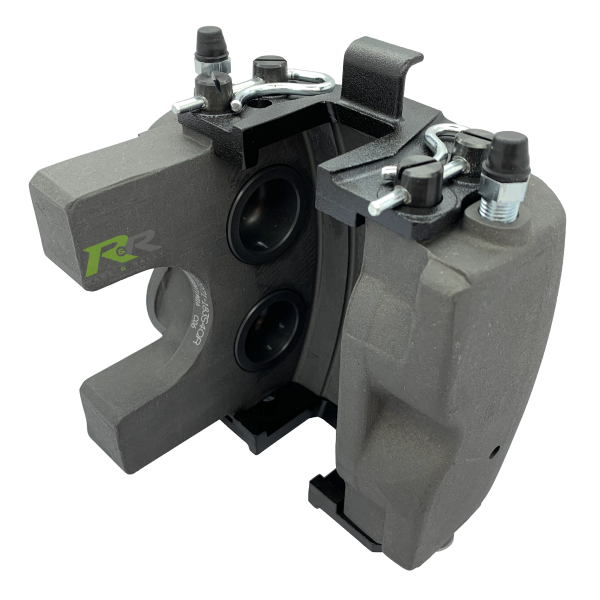

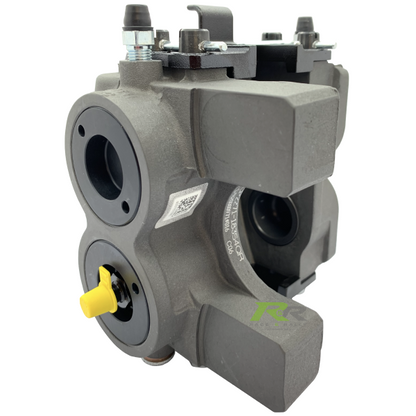

CP2271 - 4 Piston Closed Backed "Monte Carlo" Caliper

SKU:CP2271-182S4QR

€1076.87 €1324.55

Sale Sold out

Front Caliper suitable for 13" to 16" wheels
Rally
Sports GT
Saloons

Piston Diameter Ø38.1mm x4

Caliper Hand Right Hand Left Hand

Quantity

In stock

View full details

CP2271 - Closed Backed also Known as "Monte Carlo" Caliper

Applications:

Front Caliper suitable for 13" to 16" wheels.
Rally.
Sports GT.
Saloons.

Features:

Blank Lug mount.
Closed back Aluminium alloy body.
Hard anodised surface treatment.
Suits Ø302.0 to 260.0 x 28.0mm disc.
Aluminium alloy Pistons.
High temperature seals.

Part Numbers:

Right Hand = CP2271-182S4QR.
Left Hand = CP2271-183S4QR.

Technical Specifications:

Piston Sizes	Ø38.1mm x 4
Piston Area	45.6 cm²
Disc Diameter	Max - Ø302.0 Min Ø260.0
Disc Thickness	28mm
Weight (no pads)	2.7 Kg
Hydraulic Threads	3/8"x24UNF
Mounting Type	Blank Lug
Mounting Centres	76.2mm / 94.0mm
Mounting Offset	33.3mm / 42.4mm
'PL' Dimension	66.3mm / 85.6mm
Bleed Screw Tightening Torque	17Nm

Spare Parts

Pistons	CP2260-66
Seal Repair Kit	CP4518-JJ
Anti-knockback Springs	CP6518-4LBLL
Bleed Screw	CP3720-182

Brake Pads

Pad Shape	CP2270D50
Pad Area	56.3cm²
Pad Depth	50.3mm
Thickness	16.6mm

CP2271-1CD - Installation Drawing Spare Parts.pdf

Option	SKU	Barcode
Brand	AP Racing
Ø38.1mm x4 / Right Hand	CP2271-182S4QR
Ø38.1mm x4 / Left Hand	CP2271-183S4QR
