Cable Handbrake Mechanism Fitted -
CP2577 2 Piston Caliper
-
Non-Handed
-
Ø44.5mm Piston
Cable Handbrake Mechanism FittedOut of stock, contact for leadtime

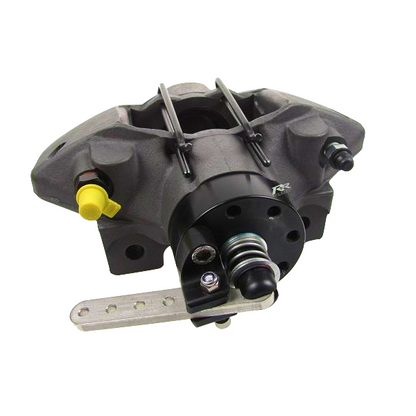

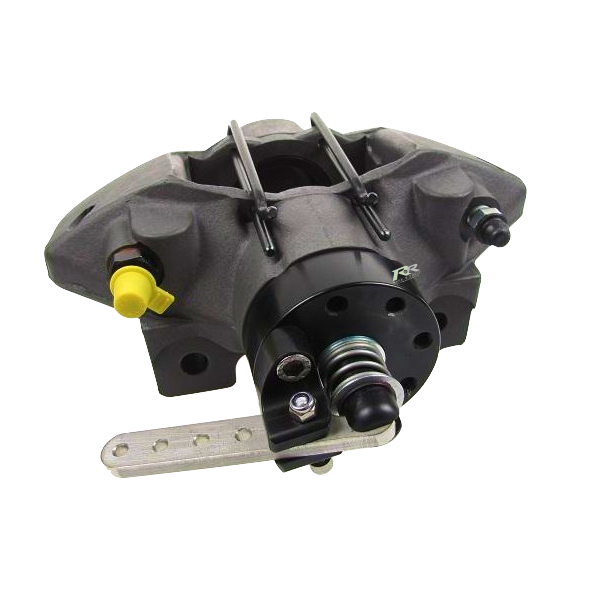

Aluminium - Lug Mount - CP2577 Cable Handbrake
- Rally / Circuit Rear.
Features:
- Lug Mount, 89mm centres.
- Aluminium alloy body.
- Non handed.
- Suits Ø267mm x 9.7mm solid disc.
- Aluminium Pistons.
- Piston dirt seals fitted.
- High temperature seals.
-
Quick release 'R' Clip pad retainer.
- Handbrake Mechanism Fitted
Part Numbers:

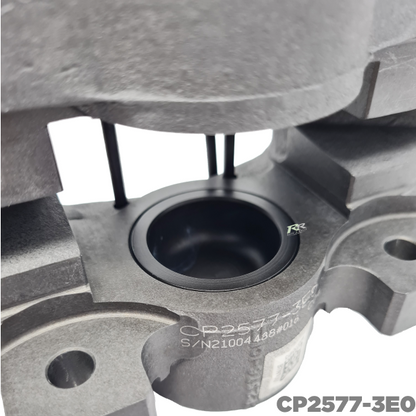

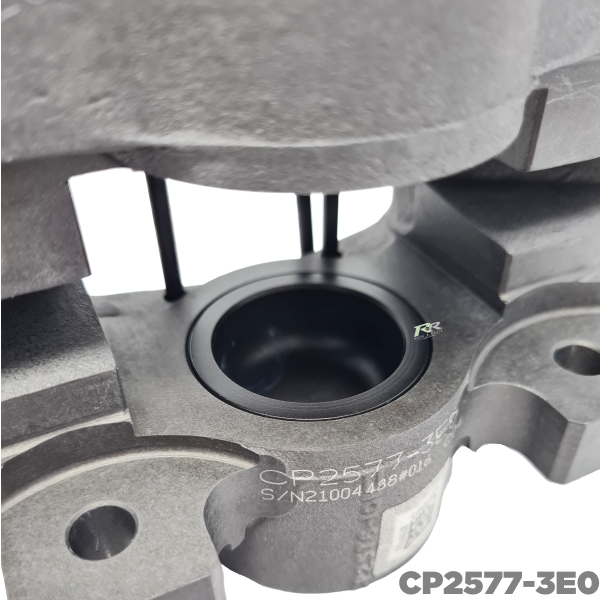

- Ø44.5mm Bore - CP2577-3E0.
Technical Specifications:
| Piston Sizes |
CP2577 = Ø44.5mm |
| Disc Diameter |
Max = Ø267.00mm |
| Disc Thickness |
Max = 9.70mm |
| Weight (no pads) | 1.10 Kg |
| Hydraulic Threads | 3/8"x24UNF |
| Mounting Type | Lug |
| Mounting Centres | 89.00mm |
| Mounting Offset |
CP2577-3E0 = 24.6mm |
| Mounting Hole | Ø9.6mm |
| 'PL' Dimension |
CP2577-3E0 = 46.9mm |
| Bleed Screw Tightening Torque | 17Nm |
Spare Parts
|
Pistons |
CP2577 = CP2577-102 |
| Seal Repair Kit |
CP2577 = CP4518-L |
| Pad Retainer |
R Clip - CP2213-17 |
| Bleed Screw |
CP3720-182 |
Brake Pads
| Pad Shape |
CP2399D43 |
| Pad Area | 27.4cm² |
| Pad Depth | 42.9mm |
| Thickness | 14.4mm |
cp2577 - Customer Drawing.pdf
| Brand | AP Racing |
|---|---|
| SKU | Barcode |
| CP2577-3E0HB |
