CP4567 - 4 Piston Radial Caliper - 152mm Centres

CP4567 - 4 Piston Radial Caliper - 152mm Centres

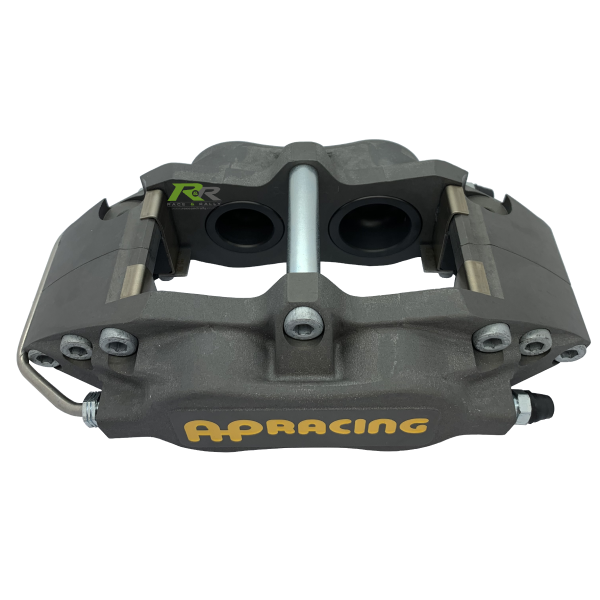

CP4567-8S4

€573.56 €705.48
Sale Sold out
Piston Diameter
Brake Disc Thickness
Caliper Hand
View Docs

Out of stock, contact for leadtime

View full details

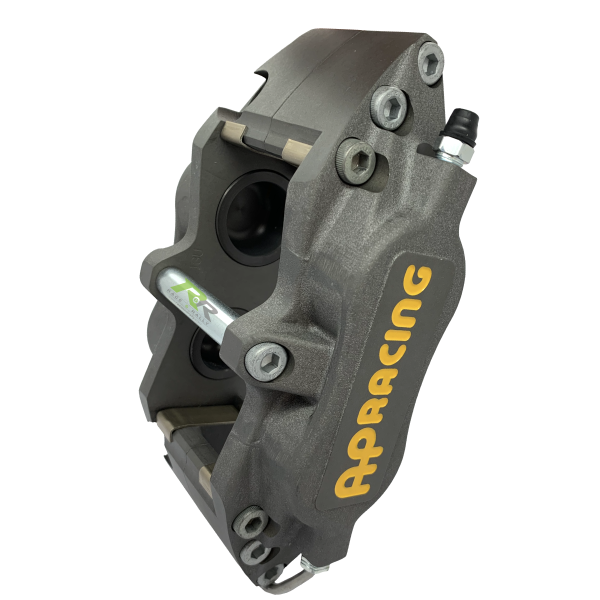

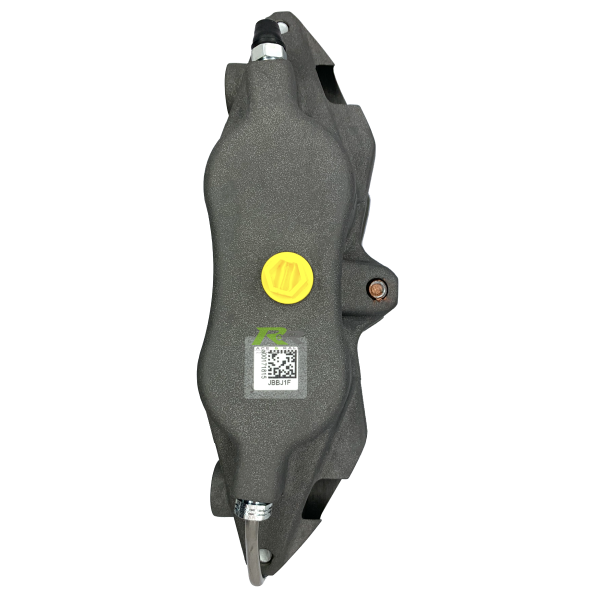

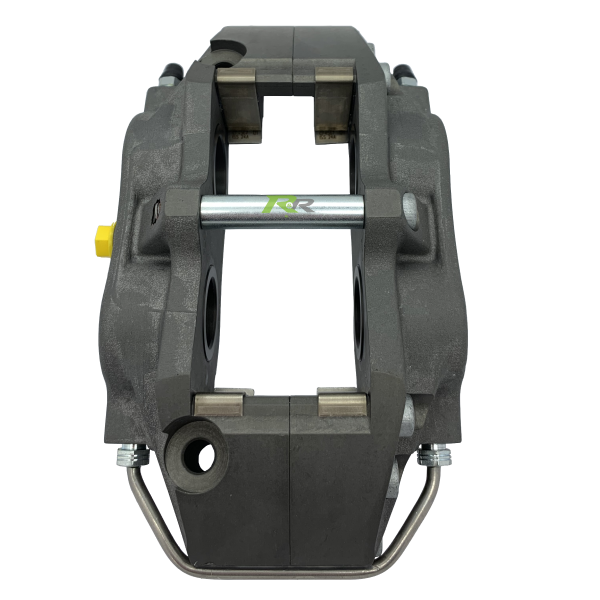

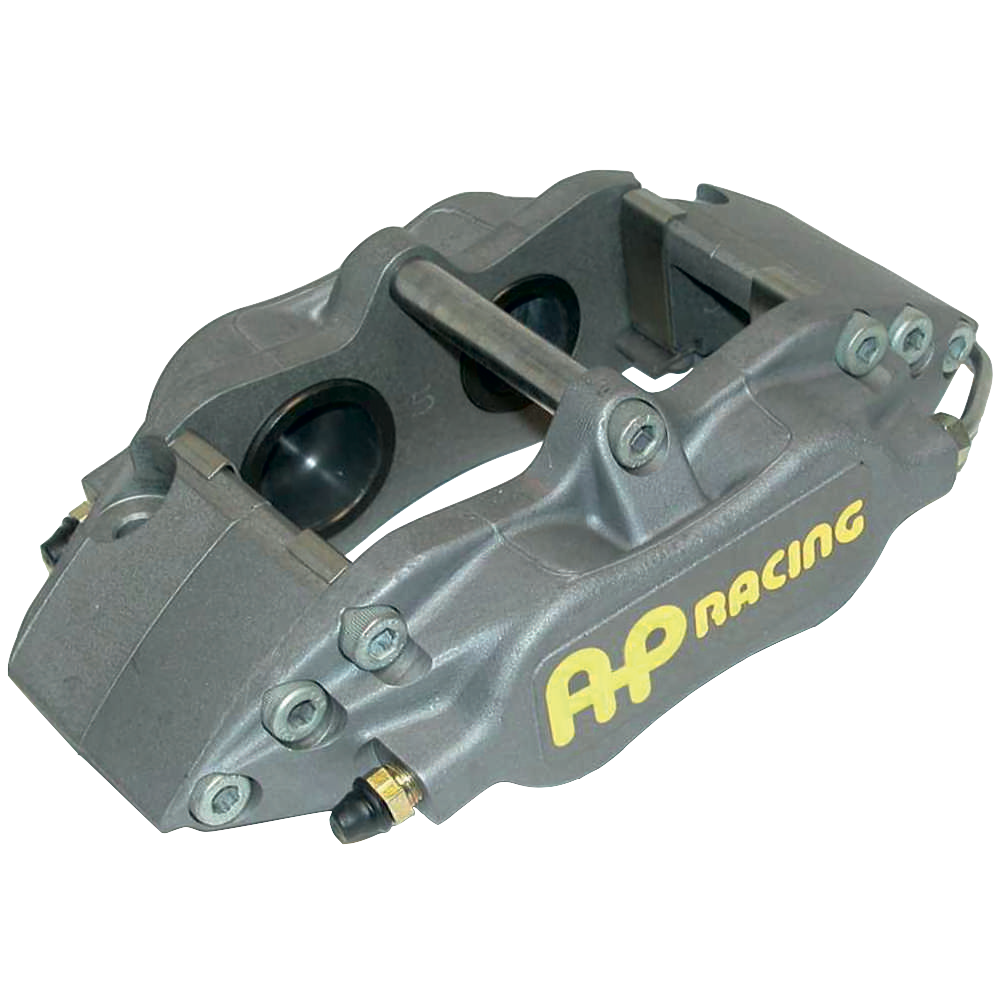

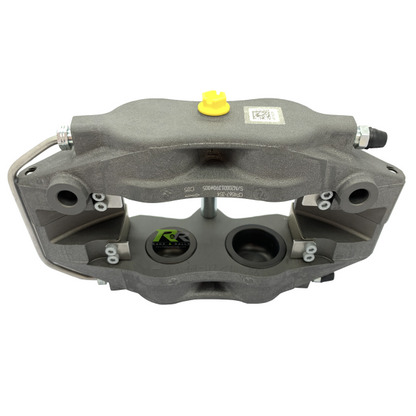

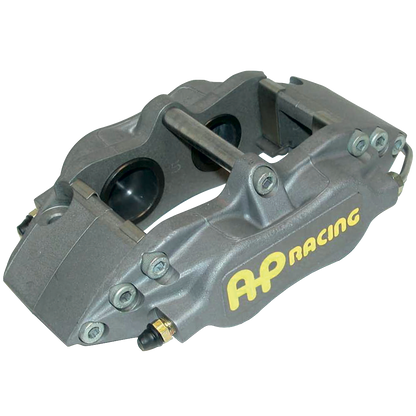

Radial 4 Piston - Two Piece Cast body - CP4567

Applications:

  • Front & Rear for 13" wheel.

Features:

  • Radial Mount, 152 centres.
  • Two piece cast aluminium alloy body.
  • Suits Ø280 x 25.4 / 20.0mm discs.
  • Aluminium pistons.
  • Single bolt pad retainer.
  • Stainless steel wear plates fitted.
  • 4lb Anti-knockback springs fitted.

Part Numbers:

  • To suit disc Ø280x25.4mm

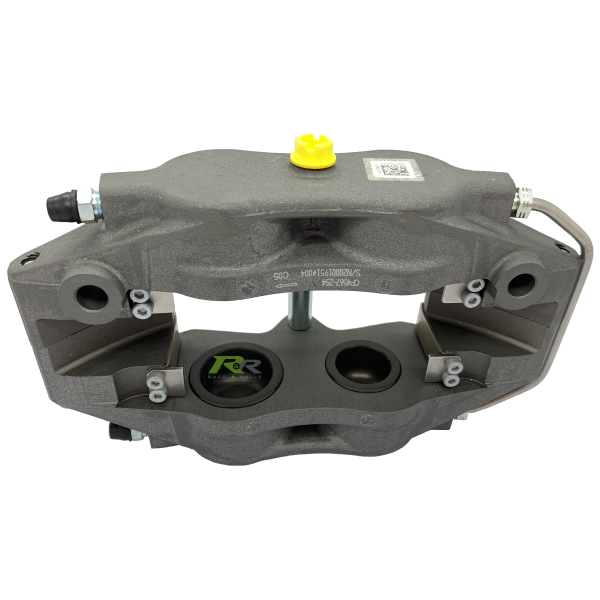

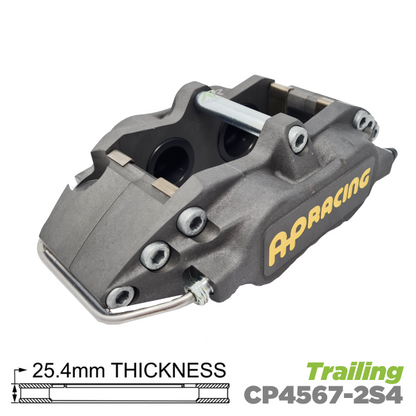

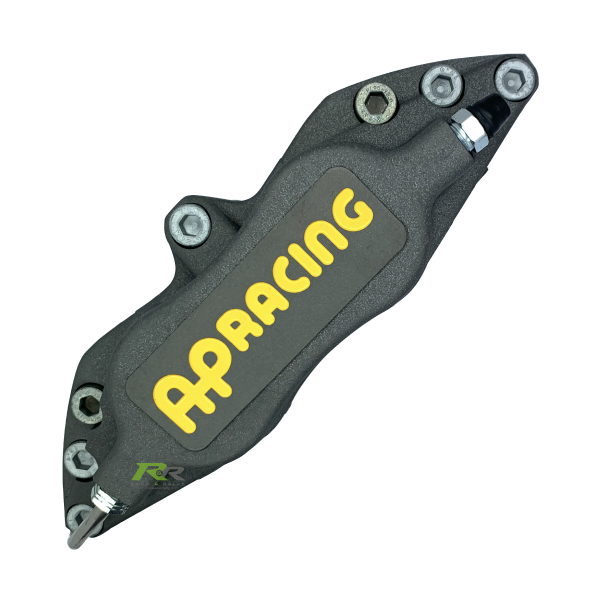

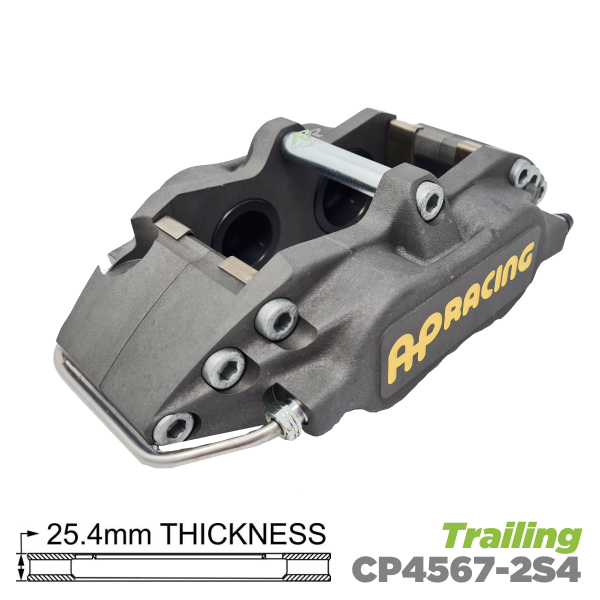

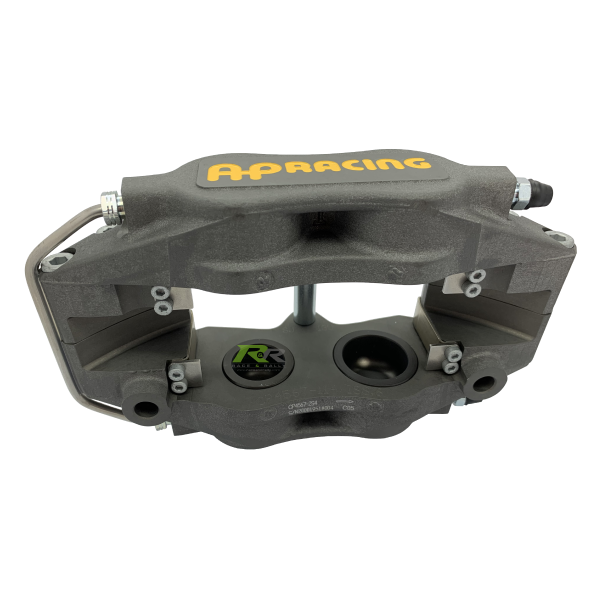

    • Right-hand Trailing - CP4567-2S4

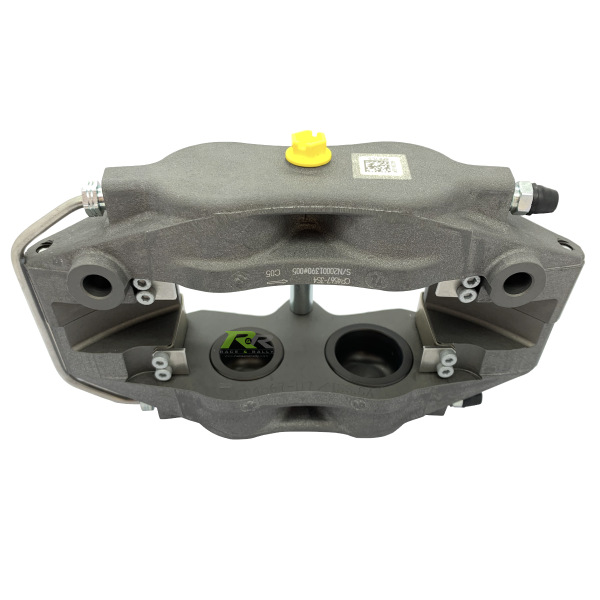

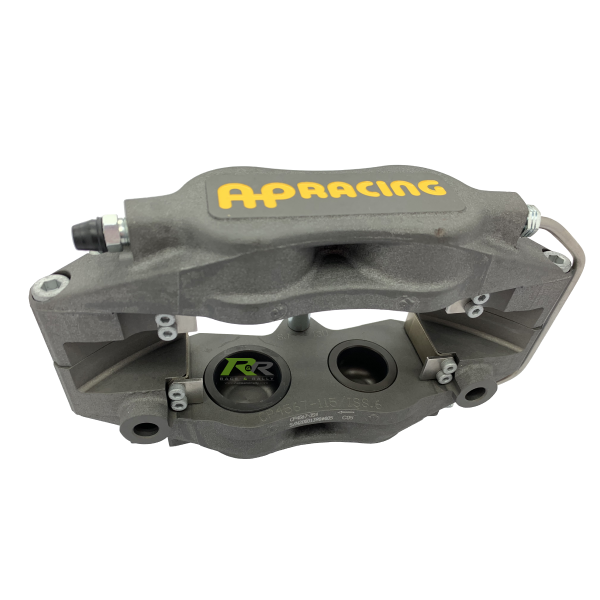

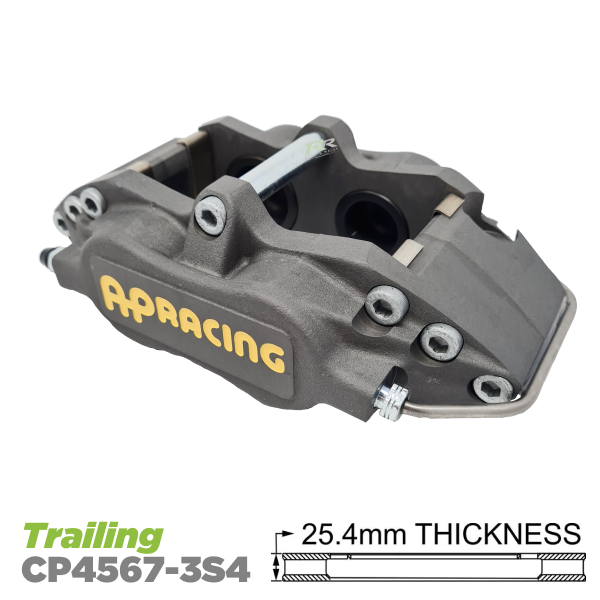

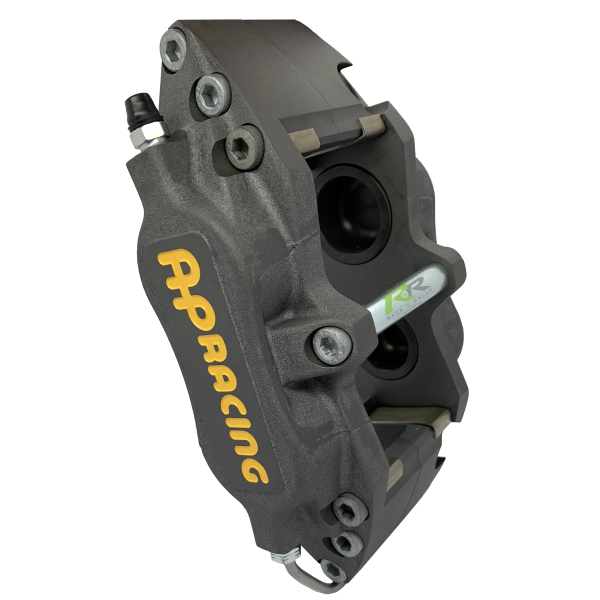

    • Left-hand Trailing - CP4567-3S4
    • Right-hand Leading - CP4567-4S4
    • Left-hand Leading - CP4567-5S4
  • To suit disc Ø280x20.0mm

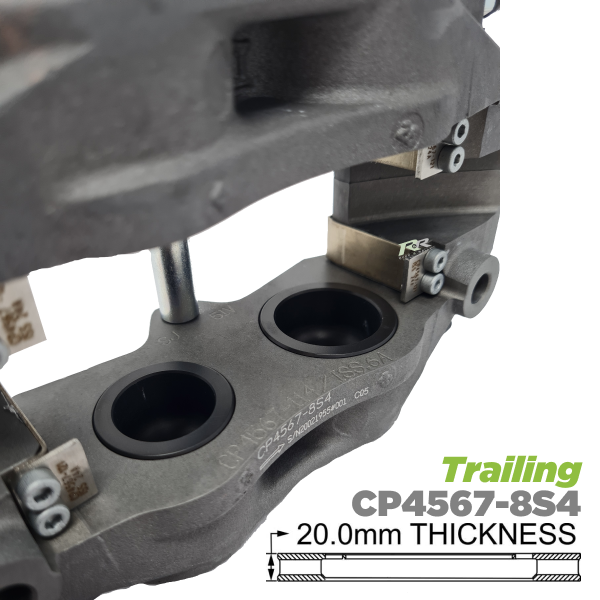

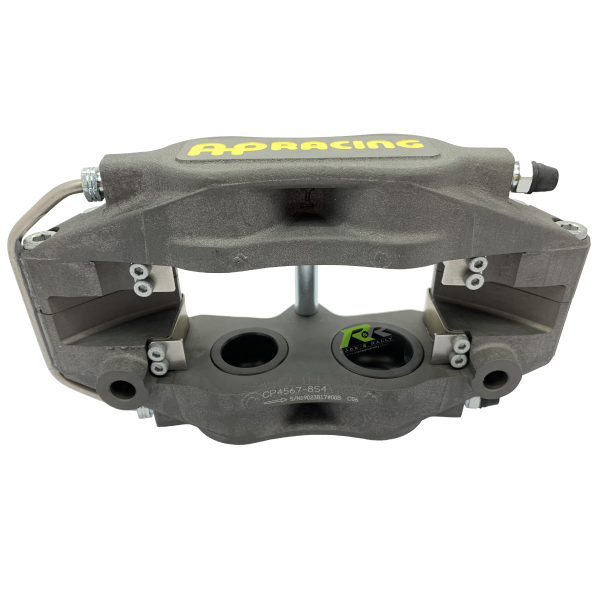

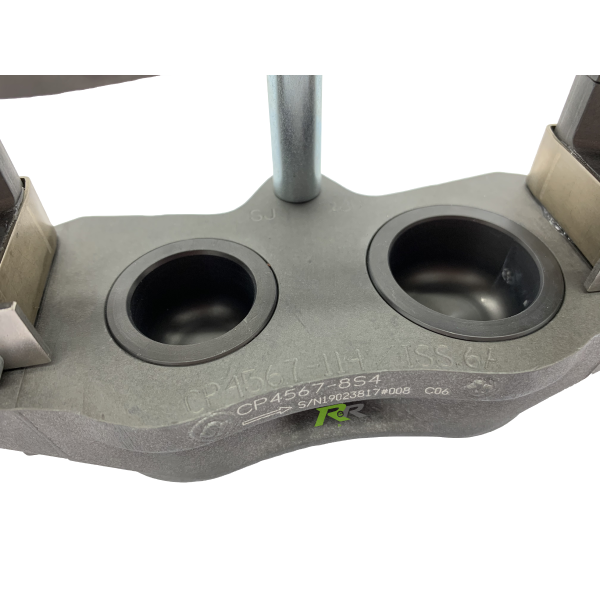

    • Right-hand Trailing - CP4567-8S4

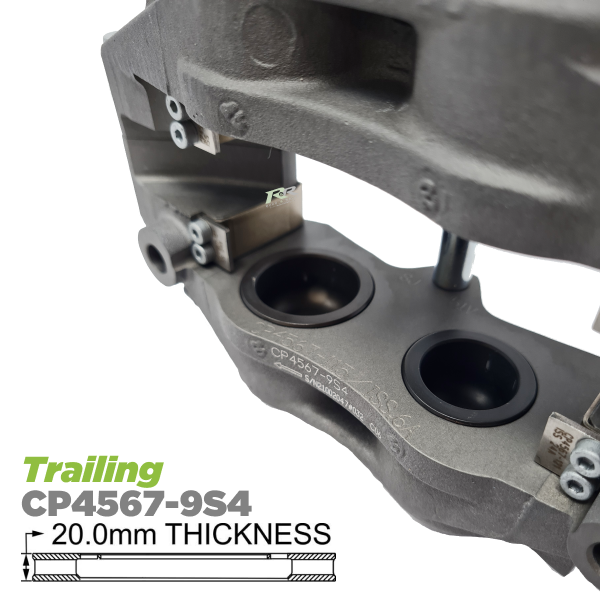

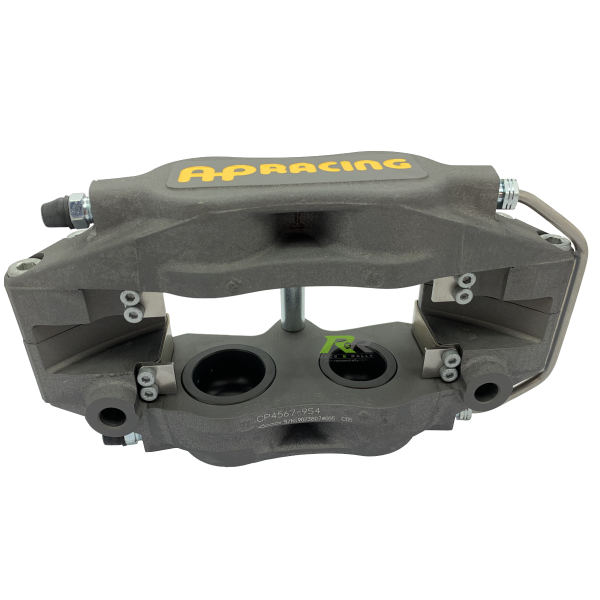

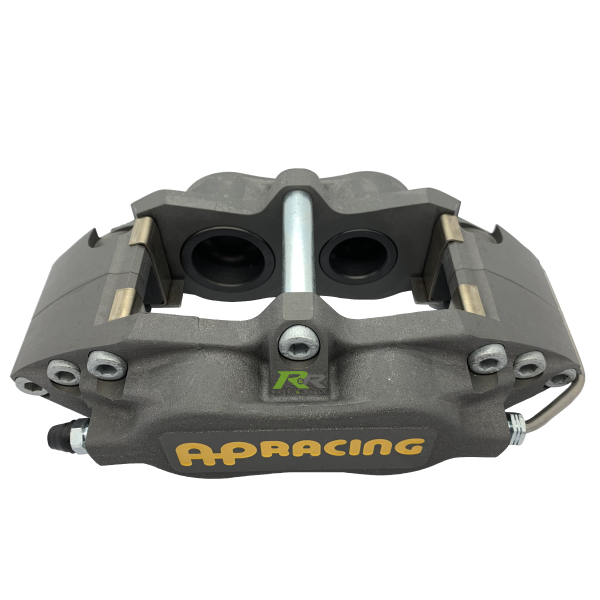

    • Left-hand Trailing - CP4567-9S4

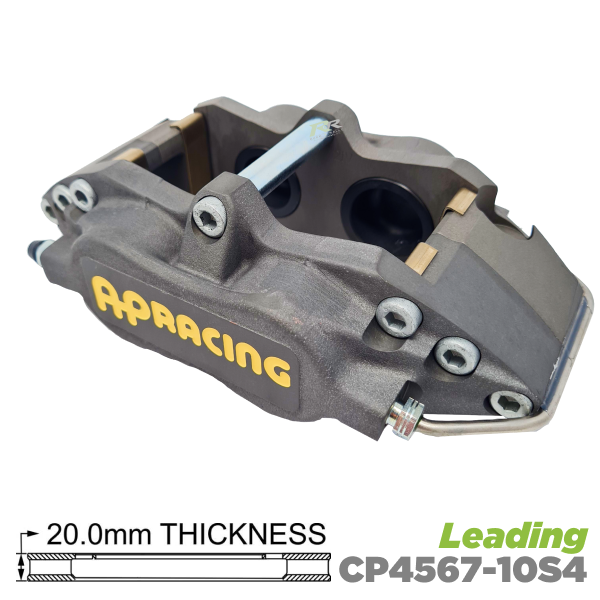

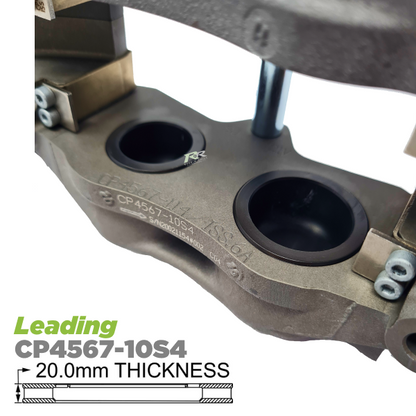

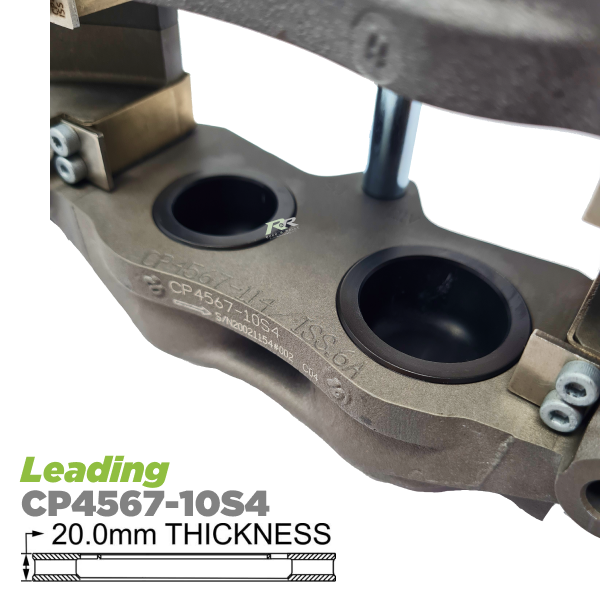

    • Right-hand Leading - CP4567-10S4

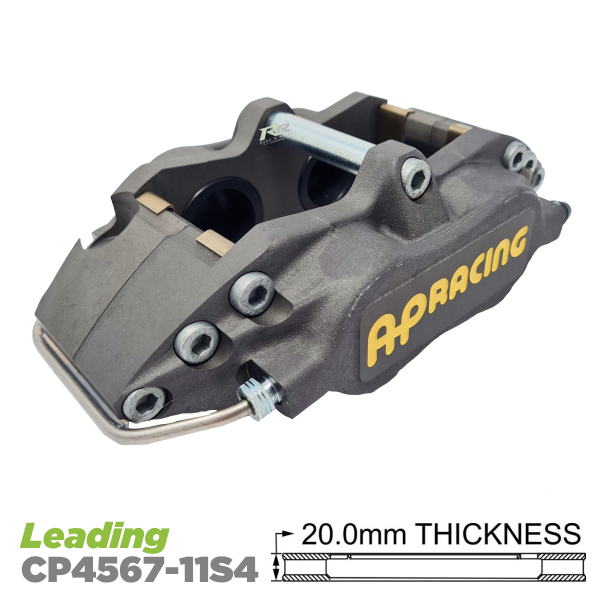

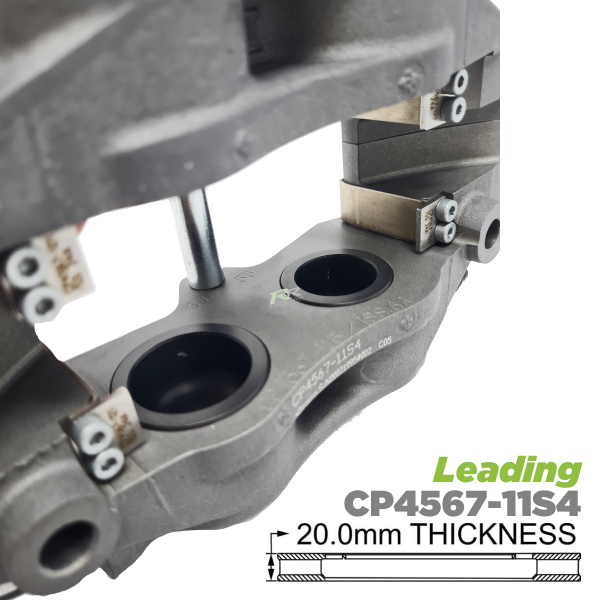

    • Left-hand Leading -  CP4567-11S4

Technical Specifications:

 Piston Sizes Ø34.9mm x 2
Ø41.3mm x 2
Piston Area 45.92 cm³
Disc Diameter

Max - Ø280mm
Disc Thickness

2/3/4/5S4 = 25.4mm
8/9/10/11S4 = 20.0mm
Weight (no pads) 1.6 Kg
Hydraulic Threads M10x1.0
Mounting Type Radial
Mounting Centres 152.00mm
Mounting Offset 2/3/4/5S4 = 30.0mm
8/9/10/11S4 = 27.3mm
Mounting Hole Ø 10.2mm
'PL' Dimension 50.5mm
Bleed Screw Tightening Torque 17Nm

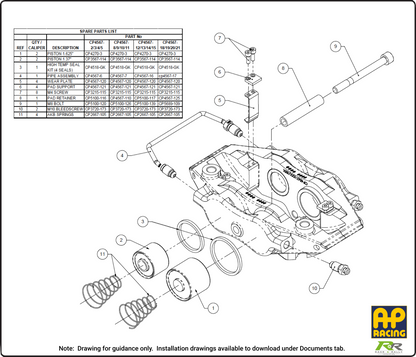

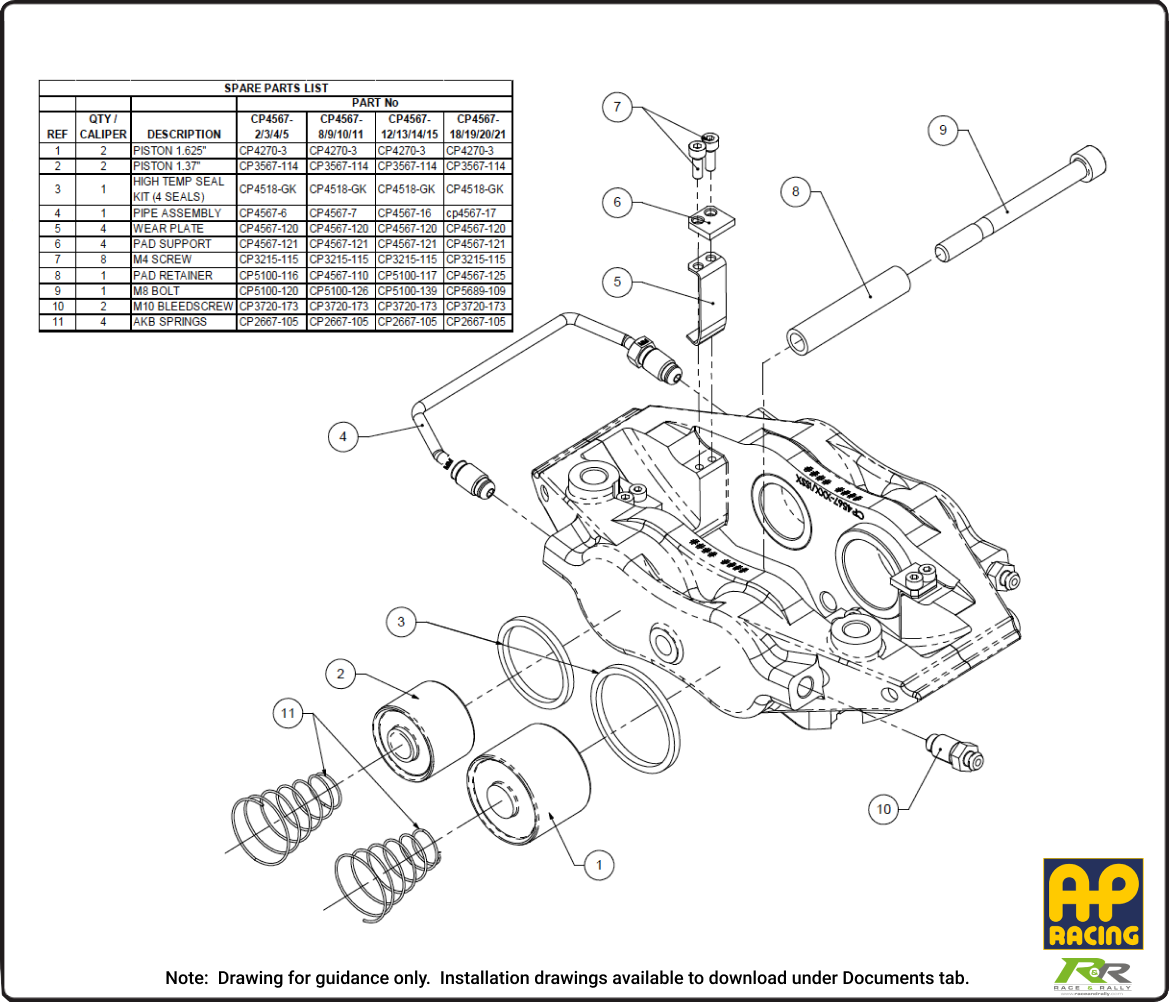

Spare Parts

Pistons

Ø34.9mm = CP3567-114
Ø41.3mm = CP4270-3
Seal Repair Kit CP4518-GK
Pad Retainer B olt
2/3/4/5S4 = CP5100-116.
8/9/10/11S4 = CP4567-110
Wear Plates CP4567-120 x4
Anti-knockback Springs CP4518-4LBLL
Bleed Screw CP3720-173
Pad Retainer Bolt 2/3/4/5S4 = CP5100-120
8/9/10/11S4 = CP5100-126
Fluid Pipe 2/3/4/5S4 = CP4567-6
8/9/10/11S4 = CP4567-7



Brake Pads

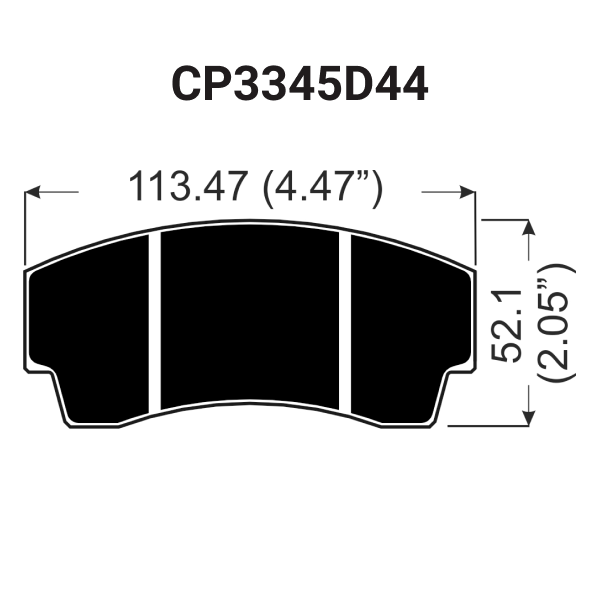

Pad Shape CP3345D44
CP3345D44 Brake Pad Set - APF403 Compound - Race and Rally
Pad Area 43.4cm²
Pad Depth 44.1mm
Thickness 16.0mm



Brand AP Racing
Option SKU Barcode
Ø34.9mm x2 & Ø41.3mm x2 / 20.00mm / Right Hand Trailing CP4567-8S4
Ø34.9mm x2 & Ø41.3mm x2 / 20.00mm / Left Hand Trailing CP4567-9S4
Ø34.9mm x2 & Ø41.3mm x2 / 20.00mm / Right Hand Leading CP4567-10S4
Ø34.9mm x2 & Ø41.3mm x2 / 20.00mm / Left Hand Leading CP4567-11S4
Ø34.9mm x2 & Ø41.3mm x2 / 25.40mm / Right Hand Trailing CP4567-2S4
Ø34.9mm x2 & Ø41.3mm x2 / 25.40mm / Left Hand Trailing CP4567-3S4
Ø34.9mm x2 & Ø41.3mm x2 / 25.40mm / Right Hand Leading CP4567-4S4
Ø34.9mm x2 & Ø41.3mm x2 / 25.40mm / Left Hand Leading CP4567-5S4

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.
