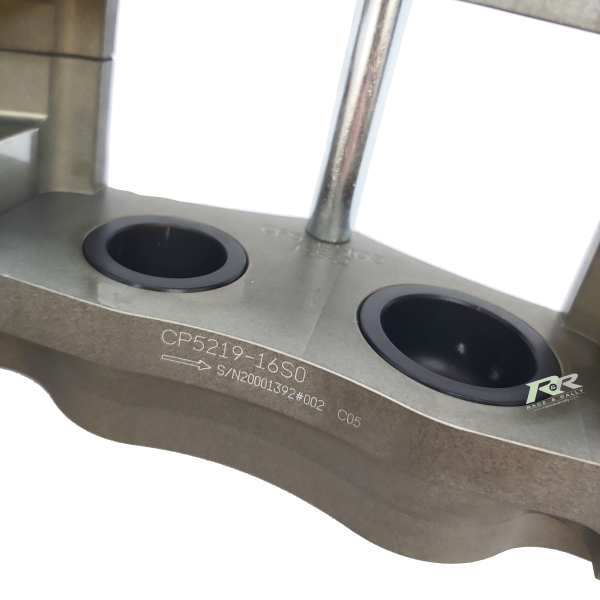

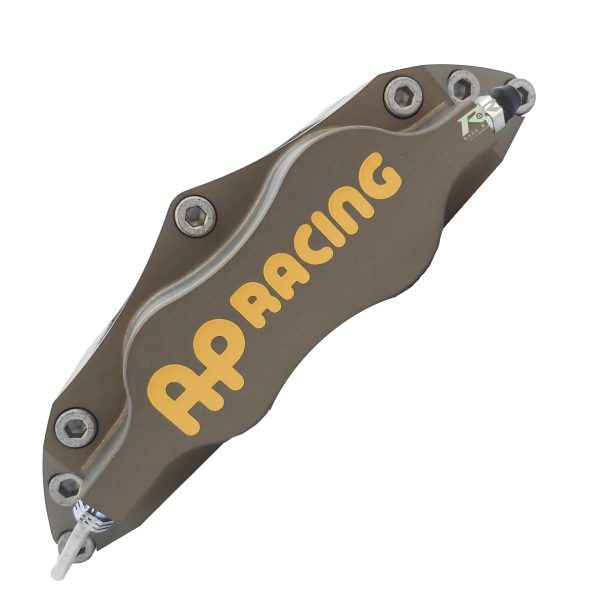

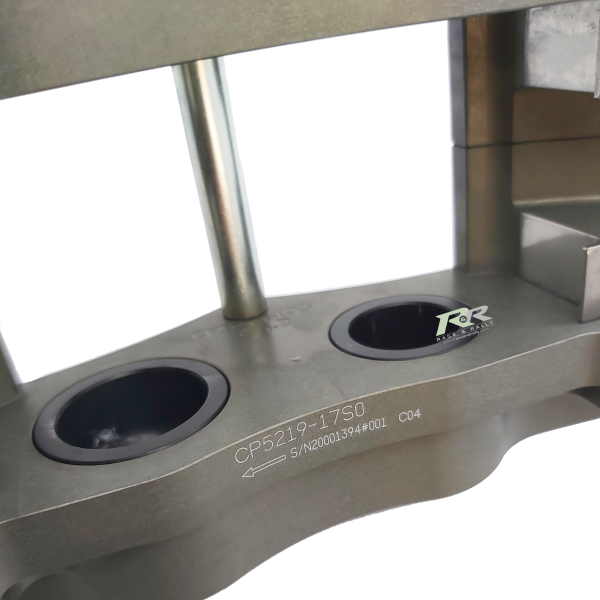

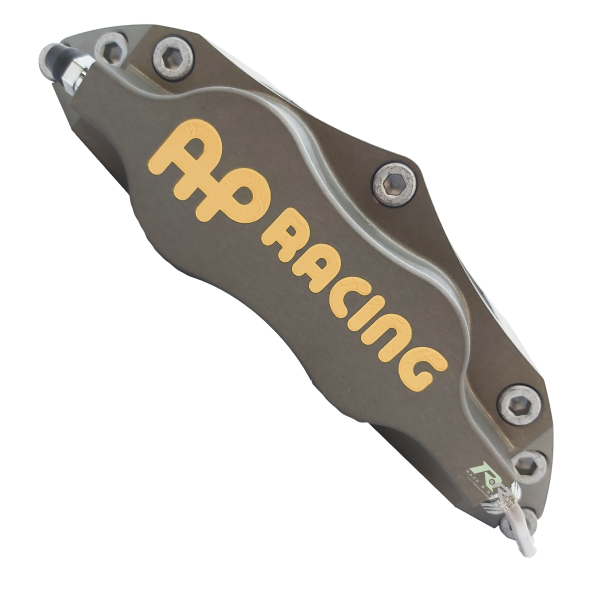

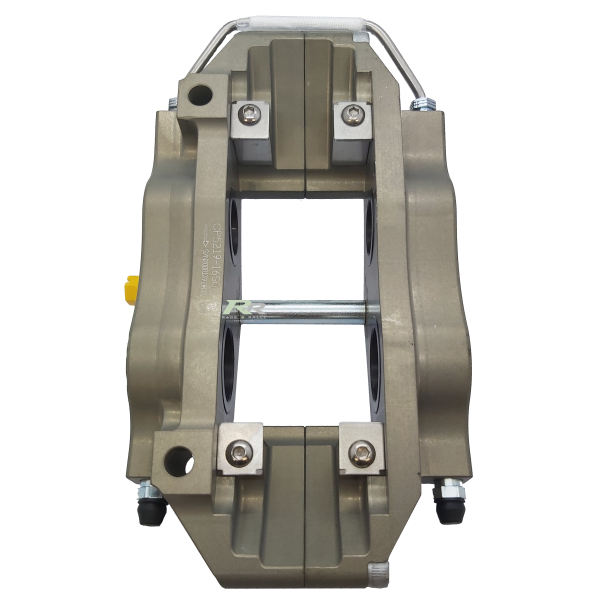

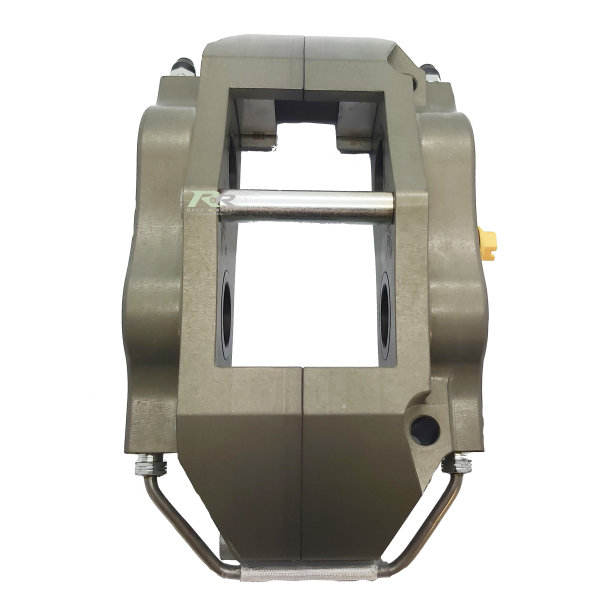

CP5219 - 4 Piston Caliper - Two Piece Billet

CP5219 - 4 Piston Caliper - Two Piece Billet

CP5219-16S0

€1313.65 €1615.79
Sale Sold out
  • Feature Icon Ultimate Caliper for 13" wheels
Piston Size
Caliper Hand
View Docs

Out of stock, contact for leadtime

View full details

Radial 4 Piston - Two Piece Billet

Applications:

  • Front & Rear for 13" wheel.
  • Lightweight Sportscar.

Features:

  • Radial Mount, 152 x 42.78mm centres.
  • Two piece billet aluminium alloy body.
  • Suits Ø280 x 25.4mm disc.
  • High Grade Aluminium pistons.
  • CNC machined from billet.
  • Superior dynamic performance than that of CP4219.
  • Stainless Steel wear plates.

Part Numbers:

  • Right-hand Trailing - CP5219-16S0
  • Left-hand Trailing -  CP5219-17S0
  • Right-hand Leading - CP5219-18S0
  • Left-hand Leading - CP5219-19S0

Technical Specifications:

 Piston Sizes

Ø34.9mm x 2
Ø41.3mm x 2
Piston Area 45.92 cm²
Disc Diameter

Max - Ø280mm
Disc Thickness

25.4.00mm
Weight (no pads) 1.98 Kg
Hydraulic Threads M10x1.0
Mounting Type Radial
Mounting Centres 152.00mm
Mounting Offset 42.78.00mm
Mounting Hole Ø10.27mm
'PL' Dimension 56.81mm
Bleed Screw Tightening Torque 17Nm



Spare Parts

Pistons

Ø34.9 = CP2876-101
Ø41.3 = CP2270-92
Seal Repair Kit CP4518-GK
Pad Retainer Bolt = CP4219-122
Pad Retainer Bolt CP5100.126
Wear Plates

CP4219-7
Bleed Screw CP3880-1
Fluid Pipe CP5219-6



Brake Pads

Pad Shape CP3215D42
CP3215D42 Brake Pad Set - APF403 Compound - Race and Rally
Pad Area 51.7cm²
Pad Depth 42.0mm
Thickness 16.8mm





Brand AP Racing
Option SKU Barcode
Ø34.9mm x2 & Ø41.3mm x2 / Right Hand Trailing CP5219-16S0
Ø34.9mm x2 & Ø41.3mm x2 / Left Hand Trailing CP5219-17S0
Ø34.9mm x2 & Ø41.3mm x2 / Right Hand Leading CP5219-18S0
Ø34.9mm x2 & Ø41.3mm x2 / Left Hand Leading CP5219-19S0
