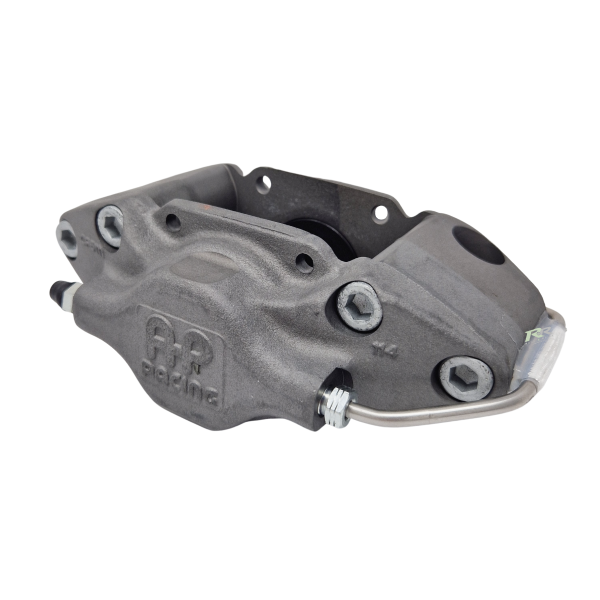

CP5119 - 2 Piston F4 Radial Caliper - Ventilated Disc

Name: CP5119 - 2 Piston F4 Radial Caliper - Ventilated Disc
Brand: AP Racing
SKU: CP5119-64S0:F4
Price: 261.07 GBP
Availability: InStock

SKU:CP5119-64S0:F4

€261.07 €321.12

Sale Sold out

2 Piston
Ventilated Disc
Cast Aluminium Alloy Body
FIA F4 Race Series
[Pad Shape: CP5119D50]

Piston Diameter Ø44.5mm

Caliper Hand LHS Trailing / RHS Leading RHS Trailing / LHS Leading

Quantity

In stock

View full details

2 Piston F4 Radial Caliper - Ventilated Disc
- CP5119

Applicaitons

FIA F4 Race Series
Ventilated brake discs

Features:

Radial Mount, 130 x 24.85mm centres
Two piece cast aluminium alloy body
Suits Ø256 x 20mm Integral Ventilated disc
- CP4740-100P:F4
Stainless steel pistons
Pin pad retainer
Note: this caliper is not fitted with a dirt seals

Part Numbers:

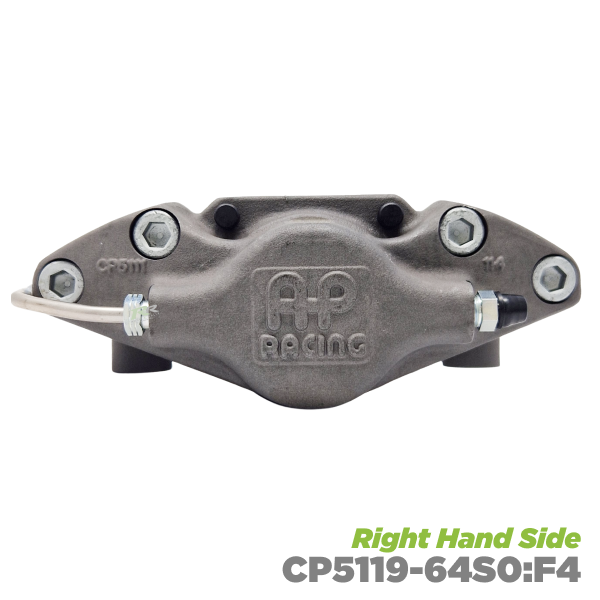

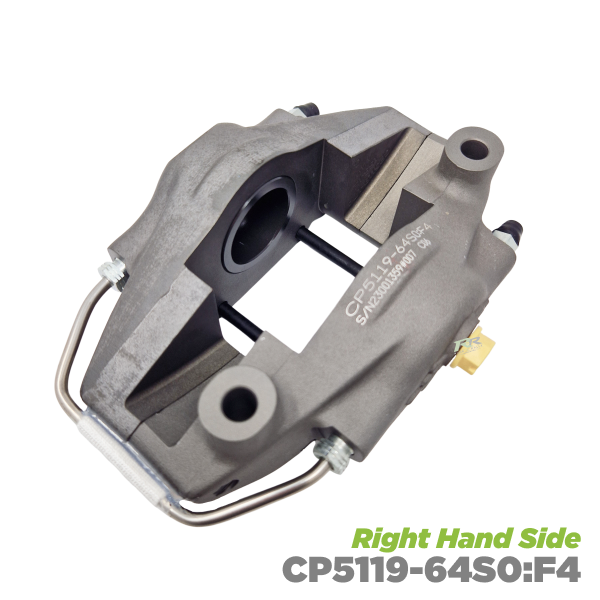

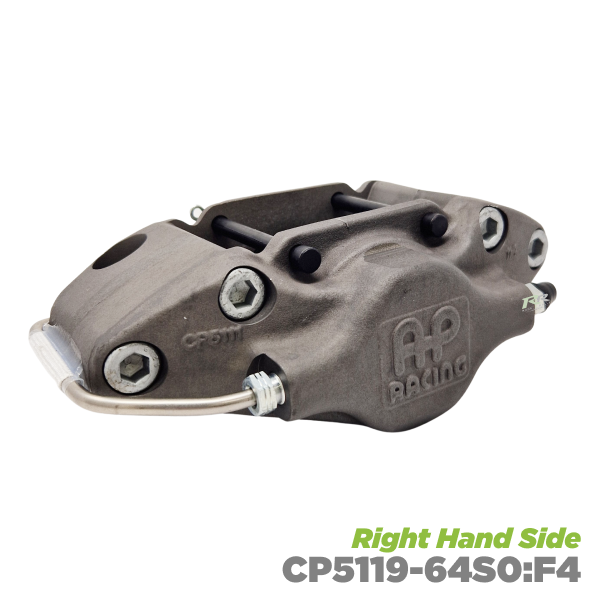

Right-Hand Trailing - CP5119-64S0:F4

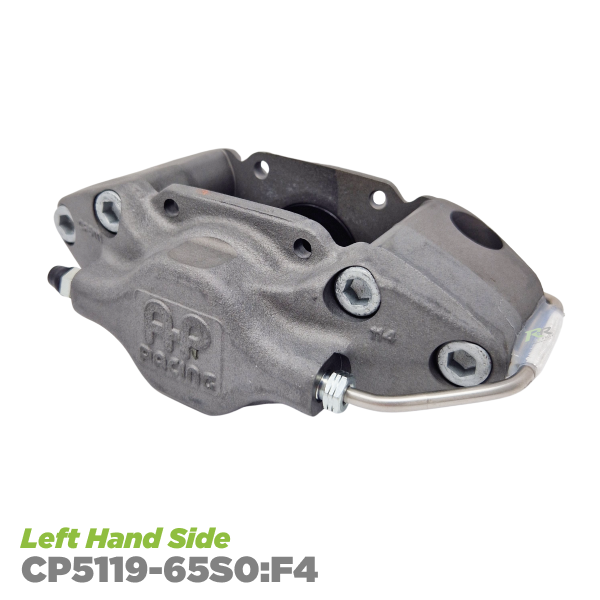

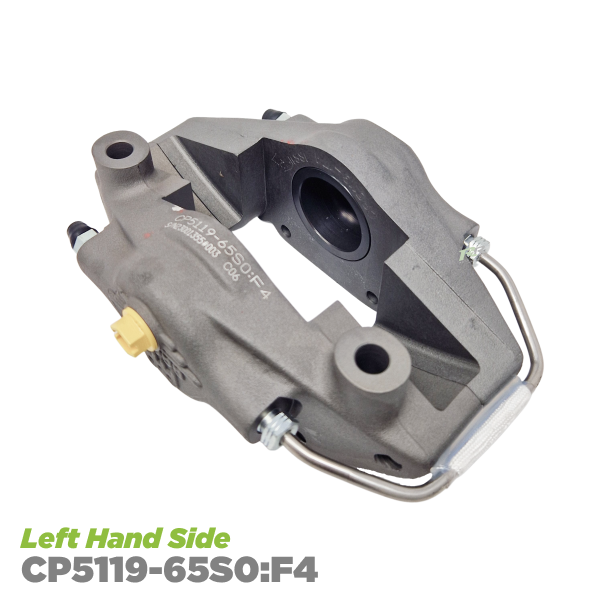

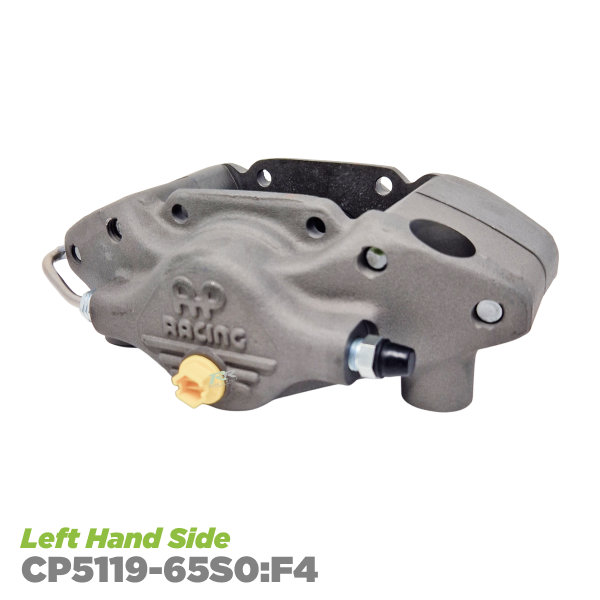

Left-Hand Trailing - CP5119-65S0:R4
Right-Hand Leading - CP5119-65S0:R4
Left-Hand Leading - CP5119-64S0:F4

Technical Specifications:

Piston Sizes	Ø44.5mm
Disc Diameter	Max - Ø258.20mm
Disc Thickness	Max - 20mm Min - 18mm
Weight (no pads)	1.60 Kg
Hydraulic Threads	M10 x 1.0
Mounting Type	Radial
Mounting Centres	130.0mm
Mounting Offset	25.05mm
Mounting Hole	Ø10.30mm
'PL' Dimension	51.50mm
Bleed Screw Tightening Torque	17Nm

Spare Parts

Pistons	CP5235-108
Seal Repair Kit	CP4519-L
Pad Retainer Pin	CP5119-155 x2
Pad Retaining Pin R-Clip	CP4398-108 x2
Bleed Screw	CP3720-173
Bleed Screw Cap	CP2494-177
Fluid Pipe	CP5119-46

Brake Pads

Pad Shape	CP5119D50
Pad Area	33.7cm²
Pad Depth	50.0mm
Thickness	14.3mm

CP5119 - Customer Drawing.pdf

Option	SKU	Barcode
Brand	AP Racing
Ø44.5mm / LHS Trailing / RHS Leading	CP5119-64S0:F4
Ø44.5mm / RHS Trailing / LHS Leading	CP5119-65S0:F4
