CP5623 - Flange Mounted Master Cylinder [Metric Hydraulic Threads]

CP5623 - Flange Mounted Master Cylinder [Metric Hydraulic Threads]

CP5623-89PRM115

€186.73 €229.68
Sale Sold out
  • Feature Icon 25.4mm (1.00") Full Stroke
  • Feature Icon Short Travel to Cut-off
  • Feature Icon Forged Aluminium Alloy Body
  • Feature Icon Vertical Flange Mounting
  • Feature Icon Suitable for Brake and Clutch Applications
  • Feature Icon Metric Hydraulic Threads
  • Feature Icon M8 x 1.25 Push-rod Threads
Bore Diameter
Push Rod Length
Cut-Off
View Docs

Out of stock, contact for leadtime

View full details

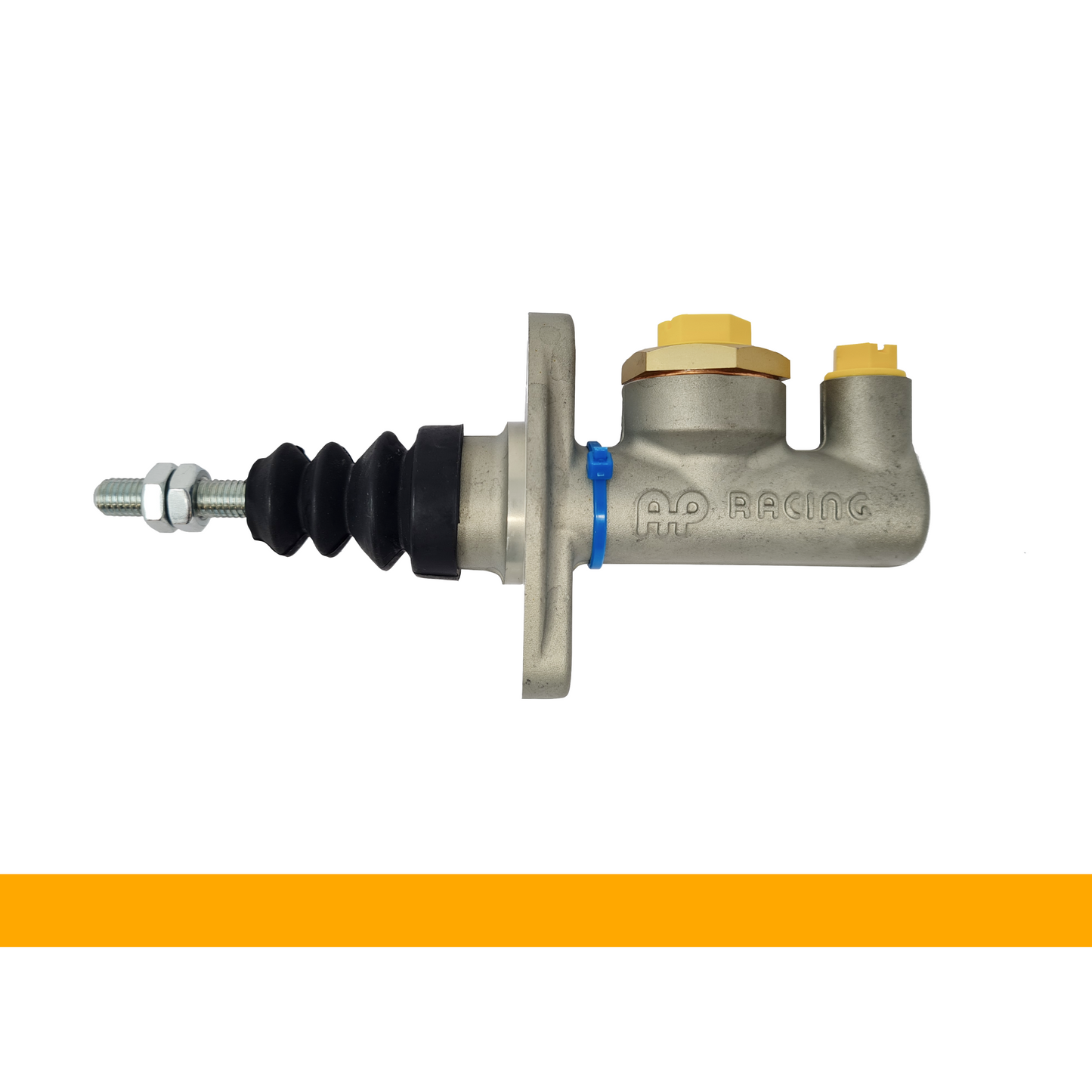

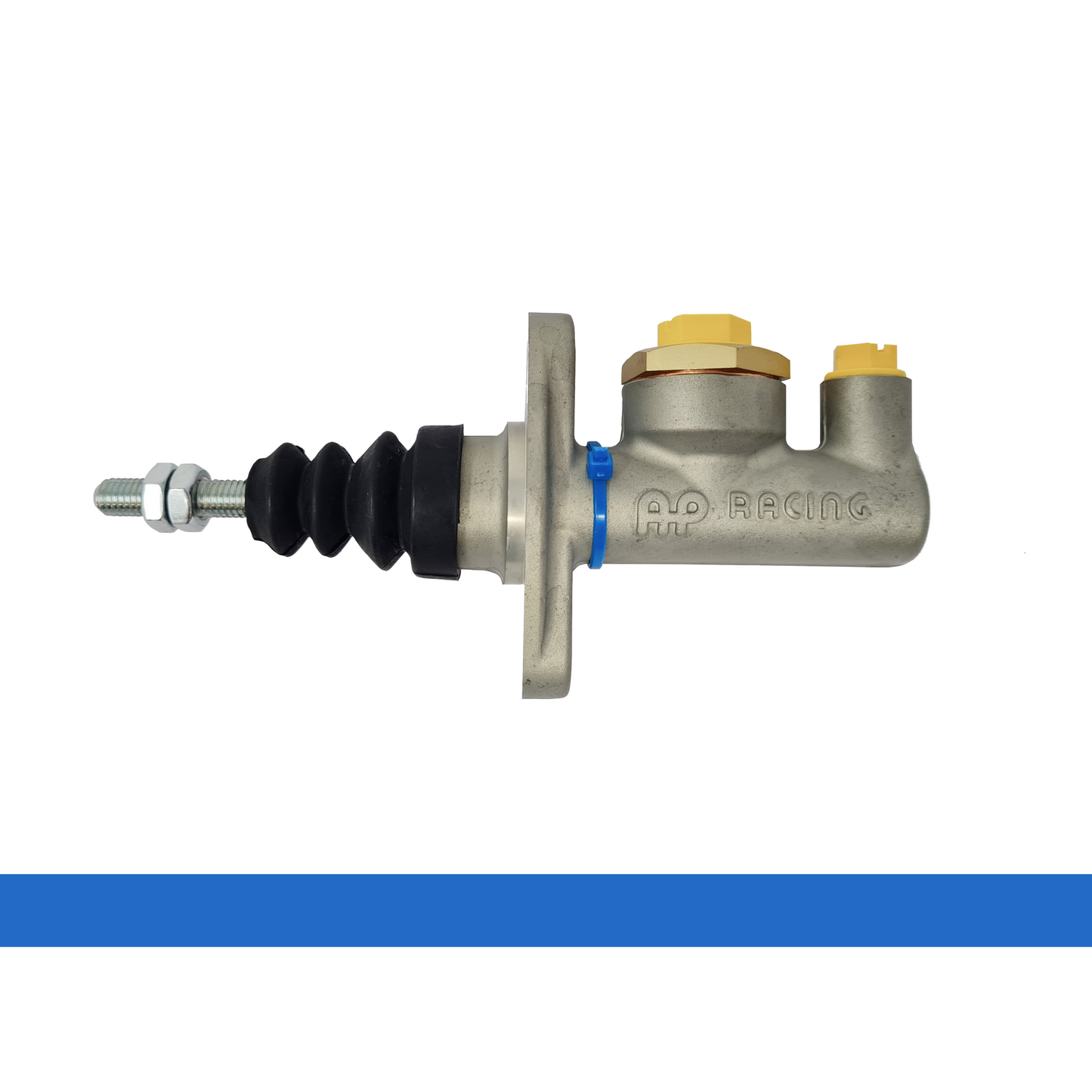

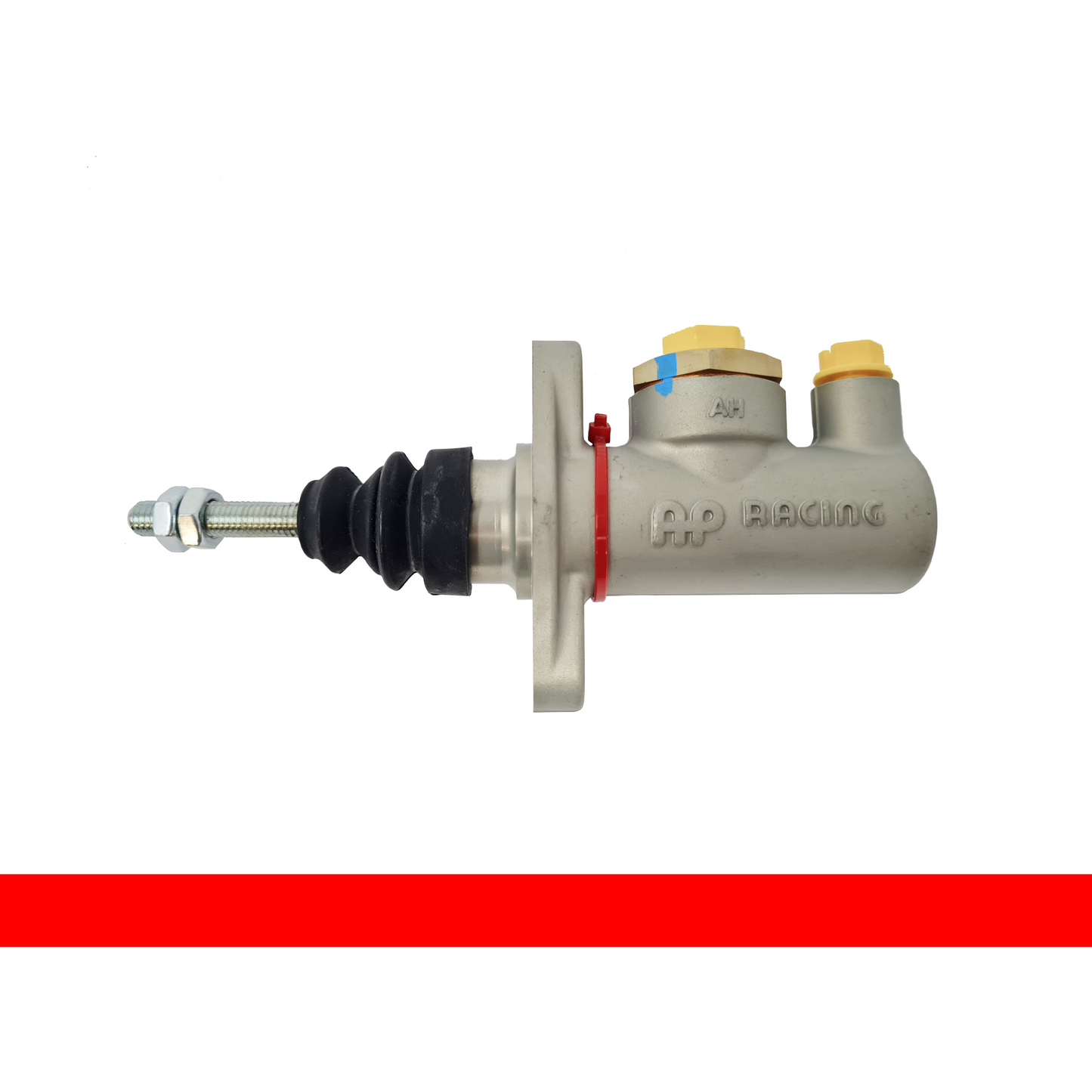

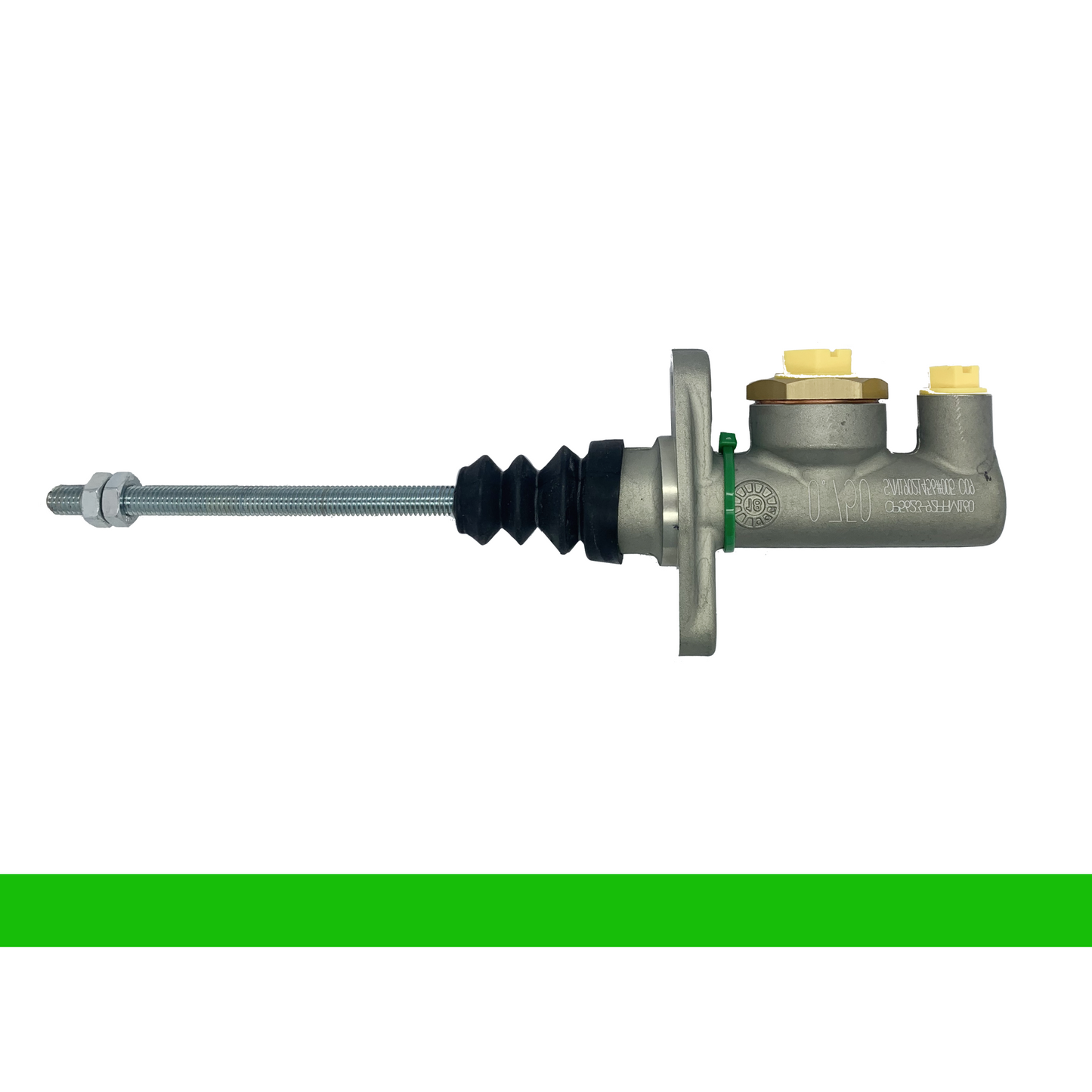

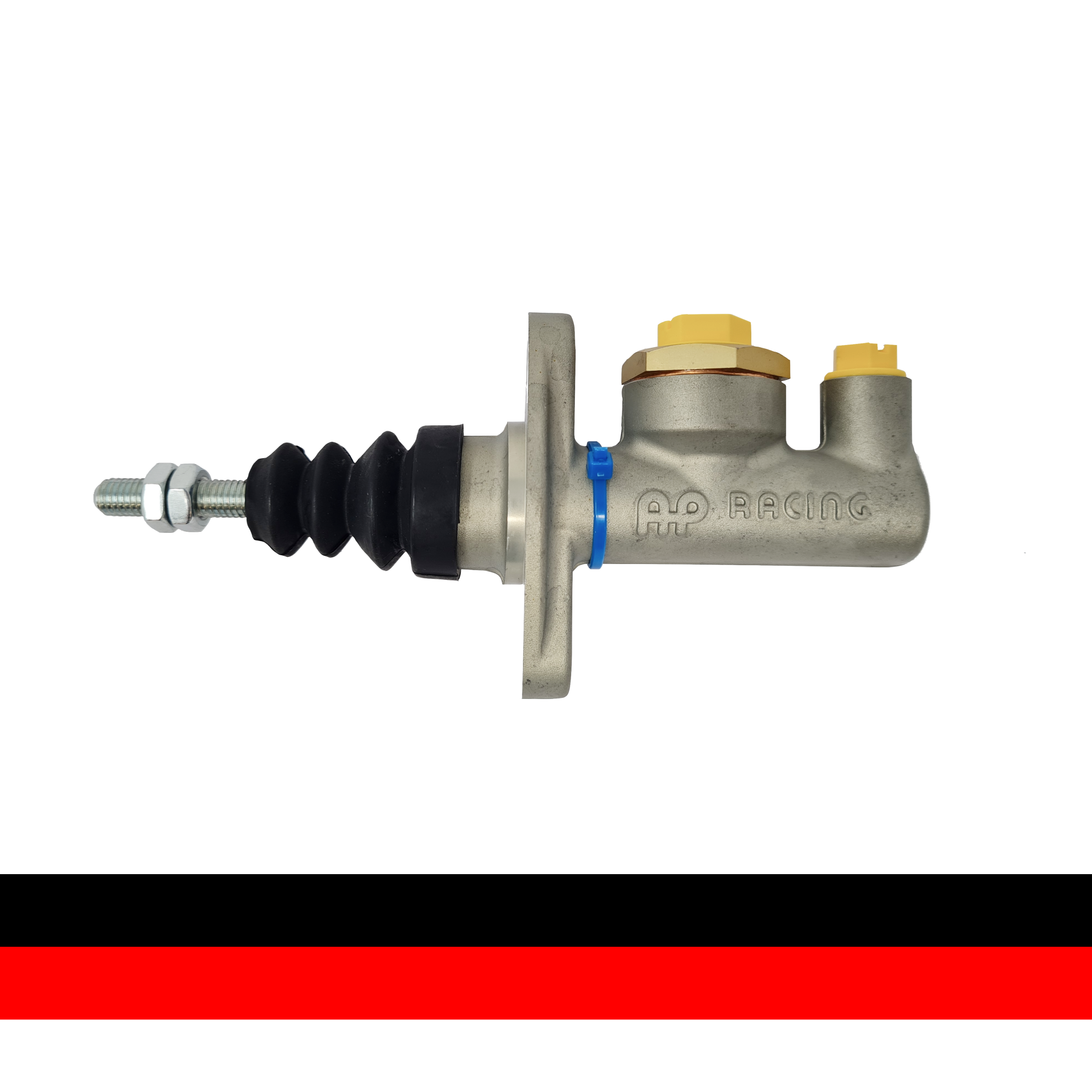

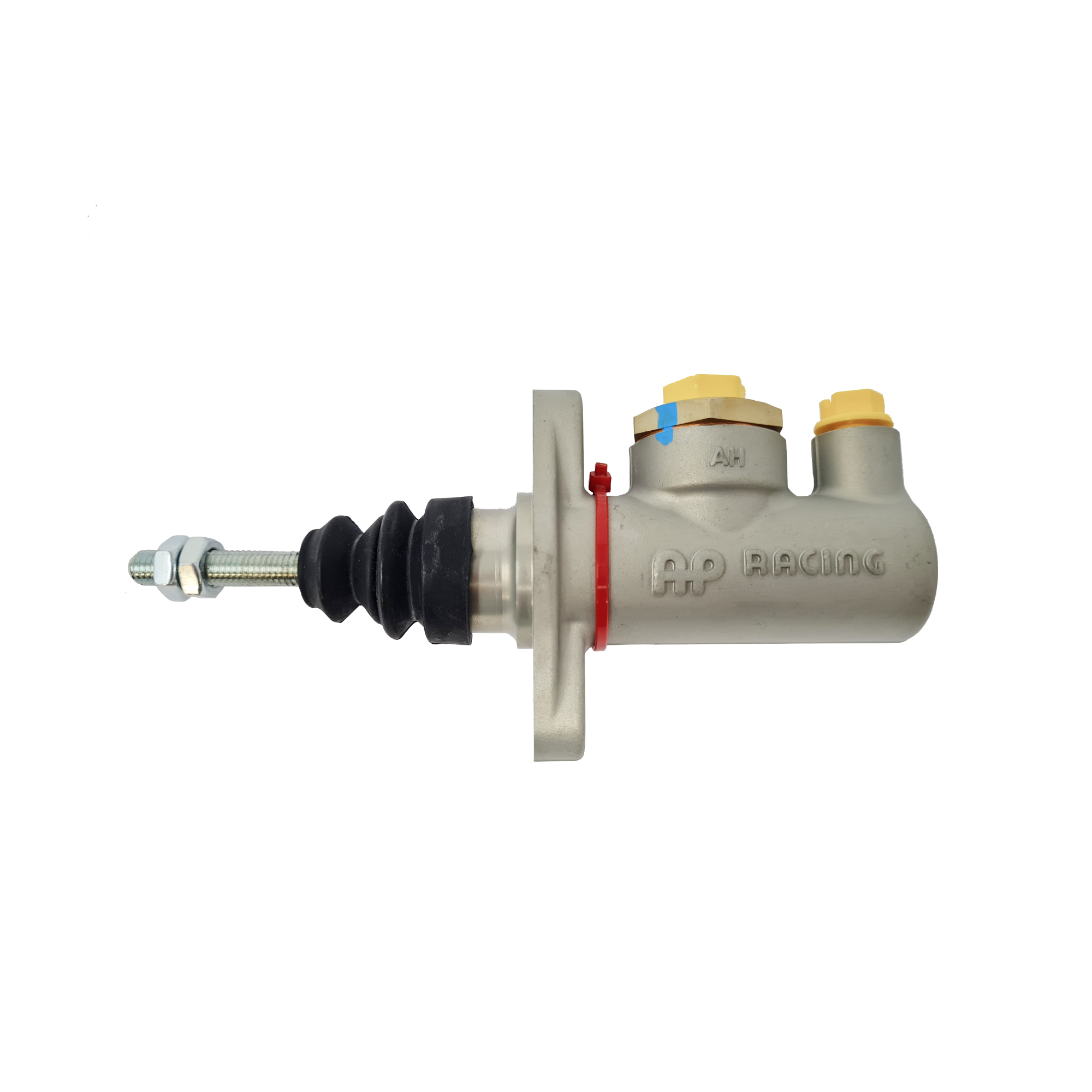

CP5623 - Flange Mounted Master Cylinder
[Metric Hydraulic Threads]

A compact forged bodied flanged master cylinder suitable for all brake and clutch applications especially where space is restricted.

Identical to CP2623 but with Imperial Hydraulic Threads.

Features:

  • Forged Aluminium Alloy Body
  • 50g weight saving over cast version
  • Short travel to cut-off
  • 10 Available bore sizes
  • Non Captive Cylinders available
  • Hydraulic threads are metric
  • M8 x 1.25 Pushrods
  • Cut-off
    • Standard Short Cutoff: 0.689mm - 1.194mm (0.027" - 0.047")
    • Extra Short Cutoff (Denoted by 'E' at end of part number): 0.483mm - 0.635mm (0.019" - 0.025")

Master Cylinder Identification:

All AP Racing master cylinders have their part number nominal bore size laser marked on the body together with batch codes enabling full manufacturing traceability.  All master cylinders also have a coloured tie wrapped around the body for quick visual identification of bore size.

Technical Details:

 Weight
-88 to -92 0.260 Kg (0.573 lbs)
-93 to -94 0.300 Kg (0.661 lbs)
-95 to -96 0.340 Kg (0.750 lbs)
Full Stroke 25.40mm (1.00")
Travel to Cut-off
- Standard Short Cut-off 0.689mm - 1.194mm (0.027" - 0.047")
- Extra Short Cut-off 0.483mm - 0.635mm (0.019" - 0.025")
Hydraulic Thread
- Inlet M12 x 1.00
- Outlet M10 x 1.00
Push Rod Threads
- PRM M8 x 1.25
Push Rod Length from Mounting Flange
- PRM088 88mm (3.46")
- PRM115 115mm (4.53")
- PRM160 160mm (6.30")


CP5623 Part Numbering

 Available Bore Sizes

Cable Tie Colour

M8 Push Rod

Non-Captive Cylinders

Repair Kit
15.0mm  BLACK  &  RED  CP5623-89PRM115
 CP5623-89NC CP2623-89RK
15.9mm | (0.625") | 5/8"  BLACK  CP5623-90PRM115
CP5623-90PRM115E		 CP5623-90NC CP2623-90RK
17.8mm | (0.700")  BLUE  CP5623-91PRM088
CP5623-91PRM115
CP5623-91PRM115E		 CP5623-91NC CP2623-91RK
19.1mm | (0.750") | 3/4"  GREEN  CP5623-92PRM088
CP5623-92PRM115
CP5623-92PRM160		 CP5623-92NC CP2623-92RK
20.6mm | (0.812") | 13/16"  ORANGE  CP5623-93PRM115
 CP5623-93NC CP2623-930RK
CP2623-930PRK
22.2mm | (0.875") | 7/8"  RED  CP5623-94PRM088
CP5623-94PRM115
 CP5623-94NC CP2623-94RK


Installation Drawing

CP5623 Installation Drawing

Replacement Parts

Description

Part Number

Female Inlet Adaptor (M12x1.0) CP4623-105
Copper Gasket for Above KL44539
KL44539
Captive Push Rod

5/16" x 24 UNF - 107mm Long CP2142-1
5/16" x 24 UNF - 152mm Long CP2142-13
CP2142-13
M8 x 1.25 - 115mm Long CP2142-19
M8 x 1.25 - 152mm Long CP2142-22
CP2142-22
Non-Captive Push Rod

5/16" x 24 UNF - 112mm Long CP2142-45
5/16" x 24 UNF - 157mm Long CP2142-47
M8 x 1.25 - 157mm Long CP2142-48
M8 x 1.25 Locknut ME21101
5/16" x 24 UNF Locknut K24102


Additional Parts

Description

Part Number

M12x1.0 Inlet Push-on Adaptor kit for Ø5/16" Hose CP4623-2
CP4623-2
M12x1.0 Inlet Push-on Banjo Adaptor kit for Ø5/16" Hose CP4623-6

Ø5/16" EPDM Hose

Length - 12" CP6614-103

Length - 24" CP6614-106

Length - 72" CP6614-102

Fluid Reservoirs

Direct Fit - Short CP4709-12
CP4709-12
Direct Fit - Medium CP4709-11
CP4709-11
Direct Fit - Tall CP4709-10
CP4709-10
Remote Fit - M12x1.0 - Short CP4709-16
Remote Fit - M12x1.0 - Medium CP4709-17

Applications

 AP Racing Applications
CP5623-91PRM088 Ford Fiesta R5 MKI - BV18110013A
CP5623-92PRM088 Ford Fiesta R5 MKI - BV18110014A
CP5623-94PRM088 Ford Fiesta R5 MKI - BV18110016A
Brand AP Racing
Option SKU Barcode
15.00mm / 115mm | 4.53" / Short Cut-off CP5623-89PRM115
15.90mm | (.625") | 5/8" / 115mm | 4.53" / Short Cut-off CP5623-90PRM115
15.90mm | (.625") | 5/8" / 115mm | 4.53" / Extra Short Cut-off CP5623-90PRM115E
17.80mm | (0.70") / 88mm | 3.46" / Short Cut-off CP5623-91PRM088
17.80mm | (0.70") / 115mm | 4.53" / Short Cut-off CP5623-91PRM115
17.80mm | (0.70") / 115mm | 4.53" / Extra Short Cut-off CP5623-91PRM115E
19.10mm | (0.75") | 3/4" / 88mm | 3.46" / Short Cut-off CP5623-92PRM088
19.10mm | (0.75") | 3/4" / 115mm | 4.53" / Short Cut-off CP5623-92PRM115
19.10mm | (0.75") | 3/4" / 160mm | 6.30" / Short Cut-off CP5623-92PRM160
20.64mm | (.812") | 13/16" / 115mm | 4.53" / Short Cut-off CP5623-93PRM115
22.20mm | (.875") | 7/8" / 88mm | 3.46" / Short Cut-off CP5623-94PRM088
22.20mm | (.875") | 7/8" / 115mm | 4.53" / Short Cut-off CP5623-94PRM115
