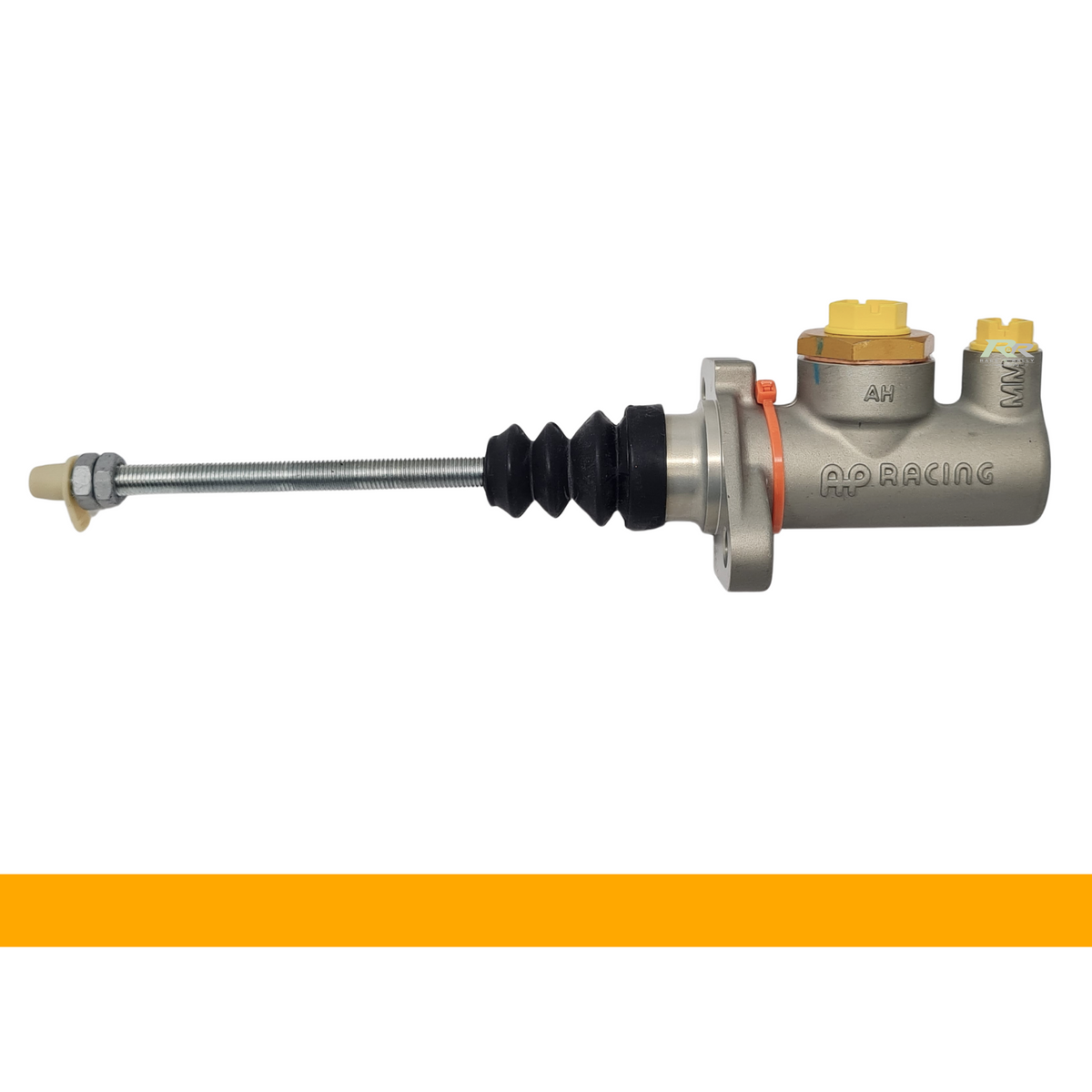

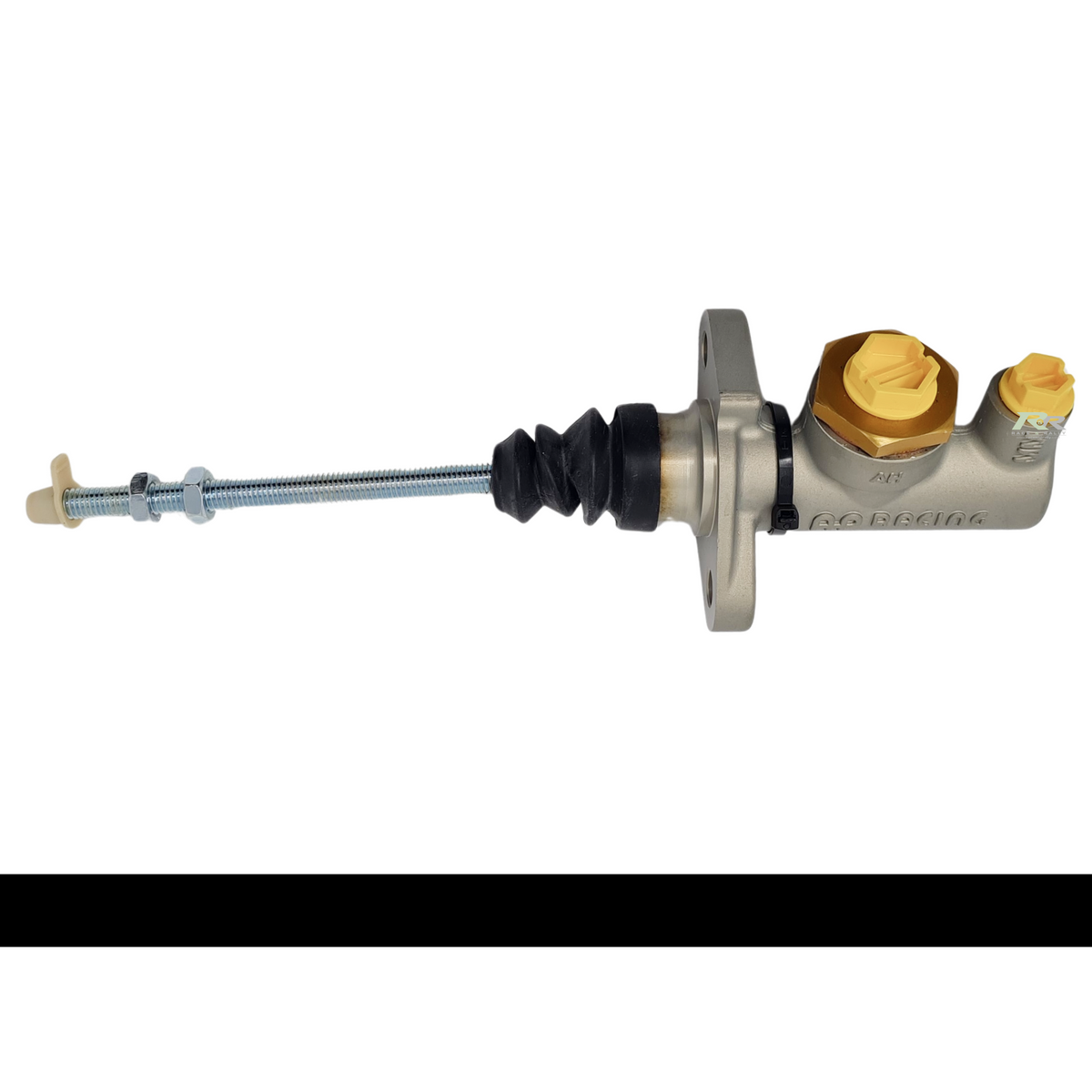

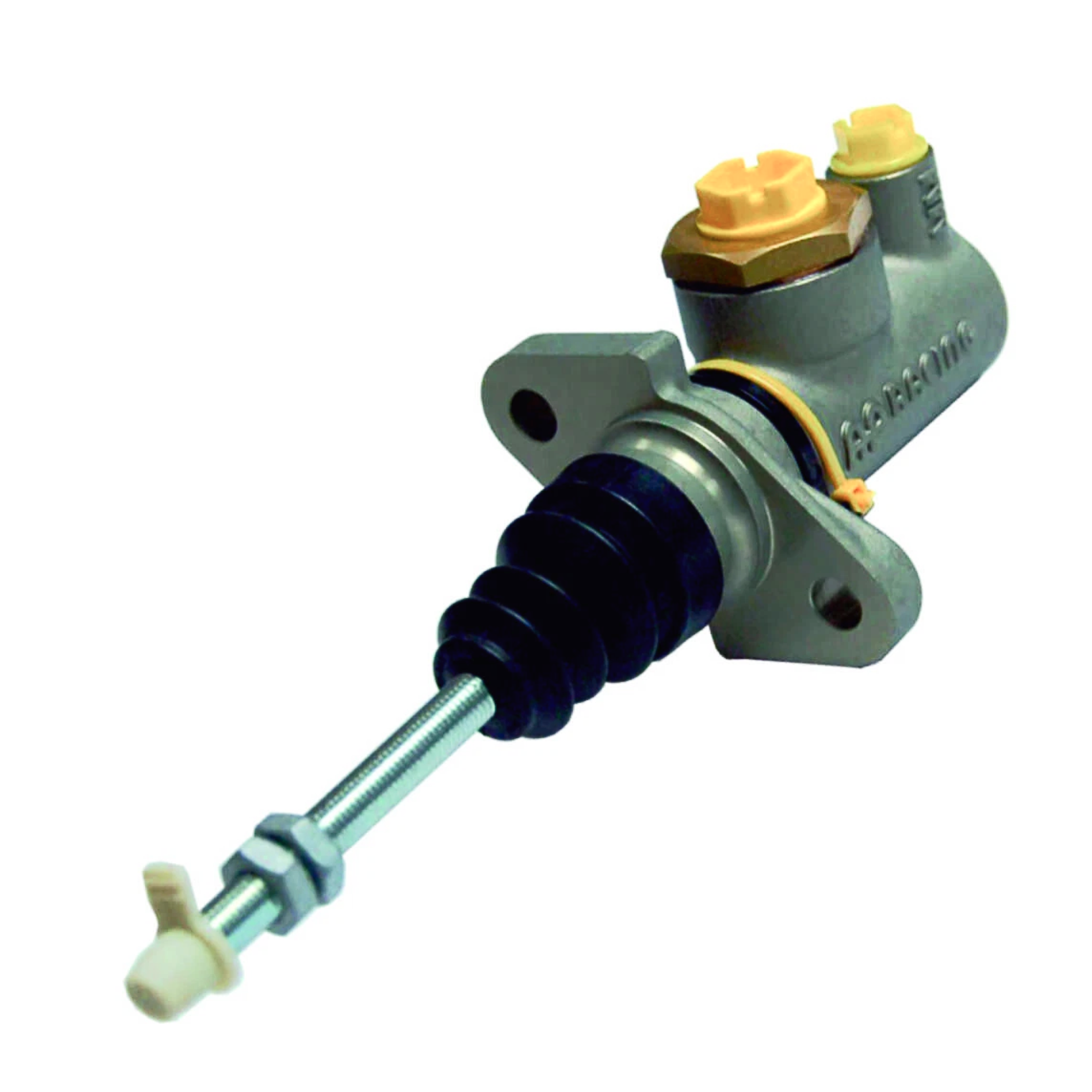

CP4623 - Offset Flange Mounted Master Cylinder
[Imperial Hydraulic Threads]

A compact leightweight master cylinder similar to CP2623 but with a 60° mounting flange offset to give improved access to mounting bolts. Suitable for all brake and clutch applications especially where space is restricted.

Features:

  • Aluminium Alloy Body
  • Short travel to cut-off
  • 10 Available bore sizes
  • Non Captive Cylinders available
  • Hydraulic threads are Metric.

Master Cylinder Identification:

All AP Racing master cylinders have their part number nominal bore size laser marked on the body together with batch codes enabling full manufacturing traceability.  All master cylinders also have a coloured tie wrapped around the body for quick visual identification of bore size.

Technical Details:

 Weight 0.310 Kg (0.7lbs)
Full Stroke 25.40mm (1.00")
Travel to Cut-off 0.68mm - 1.09mm (0.27" - 0.43")
Hydraulic Thread
- Inlet M12 x 1.00
- Outlet M10 x 1.00
Push Rod Threads
- PRM M8 x 1.25
- PRT 5/16" UNF
Push Rod Length from Mounting Flange
- PRM/PRT115 115mm (4.53")
- PRM/PRT160 160mm (6.30")


CP4623 Part Numbering

 Available Bore Sizes

Cable Tie Colour

M8 Push Rod

5/16" Push Rod

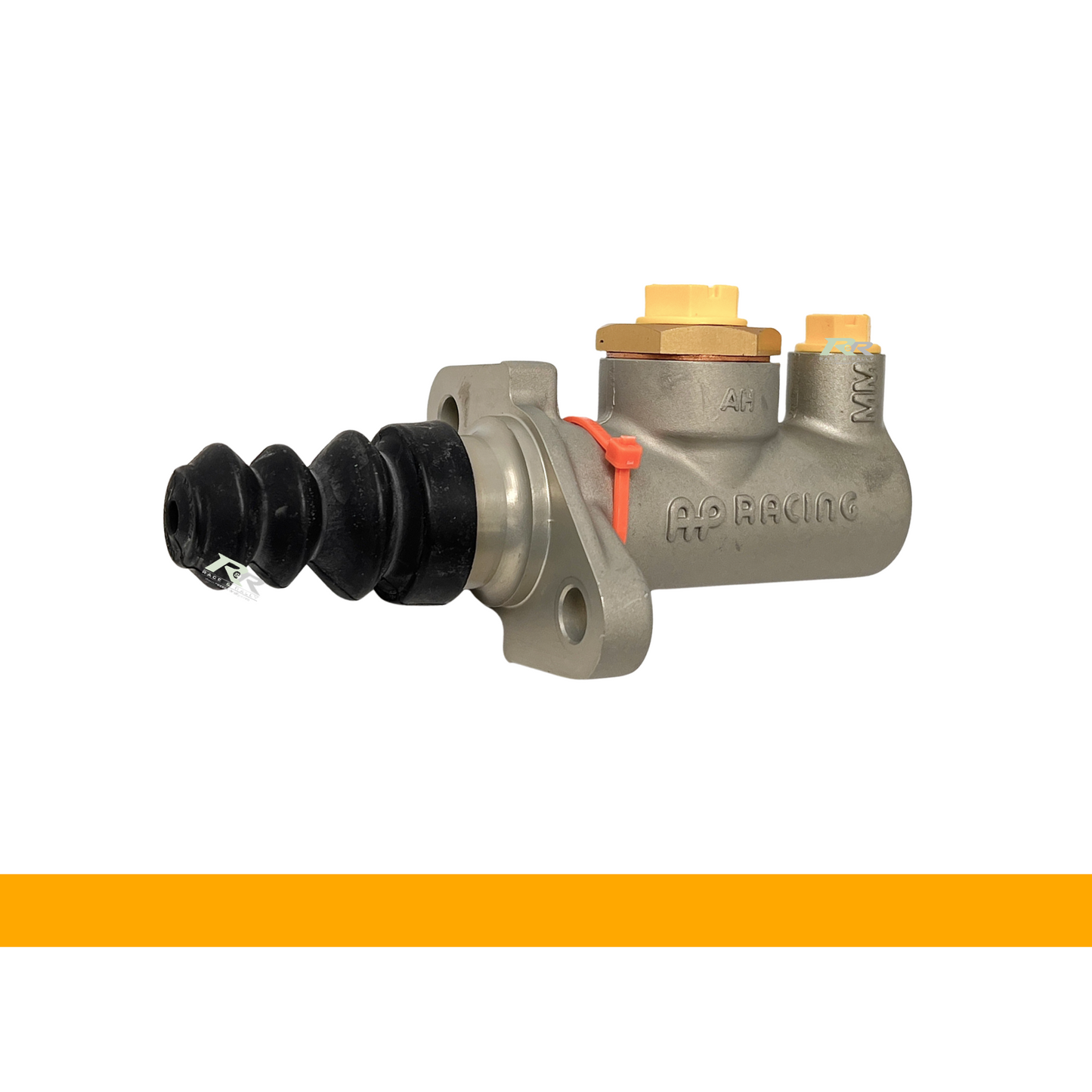

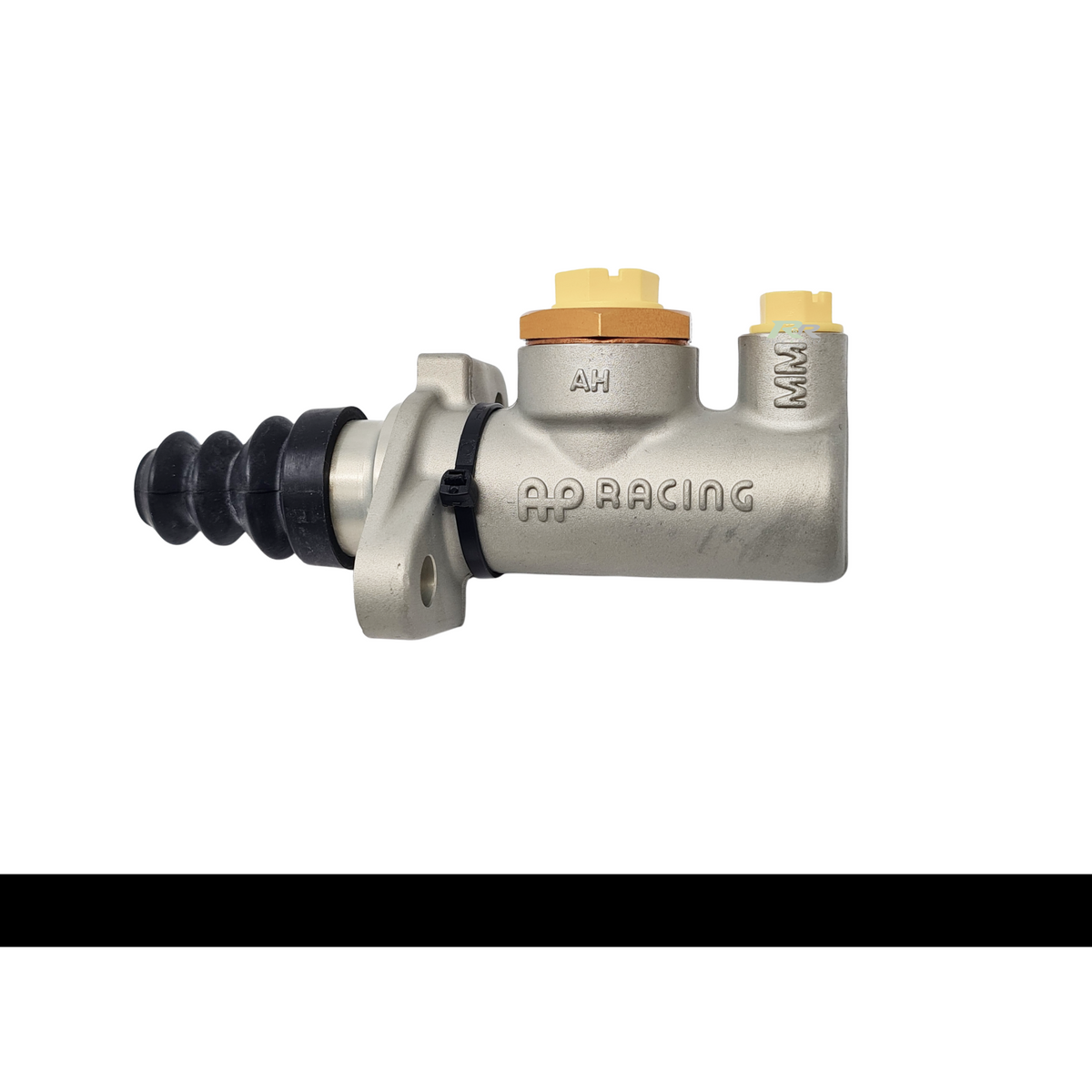

Non-Captive Cylinders

Repair Kit
14.0mm  BLACK  &   ORANGE  CP4623-88PRM160 CP4623-88PRT115
CP4623-88PRT160		 CP4623-88NC
 CP2623-88RK
15.0mm  BLACK  &  RED  CP4623-89PRM160 CP4623-89PRT115
CP2623-89RK
15.9mm | (0.625") | 5/8"  BLACK  CP4623-90PRM115
CP4623-90PRM160		 CP4623-90PRT115
CP4623-90PRT160		 CP4623-90NC CP2623-90RK
16.8mm  BLACK  &  YELLOW  CP4623-905PRM115
 CP4623-905PRT088
CP4623-905PRT115
CP2623-905RK
17.8mm | (0.700")  BLUE  CP4623-91PRM115
CP4623-91PRM160		 CP4623-91PRT115
CP4623-91PRT160		 CP4623-91NC CP2623-91RK
19.1mm | (0.750") | 3/4"  GREEN  CP4623-92PRM115
CP4623-92PRM160		 CP4623-92PRT115
CP4623-92PRT160		 CP4623-92NC CP2623-92RK
20.6mm | (0.812") | 13/16"  ORANGE  CP4623-93PRM160 CP4623-93PRT115
CP4623-93PRT160		 CP4623-93NC CP2623-930RK
CP2623-930PRK
22.2mm | (0.875") | 7/8"  RED  CP4623-94PRM115
CP4623-94PRM160		 CP4623-94PRT115
CP4623-94PRT160		 CP4623-94NC CP2623-94RK
23.8mm | (0.937") | 15/16"  WHITE  CP4623-95PRM160 CP4623-95PRT115
CP4623-95PRT160
CP2623-95RK



Replacement Parts

Description

Part Number

Female Inlet Adaptor (M12x1.0) CP4623-105
Copper Gasket for Above KL44539
KL44539
Captive Push Rod

5/16" x 24 UNF - 107mm Long CP2142-1
5/16" x 24 UNF - 152mm Long CP2142-13
CP2142-13
M8 x 1.25 - 115mm Long CP2142-19
M8 x 1.25 - 152mm Long CP2142-22
CP2142-22
Non-Captive Push Rod

5/16" x 24 UNF - 112mm Long CP2142-45
5/16" x 24 UNF - 157mm Long CP2142-47
M8 x 1.25 - 157mm Long CP2142-48
M8 x 1.25 Locknut ME21101
5/16" x 24 UNF Locknut K24102


Additional Parts

Description

Part Number

M12x1.0 Inlet Push-on Adaptor kit for Ø5/16" Hose CP4623-2
CP4623-2
M12x1.0 Inlet Push-on Banjo Adaptor kit for Ø5/16" Hose
 CP4623-6
Ø5/16" EPDM Hose

Length - 12" CP6614-103

Length - 24" CP6614-106

Length - 72" CP6614-102

Fluid Reservoirs

Direct Fit - Short CP4709-12
CP4709-12
Direct Fit - Medium CP4709-11
CP4709-11
Direct Fit - Tall CP4709-10
CP4709-10
Remote Fit - M12x1.0 - Short CP4709-16
Remote Fit - M12x1.0 - Medium
 CP4709-17
Brand AP Racing
Option SKU Barcode
14.00mm / 5/16" x 24 UNF / 115mm | 4.53" CP4623-88PRT115
14.00mm / 5/16" x 24 UNF / 160mm | 6.30" CP4623-88PRT160
14.00mm / M8 x 1.25 / 160mm | 6.30" CP4623-88PRM160
14.00mm / Non-Captive / Not Required CP4623-88NC
15.00mm / 5/16" x 24 UNF / 115mm | 4.53" CP4623-89PRT115
15.00mm / M8 x 1.25 / 160mm | 6.30" CP4623-89PRM160
15.90mm | (0.625") | 5/8" / 5/16" x 24 UNF / 115mm | 4.53" CP4623-90PRT115
15.90mm | (0.625") | 5/8" / 5/16" x 24 UNF / 160mm | 6.30" CP4623-90PRT160
15.90mm | (0.625") | 5/8" / M8 x 1.25 / 115mm | 4.53" CP4623-90PRM115
15.90mm | (0.625") | 5/8" / M8 x 1.25 / 160mm | 6.30" CP4623-90PRM160
15.90mm | (0.625") | 5/8" / Non-Captive / Not Required CP4623-90NC
16.80mm / 5/16" x 24 UNF / 115mm | 4.53" CP4623-905PRT115
16.80mm / M8 x 1.25 / 115mm | 4.53" CP4623-905PRM115
17.80mm | (0.70") / 5/16" x 24 UNF / 115mm | 4.53" CP4623-91PRT115
17.80mm | (0.70") / 5/16" x 24 UNF / 160mm | 6.30" CP4623-91PRT160
17.80mm | (0.70") / M8 x 1.25 / 115mm | 4.53" CP4623-91PRM115
17.80mm | (0.70") / M8 x 1.25 / 160mm | 6.30" CP4623-91PRM160
17.80mm | (0.70") / Non-Captive / Not Required CP4623-91NC
19.10mm | (0.75") | 3/4" / 5/16" x 24 UNF / 115mm | 4.53" CP4623-92PRT115
19.10mm | (0.75") | 3/4" / 5/16" x 24 UNF / 160mm | 6.30" CP4623-92PRT160
19.10mm | (0.75") | 3/4" / M8 x 1.25 / 115mm | 4.53" CP4623-92PRM115
19.10mm | (0.75") | 3/4" / M8 x 1.25 / 160mm | 6.30" CP4623-92PRM160
19.10mm | (0.75") | 3/4" / Non-Captive / Not Required CP4623-92NC
20.60mm | (0.812") | 13/16" / 5/16" x 24 UNF / 115mm | 4.53" CP4623-93PRT115
20.60mm | (0.812") | 13/16" / 5/16" x 24 UNF / 160mm | 6.30" CP4623-93PRT160
20.60mm | (0.812") | 13/16" / M8 x 1.25 / 160mm | 6.30" CP4623-93PRM160
20.60mm | (0.812") | 13/16" / Non-Captive / Not Required CP4623-93NC
22.20mm | (0.875") | 7/8" / 5/16" x 24 UNF / 115mm | 4.53" CP4623-94PRT115
22.20mm | (0.875") | 7/8" / 5/16" x 24 UNF / 160mm | 6.30" CP4623-94PRT160
22.20mm | (0.875") | 7/8" / M8 x 1.25 / 115mm | 4.53" CP4623-94PRM115
22.20mm | (0.875") | 7/8" / M8 x 1.25 / 160mm | 6.30" CP4623-94PRM160
22.20mm | (0.875") | 7/8" / Non-Captive / Not Required CP4623-94NC
23.80mm | (0.937") | 15/16" / 5/16" x 24 UNF / 115mm | 4.53" CP4623-95PRT115
23.80mm | (0.937") | 15/16" / 5/16" x 24 UNF / 160mm | 6.30" CP4623-95PRT160
23.80mm | (0.937") | 15/16" / M8 x 1.25 / 160mm | 6.30" CP4623-95PRM160
