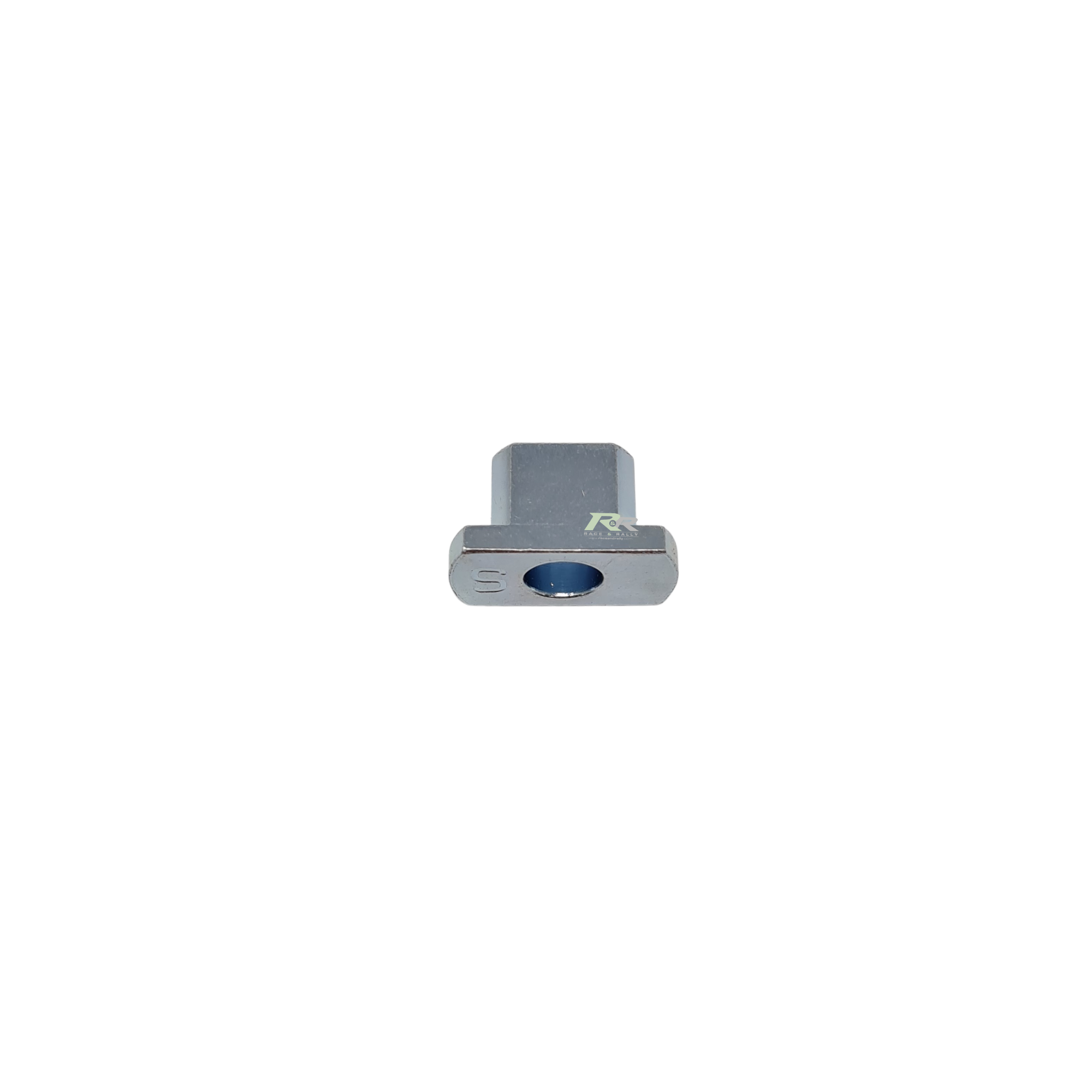

CP7016 - Heavy Duty 'Wide' Bobbins

AP Racing has two options of wide bobbins for heavy duty disc arrangements offering improved stability in high torque applications.

• CP4135 a forged one piece bobbin and stud providing improved and unrestricted airflow.
• CP7016 a two piece alternative for thicker mounting bell flanges using separate bolt.

Bolts, nuts and washers available separately:

• CP3845 - 1/4" E8 - 6 Lobe Head Bolts
• CP2494-117 - 1/4" Lock nut
• CP2494-1305 - 1/4" Washer
• CP3845 - Complete Bolt kits

Note: Disc mounting tightening torque - 14Nm (10.5lb/ft)
