• Ø184mm x 6.00mm - 4 Paddle Bonded - 1.00"x23 Splines - 14.20mm Hub - Race and Rally
  • CP8401-G036H
  • CP8401-K036H - End View

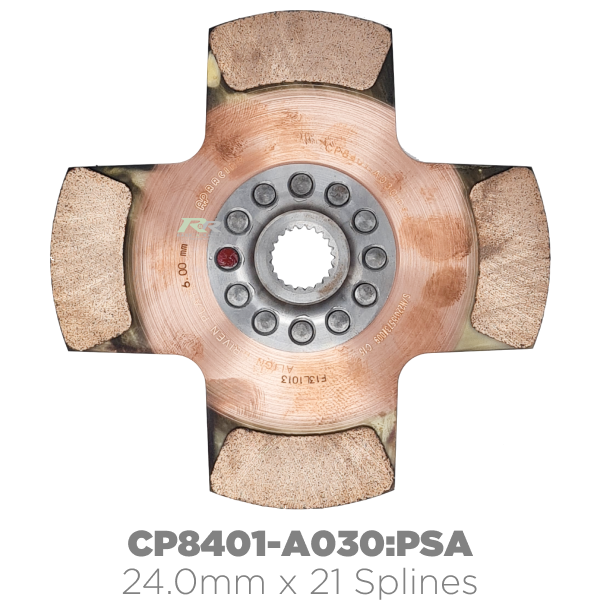

  • CP8401-A030:PSA
1 5

CP8401 - 6 Paddle Back to Back Bonded Cerametallic Clutch Disc (Ø184mm x 6.00mm)

CP8401 - 6 Paddle Back to Back Bonded Cerametallic Clutch Disc (Ø184mm x 6.00mm)

CP8401-A026H

€248.71 €305.91
Sale Sold out
  • Feature Icon 4-Paddle Bonded
  • Feature Icon Ø184mm
  • Feature Icon 6.00mm Thickness
  • Feature Icon Back to Back Design
View Docs

Out of stock, contact for leadtime

View full details

CP8401 - 6 Paddle Back to Back Bonded Cerametallic Clutch Disc (Ø184mm x 6.00mm)

These 7.25" cerametallic drive plates have been designed primarily for Rally, Off-Road and Hillclimb applications, with a ceramic and metallic compound friction material. The friction material has been bonded to the steel drive plate and has a thick friction material depth to provide better heat management. The cerametallic material also gives a smoother engagement over the sintered material, where more clutch slip is required in order to modulate the drive.

Technical Details

  • 4 Paddle
  • Ø184mm // 7.25"
  • 6.00mm Thickness New - creates a low stack height
  • 5.63mm Thickness Worn
  • Bonded Cerametallic
  • Range of spline sizes available
  • Various hub profiles available

Applications

  • S2000
  • ETV
  • ETV-R
  • Ford Fiesta WRC
  • Ford Fiesta R5

Part Numbers:

Spline

Ø184mm x 6.00mm

No. of Teeth

Outside Diameter

CP8401
4 Paddle Bonded

Hub Profile

Cross Reference
20 0.875" CP8401-G026H 9.50mm
20 0.875" CP8401-A026H 14.20mm
23 1.00" CP8401-G036H 9.50mm M-Sport R5 MKI - S12110002A
M-Sport R5 MKI EVO - S12110002A
M-Sport Rally2 MKII - S12110002A
23 1.00" CP8401-K036H 13.50mm Citroen C3 Rally2 - 1C1122260A
23 1.00" CP8401-A036H 14.20mm M-Sport R5 MKI - S12110001A
M-Sport R5 MKI EVO - S12110001A
M-Sport Rally2 MKII - S12110001A
26 1.16" CP8401-A040H 14.20mm
24 24.20mm CP8401-G045H 9.50mm
24 24.20mm CP8401-A045H 14.20mm



Brand AP Racing
Options SKU Barcode
0.875" x 20 / (A) Standard Hub - 14.20mm CP8401-A026H
0.875" x 20 / (G) Shortened Hub - 9.50mm CP8401-G026H
1.00" x 23 / (A) Standard Hub - 14.20mm CP8401-A036H
1.00" x 23 / (G) Shortened Hub - 9.50mm CP8401-G036H
1.00" x 23 / (K) Special Hub - 13.50mm CP8401-K036H
1.16" x 26 / (A) Standard Hub - 14.20mm CP8401-A040

Brand Part Number
M-Sport S12110002A
M-Sport S12110001A
Citroen Racing 1C1122260A
