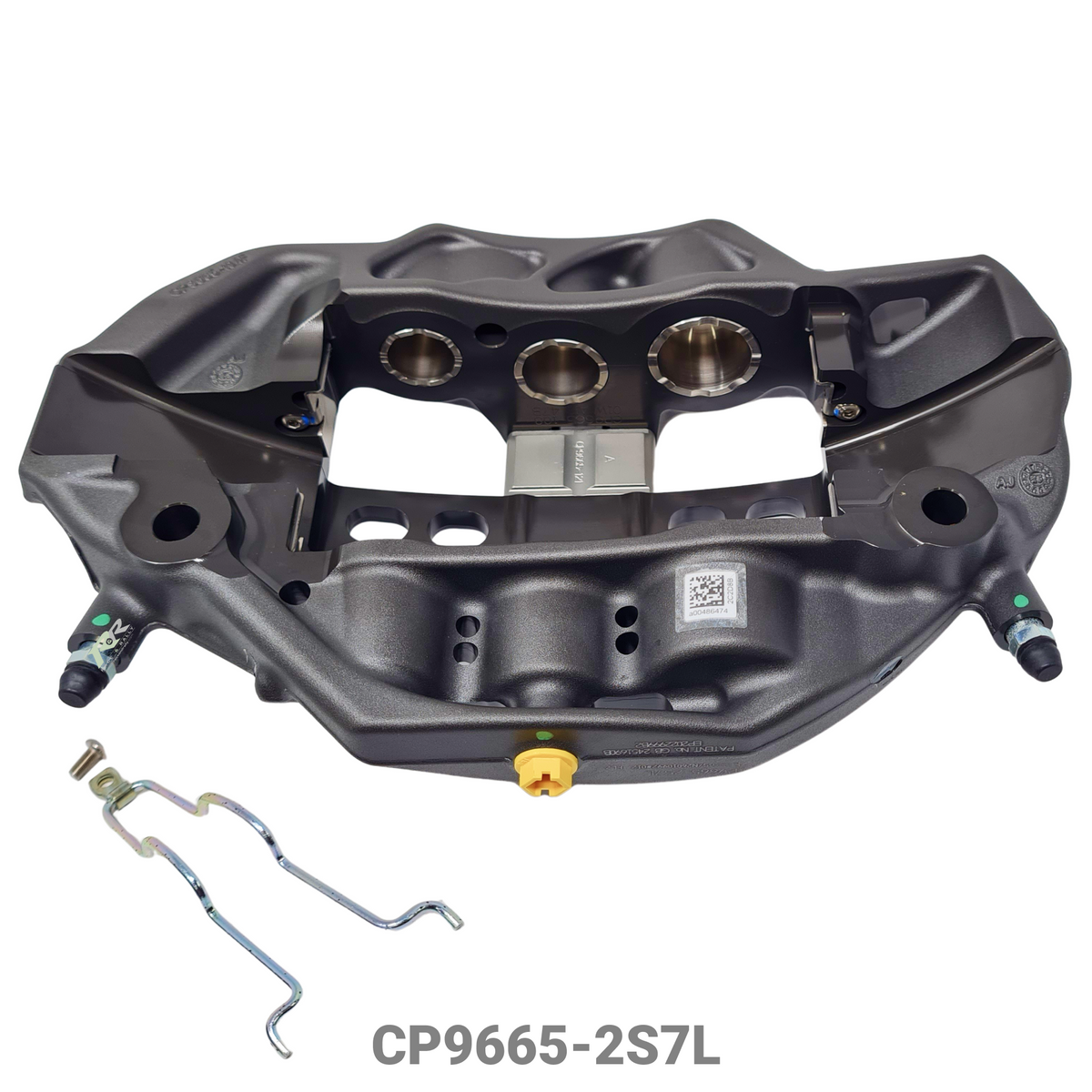

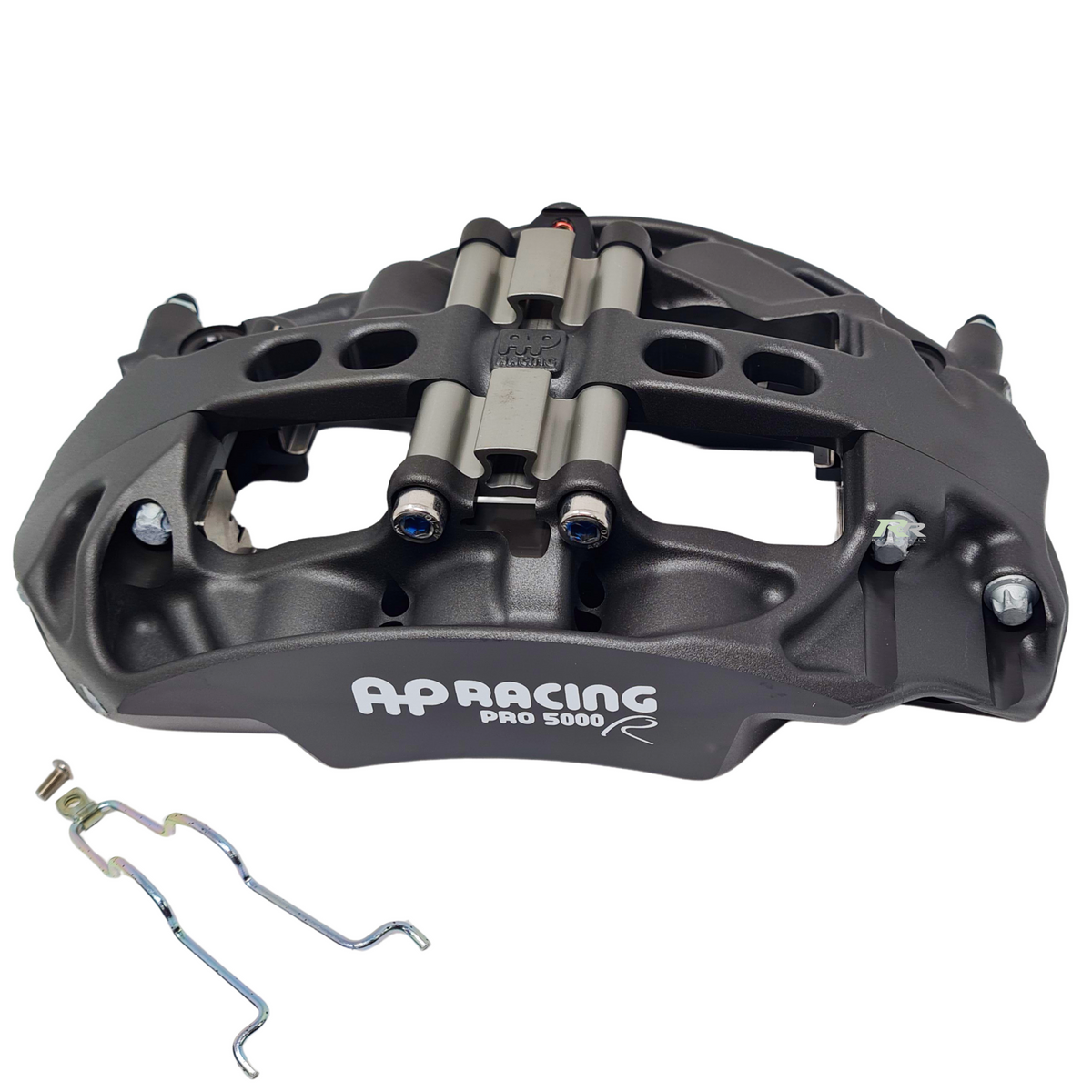

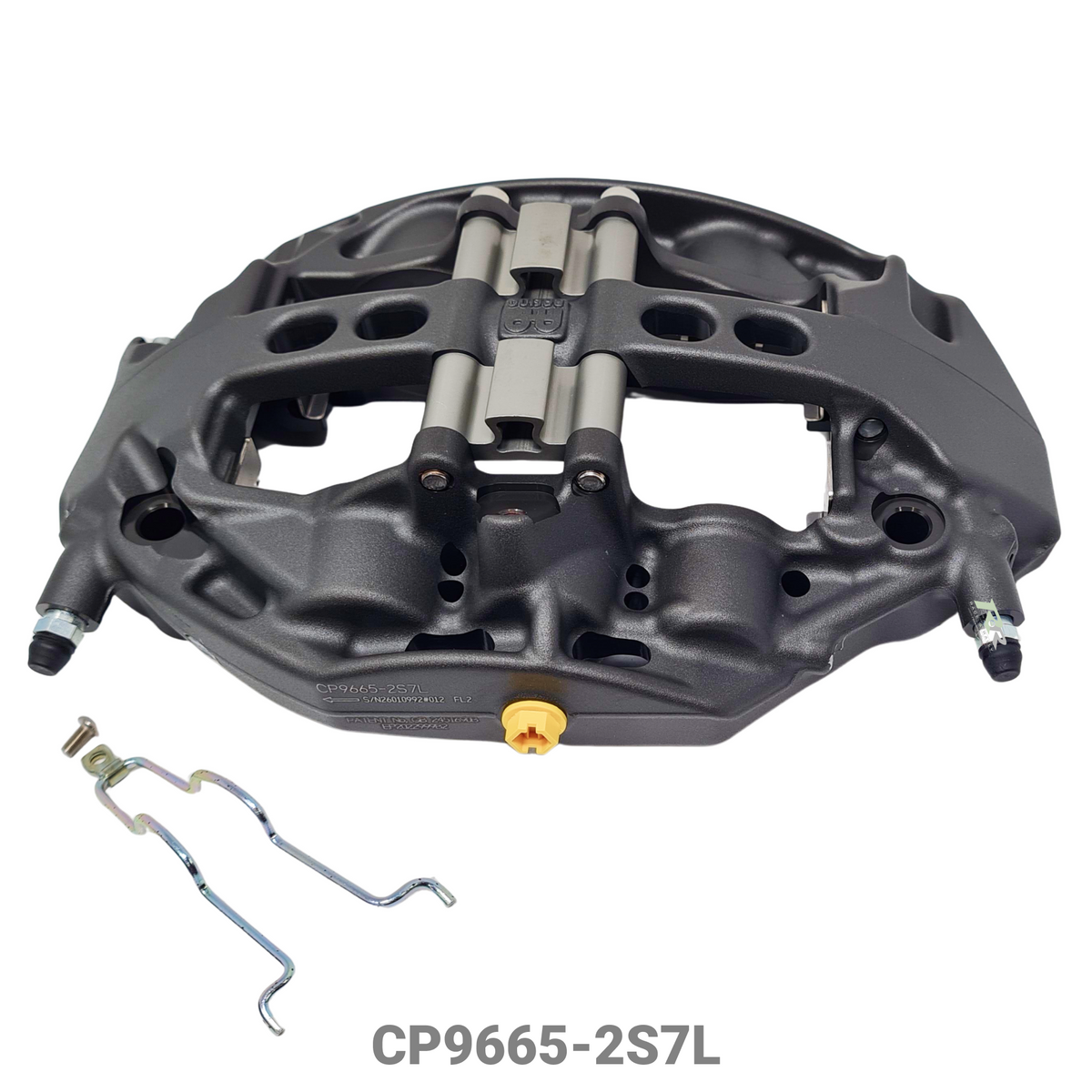

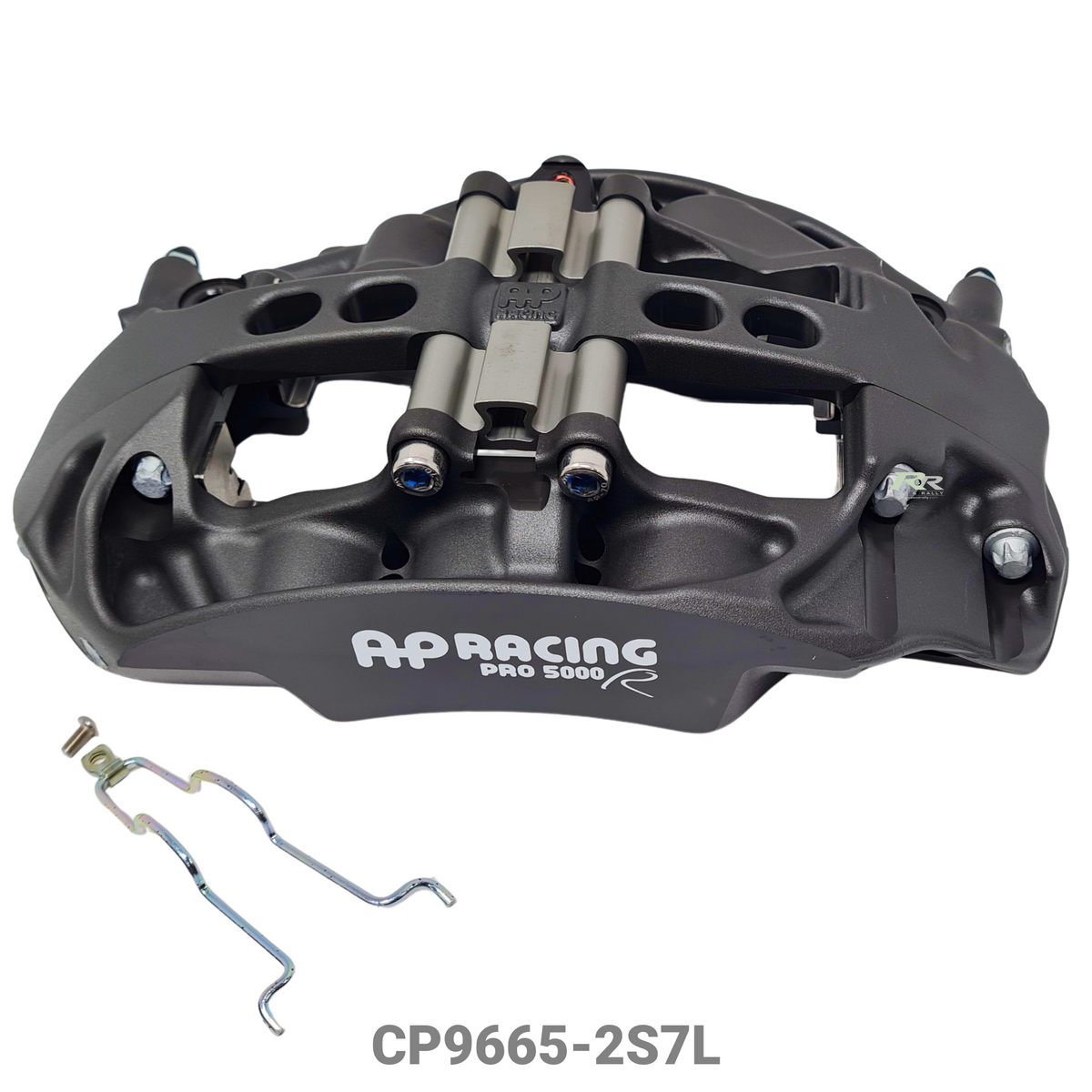

CP9665 - PRO 5000 R 6 Piston Caliper

CP9665 - PRO 5000 R 6 Piston Caliper

CP9665-2S7L

€1165.37 €1433.41
Sale Sold out
  • Feature Icon 6 Pistons: Ø27.0mm x 2 | Ø31.8mm x 2 | Ø38.1mm x 2
  • Feature Icon 210mm x 42mm Mounting Centres
  • Feature Icon PRO 5000 R Caliper
  • Feature Icon [Pad Shape: CP6230D54]
Piston Diameter
Caliper Hand
View Docs

Out of stock, contact for leadtime

View full details

CP9665 - PRO 5000 R 6 Piston Front Caliper
[25mm Thick Pad]

Applications:

  • Single make race series
  • Budget
  • General competition use

Features:

  • CP9665 has differential bores
  • Radial mount, 210 x 42.0mm
  • Benefits from a radical asymmetric design concept
  • Superior dynamic performance
  • Increased stiffness
  • Suitable disc sizes:
    • Maximum - Ø390 x 36mm
    • Minimum - Ø362 x 32mm
  • Internally ported, no external bridge pipes.
  • Forged, two piece aluminium alloy body
  • Stainless Steel pistons standard
  • High temperature seals
  • 7lb Anti-knockback springs fitted
  • Stainless Steel wear plate

Part Numbers:

  • Right-hand - CP9665-2S7L
  • Left-hand - CP9665-3S7L

Technical Specifications:

 Piston Sizes Ø27.0mm x2
Ø31.8mm x2
Ø38.1mm x2
Piston Area 50.10 cm²
Disc Diameter Max - Ø390mm
Min - Ø362mm
Disc Thickness Max - Ø36mm
Min - Ø32mm
Weight (no pads) 3.10 Kg
Hydraulic Threads M10x1.0
Mounting Type Radial
Mounting Centres 210.00mm
Mounting Offset 42.00mm
Mounting Hole Ø12.27 - Ø12.17mm
'PL' Dimension 63.5mm
Bleed Screw Tightening Torque 17Nm


Spare Parts (per caliper)

Pistons Ø27.0mm - CP9665-114
Ø31.8mm - CP9665-115
Ø38.1mm - CP9665-116
Seal Repair Kit CP8518-CEJ
Pad Retainer
- Standard (Complete Kit - CP9665-12) CP9665-121A x2
- Quick Release (Complete Kit - CP9665-13) Clip: CP9665-118
Hinge: CP6268-110
Pad Retainer Bolt
- Standard CP3715-117ST x2
- Quick Release CP3160-106ST
Wear Plates RH - CP9665-112
LH - CP9665-113
Wear Plate Fixing Bolts CP9440-116ST x4
Anti-knockback Springs CP6518-7LBSSL
Bleed Screw CP3880-1
Bleed Screw Cap CP2494-177


Brake Pads

 Pad Shape

**Important Note: The top tag of the pad needs to be removed before fitment
 CP6230D54
CP6230D54 Brake Pad Set - APF404 Compound - Race and Rally
Pad Area 81.62cm²
Pad Depth 54.0mm
Thickness 25.0mm


Brand AP Racing
Option SKU Barcode
Ø27.0mm x2 | Ø31.8mm x2 | Ø38.1mm x2 / Right Hand CP9665-2S7L
Ø27.0mm x2 | Ø31.8mm x2 | Ø38.1mm x2 / Left Hand CP9665-3S7L


AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.
