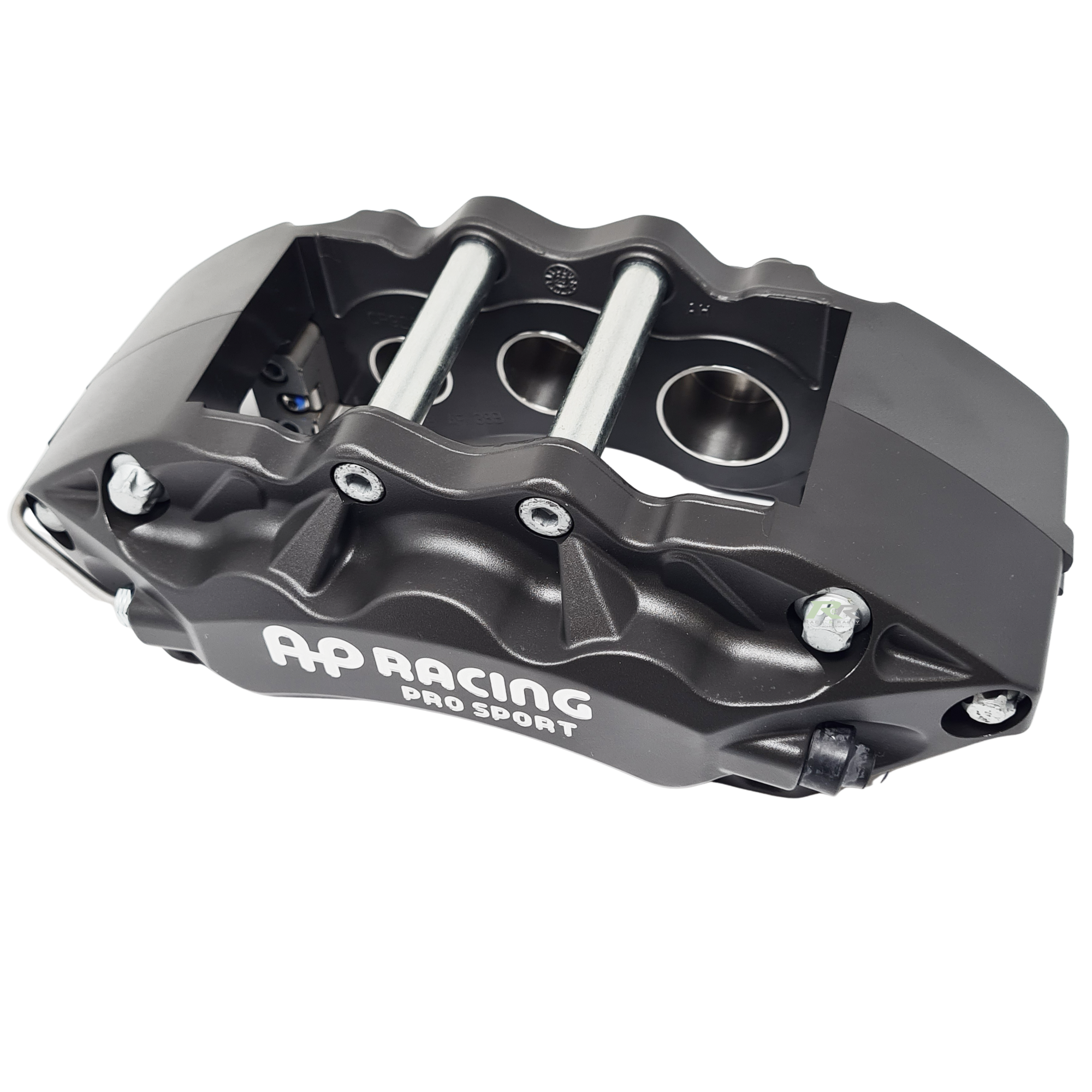

CP9280 - PRO Sport 6 Piston Caliper

CP9280 - PRO Sport 6 Piston Caliper

CP9280-2S4L

€550.79 €677.47
Sale Sold out
  • Feature Icon 6 Pistons: Ø27.0mm x 2 / Ø31.8mm x 2 / Ø38.1mm x 2
  • Feature Icon 152mm x 53.2mm Mounting Centres
  • Feature Icon PRO Sport Caliper
  • Feature Icon [Pad Shape: CP3894D54]
Piston Diameter
Material Finish
Caliper Hand

Out of stock, contact for leadtime

View full details

CP9280 - PRO Sport 6 Piston Front Caliper

Applications:

  • R2
  • R4
  • Cost conscious motorsport series

Features:

  • CP9280 has differential bores
  • Radial mount, 152 x 53.2mm
  • Suitable disc sizes:
    • Maximum - Ø362 x 32mm
    • Minimum - Ø343 x 32mm
  • Forged, two piece aluminium alloy body
  • Stainless Steel pistons standard
  • High temperature seals
  • 4lb Anti-knockback springs fitted
  • Stainless Steel wear plate

Part Numbers:

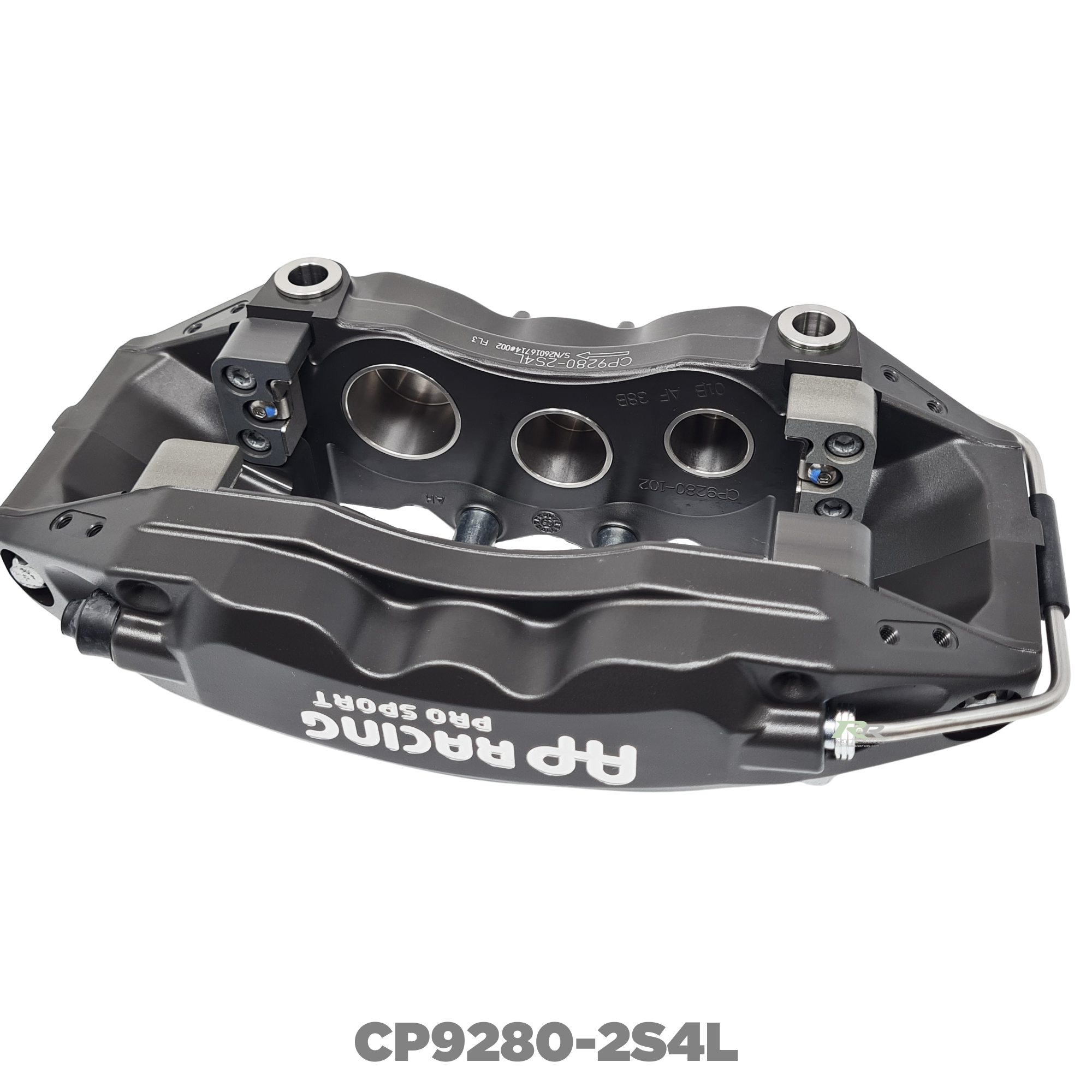

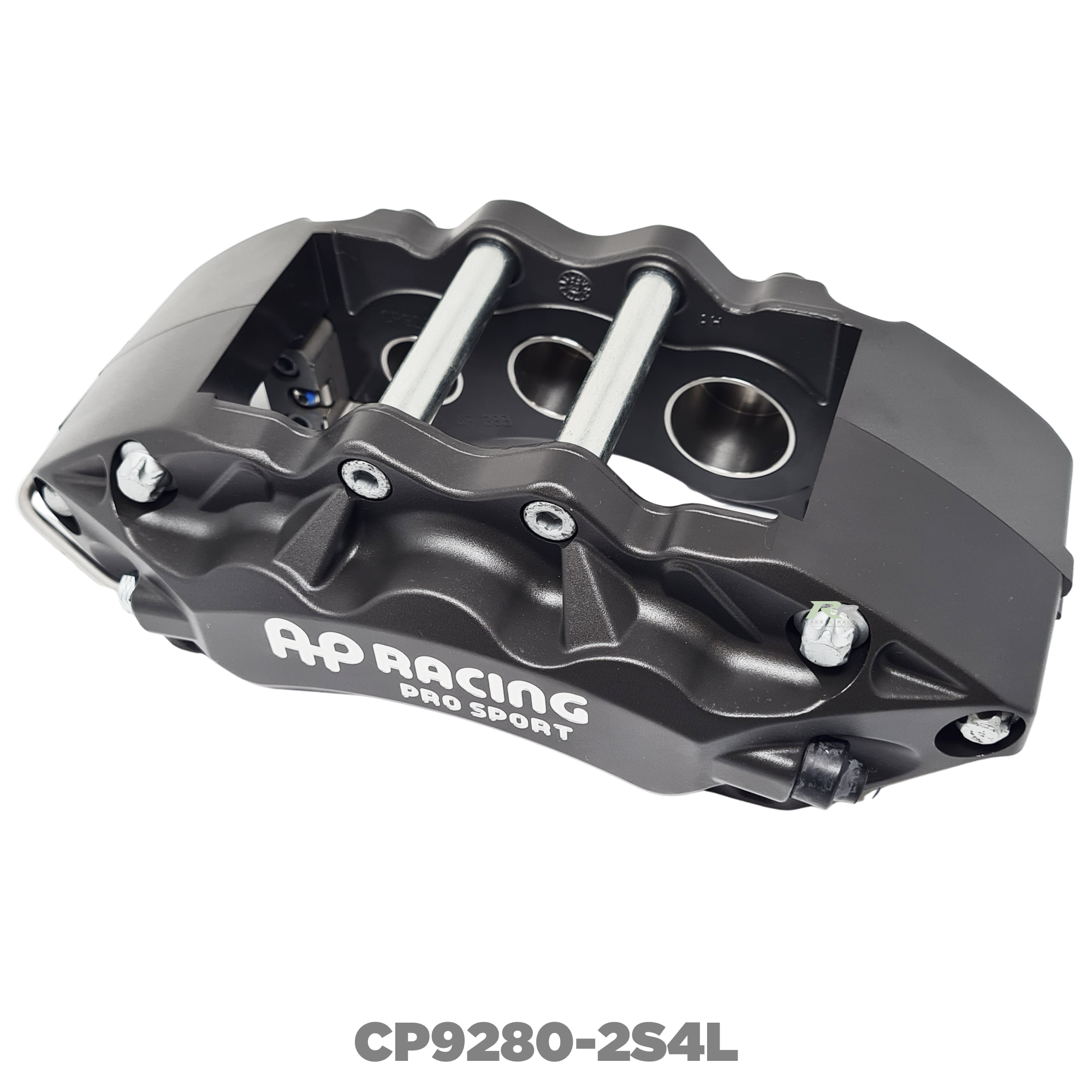

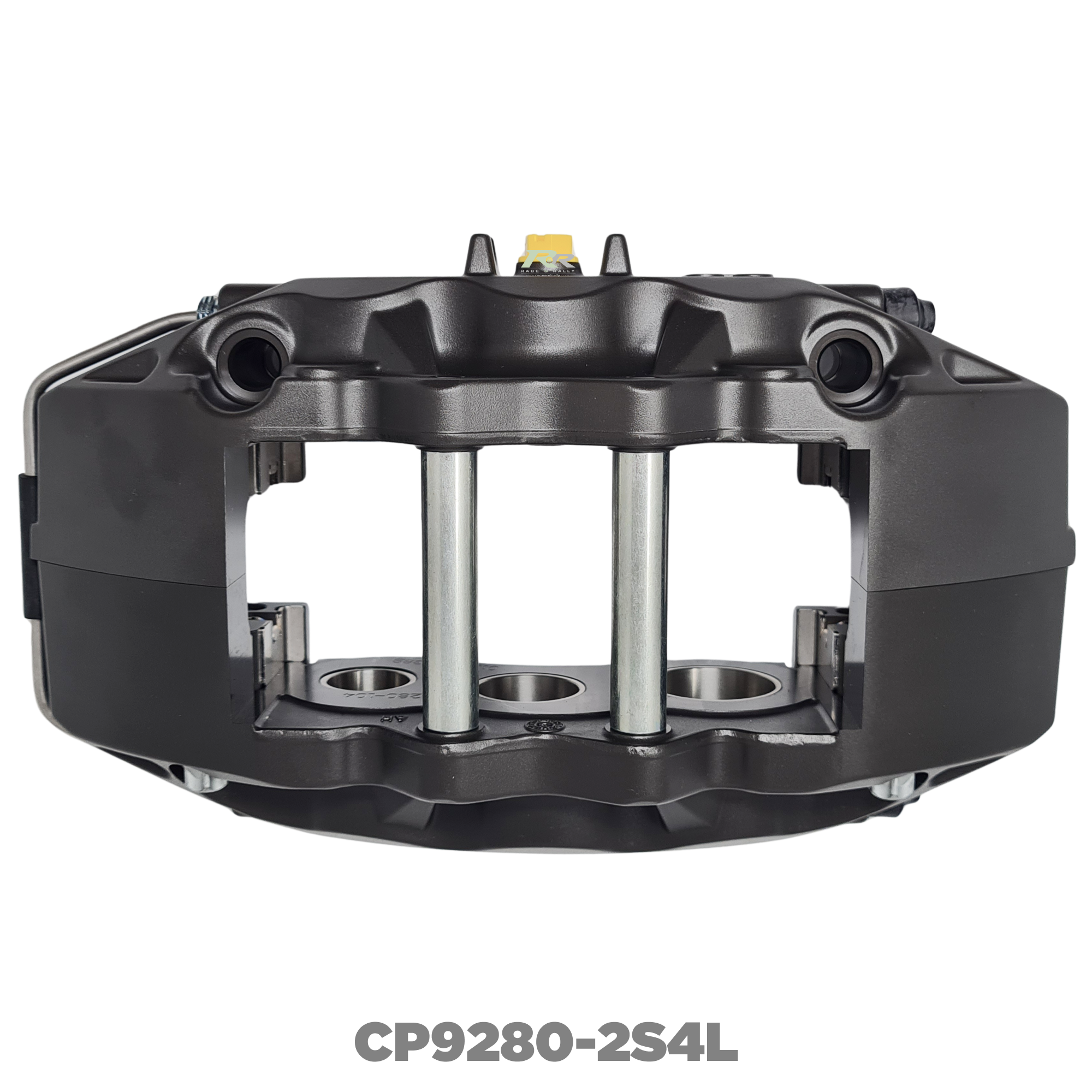

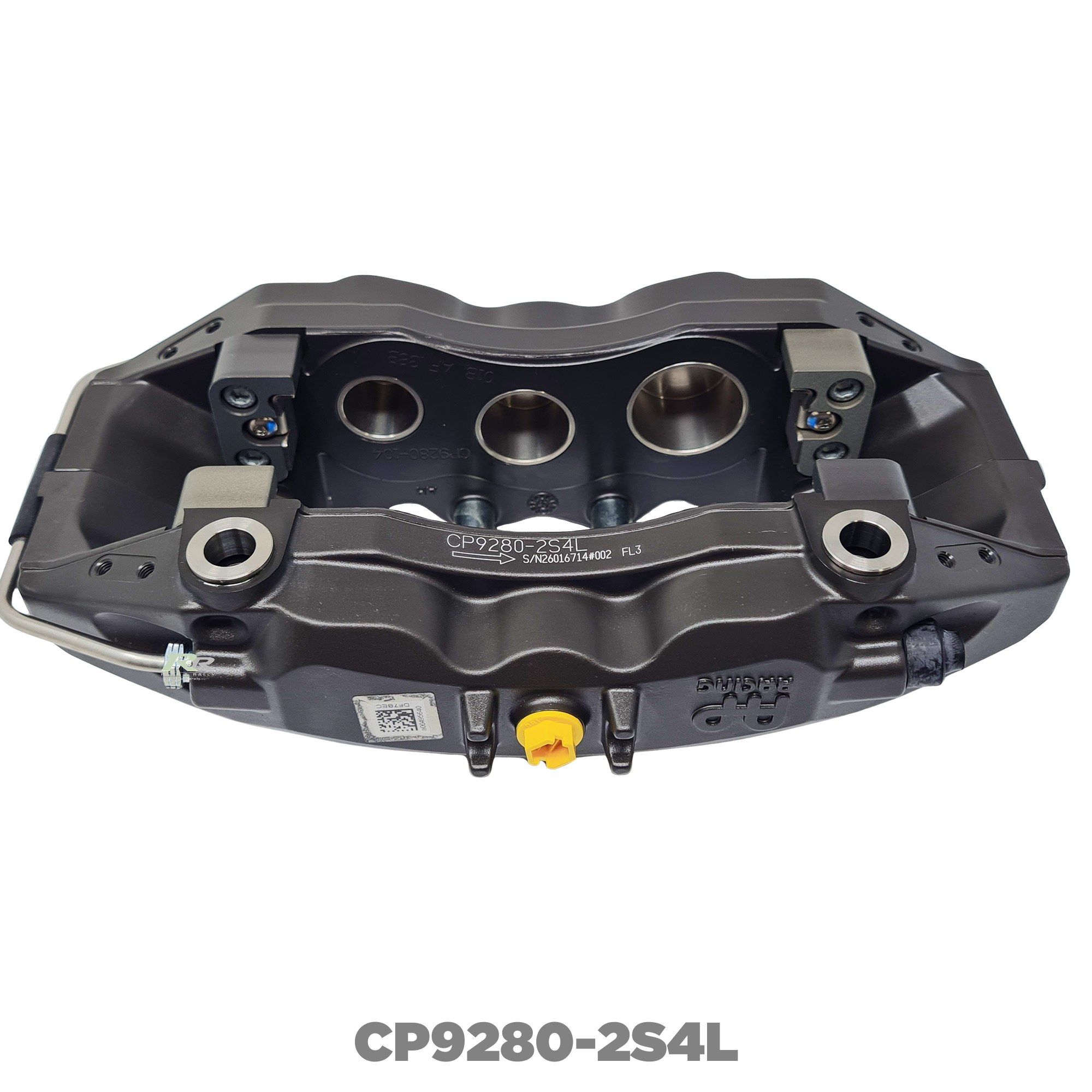

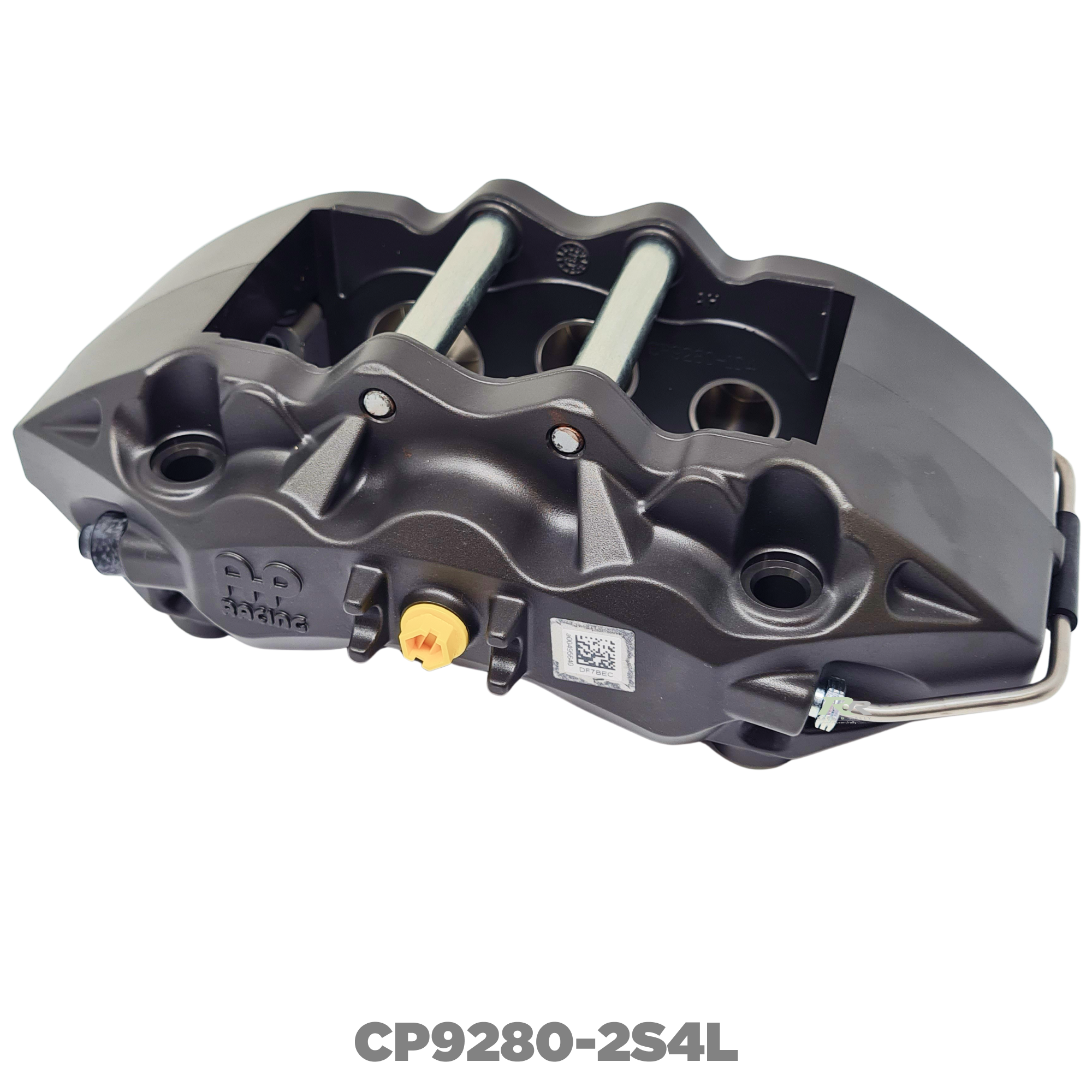

  • Right-hand Trailing - CP9280-2S4L

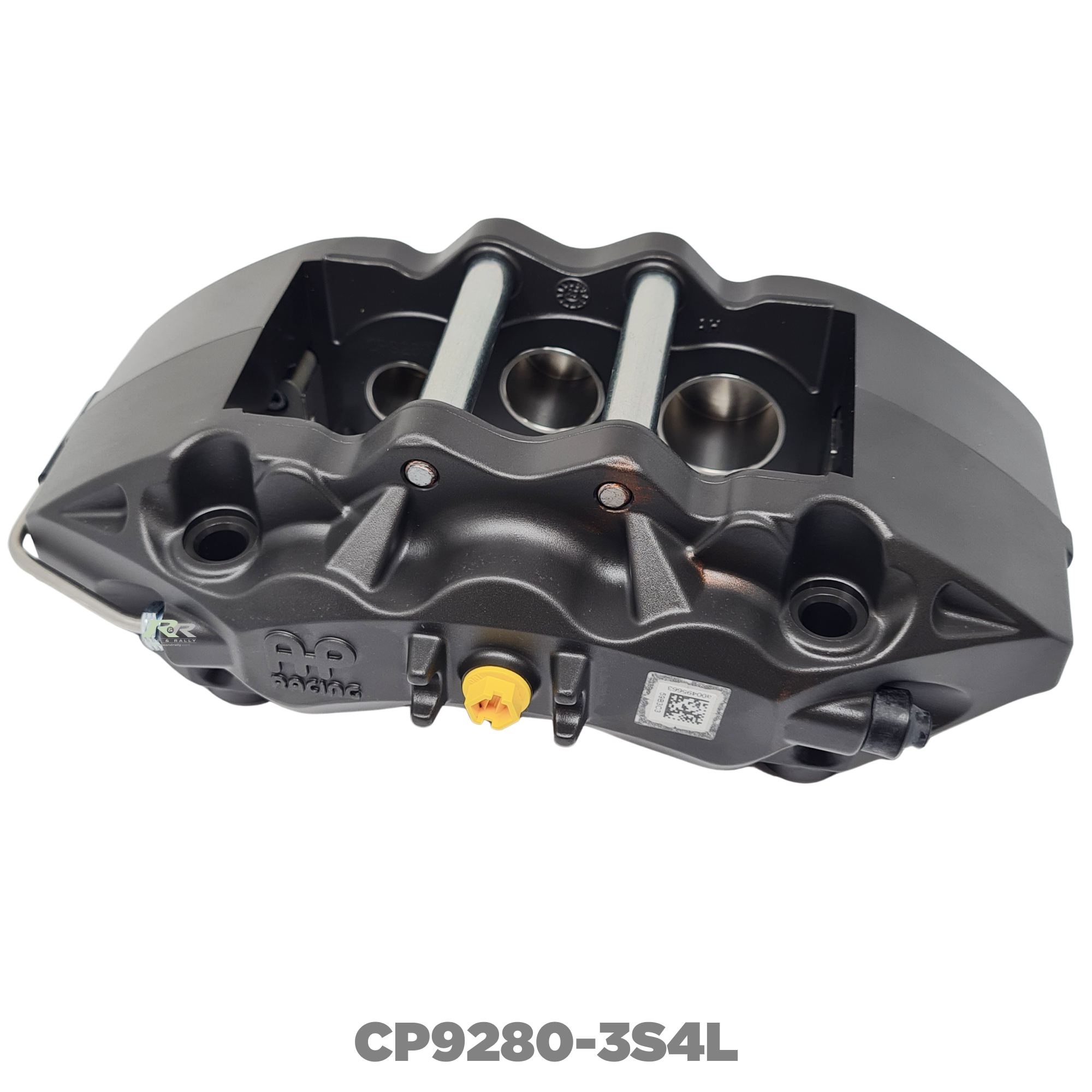

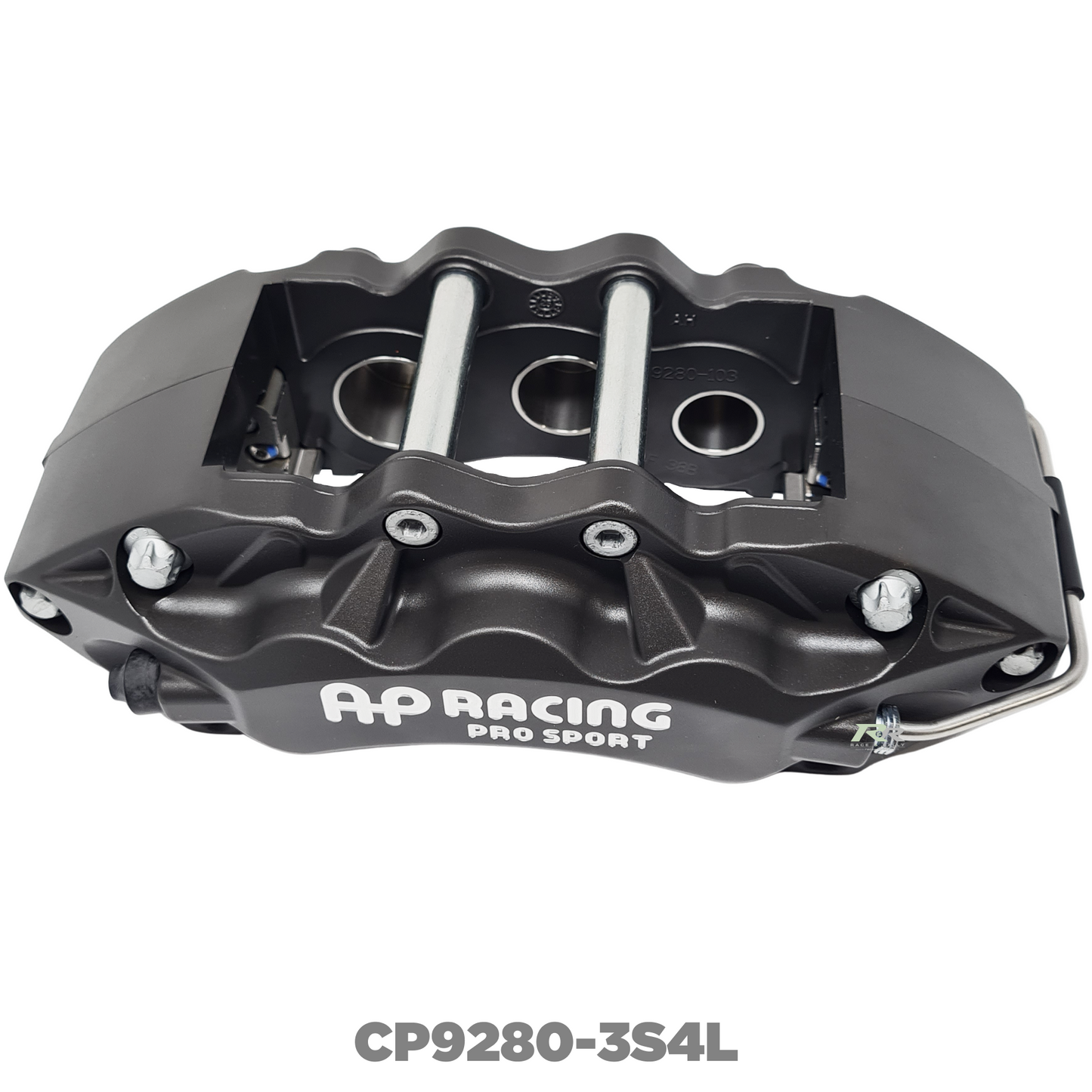

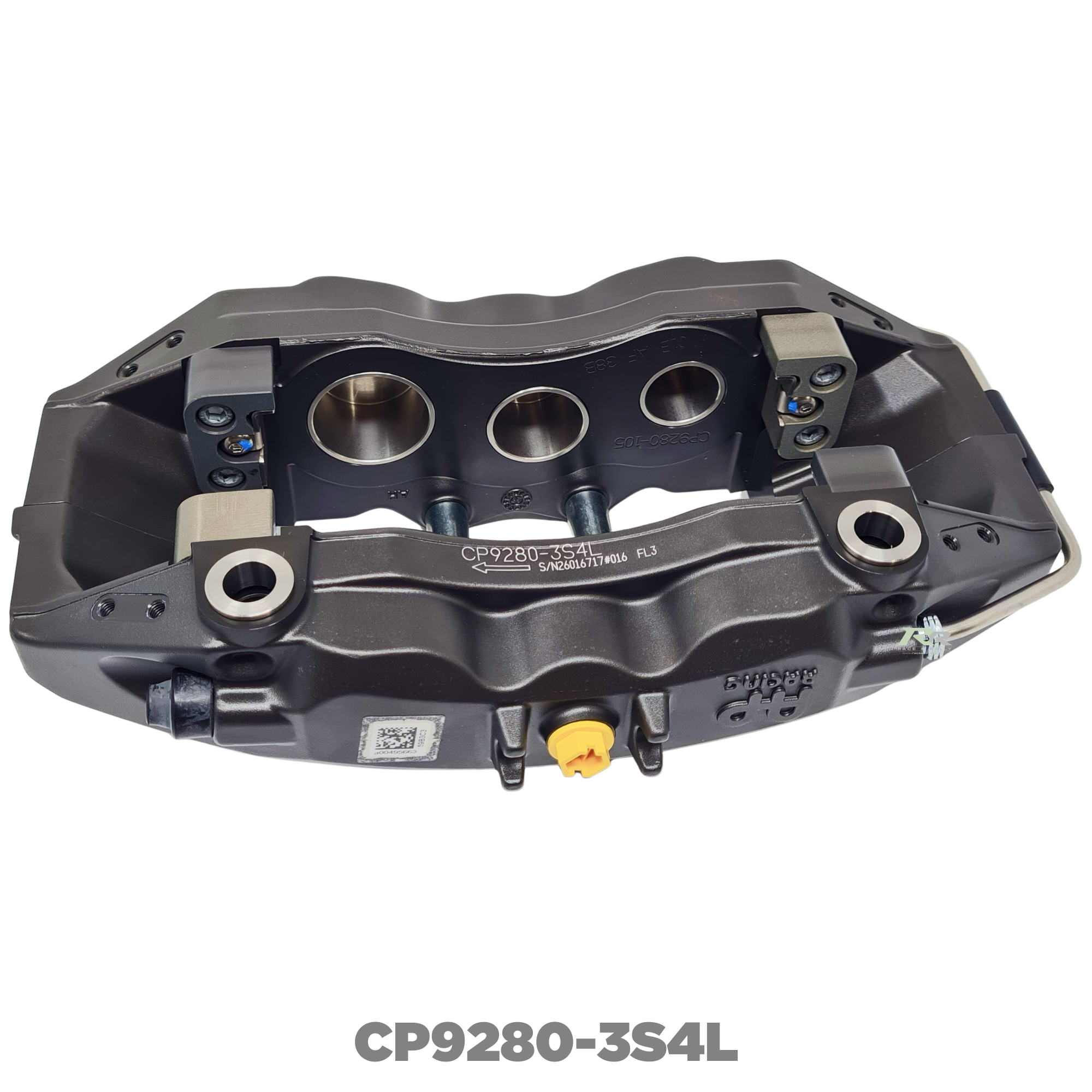

  • Left-hand Trailing - CP9280-3S4L
  • Right-hand Leading - CP9280-4S4L
  • Left-hand Leading - CP9280-5S4L

Technical Specifications:

 Piston Sizes Ø27.0mm x2
Ø31.8mm x2
Ø38.1mm x2
Piston Area 50.10 cm³
Disc Diameter Max - Ø362mm
Min - Ø343mm
Disc Thickness 32mm
Weight (no pads) 3.62 Kg
Hydraulic Threads M10 x 1.0
Mounting Type Radial
Mounting Centres 152.00mm
Mounting Offset 53.20mm
Mounting Hole Ø12.15mm
'PL' Dimension 68.8mm
Bleed Screw Tightening Torque 17Nm



Spare Parts (per caliper)

Pistons Ø27.0mm - CP5260-109
Ø31.8mm - CP5260-110
Ø38.1mm - CP5260-111
Seal Repair Kit CP4518-CEJ
Pad Retainer Tube CP5555-157 x2
Pad Retainer Bolt CP3894-139ST x2
Wear Plates RH - CP9280-110
LH - CP9280-111
Wear Plate Fixing Bolts CP9440-116ST x4
Anti-knockback Springs CP6518-4LBSSL
Bleed Screw CP3880-1
Bleed Screw Cap CP4970-133



Brake Pads

 Pad Shape CP3894D54
CP3894D54 Brake Pad Set - APF404 Compound - Race and Rally
Pad Area 76.3cm
Pad Depth 54.0mm
Thickness 18.0mm



Brand AP Racing
Option SKU Barcode
Ø27.0mm x2 | Ø31.8mm x2 | Ø38.1mm x2 / Anodised / Right Hand Trailing CP9280-2S4L
Ø27.0mm x2 | Ø31.8mm x2 | Ø38.1mm x2 / Anodised / Left Hand Trailing CP9280-3S4L
Ø27.0mm x2 | Ø31.8mm x2 | Ø38.1mm x2 / Anodised / Right Hand Leading CP9280-4S4L
Ø27.0mm x2 | Ø31.8mm x2 | Ø38.1mm x2 / Anodised / Left Hand Leading CP9280-5S4L
