  • CP5060 - PRO 5000+ 6 Piston Caliper - 32mm Thick Discs - Race and Rally
1 4

CP5060 - PRO 5000+ 6 Piston Caliper - 32mm Thick Discs

CP5060 - PRO 5000+ 6 Piston Caliper - 32mm Thick Discs

CP5060-10S4

€905.68 €1113.99
Sale Sold out
  • Feature Icon 6 Pistons: Ø27.0mm / Ø31.8mm / Ø38.1mm
  • Feature Icon 180mm x 44mm Mounting Centres
  • Feature Icon PRO 5000+ Caliper
  • Feature Icon [Pad Shape: CP3894D54]
Piston Diameter
Piston Material
Caliper Hand
View Docs

Out of stock, contact for leadtime

View full details

CP5060 - PRO 5000+ 6 Piston Caliper
[for 32mm Brake Disc]

Applications:

  • Suitable Caliper for general motorsport.

Features:

  • CP5060 has differential bores
  • Radial mount, 180 x 44.0mm
  • Suitable disc sizes:
    • Maximum - Ø378 x 32mm
    • Minimum - Ø356 x 32mm
  • Cast aluminium alloy body
  • Available with Aluminium or Stainless Steel pistons
  • High temperature seals
  • 4lb Anti-knockback springs fitted
  • Stainless Steel wear plate

Part Numbers:

  • Aluminium Pistons:

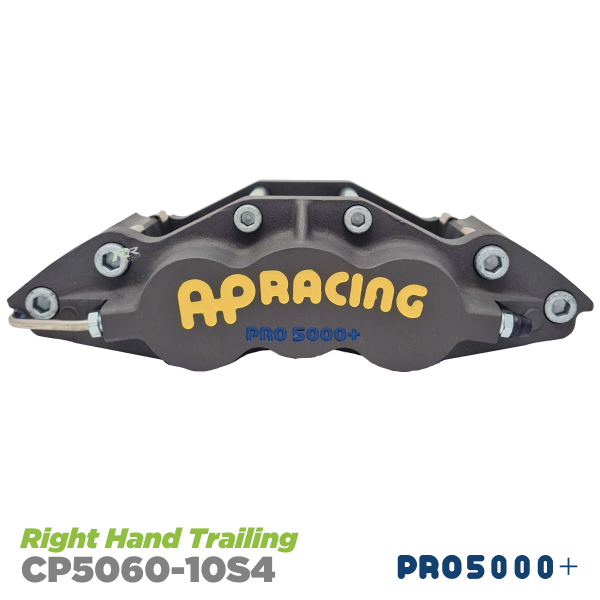

    • Right-hand Trailing- CP5060-10S4
    • Left-hand Trailing - CP5060-11S4
    • Right-hand Leading - CP5060-12S4
    • Left-hand Leading - CP5060-13S4
  • Stainless Steel Pistons:
    • Right-hand Trailing- CP5060-10S4L
    • Left-hand Trailing - CP5060-11S4L
    • Right-hand Leading - CP5060-12S4L
    • Left-hand Leading - CP5060-13S4L

Technical Specifications:

 Piston Sizes Ø27.0mm x2
Ø31.8mm x2
Ø38.1mm x2
Piston Area 50.10 cm³
Disc Diameter Max - Ø378mm
Min - Ø356mm
Disc Thickness Max - Ø32mm
Min - Ø32mm
Weight (no pads) 2.90 Kg
Hydraulic Threads M10x1.0
Mounting Type Radial
Mounting Centres 180.00mm
Mounting Offset 44.00mm
Mounting Hole Ø12.20mm
'PL' Dimension 63.5mm
Bleed Screw Tightening Torque 17Nm



Spare Parts (per caliper)

Pistons (Aluminium) Ø27.0mm - CP4910-156
Ø31.8mm - CP4910-155
Ø38.1mm - CP4910-154
Pistons (Stainless Steel) Ø27.0mm - CP5560-108
Ø31.8mm - CP5560-109
Ø38.1mm - CP5560-110
Seal Repair Kit CP4518-CEJ
Pad Retainer CP5555-126 x2
Pad Retainer Bolt CP3596-112 x2
Wear Plates CP5555-120 x4
Anti-knockback Springs CP6518-4LBSSL
Bleed Screw CP3880-1
Bleed Screw Cap CP2494-177
Fluid Cross-over Pipe CP5560-6



Brake Pads

 Pad Shape CP3894D54
CP3894D54 Brake Pad Set - APF404 Compound - Race and Rally
Pad Area 73.5cm
Pad Depth 54.0mm
Thickness 18.0mm



Brand AP Racing
Option SKU Barcode
Ø27.0mm x2 & Ø31.8mm x2 & Ø38.1mm x2 / Aluminium / Right Hand Trailing CP5060-10S4
Ø27.0mm x2 & Ø31.8mm x2 & Ø38.1mm x2 / Aluminium / Left Hand Trailing CP5060-11S4
Ø27.0mm x2 & Ø31.8mm x2 & Ø38.1mm x2 / Aluminium / Right Hand Leading CP5060-10S4
Ø27.0mm x2 & Ø31.8mm x2 & Ø38.1mm x2 / Aluminium / Left Hand Leading CP5060-11S4

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.
