Regular price
€195.42
€240.37
-
Lotus -
McLaren
-
Seat
-
AP Racing CP7040
Lotus
149.3mm
86.0mm
16.9mm
57.5mm
Compound Information
Compound Information
DS2500 (H)
These are the amongst the foremost high performance track day pads in the business
Main Applications:
- Track Day
- Light race use
- Rear GT
- Rear rally
- Front Hillclimb
- Low heat events
Main Features:
- Road style refinement but with race material ability to withstand heat with respect to life and friction coefficent.
- Average friction coefficient of 0.41 over working temperature range of 0°C to 500°C
WARNING:
DS2500 does not have R90 certification and so it is not recommended for road use in those countries which require R90.

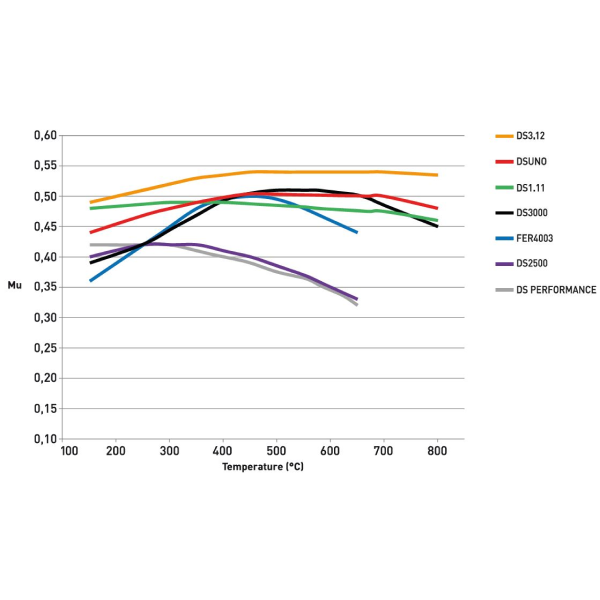

DS2500 Friction Coefficient (MU) Versus Temperature (°C)

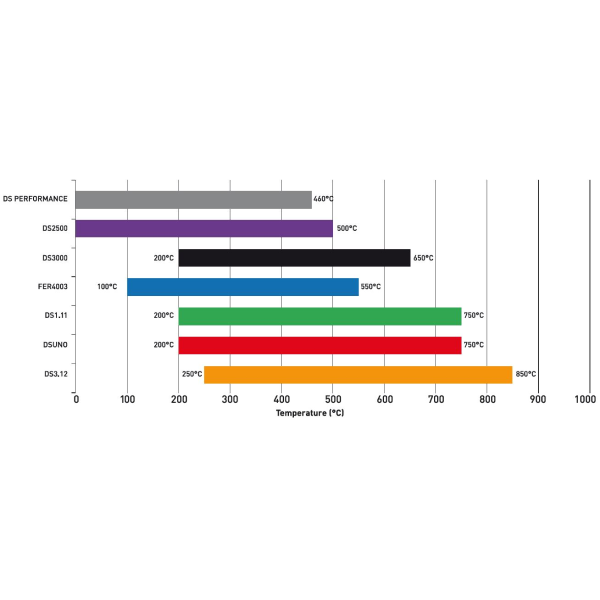

Optimal operating temperature

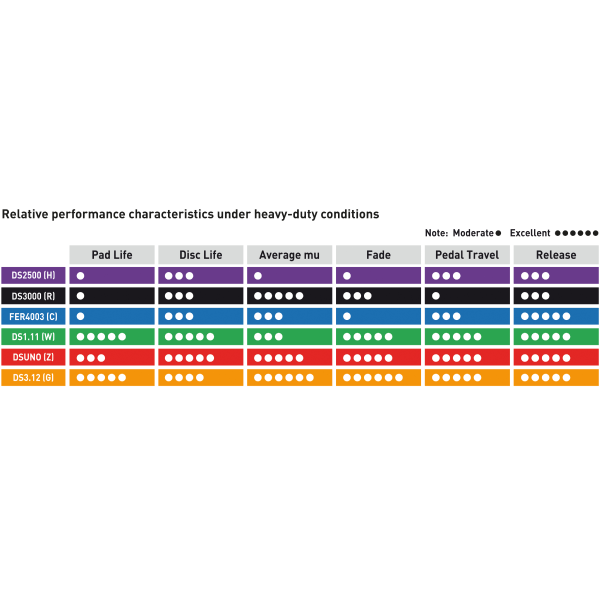

Relative performance characteristics under heavy-duty race conditions
Suggested applications
Out of stock, expected in 3-5 days from order

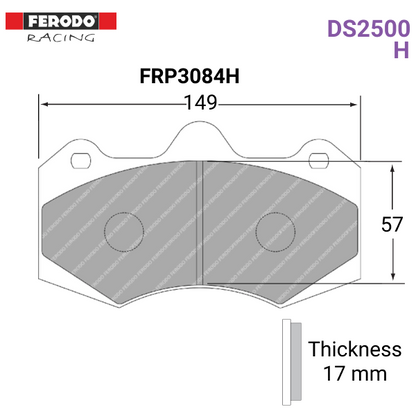

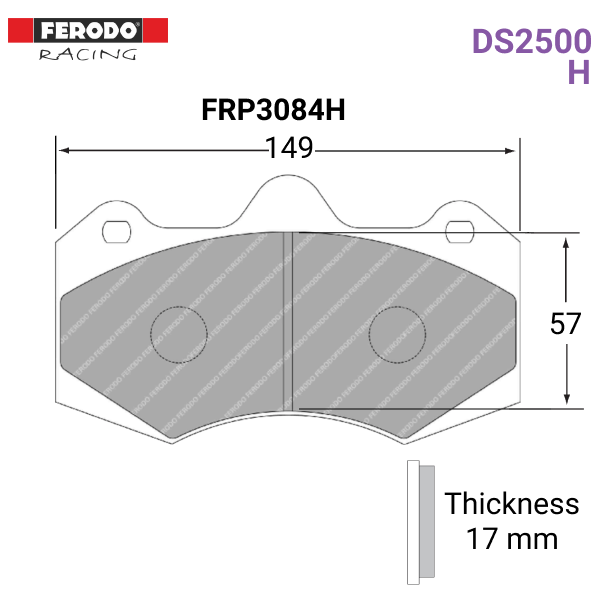

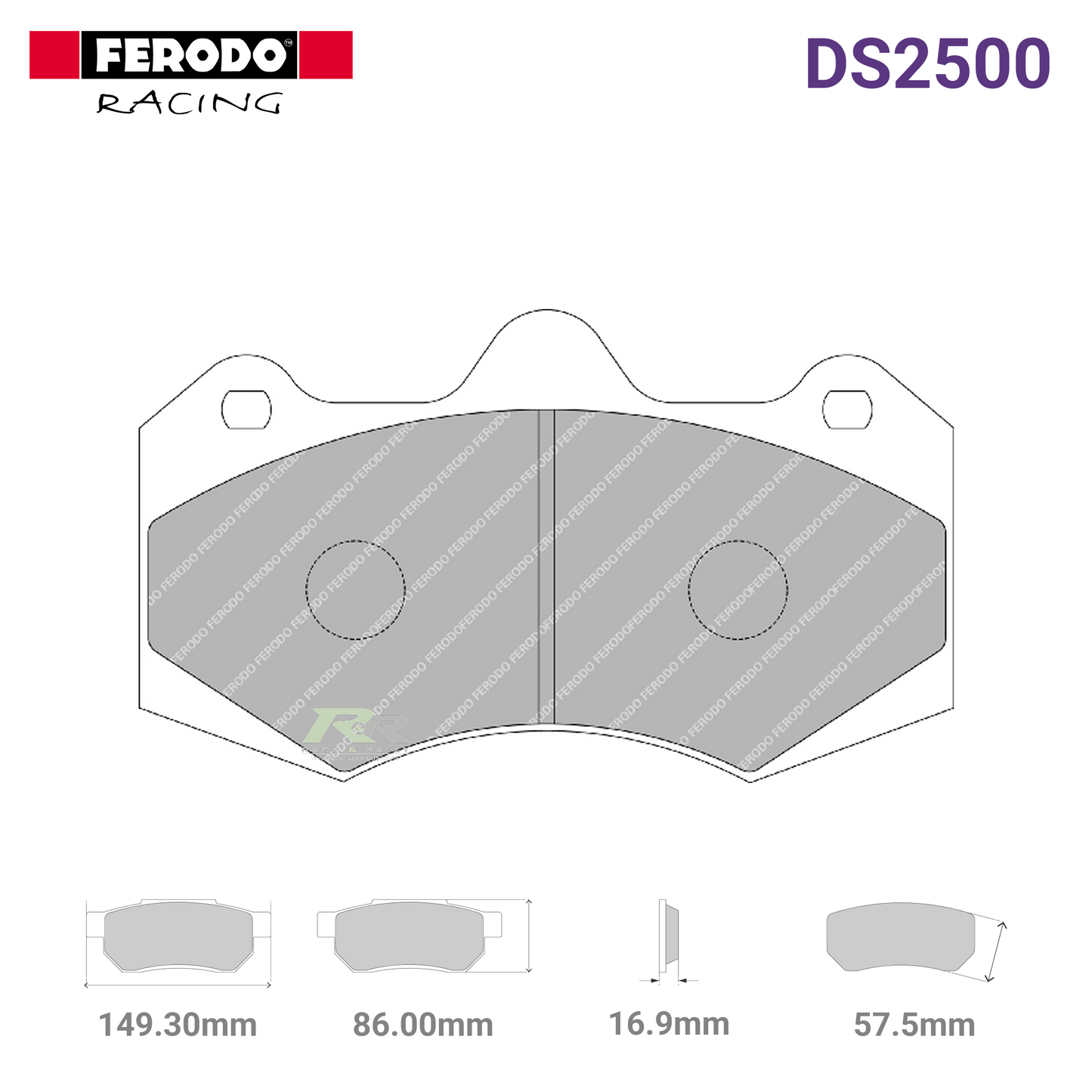

Brake Pad Dimensions:
| Manufacturer | Ferodo |
| Part Number | FRP3084H |
| Pad Width | 149.3mm |
| Pad Height | 86.0mm |
| Radial Depth | 57.5mm |
| Thickness | 16.9mm |
| Compound | (H) DS2500 |
| Barcode | 5016687358773 |
Brake Pad Compound Information:
DS2500 (H)
These are the amongst the foremost high performance track day pads in the business
Main Applications:
- Track Day
- Light race use
- Rear GT
- Rear rally
- Front Hillclimb
- Low heat events
Main Features:
- Road style refinement but with race material ability to withstand heat with respect to life and friction coefficent.
- Average friction coefficient of 0.41 over working temperature range of 0°C to 500°C
WARNING:
DS2500 does not have R90 certification and so it is not recommended for road use in those countries which require R90.
DS2500 Friction Coefficient (MU) Versus Temperature (°C)
Optimal operating temperature
Relative performance characteristics under heavy-duty race conditions
Suggested applications
Cross References:
| AP Racing | CP7040D61 |
| Carbon Lorraine | 5043W57T17 |
| Ferodo Racing | FRP3084 |
| Performance Friction | 7838 |
Compatible Calipers:
| AP Racing |
|---|
| CP7040 |
Ferodo Racing - Pad Bedding.pdf
