Regular price
€330.69
€406.75
139.8mm
61.4mm
16.0mm
48.4mm
Compound Information
Compound Information
DS2500 (H)
These are the amongst the foremost high performance track day pads in the business
Main Applications:
- Track Day
- Light race use
- Rear GT
- Rear rally
- Front Hillclimb
- Low heat events
Main Features:
- Road style refinement but with race material ability to withstand heat with respect to life and friction coefficent.
- Average friction coefficient of 0.41 over working temperature range of 0°C to 500°C
WARNING:
DS2500 does not have R90 certification and so it is not recommended for road use in those countries which require R90.
DS2500 Friction Coefficient (MU) Versus Temperature (°C)
Optimal operating temperature
Relative performance characteristics under heavy-duty race conditions
Suggested applications
Out of stock, expected in 3-5 days from order

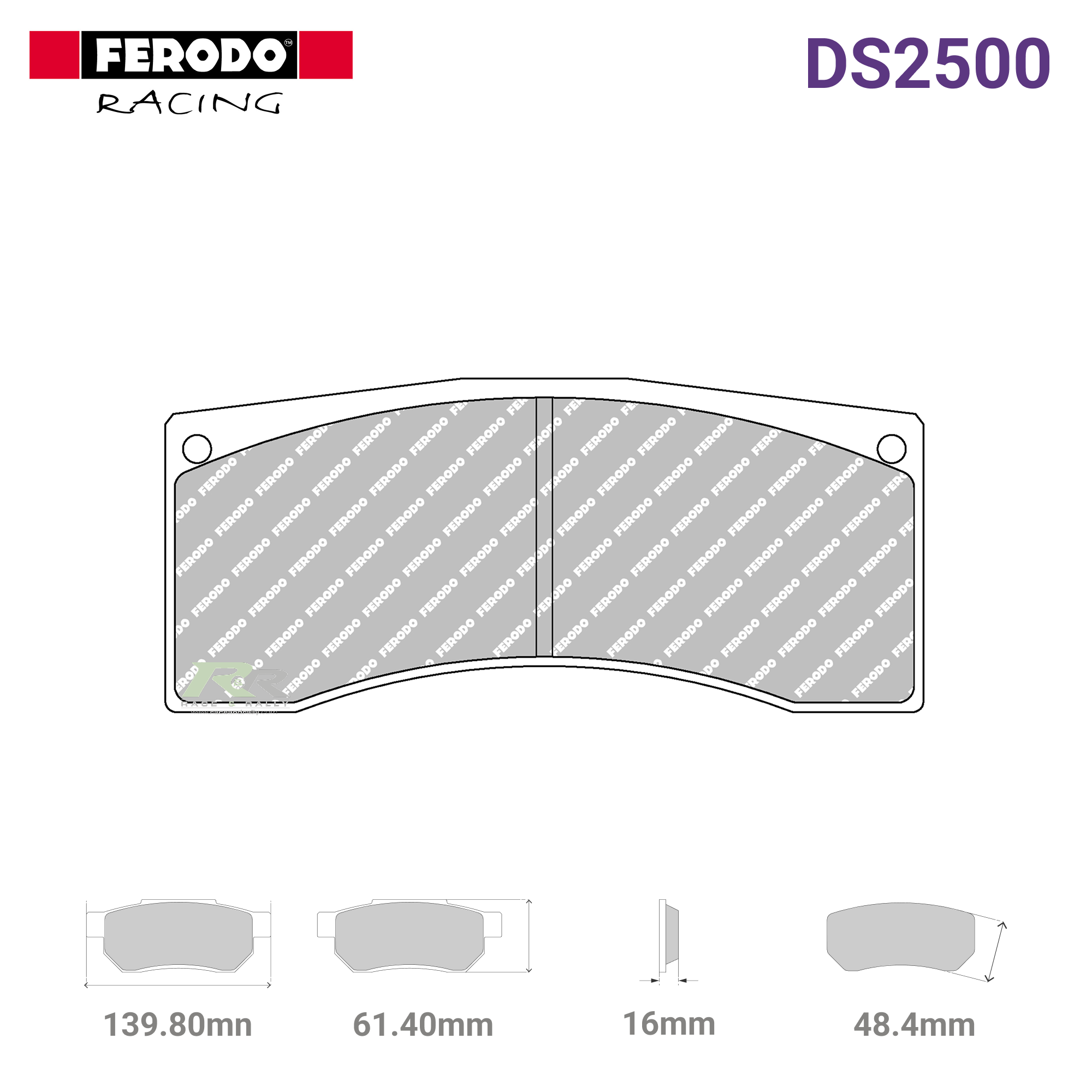

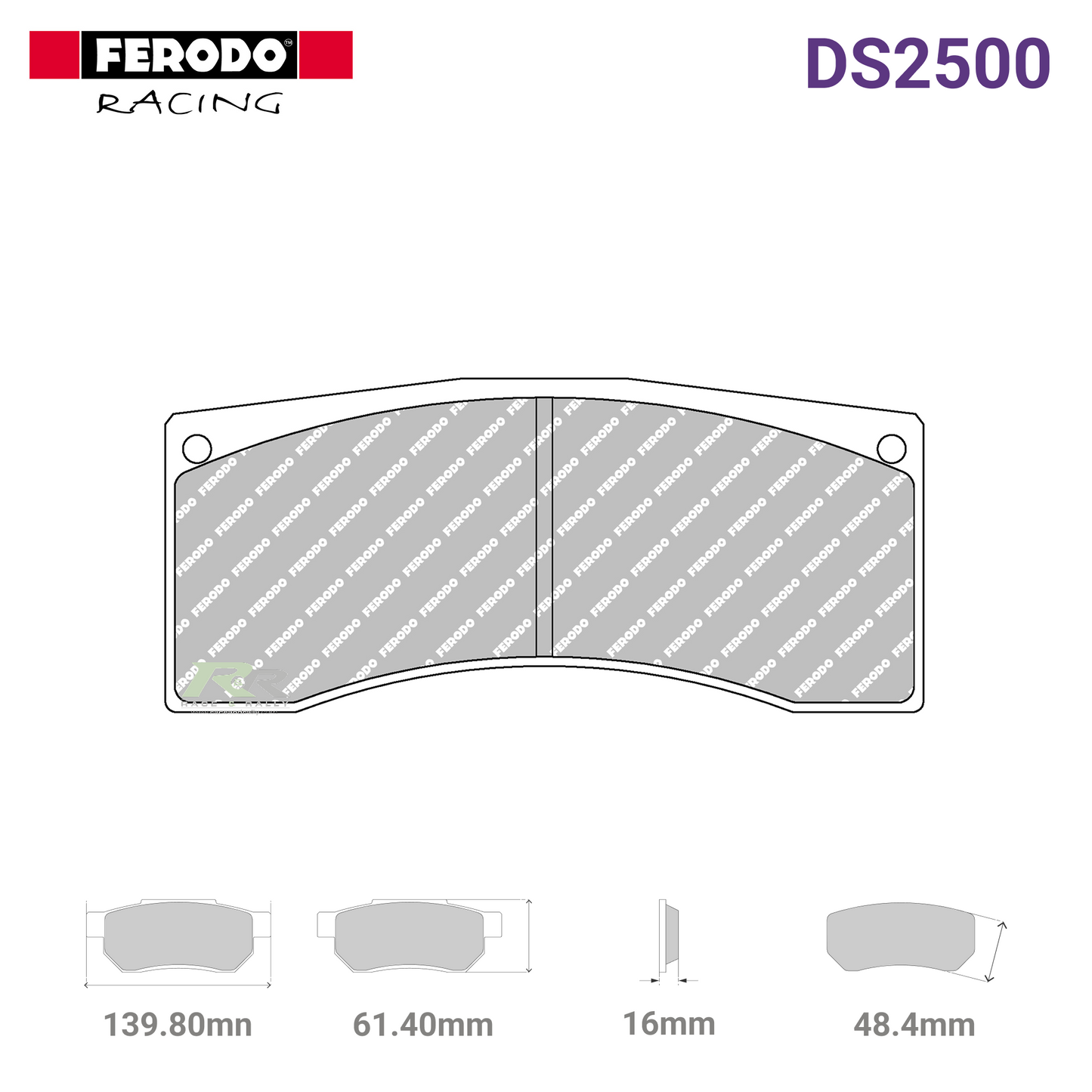

Brake Pad Dimensions:
| Manufacturer | Ferodo |
| Part Number | FRP3140H |
| Pad Width | 139.8mm |
| Pad Height | 61.4mm |
| Radial Depth | 48.4mm |
| Thickness | 16.0mm |
| Compound | (H) DS2500 |
| Barcode | 4060426387310 |
Brake Pad Compound Information:
DS2500 (H)
These are the amongst the foremost high performance track day pads in the business
Main Applications:
- Track Day
- Light race use
- Rear GT
- Rear rally
- Front Hillclimb
- Low heat events
Main Features:
- Road style refinement but with race material ability to withstand heat with respect to life and friction coefficent.
- Average friction coefficient of 0.41 over working temperature range of 0°C to 500°C
WARNING:
DS2500 does not have R90 certification and so it is not recommended for road use in those countries which require R90.
DS2500 Friction Coefficient (MU) Versus Temperature (°C)
Optimal operating temperature
Relative performance characteristics under heavy-duty race conditions
Suggested applications
Cross References:
| AP Racing |
CP6820D48 CP5788D48 |
| Carbon Lorraine |
5036W50 4200 |
| Endless | RCP108 |
| Ferodo Racing | FRP3140 |
| Pagid | 1616 |
| Performance Friction | 7770 |
Compatible Calipers:
| AP Racing |
|---|
| CP6840 |
| CP6830 |
| CP6831 |
Applications:
| Make | Model | Year |
|---|---|---|
| Ford | Fiesta | R5 MKI EVO |
| Ford | Fiesta | Rally2 |
| Hyundai | i20 | R5 |
| Hyundai | i20 | Rally2 |
| Fiat | Abrath 124 Spider | 2017+ |
| Proton | Iriz | 2017+ |
Ferodo Racing - Pad Bedding.pdf
