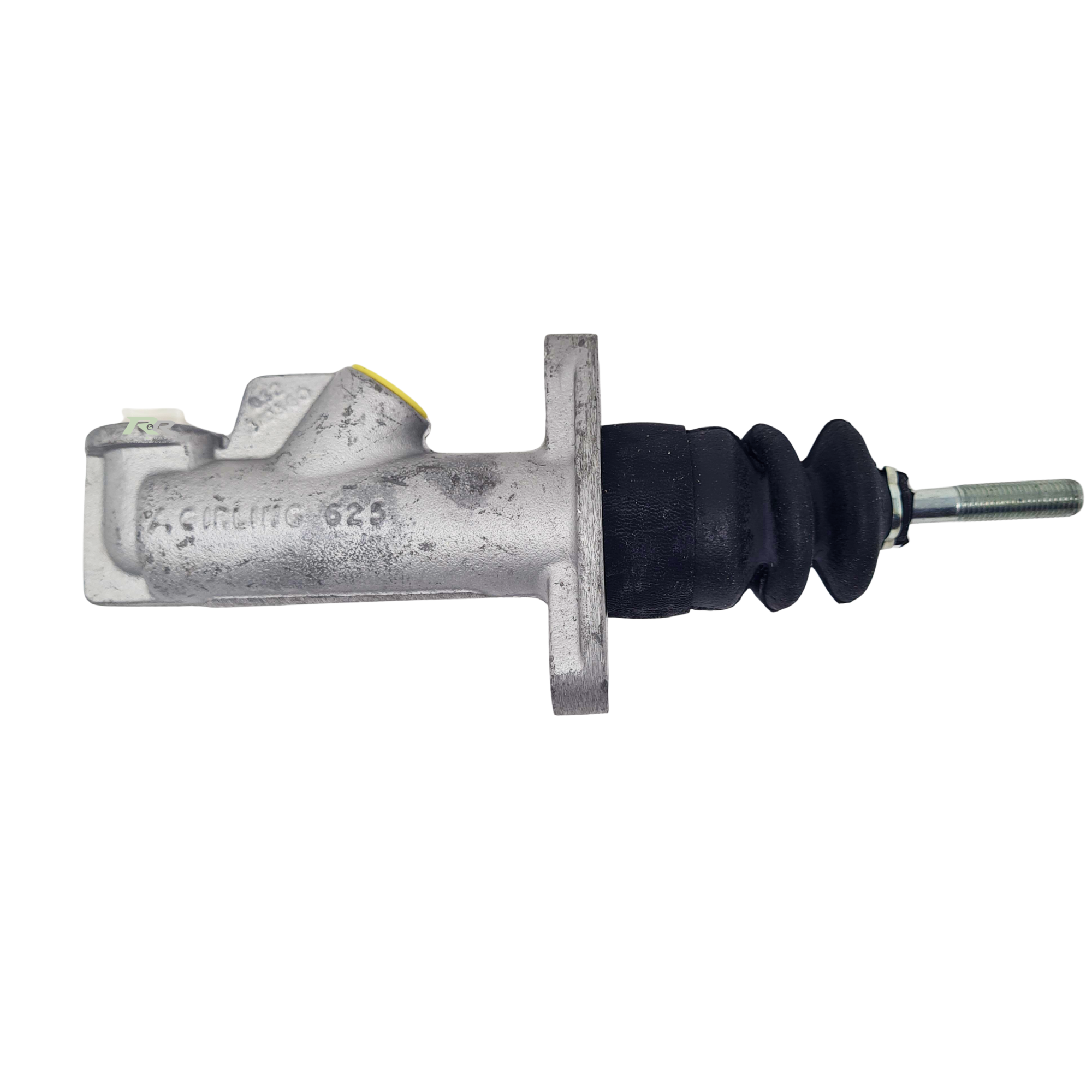

A compact forged bodied flanged master cylinder suitable for all brake and clutch applications especially where space is restricted.

FEATURES:

• Forged Aluminium Alloy Body
• 0.625" Bore
• Hydraulic threads are imperial.
• To be used with remote mounted reservoir

Technical Details:

• Weight: 0.35kg
• Hydraulic Thread:
• Inlet: 7/16"x20 JIC/UNF
• Outlet: 3/8"x24 JIC/UNF
• Push Rod Threads: 5/16" UNF
• Flange Mounting Centres: 57mm

Part Numbers:

• 0.625" - 64067651
• 0.700" - 64067884
• 0.750" - 64067620
