These robust filters are the standard fit for most competition cars around the world. The two fibre-reinforced nylon injected mouldings which form the structure have our unique Tri-Foam filter system bonded to them to give the ultimate in performance

ITG use a three-layer 'Trifoam' system, with the outer two layers of foam providing optimum filtration and load-up capacity whilst the inner layer is made from special self-extinguishing foam. These three layers combined give the very best air flow, engine protection and safety.

The ITG JC40 Straight Air Filters are available in differing heights to help fitment for your application. ITG recommend fitting the tallest element possible, though a gap of 13mm (1/2") average must be left over the top of the filter for air to circulate. When using Ram pipes, there must be an absolute minimum gap of 19mm (3/4"), but preferably around 32mm (1 1/4") between the end of the ram pipe and the underside of the top of the filter.

Please select your required Air Filter internal height from the drop down menu above.

Specifications:

• Secured to backing plate with 1/4 fasteners.
• Please Note: ITG air filters require pre-oiling prior to installation
• Trim Colour options:
  • Red
  • Black

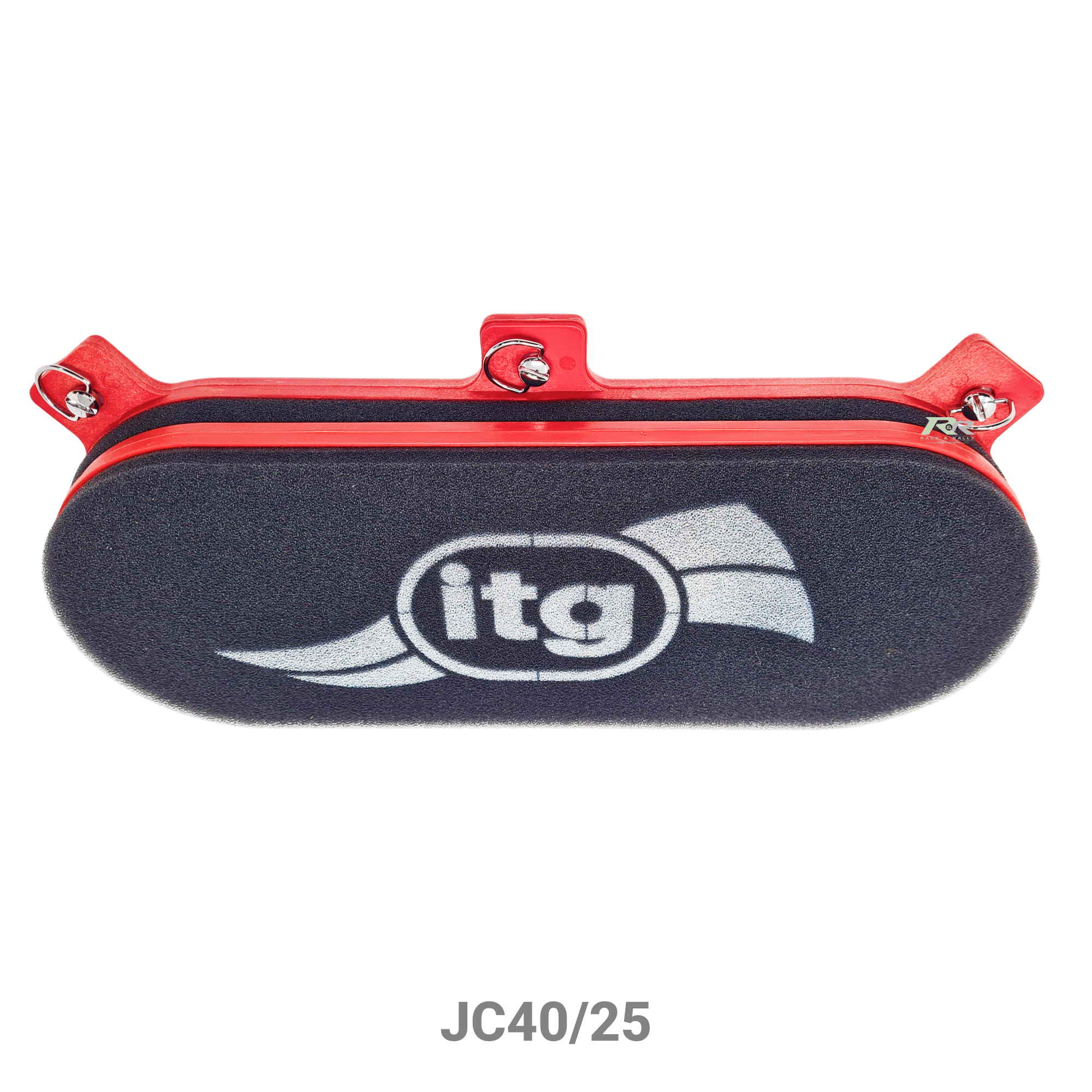

JC20 Straight Megaflow Filter Size Options

Part No.	A (Internal height)	B (Width)	C (Length)	D (Overall height)
JC40/25	25	142	379	50
JC40/40	40	142	379	65
JC40/65	65	142	379	90
JC40/100	100	142	379	125
JC40/125	125	142	379	150
