!!NEWLY DESIGNED!!

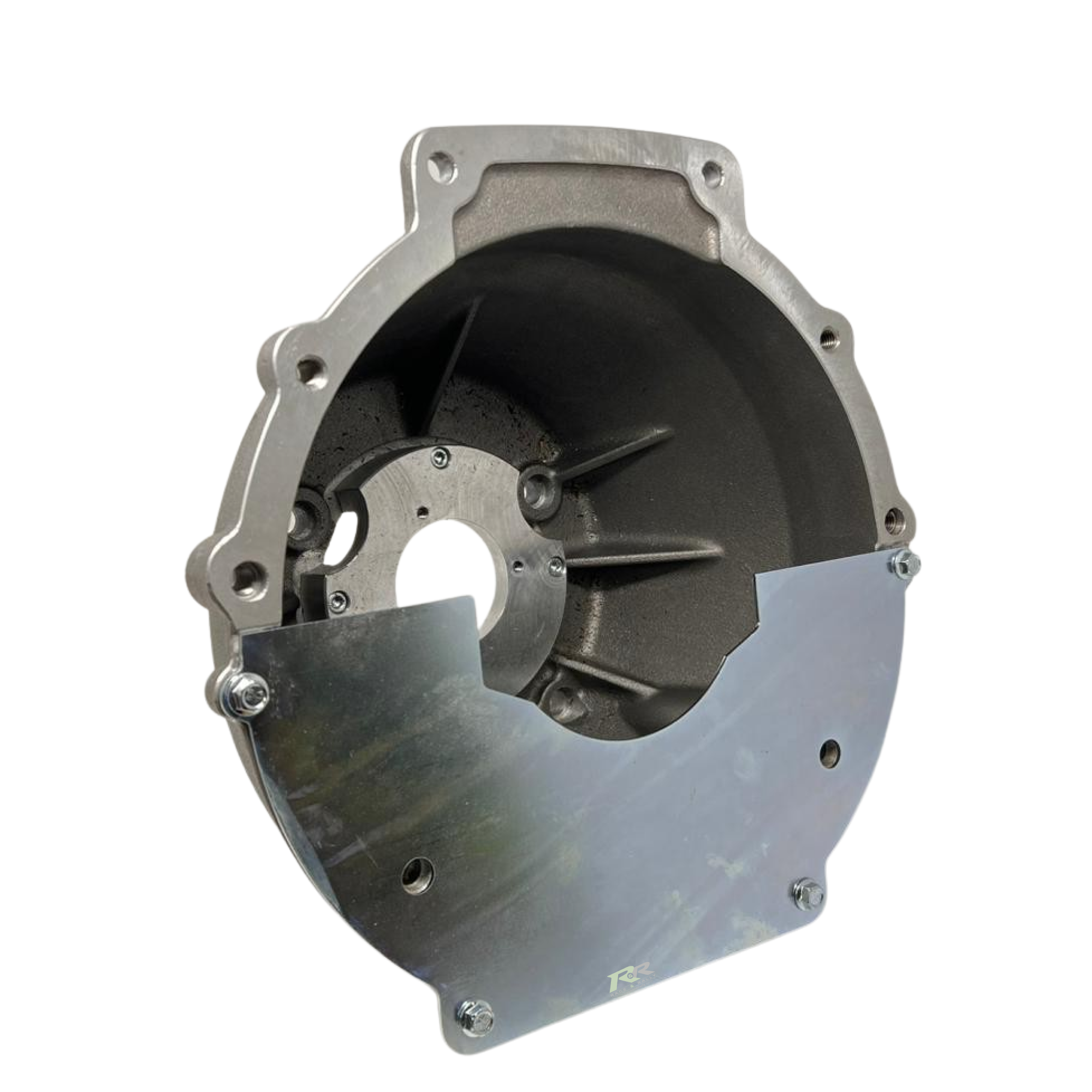

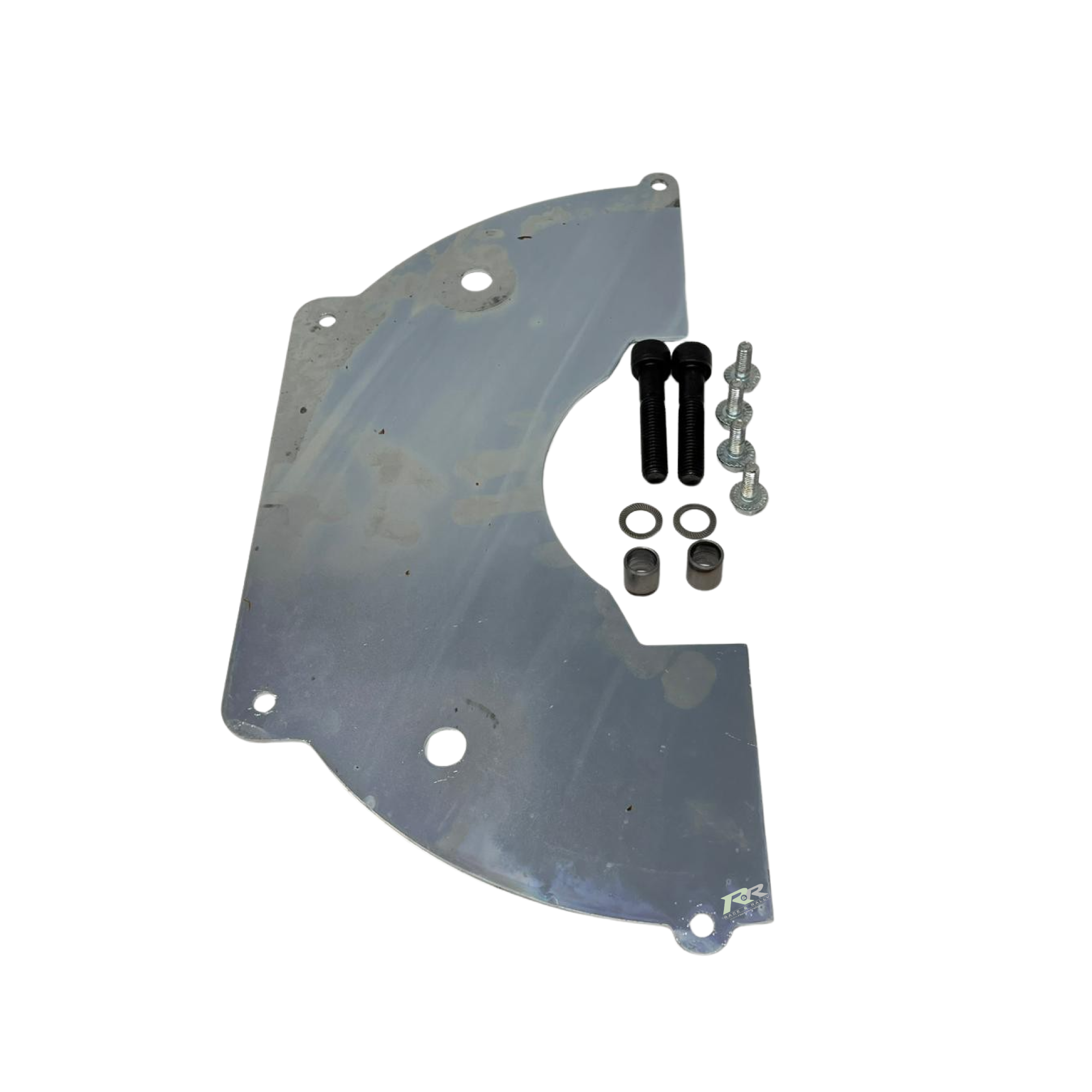

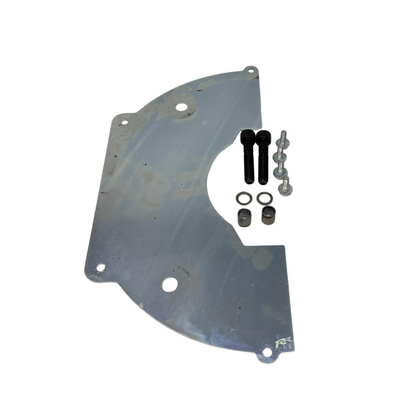

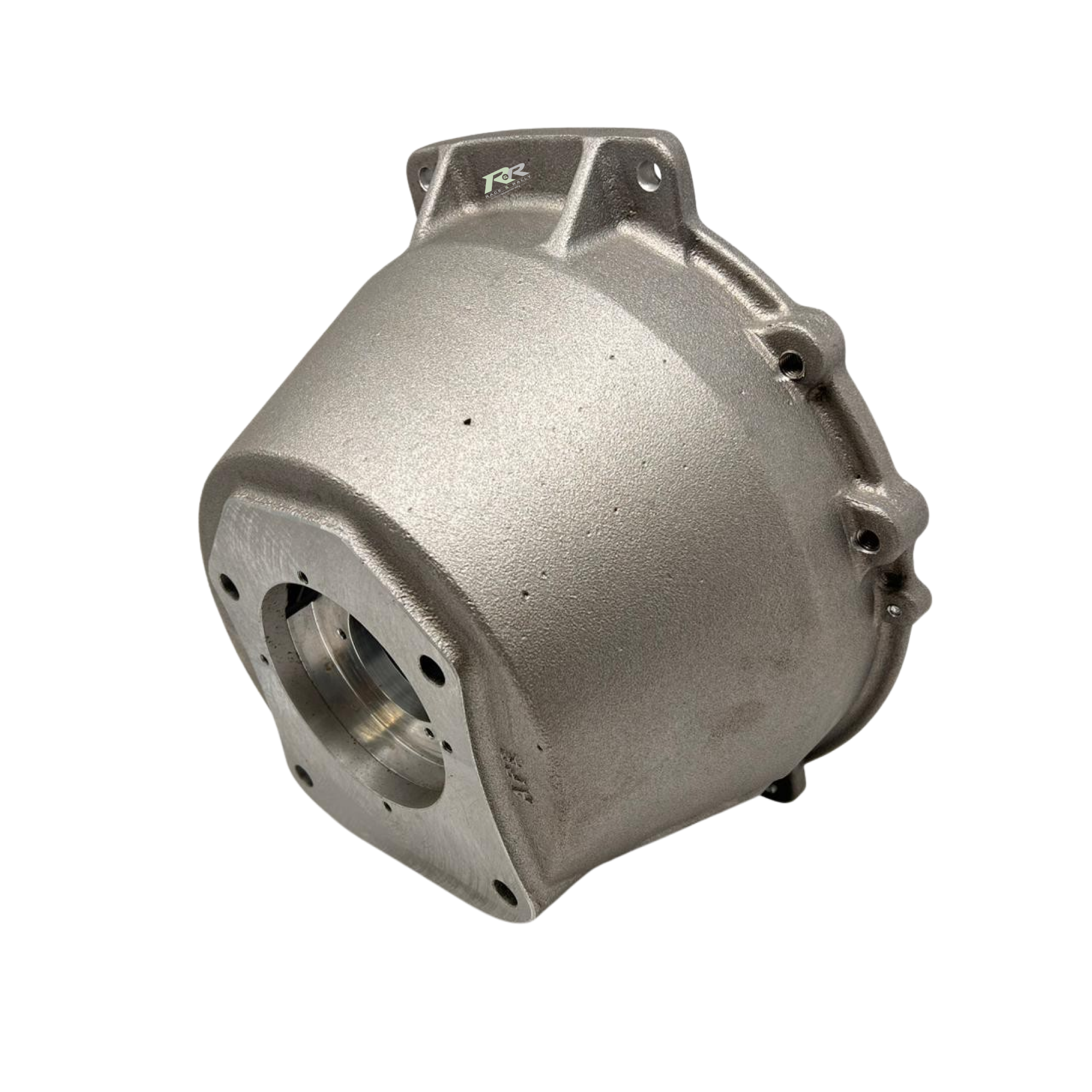

Millington Diamond specific bell housing, for use with block mounted starter motors with the small diameter flywheels as used on Millington Diamond engines. Comes with dust cover.

Compatible Engines:

• Millington Diamond Series 1
• Millington Diamond Series 2

Compatible Gearboxes:

• Ford Type 9
• Ford Rocket Type

Compatible Slave Cylinders:

• AP Racing:
• CP6859-54

Technical Specifications:

• Allows extra clearance over the RS2000 type bell housing

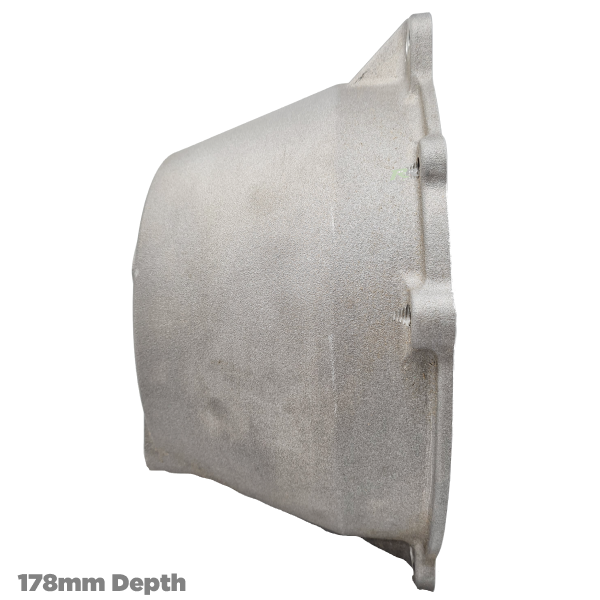

• 178mm depth between both mounting faces

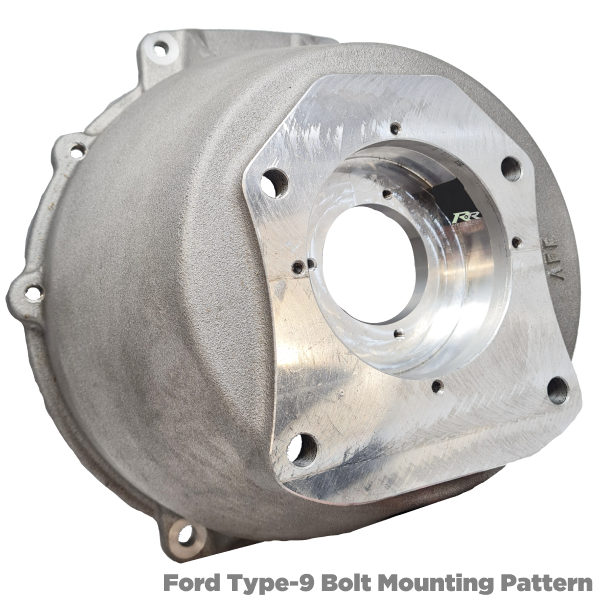

• Ideal for use with sequential gearboxes with Ford Type-9/Rocket bolt pattern
• Thicker casting wall along with extra webs added to the top and bottom flanges give optimum strength
• Engine mounting bolt holes helicoiled (M10x1.5)
• Gearbox mounting bolt holes: 12mm clearance for cap head bolts

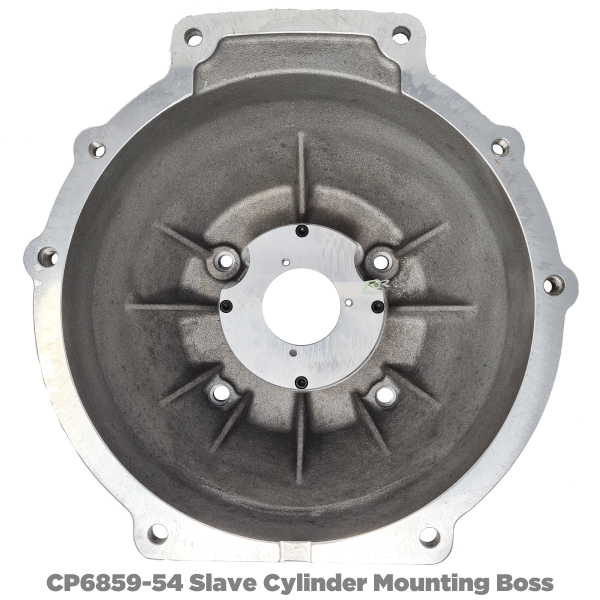

• Slave cylinder mounting boss: 35mm
• Can be machined down to suit the clutch height
