Honda K20 / K24 RWD specific bell housing, pre-drilled to allow 0° (vertical) or the standard 15° fitment.

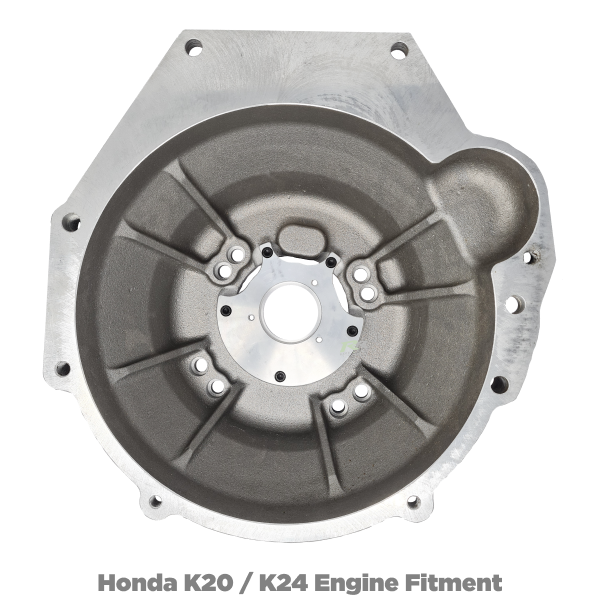

COMPATIBLE ENGINES:

• Honda K20
• Honda K24
• Honda Civic Type R
• Honda Integra Type R
• Honda Accord Euro R
• Honda Accura
• Honda CRV

COMPATIBLE GEARBOXES:

• Ford Type 9 5 speed
• Quaife sequential
• Drenth sequential
• Tractvie sequential
• Samsonas H type
• Samsonas sequential

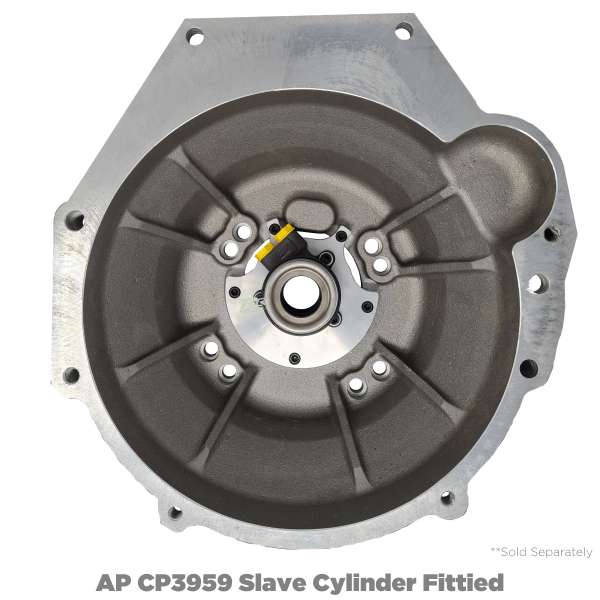

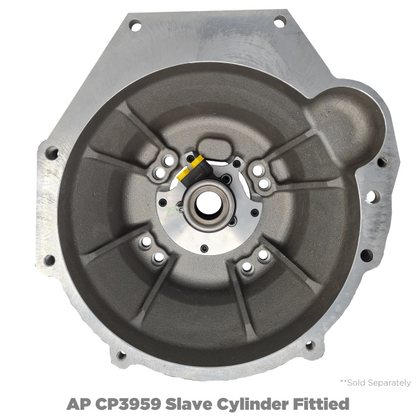

COMPATIBLE SLAVE CYLINDERS:

• AP Racing:
• CP3959-54

TECHNICAL SPECIFICATIONS:

• Spigot bearings (sold separately) are required to support the Type 9 input shaft.

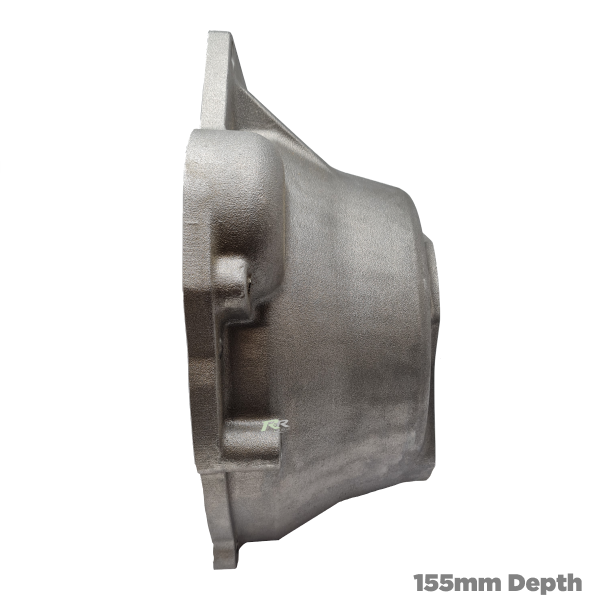

• 155mm depth between both mounting faces

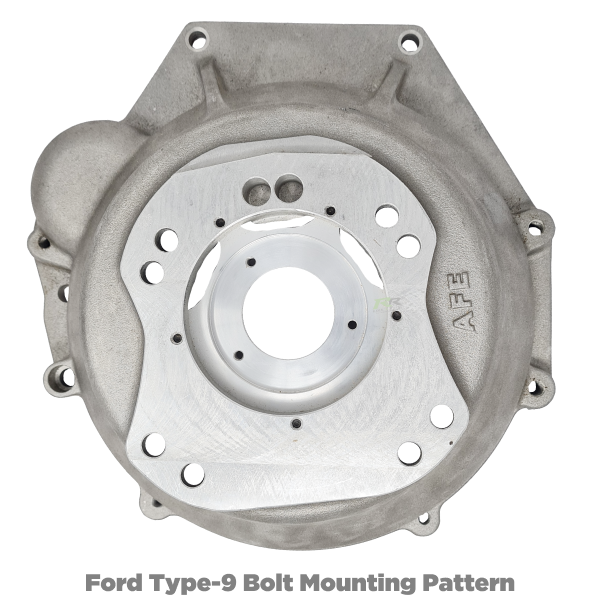

• Ideal for use with sequential gearboxes with Ford Type-9 bolt pattern
• Thicker casting wall along with extra webs added to the top and bottom flanges give optimum strength
• Engine mounting bolt holes - M10x1.5
• Slave cylinder mounting boss: 18mm
• Can be machined down to suit the clutch height
• M6 threads
