!!NEWLY DESIGNED!!

Newly manufactured rear-wheel drive Escort MK1 & MK2 alloy bell housing. Based on the original Ford RS2000 bell housing.

COMPATIBLE ENGINES:

• Pinto

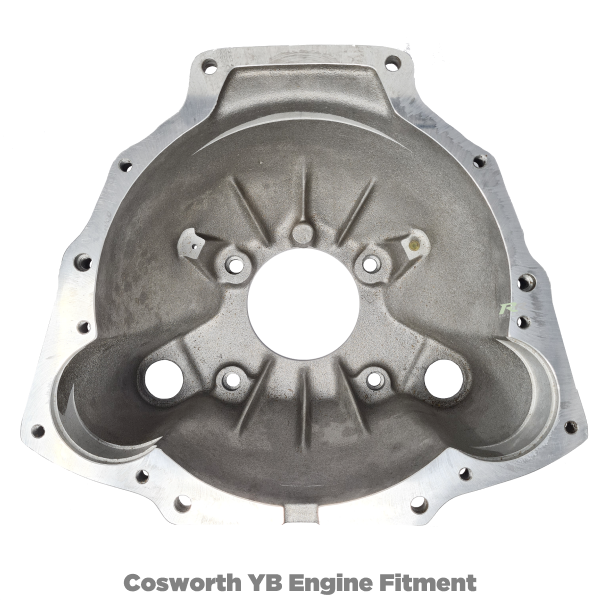

• YB Cosworth
• X-Flow
• BDA / BDG
• Warrior
• KGP

COMPATIBLE GEARBOXES:

• Ford Type 9
• Ford Rocket Type
• 4-Speed
• 5-Speed

TECHNICAL SPECIFICATIONS:

• Allows extra clearance over the RS2000 type bell housing

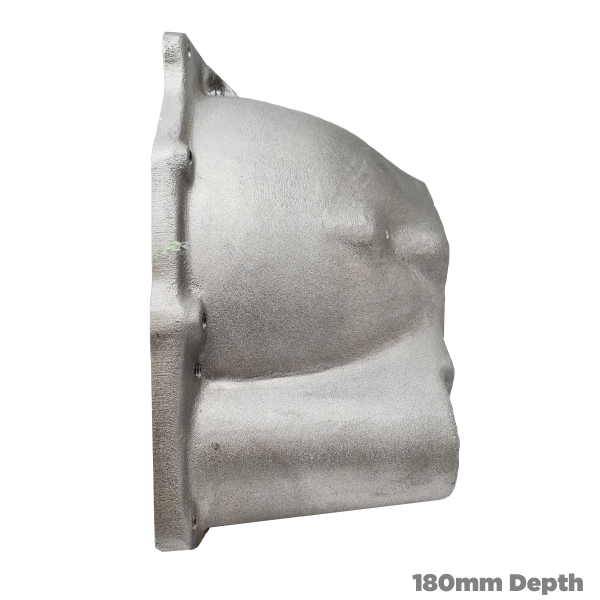

• 180mm depth between both mounting faces

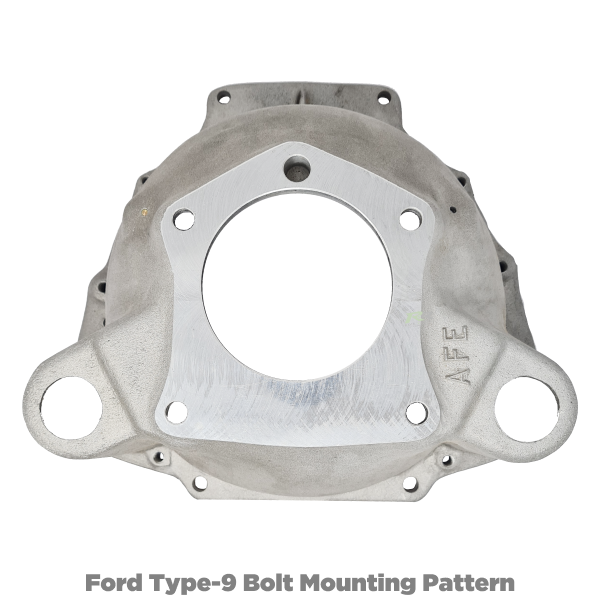

• Ideal for use with sequential gearboxes with Ford Type-9/Rocket bolt pattern
• Thicker casting wall along with extra webs added to the top and bottom flanges give optimum strength
• Gearbox bolts fit in from the inside of bell housing as standard.
