Inductive Wheel Probe

Inductive Wheel Probe

PR001

€40.14 €49.37
Sale Sold out
  • Feature Icon Typically fitted to vehicles wheel hub
  • Feature Icon Length of wire approx 2 metres

View Docs
View full details

PR001 - Inductive Wheel Probe

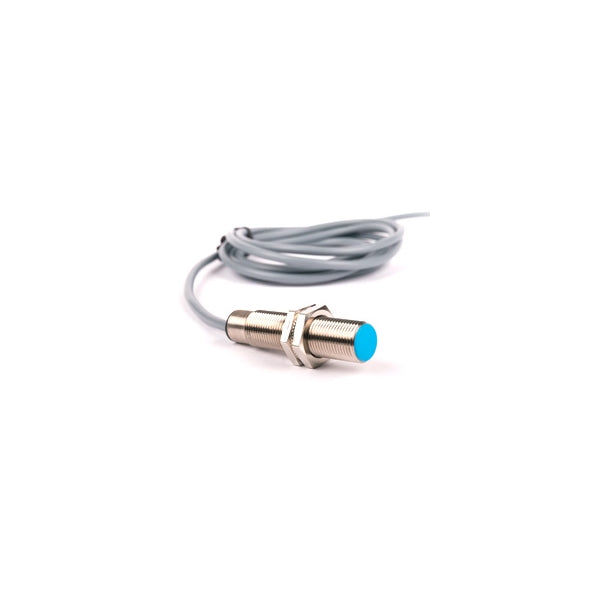

The Monit inductive wheel probe works by detecting the presence of metal as it is brought near the end of the sensor. It is typically fitted to a vehicle's wheel hub so that it senses the back of the wheel studs or other metal detection targets as they rotate past. In this way, it can be used to measure speed and distance on a wide variety of modern, classic and historic vehicles.

Technical Specification

Sensing Distance 1-2mm

Max. Detection Frequency 500Hz

Operating Temperature -25 to +75 dec C

Brand Monit
SKU Barcode
PR001

Frequently Asked Questions:

How does this Inductive Wheel Probe Work?

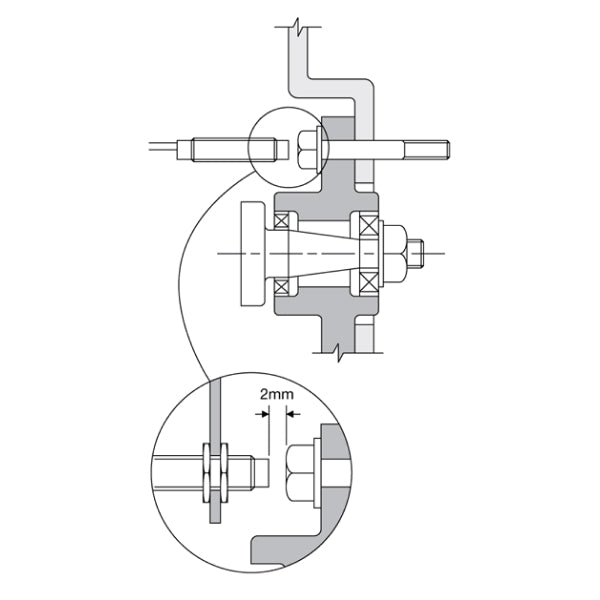

This Monit Inductive Wheel Probe works by detecting the presence of metal, electromagnetic induction, as it is brought within 1-2mm of the end of the sensor. It is typically fitted to the wheel hub to detect the back of wheel studs/other moving metal parts as they rotate past the sensor
What vehicles will this Inductive Wheel Probe Work for?
This Inductive Wheel Probe Sensor can be used on a wide variety of modern, classic & historic vehicles to measure Speed and Distance
What Length is the Inductive Wheel Probe Wire ?
The Inductive Wheel Probe Wire is: Approx 2 metres long
What Specs does this Inductive Wheel Probe have?
This Inductive Wheel Probe has a sensing distance of 1-2mm, a max detection frequency of 500Hz & operating temperatures of -25° to +75°C
Can you purchase additional extension wires for this Inductive Wheel Probe?
AC002 is the Probe Wiring Extension Kit to connect the Probe to a Monit Rally Computer
