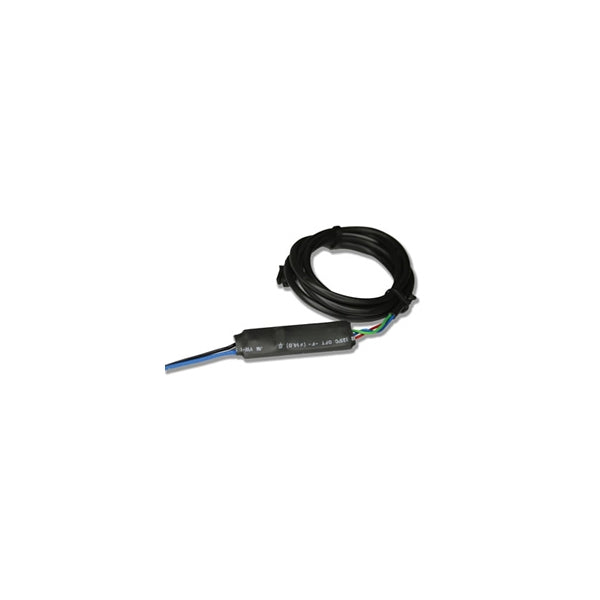

PR002 - Speed Sensor Interface

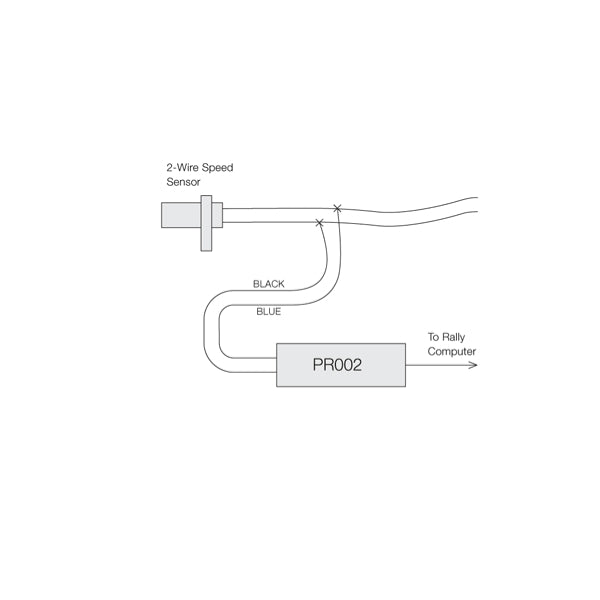

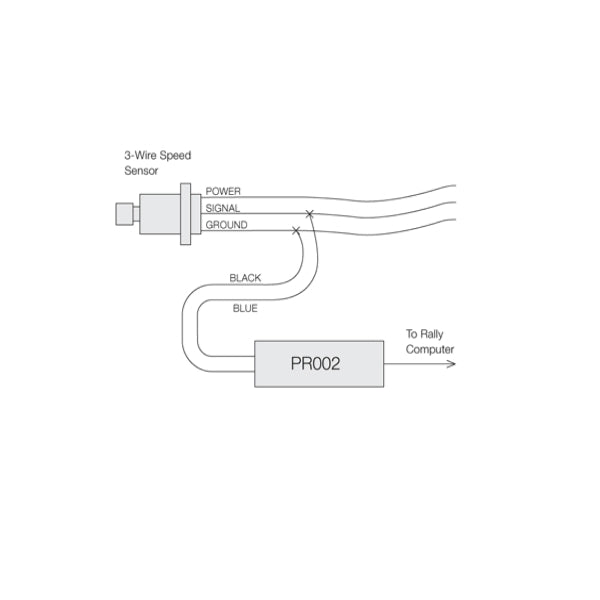

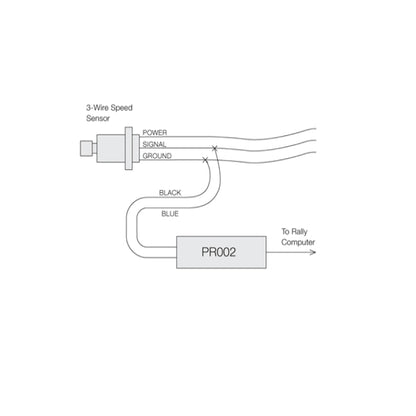

The speed sensor interface allows you to use a gearbox or differential mounted factory electronic speed sensor to operate a Monit rally computer. It will work with most types of sensors that produce either an analogue or digital pulse output. The interface contains special noise filtering circuitry to prevent interference and eliminate ground loop problems

Technical Specification

Hysteresis Voltage 2V

Max. Input Frequency 400Hz

Input Impedance 100Kohm

Operating Temperature -20 to 125 dec C
