TECHNICAL SPECIFICATIONS:

• Internal Diameter: 15.875mm | 5/8" | 0.625"
• Outside Diameter: 34.925mm | 1.3/8" | 1.375"
• BW (Bearing Ball Height): 30.48mm | 1.20"
• HW (Bearing Sleeve Height): 14.288mm | 9/16" | 0.5625"

• Material:
• Race - 440C Stainless Steel
• Ball - 410C Stainless Steel
• Bearing Type: Spherical
• Lubrication Type: PTFE (Polytetrafluoroethylene) Lined
• Retention Method: Circlip / Snap-ring

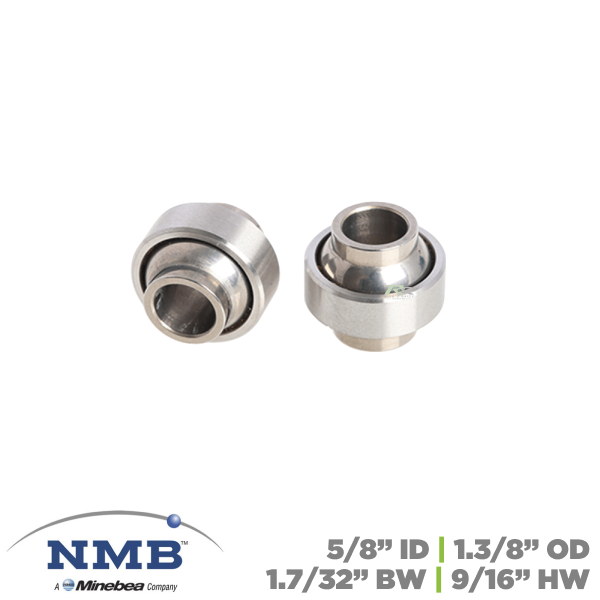

Our NMB ABYT Series Spherical Plain Bearings are high-performance, stainless steel, high-angle bearing.

WHERE IS THIS USED?

The car applications that ABYT10 Spherical Plain Bearings are directly used for:

• Formula 3
• Hill-Climb
• Time Trial
• F2/GP3
• Formula Ford

Please note: These are not suitable for Formula 1, LMP, WRC and Touring car applications – see “ABTE-Type” range of bearings for these applications.

SUSPENSION:

It can be used for other classes of Race cars to improve suspension and ultimately, track time.

Why ABYT10?

Its adaptable construction with a special reinforced enriched PTFE fabric liner sliding surface enables higher load capabilities, longer life, and lower friction under load than comparably sized bearings. The ultimate imperial high-angle series Spherical Plain Bearing for Motorsport and Racing applications.
