• NMB MinebeaMitsumi spherical bearing with 7/8 inch inner diameter, 1.625 inch outer diameter, and 0.755 inch height.
1 1

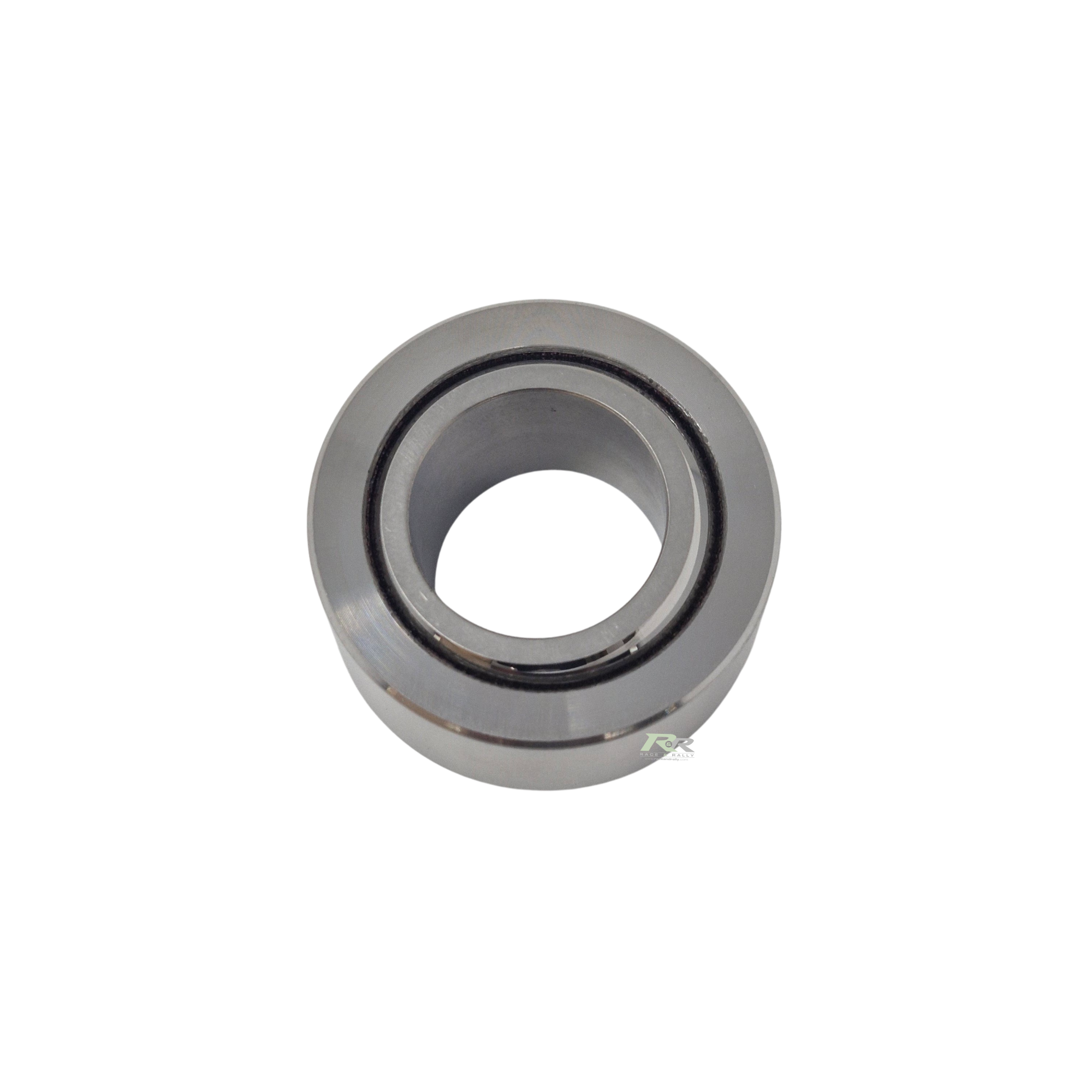

NMB Spherical Bearing | 7/8" ID | 1.625" OD | 7/8" BW | 0.755" HW

NMB Spherical Bearing | 7/8" ID | 1.625" OD | 7/8" BW | 0.755" HW

ABWT14

€69.83 €85.89
Sale Sold out
  • Feature Icon 7/8" ID
  • Feature Icon 1.625" OD
  • Feature Icon 7/8" BW
  • Feature Icon 0.755" HW
  • Feature Icon STAINLESS STEEL
  • Feature Icon PTFE LINED

Out of stock
View full details

TECHNICAL SPECIFICATIONS:

  • Internal Diameter: 22.23mm | 7/8" | 0.875"
  • Outside Diameter: 41.275mm | 1 5/8" | 1.625"
  • BW (Bearing Ball Height):  22.23mm | 7/8" | 0.875"
  • HW (Bearing Sleeve Height): 19.177mm | 0.755"
  • Misalignment Angle: 6°
  • Bearing Type: Spherical
  • Material
    • Ball: CRES 440C stainless steel
    • Race: CRES 410 stainless steel, heat treated
    • PTFE liner: PTFE / Dacron (or glass fiber)
  • Retention Method: Circlip / Snap-ring
  • Radial Static Limit Load: 67,300 lbs
Brand NMB MinebeaMitsumi
SKU Barcode
ABWT14
