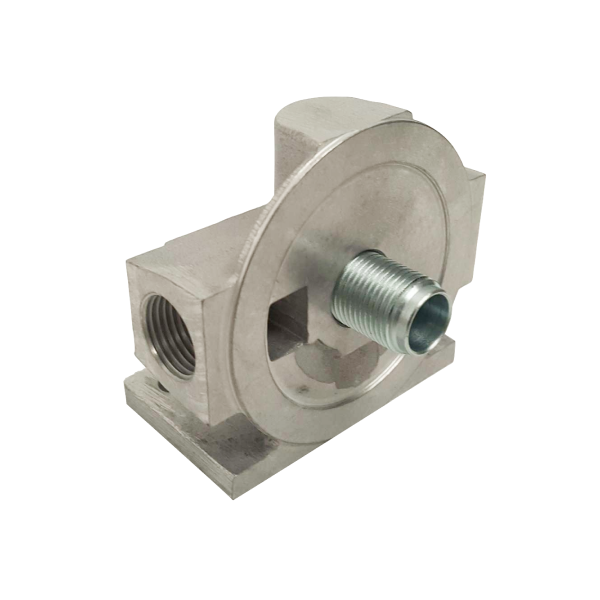

Takes filter with 3/4UNF thread. A compact design which will require a spacer if a filter larger than 80mm diameter is mounted against a flat surface. Provision can be made to take a capillary type temperature gauge sender or pressure gauge tapping. Available in either flow direction. Has 1/2BSP female ports with a recess to take SR1/2 sealing ring or BS13/16 bonded seal.

Technical Specifications:

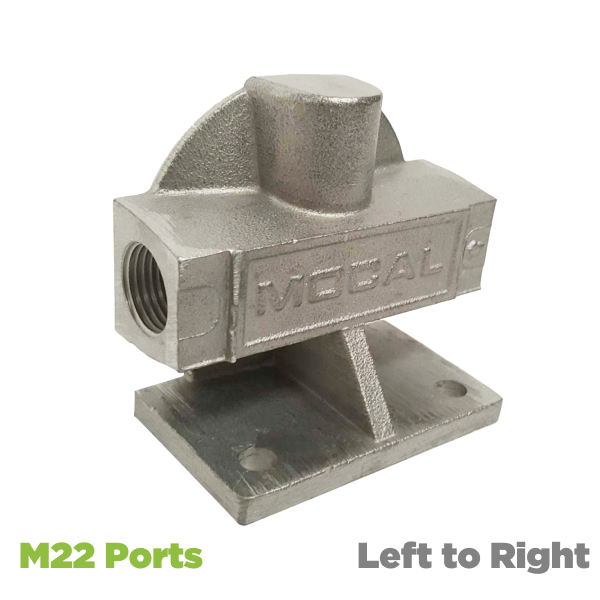

• Left to Right oil flow
• Left-hand side: Oil Inlet
• Right-hand side: Oil Outlet
• M22 female ports
• 3/4 UNF oil filter thread
• Material: Cast aluminium
• Temperature sender facility: No take-off
