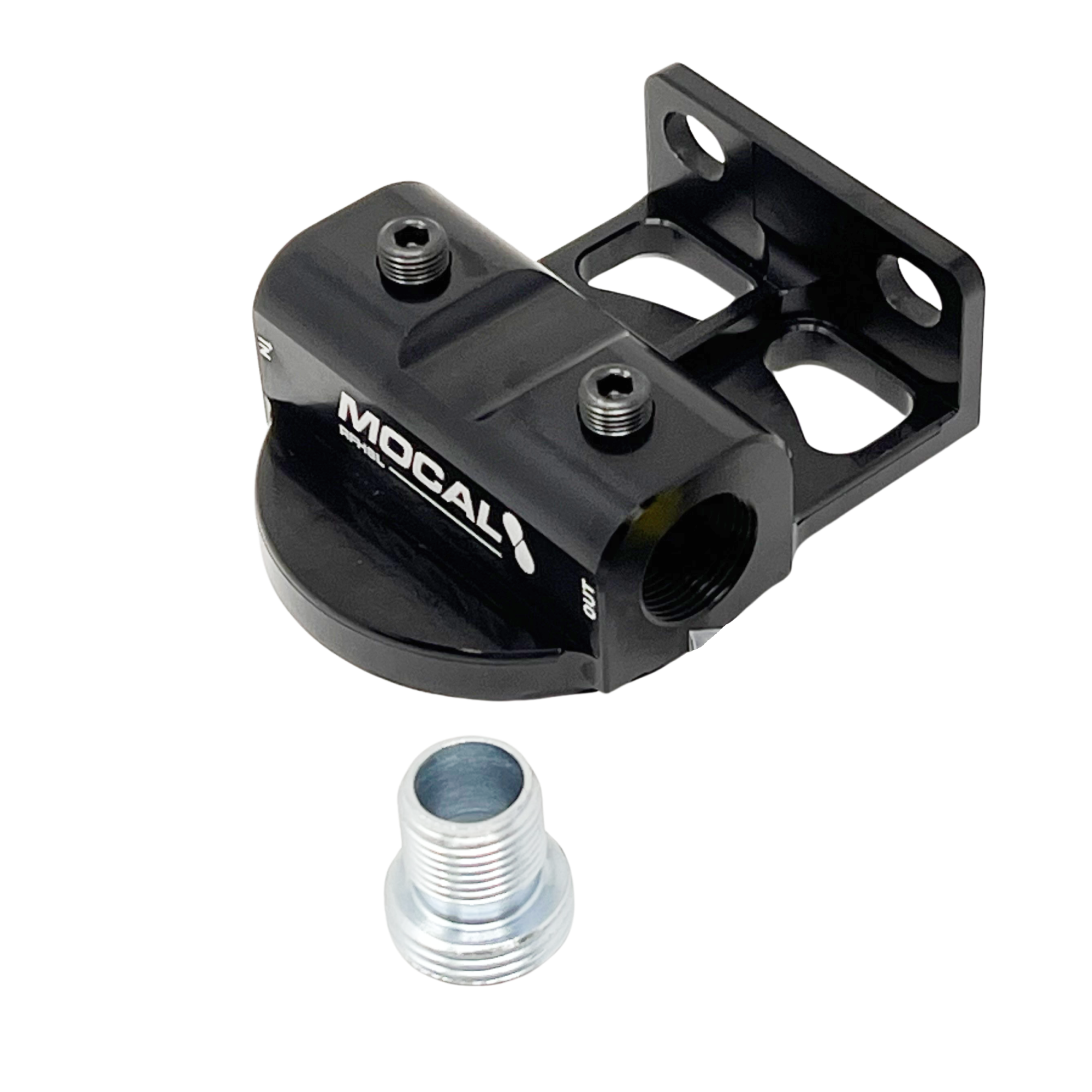

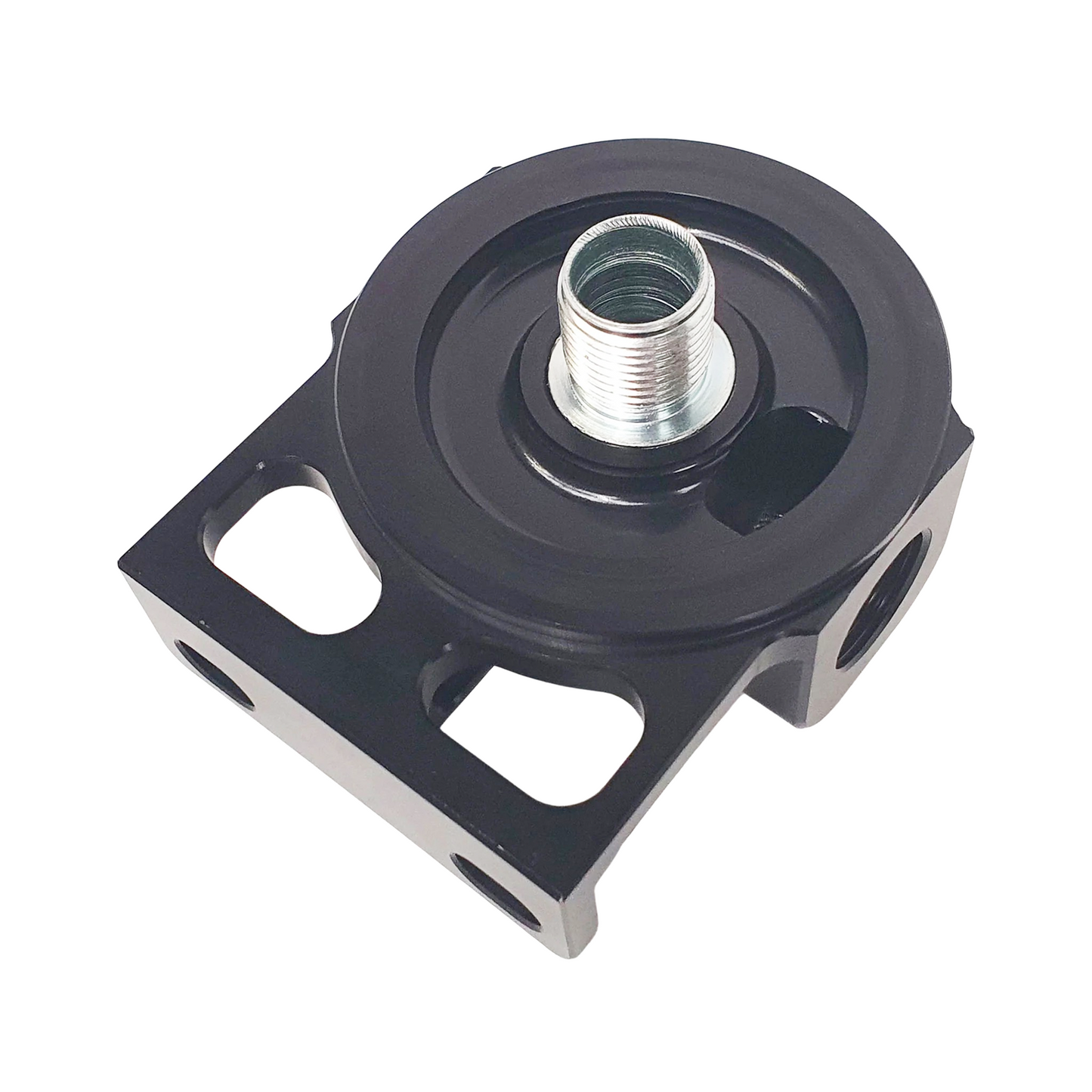

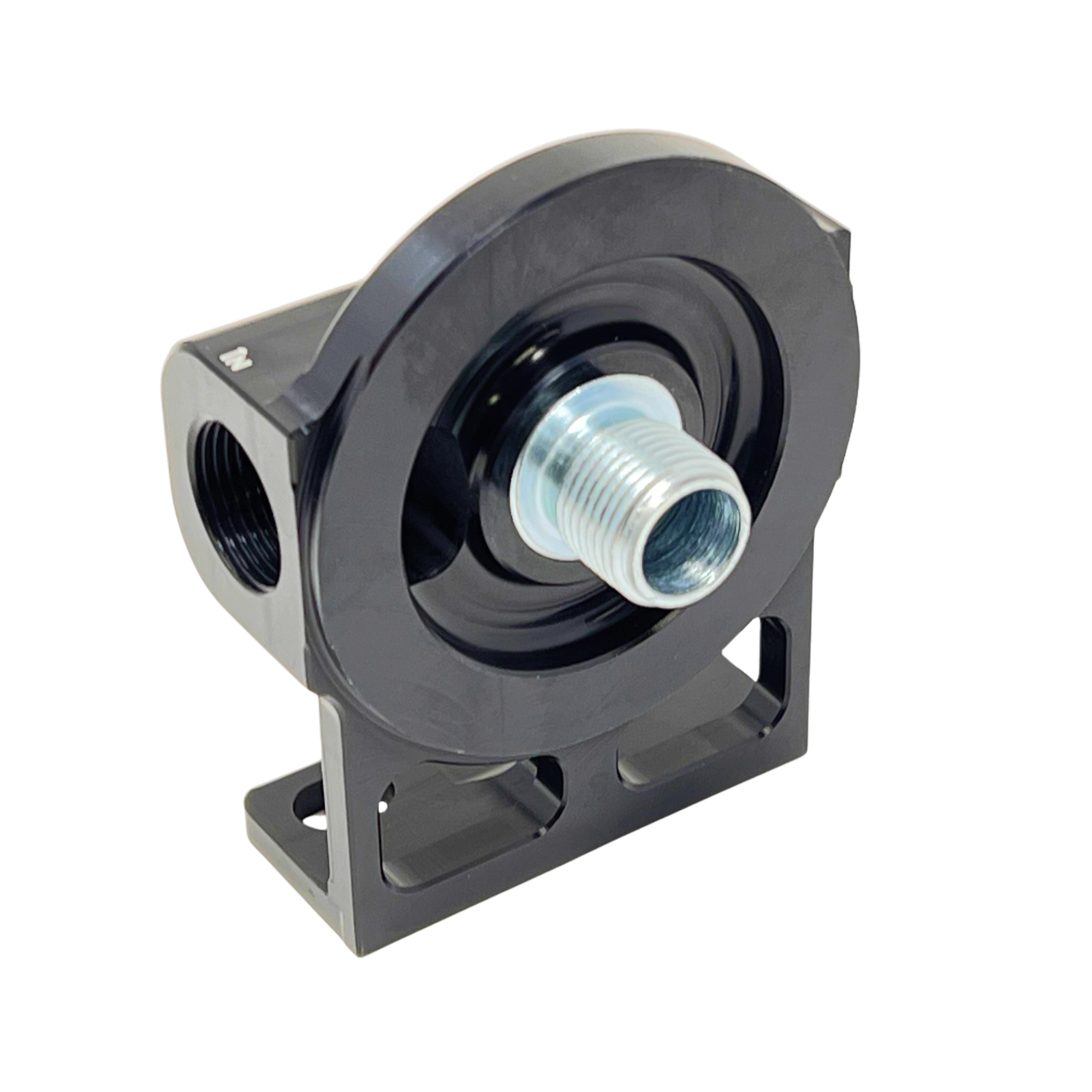

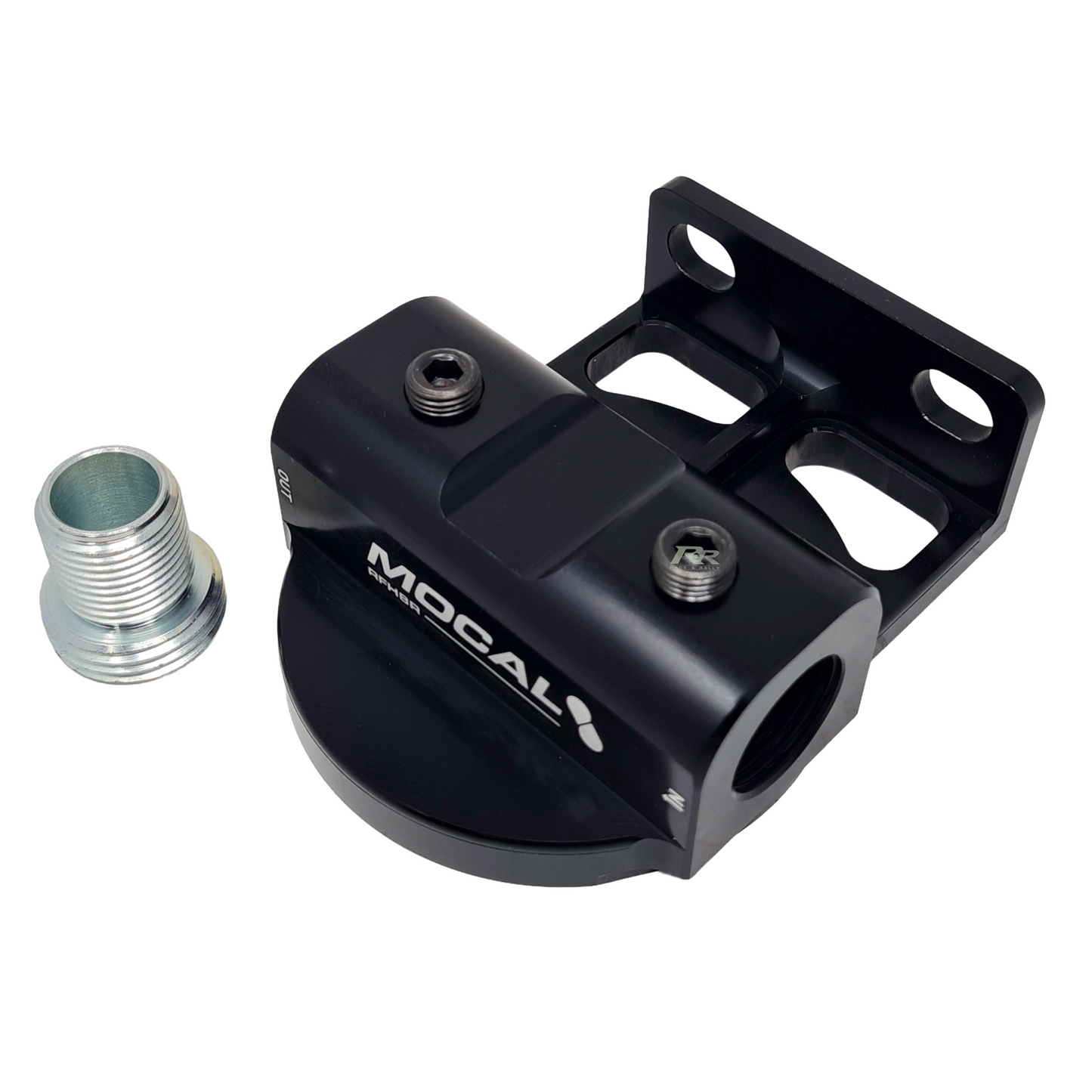

These billet remote filter heads are designed to relocate the engine oil filter due to lack of space or to make servicing easier. This makes them useful for engine conversions or other modifications which limit space. They accept spin on oil filters with a 76mm to 98mm diameter with a 3/4 UNF thread.

To make plumbing easier the filter heads are available with left to right or right to left flow and 2 x 1/8" NPTF take offs which allows the fitment of an oil temperature or pressure gauge or switch. Blanking plugs are included if the take off ports are not used.

The inlet and outlet ports are M22 x 1.5 female and adapters are available separately to suit various plumbing options.

Technical Specifications:

• Left to Right oil flow
  • Left-hand side: Oil Inlet
  • Right-hand side: Oil Outlet
• Right to Left oil flow
  • Left-hand side: Oil Outlet
  • Right-hand side: Oil Inlet
• M22 female ports
• 3/4 UNF oil filter thread
• Material: Billet aluminium
• Temperature sender facility: 2x 1/8 NPT
