Metric Brake Light Switch Banjo Bolts have all been tried and tested in the upper echelons of world motorsport, racing's most severe conditions, and are proven in their quality of engineering, workmanship and finish.

Manufactured to exacting specifications to ensure an accurate fit to the Banjo Hose Ends every time. Goodridge range of banjo bolts covers all possible applications.

CONSTRUCTION

• Suitable for Goodridge Banjo's
• They are available in a wide range of:
• Lengths - Under the HEX Measurement
• Threads
• Positive & Negative wires connect to the vechiles Brakelight and the Banjo Bolt is assembled into a Banjo Assembly of the Brake Master Cylinder. This ensure immediate response from when the brake pedal is pressed. Once the brakelight switch gets pressure from the Brake Fluid, it enables the Brake Light. Simply & effective.

APPLICATIONS

• Brake


COMPATIABLE WASHERS

For Single Port Banjo Bolts, two washers are requried per assembly.
For Double Port Banjo Bolts, three-four washers are required per assembly.

• 445C - Copper Washers
• 445A - Aluminium Washer

BL992 - PART NUMBERS

UNDER HEX LENGTH:

Long bolts are for use with 5091 (Swaged - S5091), 5095 (Swaged - S5095) and 5096 Banjo's

• 18mm - Short Single Banjo Bolt (S)
• 20mm - Standard Single Banjo Bolt
• 25mm - Long Single Banjo Bolt (L)
• 30mm - Standard Double Banjo Bolt
• 40mm - Long Double Banjo Bolt (L)

GOODRIDGE MATERIAL KEY:

• B: Brass

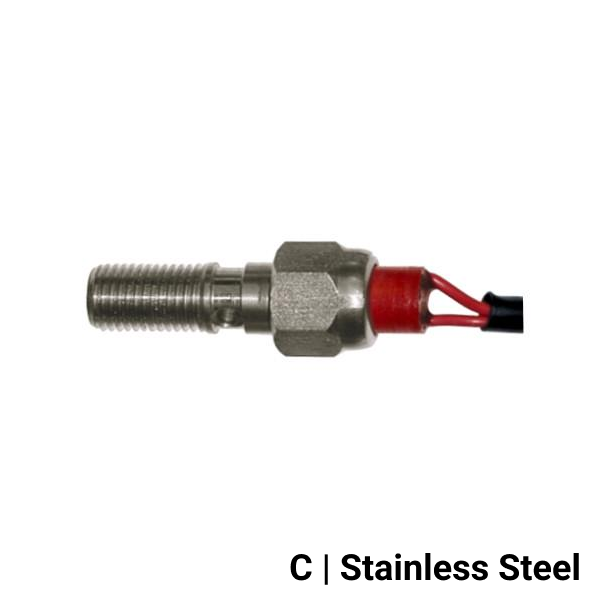

• C: Stainless Steel
• CBK: Black Stainless Steel
• CH: Crome Plated
• D: Red Anodised Aluminium
• DBK: Black Anodised Aluminium
• DBU: Blue Anodised Aluminum
• P: Zinc Plated Carbon Steel
• Z1: Silver Plated Carbon Steel
