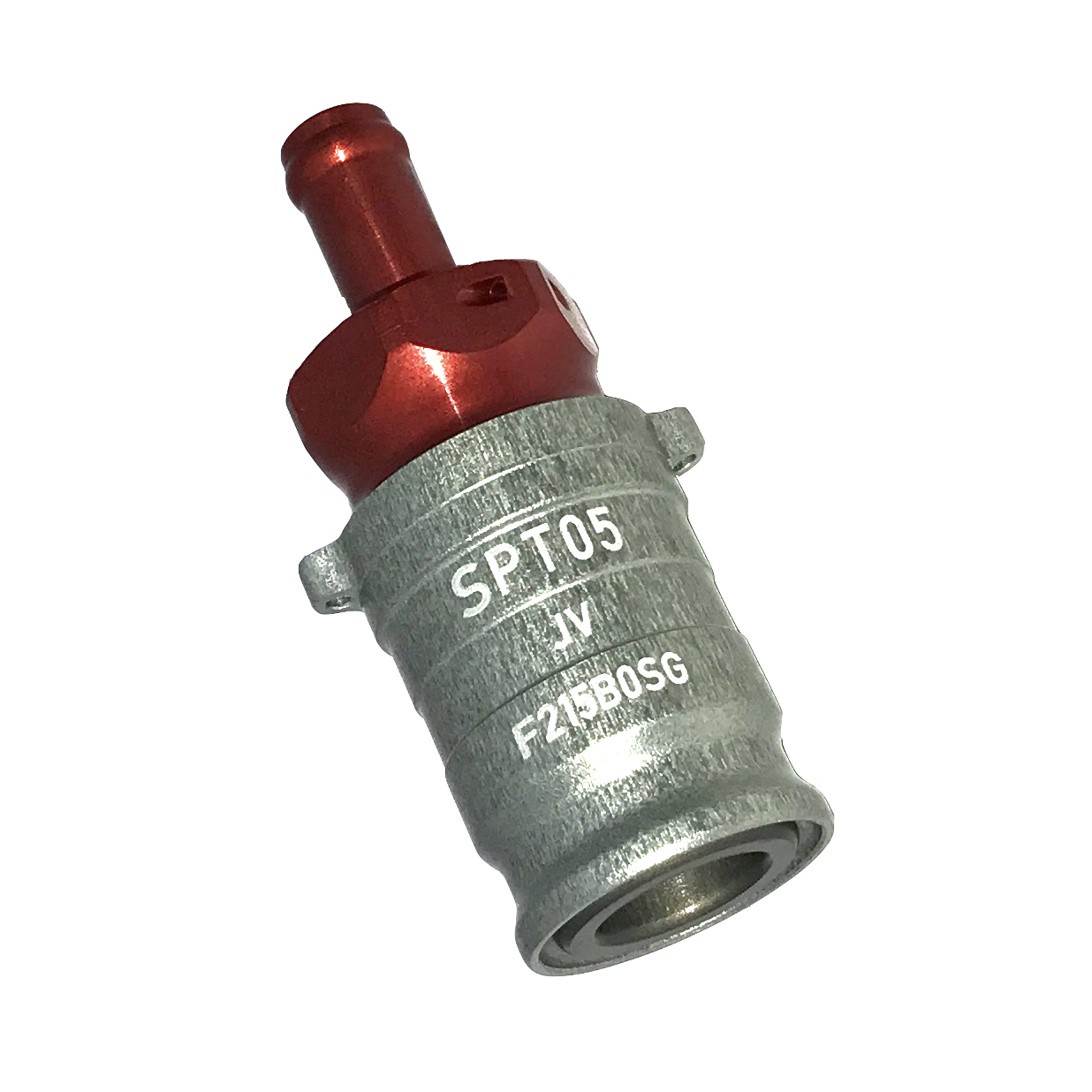

Staubli's SPT 05 Socket is ideally used for Fuel Sampling Applications. Its FIA Approval makes it compatible for all R2, R4 and R5 Applications.

Technical Details

• Fits hose diameter 8mm
• 05mm Flow Diameter
• 19.6mm² Cross Section

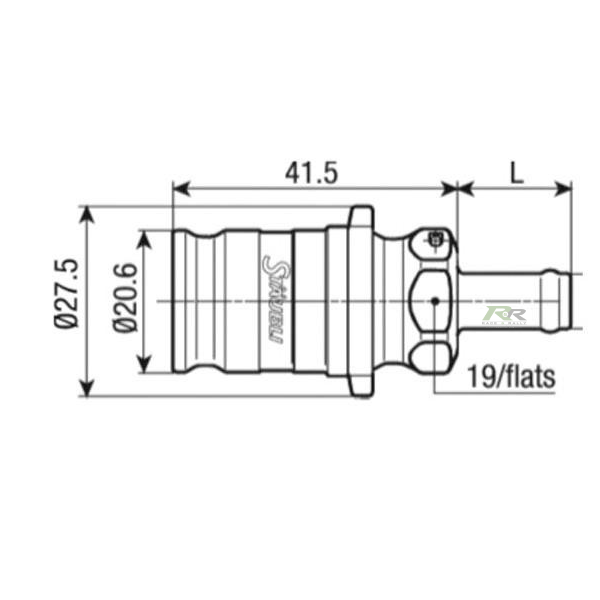

• 'L' Measures 16.5mm
• 0.041kg Weight
• 40 Bar Max operating pressure
• Double Shut of System

SEALS

The JV seal grade is suitable for all pump and race fuels, except for biofuels or any ethanol content fuels (such as e20)

The JKV seal grade is suitable for all pump and race fuels, including for biofuels and ethanol content fuels
