Staubli's SPT 05 Male Thread Plug is ideally used for Fuel Sampling Applications. Its FIA Approval makes it compatible for all R2, R4 and R5 Applications.

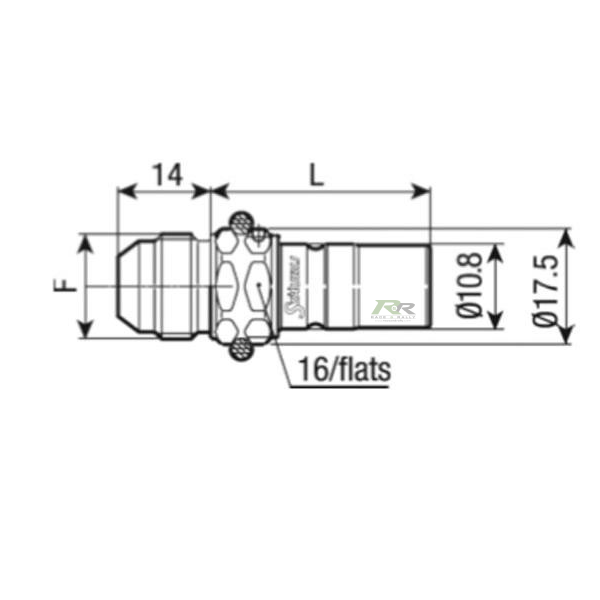

TECHNICAL DETAILS

• 7/16 x 20 UNF Threads (Dash 04)
• 05mm Flow Diameter
• 19.6mm² Cross Section
• 'L' Measures 32.5mm
• 0.041kg Weight
• 40 Bar Max operating pressure
• Double Shut of System

SEALS

The JV seal grade is suitable for all pump and race fuels, except for biofuels or any ethanol content fuels (such as e20)

The JKV seal grade is suitable for all pump and race fuels, including for biofuels and ethanol content fuels
