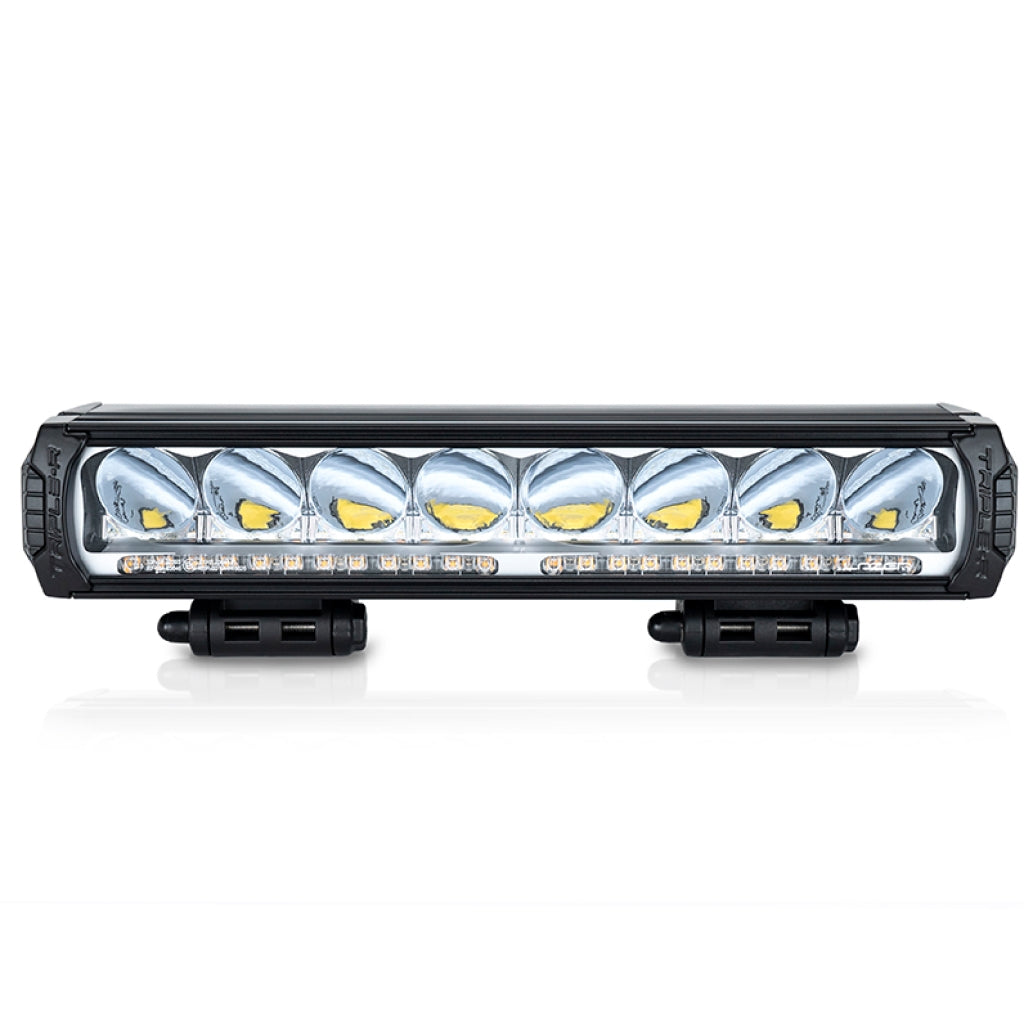

The iconic Triple-R 1000, a firm favourite amongst the heavy truck and LCV sectors, is now offered with integrated amber flashing beacon function. Incorporating 16 different forward-facing flash patterns, the additional safety functionality within the lamp, combines with the possibility to connect a white or amber position/side light function, as well as the exceptional high beam driving light function to really set the Triple-R 1000 apart from the competition.

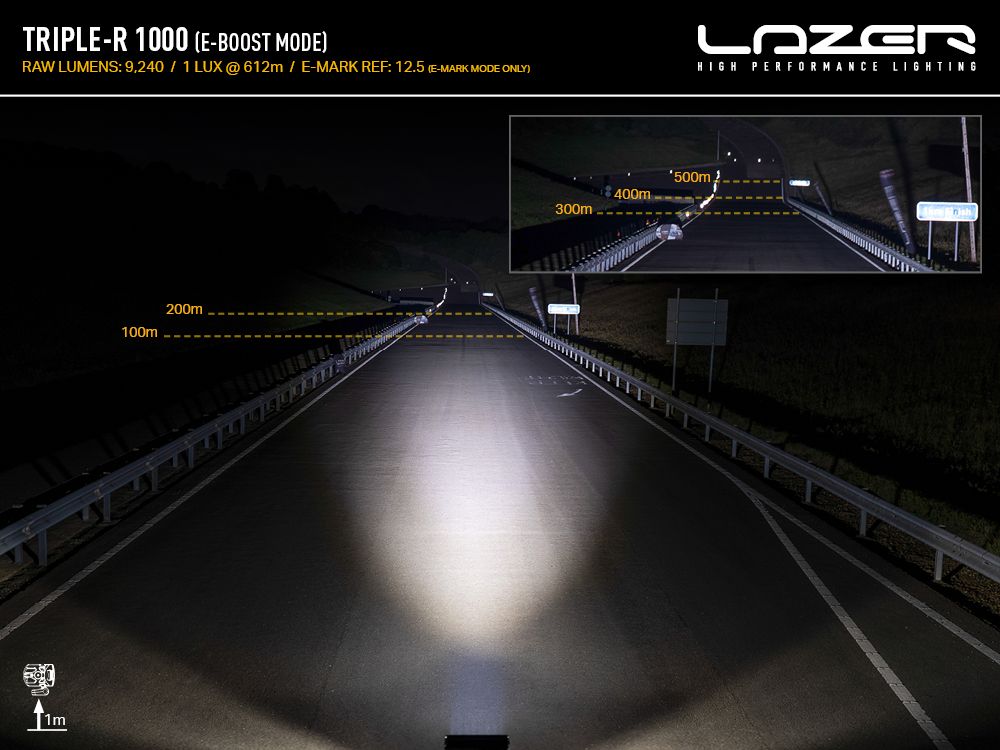

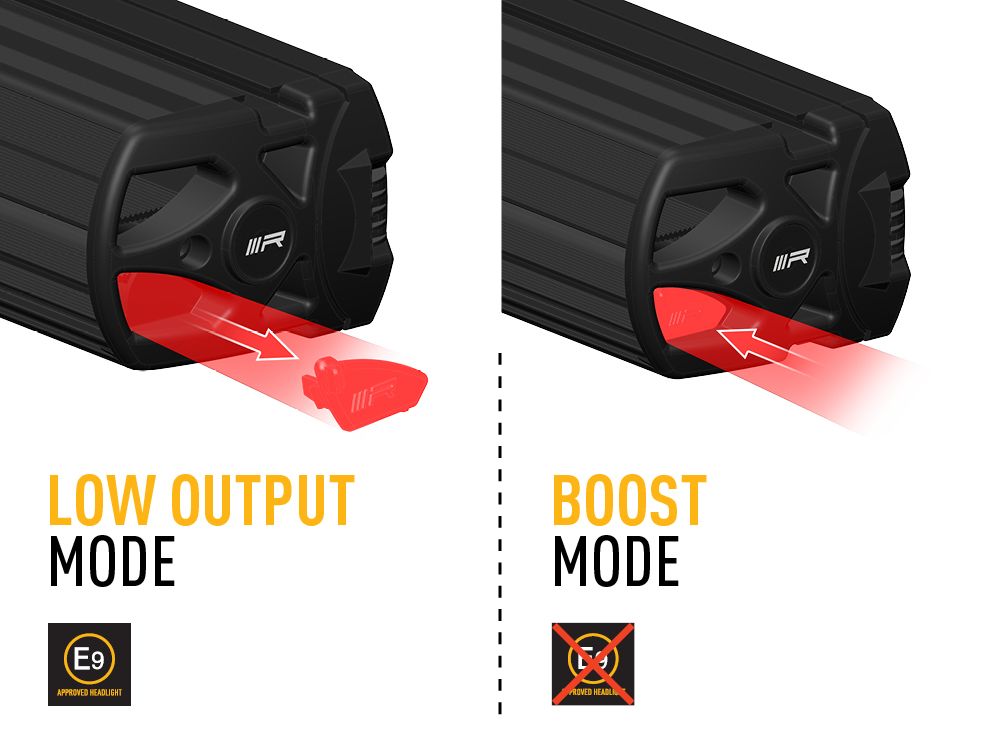

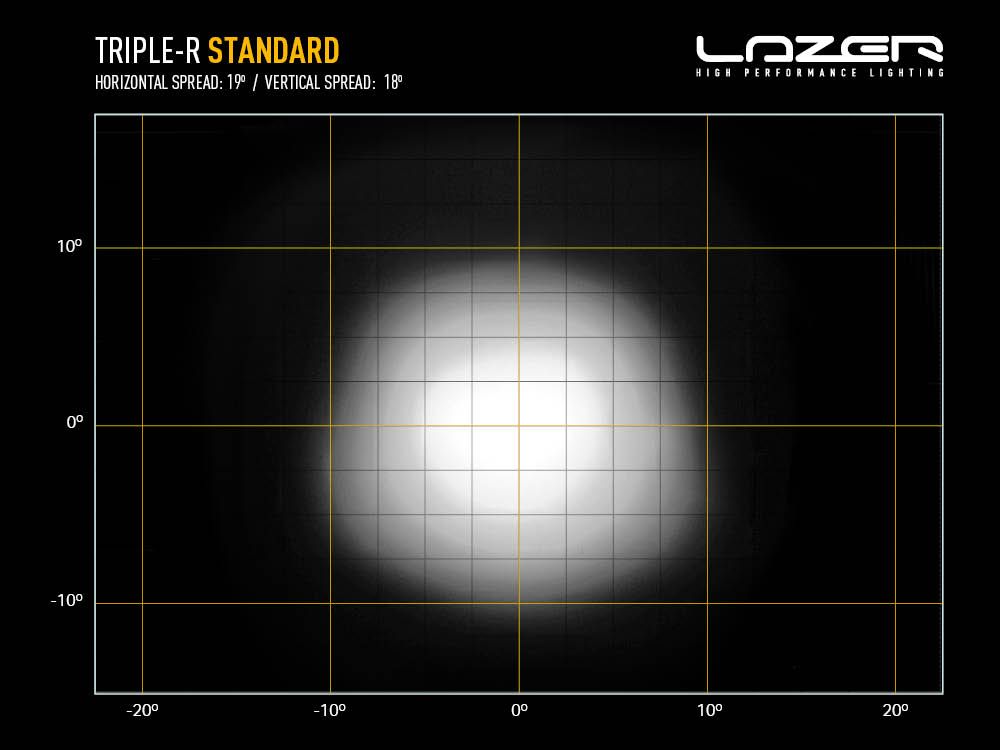

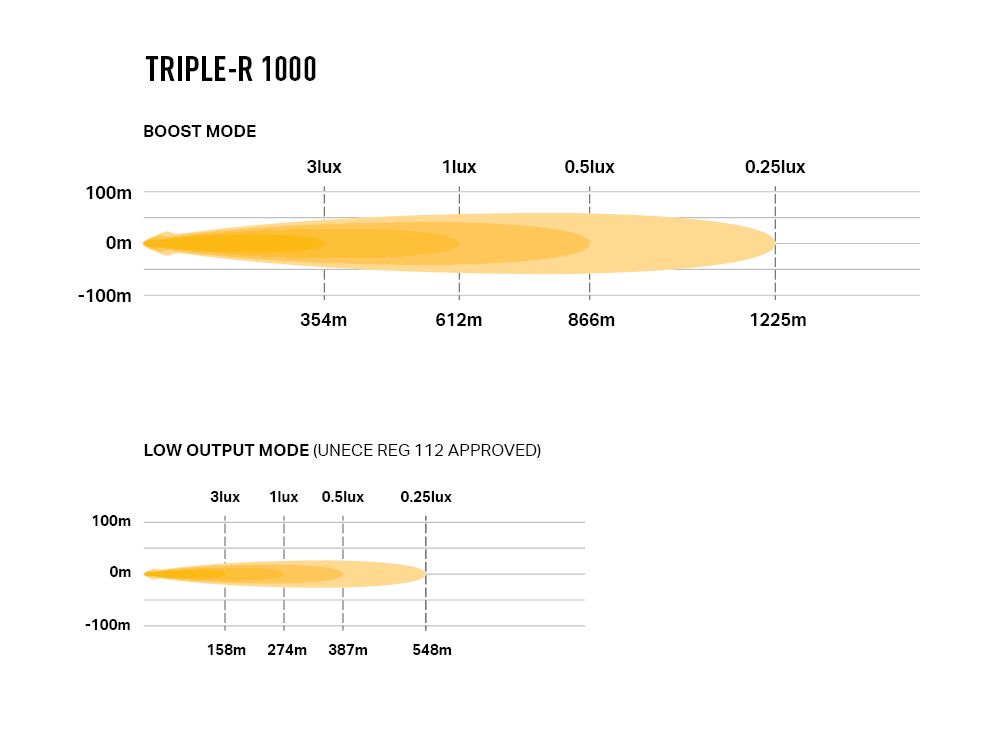

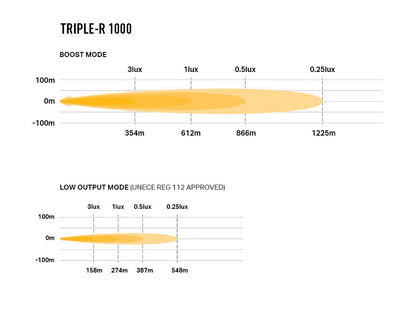

The Triple-R 1000 is a high-performance driving light that delivers a spot beam pattern well suited to road use. Recent styling updates to the Triple-R range have resulted in a clean contemporary design, with a more aggressive edge, to match the aesthetic design prevalent on modern vehicles. Boasting 9,240 lumen, and delivering 1 lux to 612m (E-Boost mode), the auxiliary LED driving light provides improved left/right spread of light without compromising the up/down spread which ensures suitability of the lights to a wide array of vehicles, including where the lights are mounted high on the vehicle. Dual-output ‘E-Boost’ technology allows for operation within ECE Regulation 112 parameters, when the supplied E-Boost cap is removed, and where country regulations demand for on-road use in parallel with your vehicle’s standard high beam driving lights.

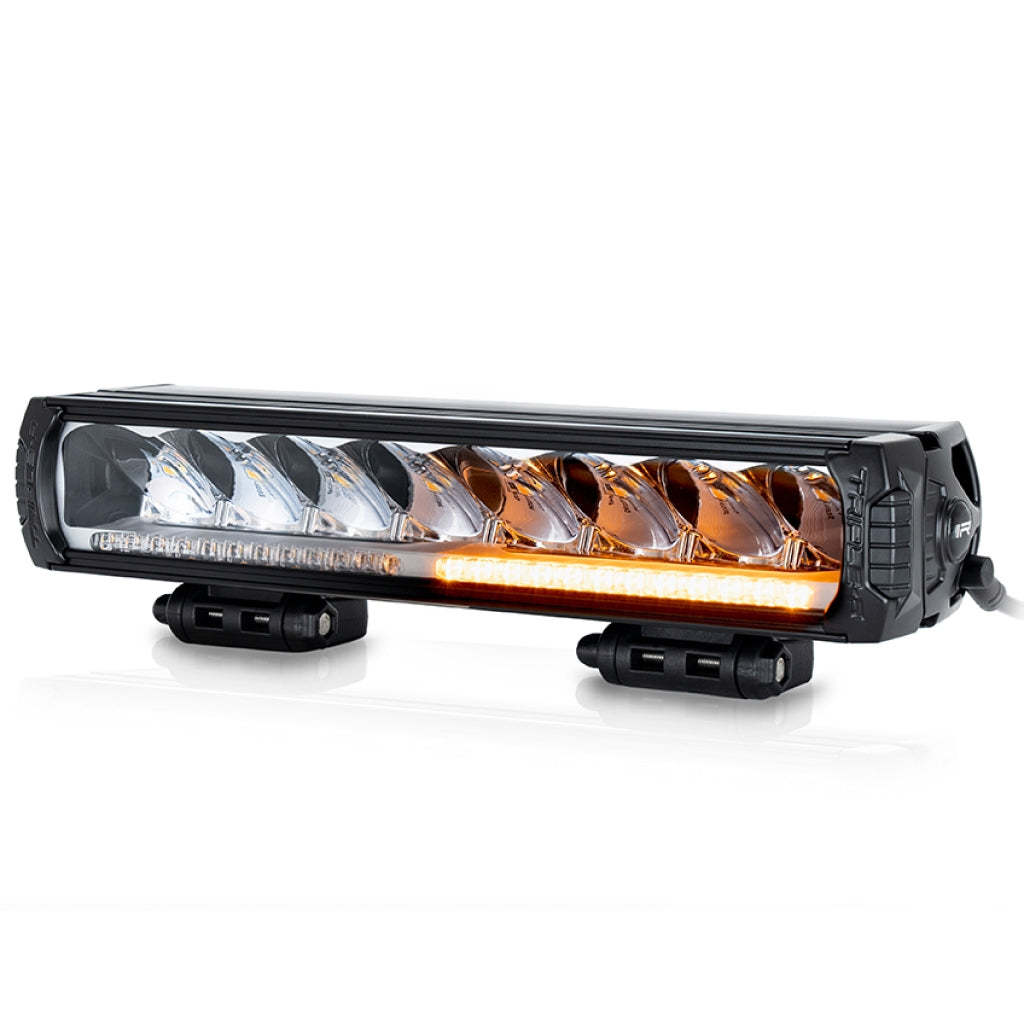

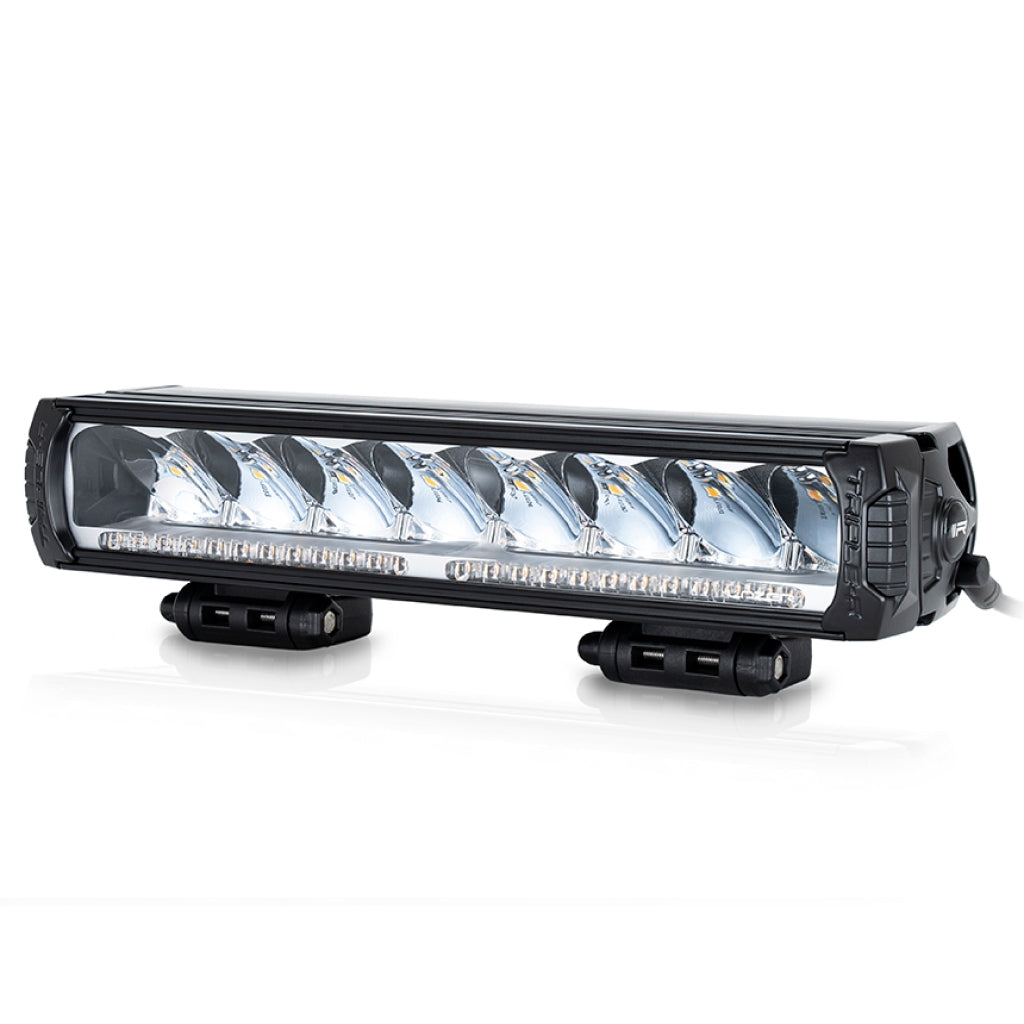

Included within the lamp is the option to connect an integrated position/side light function, for when the requirement is for a light installation that gets noticed as much during the day as at night. There is the possibility to connect white or amber coloured position lights, simply by inserting the corresponding wire into the lamp connector at the point of installation, or leave both disconnected to have your Triple-R 1000 act as a high beam driving light only. The position light function (white only) is approved to ECE regulation 7, to operate in parallel with your standard vehicle lights.

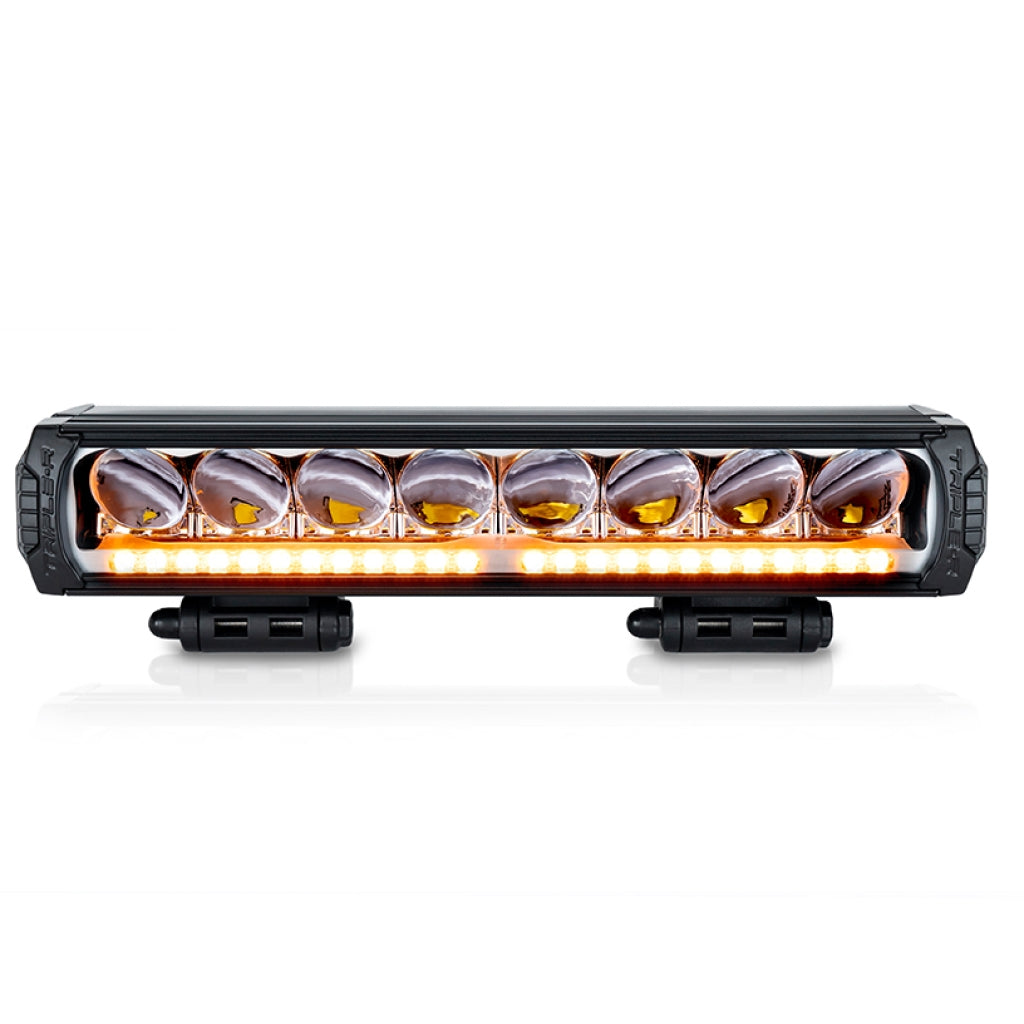

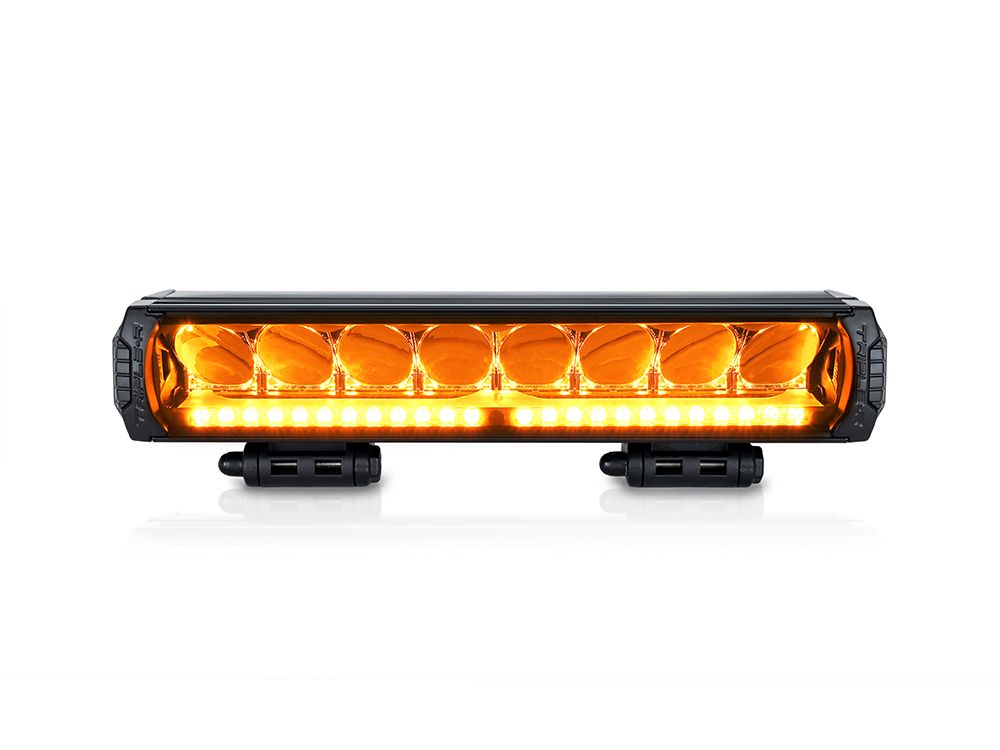

Including flash patterns approved to ECE Regulation 65 (XA1) as a warning light, there are 16 different amber warning light settings which can be selected and synchronised (between multiple lamps), at the point of installation, or using a momentary switch where the requirement is to change the flash pattern on demand. Examples of the different flash patterns can be seen in the Videos section below.

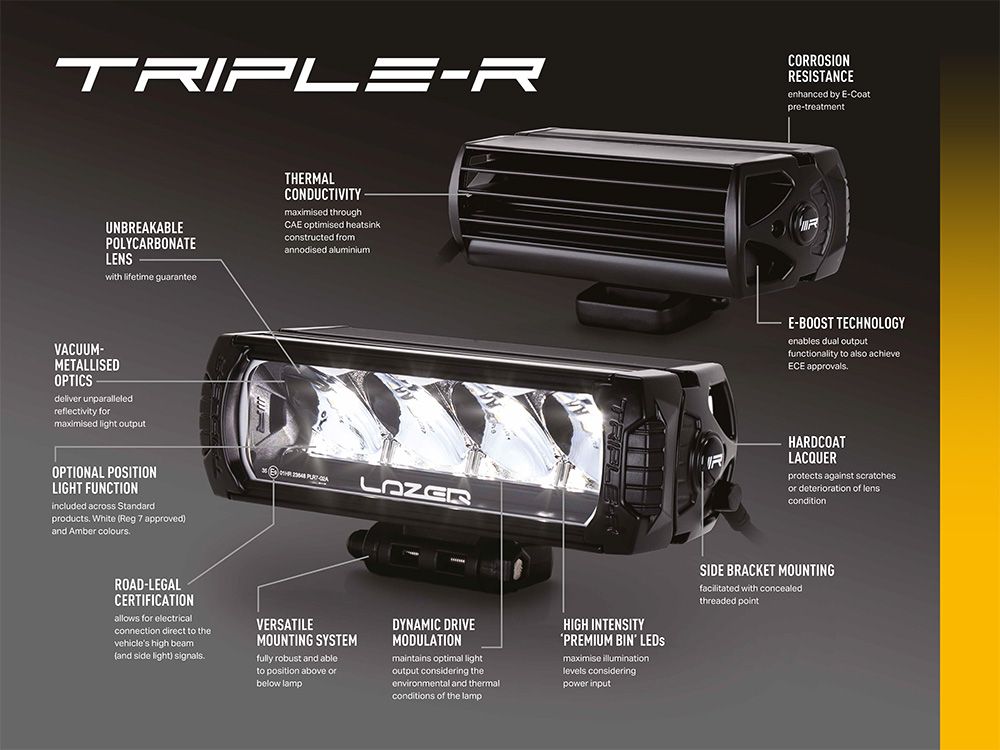

Like all Lazer products, the Triple-R 1000 with Beacon has been designed and engineered to deliver a powerful driving light with perfectly homogenous beam pattern. The colour temperature of the light, at 5000k, is carefully selected to maximise definition of any obstacles ahead, while ensuring a comfortable drive even over prolonged periods of time. Performance is complemented by a superior build quality, borne out of our in-house UK manufacture, and backed up by our comprehensive 5year warranty.

Downloads:

Triple-R 1000 Beacon - Product Information Sheet (2.25 MB)

Lazer Lamps - Triple-R 1000 Beacon Instructions (1.29 MB)

ECE Reg 112 - Certificate - (Triple-R 1000 Beacon) (817.92 KB)

ECE Reg 65 (XA1) - Certificate (Triple-R 1000 Beacon) (703.17 KB)

ECE Reg 7 - Certificate (Triple-R 1000 Beacon) (852.22 KB)

ECE Reg 10 - Certificate (Triple-R) (770.84 KB)
