Triple-R 28 Elite

Triple-R 28 Elite

SKU:00R28-G2-EL-B

Regular price €1044.30 €1284.49
Sale Sold out
  • Feature Icon 28560 Lumens
  • Feature Icon Length: 1305mm

View full details

The latest generation of the Triple-R range, delivers exceptional, long-range auxiliary LED automotive lighting. Initially developed for the uncompromising requirements of professional track and rally motorsport, the range has evolved to become a firm favourite across the passenger car, 4x4, light commercial, and heavy truck market, both on and off-road. Recent additions to the Triple-R range boast innovative features and functionality, including patent-pending technology never seen before in an auxiliary LED light bar.

Incorporating an arrangement of high efficiency, premium ‘bin’ LEDs at a carefully selected 5000K colour temperature, with 80CRI for high levels of sharpness and clarity, the Triple-R Elite products represent our most powerful driving lights. The electronics and optic design work in combination to deliver incredible distance illumination, yet still with enviable left/right spread. The comparatively low up/down spread of light emitted from the Elite lights ensures their suitability when roof mounting, avoiding reflective glare off the vehicle bonnet.

Standard level products feature integrated (optional) white and/or amber position light function for added styling and safety benefits. Alongside the premium design of the lights themselves, you can be sure your Triple-R product will impress even before the sun goes down! High efficiency 11W LEDs deliver impressive distance illumination albeit with not quite the same left/right visibility that you otherwise find with the equivalent Elite level products. A slightly taller up/down spread does however ensure suitability when mounting high on a vehicle such as a truck cab or roof of a van or other light commercial vehicle.

Available in a variety of sizes from the 230mm (9”) Triple-R 750 to the 1305mm (51”) Triple-R 28 Elite, all Triple-R products up to the 590mm (23”) Triple-R 1250, benefit for approval to UNECE Regulation 112 as a high beam driving light. In many cases certification is only achieved using dual-output E-Boost technology, allowing the lamp to be used in both E-Boost or E-Mark Compliant mode depending on country-specific regulations and whether the light(s) are being used on or off-road.

Like all Lazer high performance lights, the Triple-R range is designed, engineered, and built in-house, in our UK premises, you can be fully assured of exceptional high-end product design, coupled with superior levels of illumination, all backed up by our comprehensive 5-year warranty.

Downloads:

Triple-R 28 Elite - Product Information Sheet (2.23 MB)

Lazer Lamps - Instructions (1.85 MB)

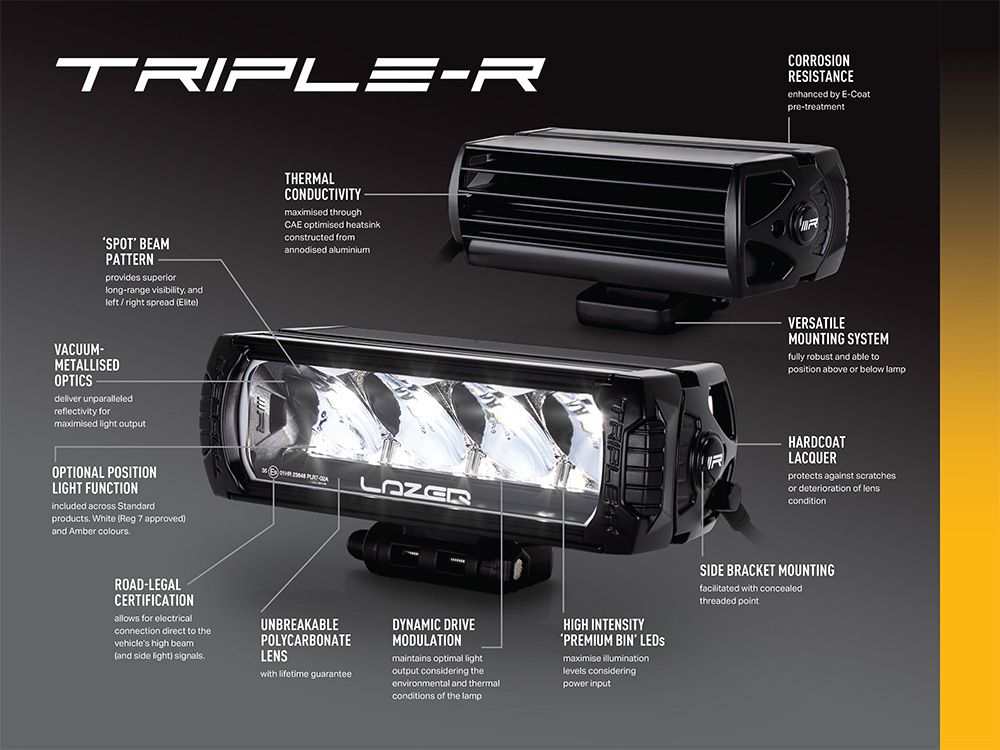

  • Ultra-reflective vacuum-metallised optics deliver perfectly tuned beam pattern
  • Highly efficient LED technologies
  • 5000K LED colour temperature and 80CRI maximises sharpness and definition
  • Ultra-reflective vacuum-metallised optics deliver spot beam pattern
  • Contemporary lamp design
  • Improved aero design benefits low wind noise performance
  • Vehicle wiring kit included (1L-HP-300)
  • Includes ‘Centre Mount’ and Side Mount Kit
  • Electronic thermal management system optimises light output to preserve longevity of the LEDs
  • Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
  • CAE optimised heatsink offers improved thermal dynamics
  • Over voltage protected
  • Reverse polarity protected
  • ‘Unbreakable’ polycarbonate lens with hardcoat lacquer
  • UNECE approved Reg 10
  • IP68 watertight
  • 5-year warranty
  • Supplied with pre-wired male/female 2-pin Superseal connectors
  • Designed & manufactured in UK

Product Specifications:

  • Voltage Range (DC): 10-32V
  • LED Life: 50,000 hours
  • Weight: 5.1 kg

HIGH BEAM FUNCTION

  • Total Luminous Flux: 28560 Lm
  • Total Driver 'FOV' Flux †: 18821 Lm
  • Colour Temperature: 5000K
  • Number of High Output LEDs: 28
  • Power Consumption: 326 Watts
  • Current Draw (14.4V): 22.6 Amps

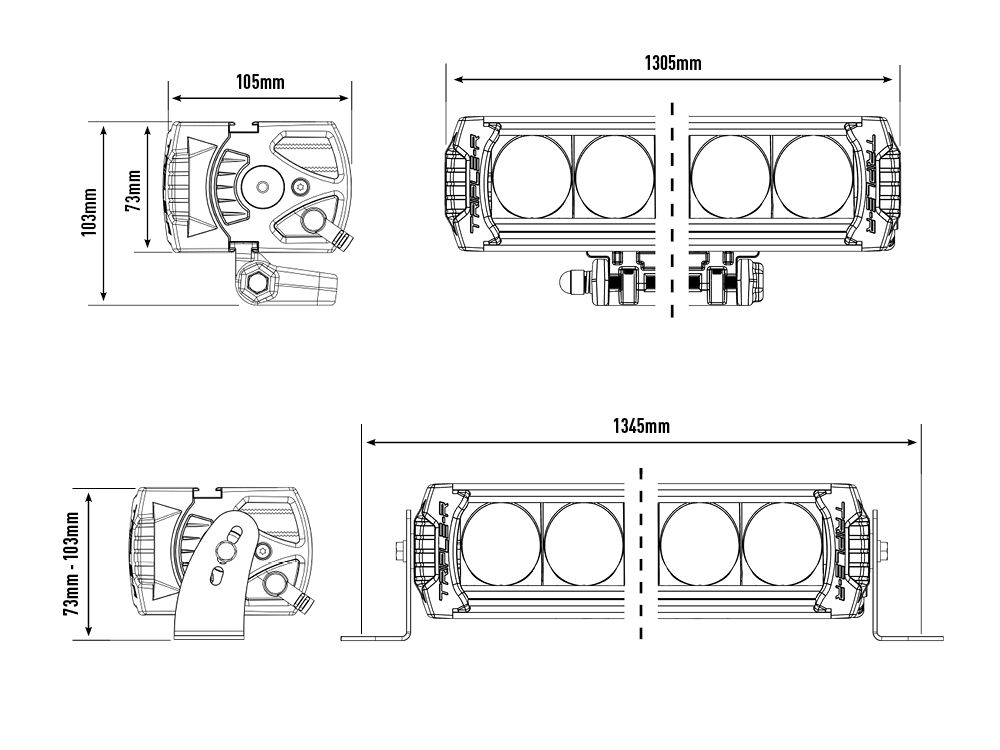

DIMENSIONS

  • Width: 1305 mm
  • Depth: 105 mm
  • Height: 73 mm

CERTIFICATION

  • High Beam: N/A
  • E-Mark Ref: N/A

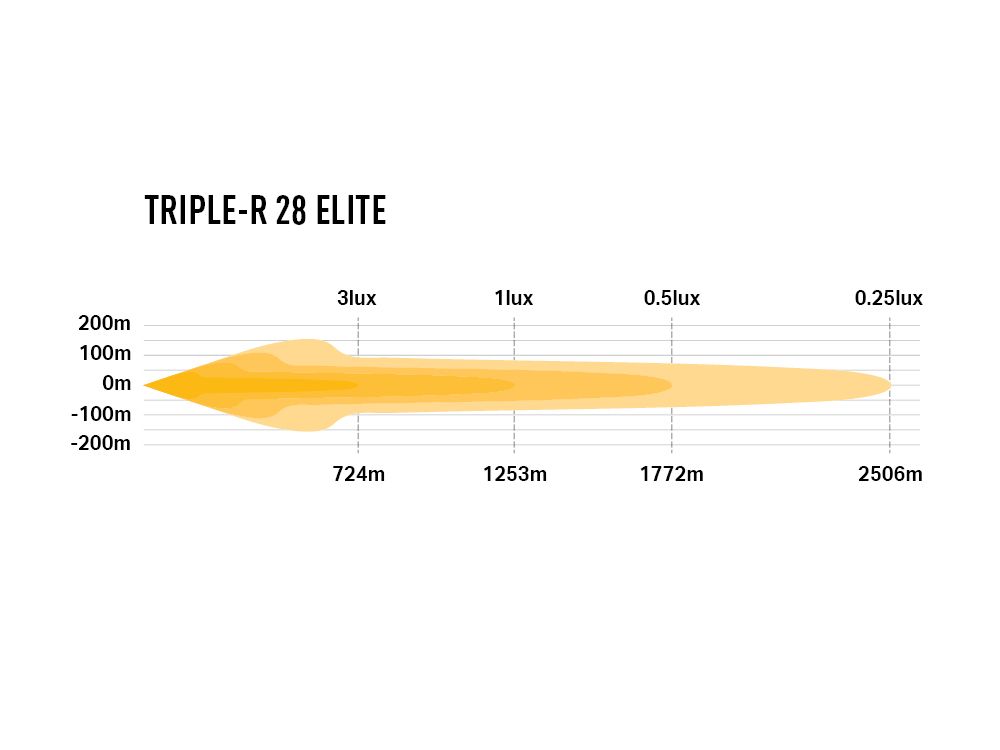

Photometric Data

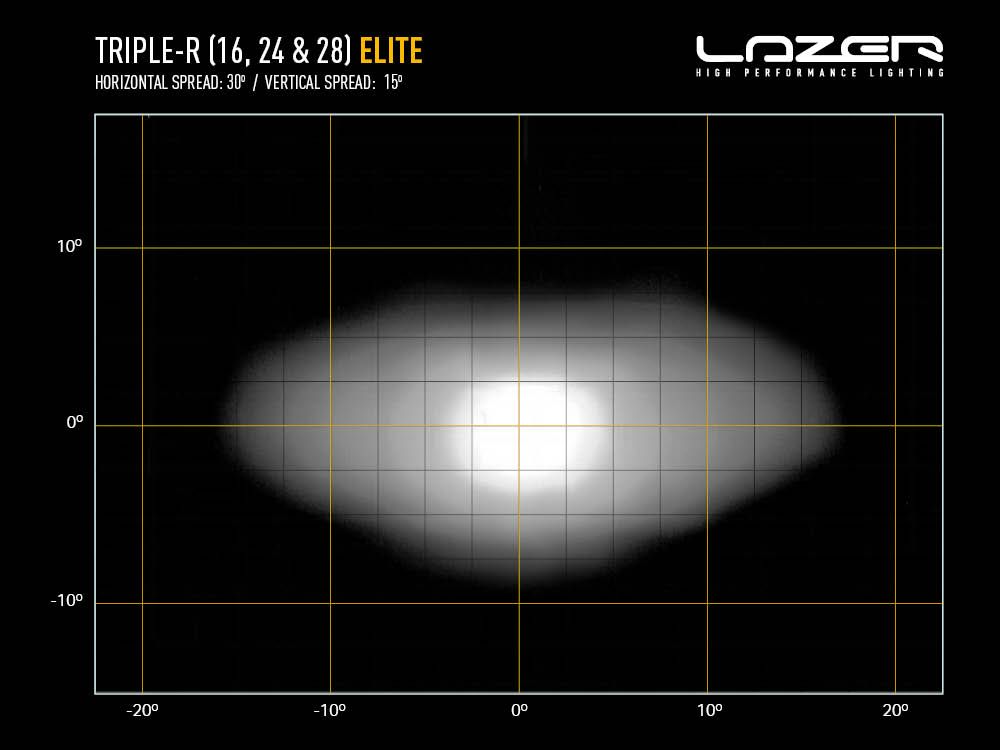

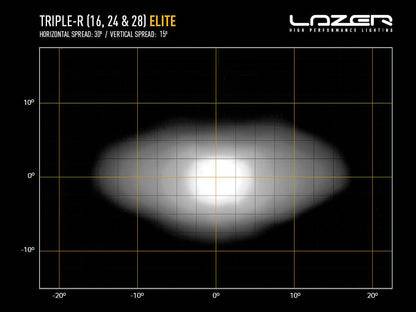

  • Horizontal Beam Angle: 30°
  • 0.25 lx Line: 2506m
  • 0.5 lx Line: 1772m
  • 1 lx Line: 1253m
  • 3 lx Line: 724m

Brand:

Lazer Lamps

Manufacturer Part Number:

00R28-G2-EL-B

Barcodes:

5060404993983
