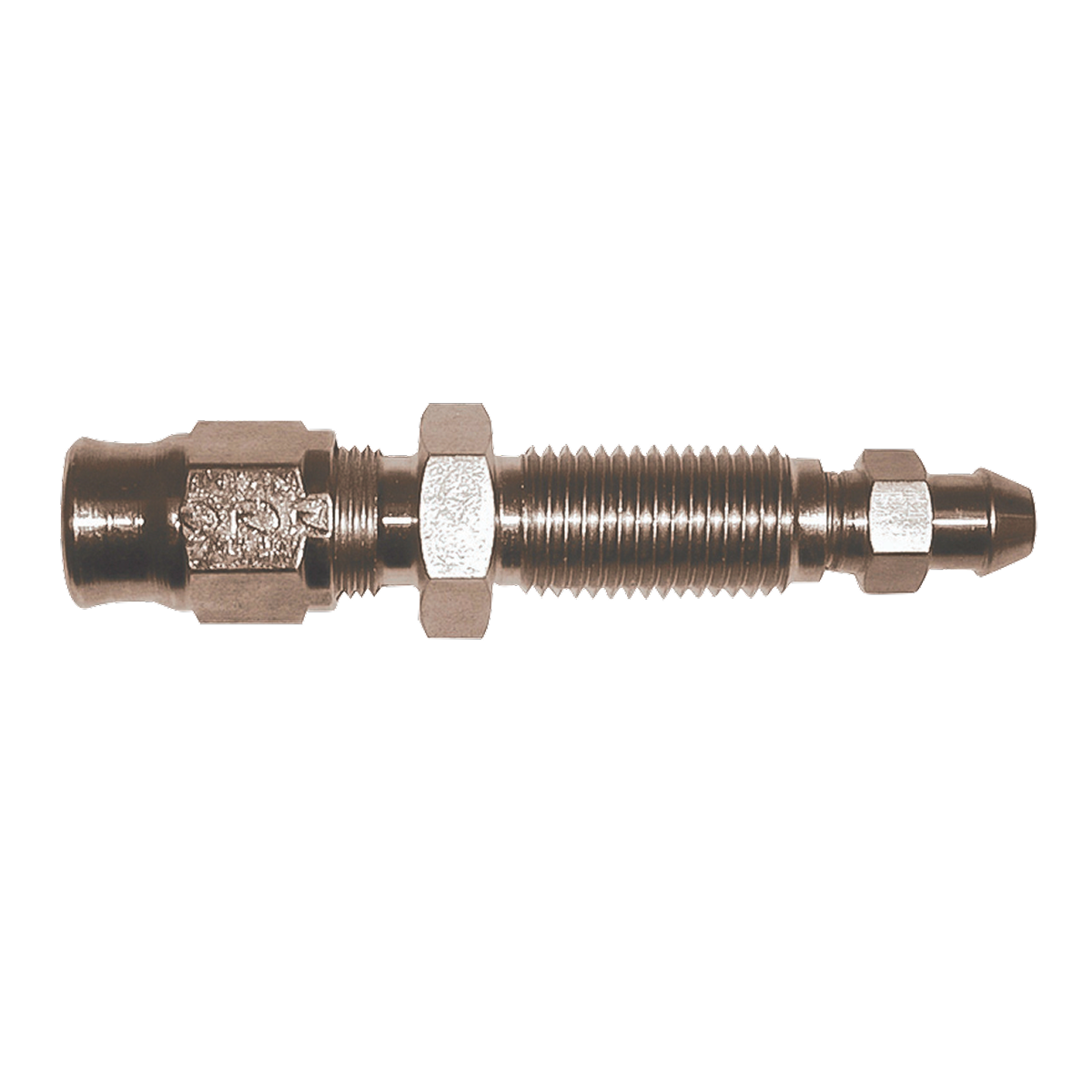

Name: Straight Male Bulkhead - Bleed Nipple
Brand: Goodridge
SKU: 443-03BNP
Price: 22.71 GBP
Availability: InStock

1 1

Straight Male Bulkhead - Bleed Nipple

SKU:443-03BNP

€22.71 €27.93

Sale Sold out

MALE BULKHEAD Bleed Nipple
USE LOCKNUT PART NUMBER 924

Hose Dash Size Dash 3

JIC/UNF Thread '-03 | 3/8 x 24

Material: Zinc Plated Carbon Steel

Quantity

View full details

Goodridge Brake/Clutch JIC/UNF Fittings to suit Goodridge -03/-04 sized 600 Series brake hose. Each fitting is supplied with the necessary olive and socket to aide fitment to the Goodride Brake Hose.

Goodridge JIC/UNF fittings are available in a range Materials and a range of Angles (Degrees) making it possible to fit to hard to access cylinders and pedal boxes.

CONSTRUCTION

Suitable for Smoothbore Teflon (PTFE) Hosing Only**
Use Locknut part number 924
They are available in various sizes and material types (See part numbers below)
Each fiting contains an Olive which must be fitted between the Steel Braid and the Teflon Lining so it can be compressed by the socket:

Assembly

REPLACEMENT SOCKETS & OLIVES

APPLICATIONS

Brake
Clutch

COMPATIABLE HOSING

443BNP - PART NUMBERS

443BNP

GOODRIDGE MATERIAL KEY:

B: Brass
C: Stainless steel
CH: Crome plated
D: Anodised Aluminium
P: Zinc plated carbon steel
Z1: Silver plated carbon steel

SMOOTHBORE PTFE HOSE ASSEBMLIES:
A PTFE Compatiable fitting can be indetifed by a Flared Socket which also contains an Olive. Quite simply, the fitter must place the olive between the PTFE lining and the outer stainless steel braid, so when the socket is tightened, the olive compresses the hose to create a very effective seal suitable for high pressure fluids. The compressed olive ensures that the assmebly is vapour free making it suitable for the interior cockpit of a car.
These fittings are reusable so that they can be used time and time again but will require replacement olives. If the hose itself is damaged, just disassemble, clean, lubricate and reassemble with a new olive and a new piece of hose.
