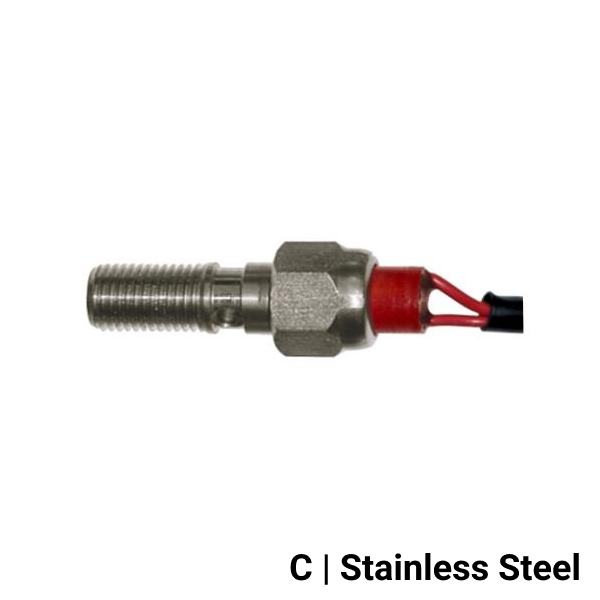

Single Brake light Banjo Bolt - UNF

Single Brake light Banjo Bolt - UNF

BL775-03C

€27.31 €33.59
Sale Sold out
  • Feature Icon Stainless Steel
  • Feature Icon Single Brake Light Banjo Bolt
  • Feature Icon JIC/UNF Threads
  • Feature Icon Thread size variations available

In stock
View full details

Brake Light Switch Banjo Bolts have all been tried and tested in the upper echelons of world motorsport, racing's most severe conditions, and are proven in their quality of engineering, workmanship and finish.

Manufactured to exacting specifications to ensure an accurate fit to the Banjo Hose Ends every time. Goodridge range of banjo bolts covers all possible applications.

CONSTRUCTION

  • Suitable for Goodridge Banjo's
  • They are available in a wide range of:
    • Lengths - Under the HEX Measurement
    • Threads
    • Positive & Negative wires connect to the vechiles Brakelight and the Banjo Bolt is assembled into a Banjo Assembly of the Brake Master Cylinder. This ensure immediate response from when the brake pedal is pressed. Once the brakelight switch gets pressure from the Brake Fluid, it enables the Brake Light. Simply & effective.

    APPLICATIONS

    • BrakeSingle Banjo

    COMPATIABLE WASHERS

    For Single Port Banjo Bolts, two washers are requried per assembly.
    For Double Port Banjo Bolts, three-four washers are required per assembly.

    • 445C - Copper Washers
    • 445A - Aluminium Washer

    BL775 - PART NUMBERS

    BL775

    GOODRIDGE MATERIAL KEY:

    • B: Brass
    • C: Stainless Steel
    • CBK: Black Stainless Steel
    • CH: Crome Plated
    • D: Red Anodised Aluminium
    • DBK: Black Anodised Aluminium
    • DBU: Blue Anodised Aluminum
    • P: Zinc Plated Carbon Steel
    • Z1: Silver Plated Carbon Steel

    RECOMMENDED BANJO ASSEMBLE WITH BANJO BOLT:
    With the suitable Banjo Bolt to Suit the desired Banjo Hole, place a copper washer either side of the Banjo to create a sealed fitment when tightened.
    **Please note that the washers internal diameter must also match the Banjo Bolt size to ensure it is a sealed fitment to avoid leaks and loss of pressure.

    Brand Goodridge
    Options SKU Barcode
    Dash 3 / -03 | 3/8 x 24 / Single - 24mm BL775-03C
    Dash 3 / -03 | 3/8 x 24 / Single Short - 18mm (S) BL775-03SC

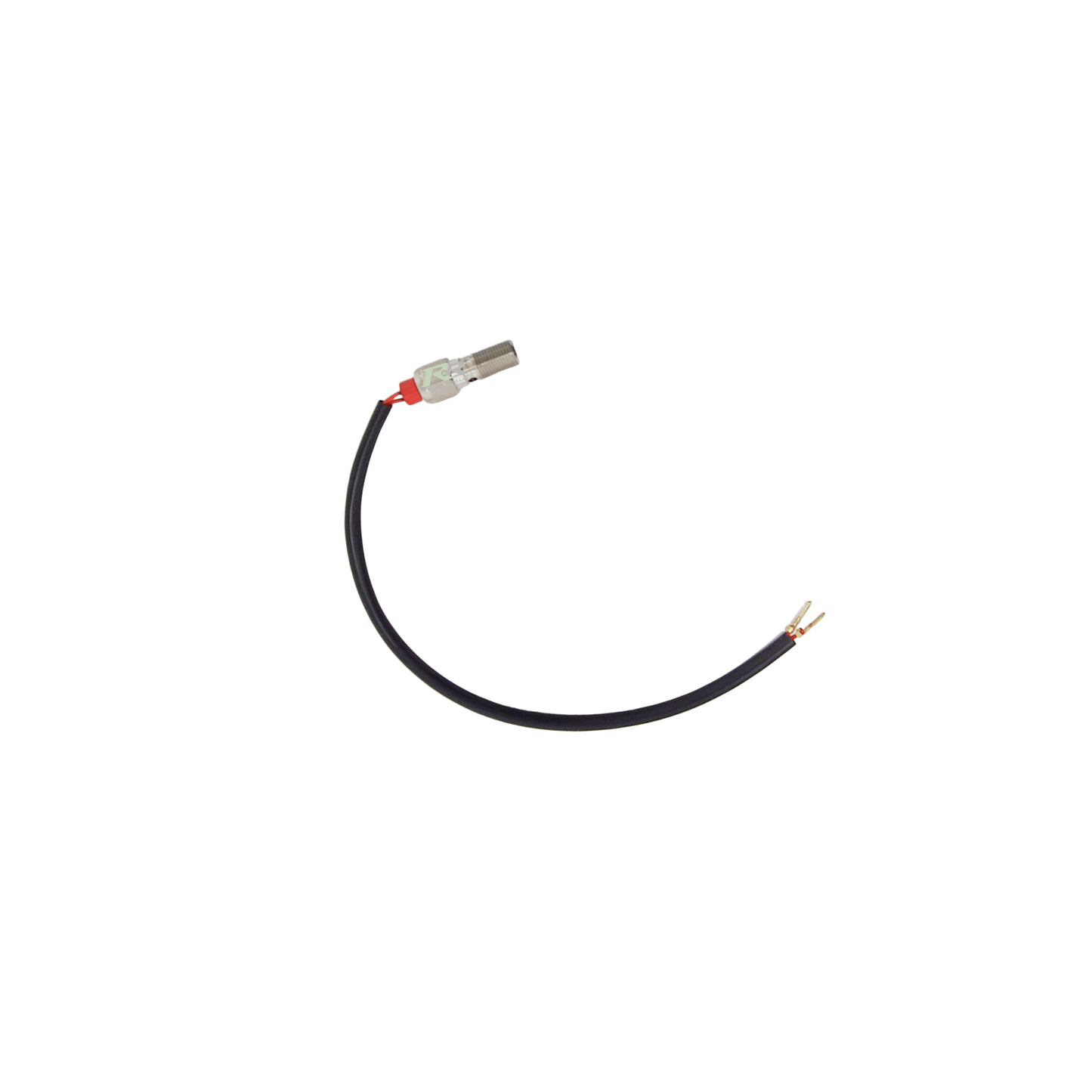

    Dash 4 / 7/16 x 24 / Single Short - 18mm (S) BL775-44C
