AP 13" Front 'Monte Carlo' Brake Kit - CP2271 Caliper - Ø260x25mm Discs - G4 Face Design

AP 13" Front 'Monte Carlo' Brake Kit - CP2271 Caliper - Ø260x25mm Discs - G4 Face Design

AP2271-260-25-G4

€2817.09 €3465.02
Sale Sold out
  • Feature Icon 13" BRAKE KIT
  • Feature Icon FIA HISTORIC SPEC
  • Feature Icon CP2271 CALIPERS
  • Feature Icon MACHINED FOR FORD FITMENT
  • Feature Icon Ø260MM - G4 | 4 FORWARD FACING GROOVES BRAKE DISCS
  • Feature Icon COMPLETE KIT
View full details

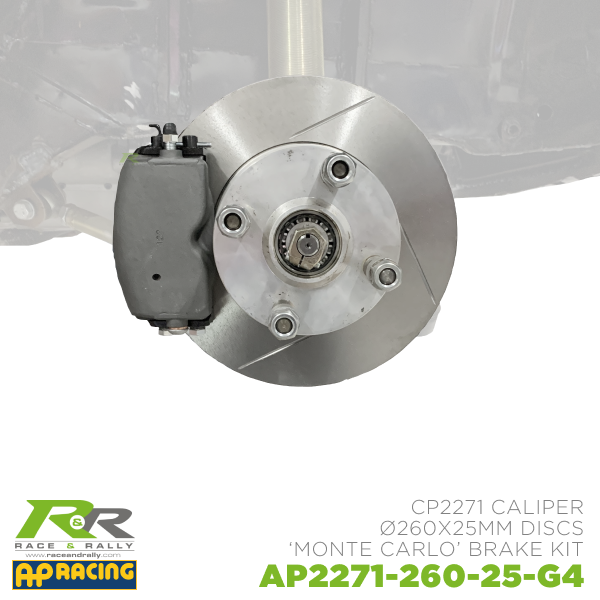

Ford Escort MK1 and MK2 historic spec 13" brake kit. Kit is complete with 4-pot AP "Monte Carlo" Calipers Machined to suit Ford with extra wheel clearance (CP2271), Ø260 x 25.4mm brake discs, and all required hardware for mounting to Escort Struts. G4 - 4 forward-facing grooves design discs.

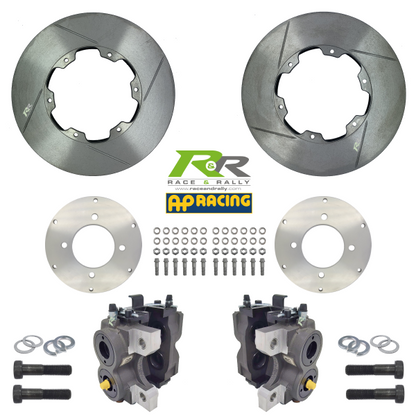

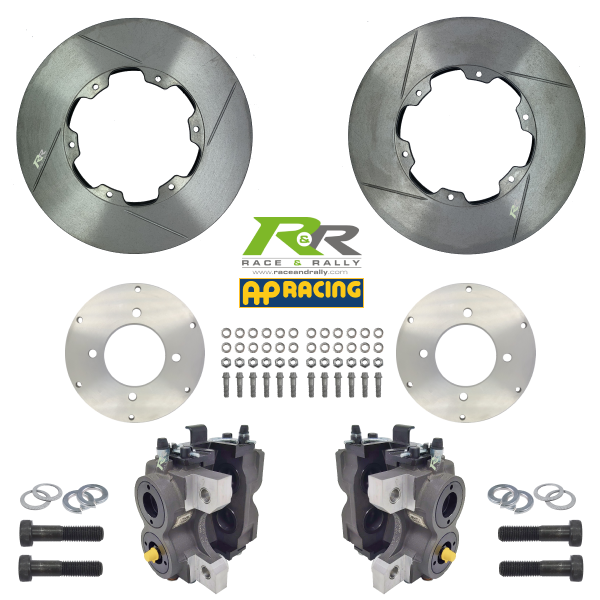

KIT CONTENTS

  • 2x AP Lug Mounted 4 Pot Caliper

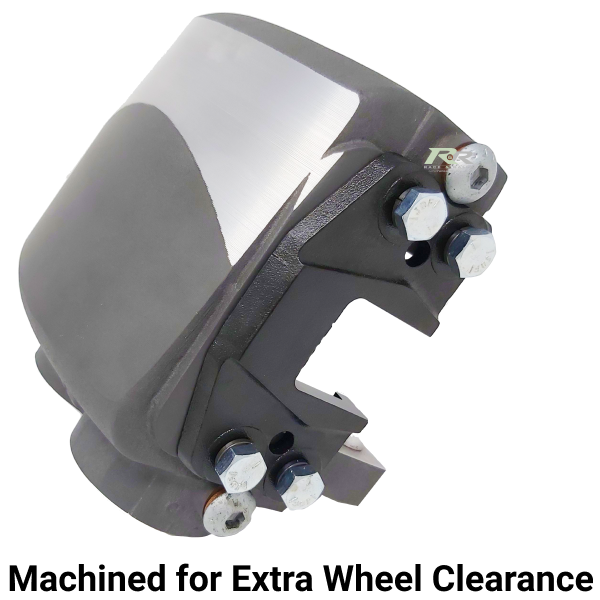

    • Machined to suit Ford Sturt with extra wheel clearance

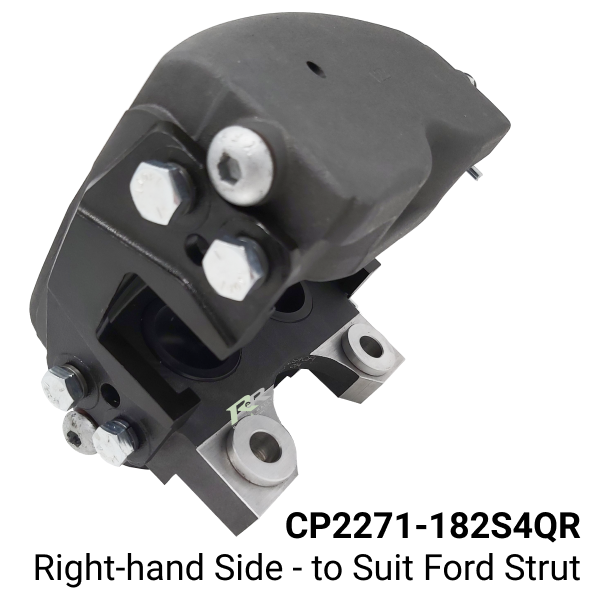

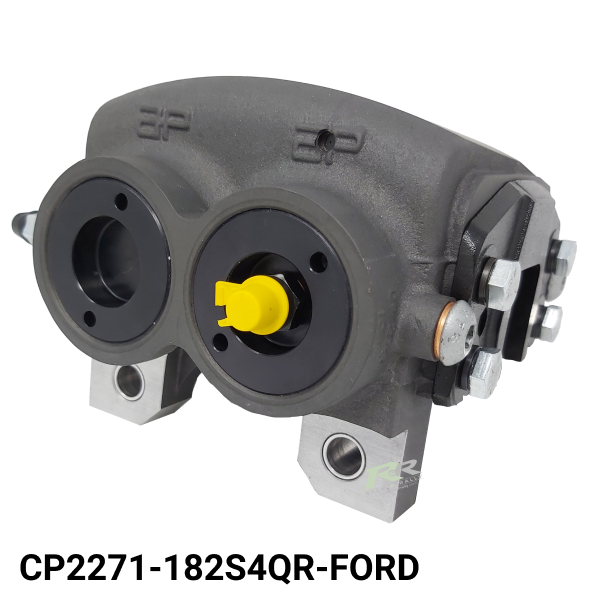

    • CP2271-182S4QR-FORD - Right-hand Trailing

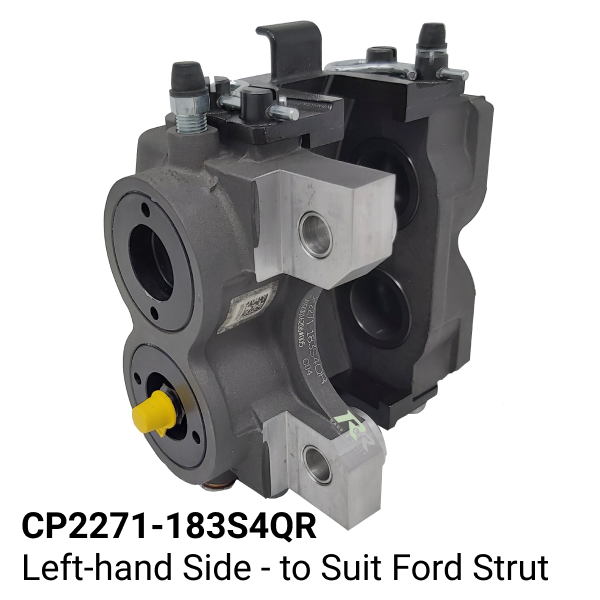

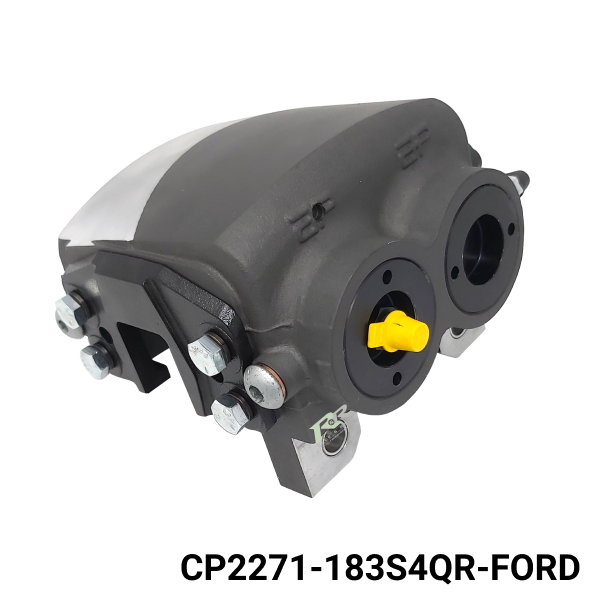

    • CP2271-183S4QR-FORD - Left-hand Trailing
  • 4x Caliper mounting bolts
    • 4x RNR1030-716-175 - Caliper to strut
    • 4x RNR1016-716 - Schnoor washers
    • 4x RNR1003-716 - Square faced spring washers
  • 2x AP Racing brake discs - Ø260x25.4mm

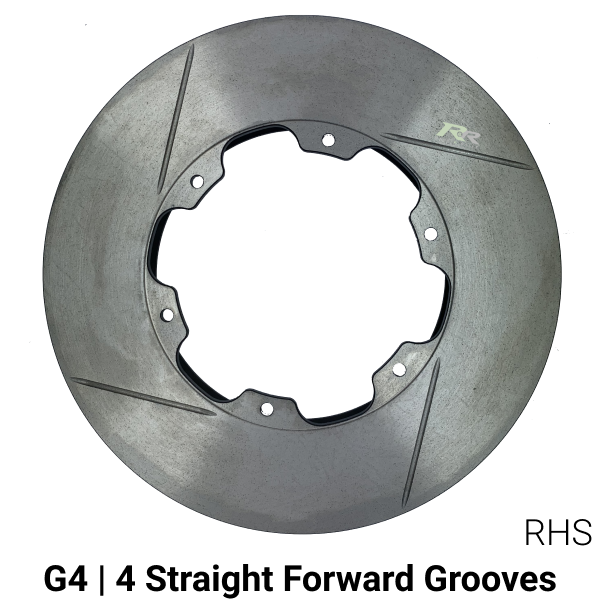

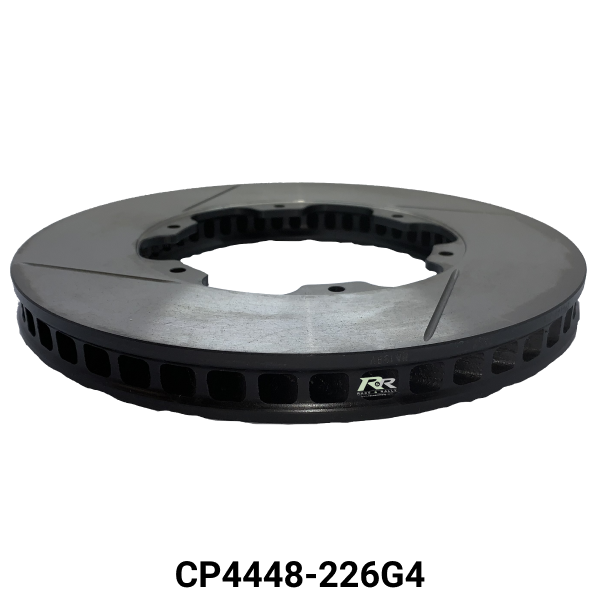

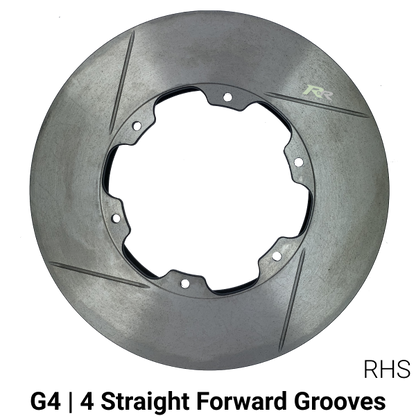

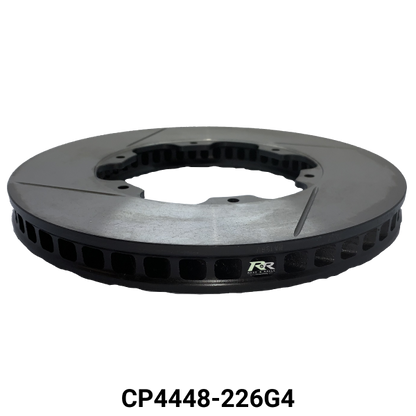

    • CP4448-226G4 - Right hand ventilated brake disc - G4 | 4 Forward-facing grooves face

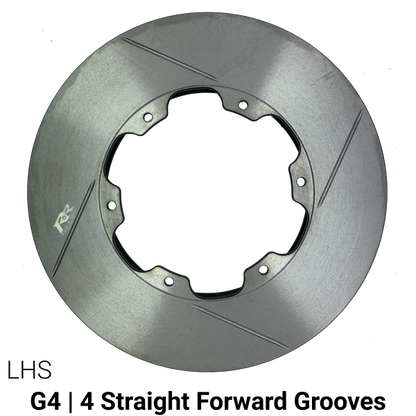

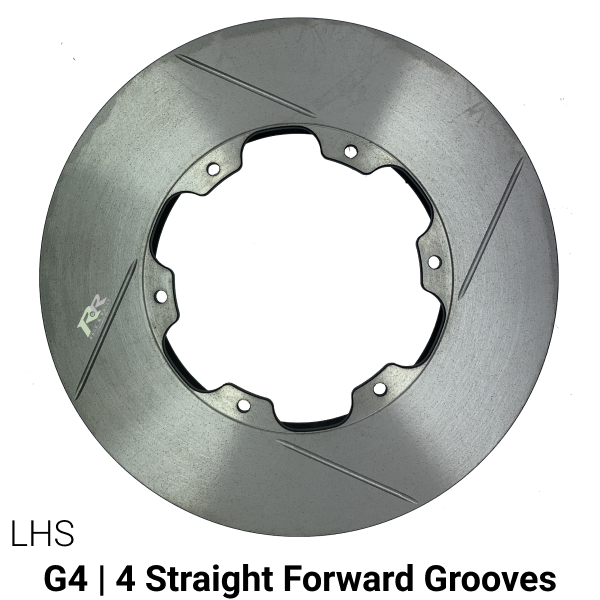

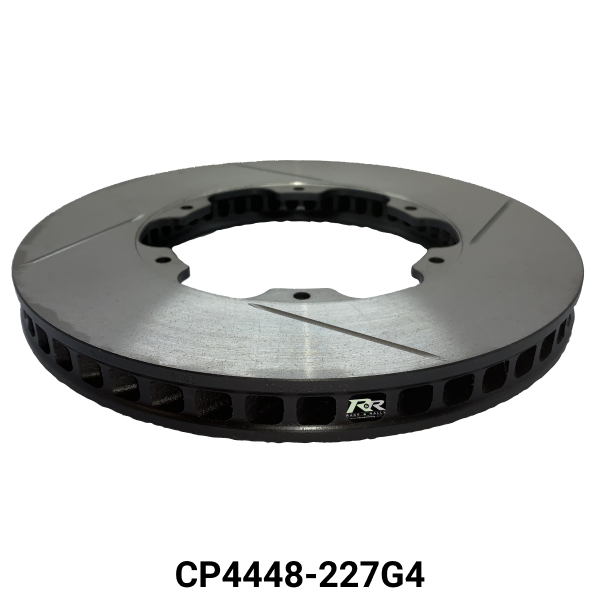

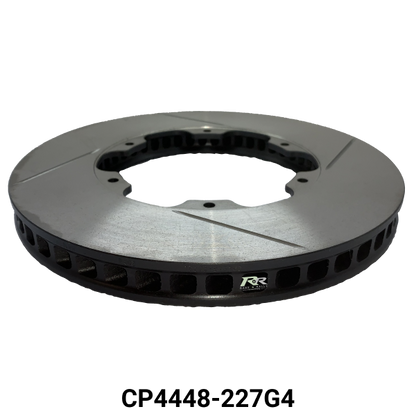

    • CP4448-227G4 - Left hand ventilated brake disc - G4 | 4 Forward-facing grooves face
  • 2x CNC Machined aluminium brake disc mounting bells
    • RBR26006B139
  • 1x Brake disc bell mounting kits
    • CP3845-101K12

CP2271 4-POT CALIPER

Piston Sizes

4x Ø38.1mm

Piston Area

45.60cm²

Weight - No Pads

2.7kg

Hydraulic Threads

3/8" x 24 UNF

Mounting Type

Lug Mounted - Machined for Ford Struts
82.80mm Mounting Centres
Ø11mm Mounting Hole

Brake Pad Family

AP - CP2270D46
Ferodo - FRP203

Ø260 x 25.4mm VENTILATED BRAKE DISC

'A' Outside Diameter

260mm

'B' Thickness

25.40mm

'M' P.C.D.

139.70mm

Fixing Type: Bolted

6 Bolts
Ø6.40mm Mounting Hole

'C' Eye Diameter

154.9mm

'D' Inside Flange Diameter

125.80mm

'H' Mounting Flange Thickness

4.80mm
Stepped in 1.2mm

Max Pad Depth

D51

Number of Vanes

48

Air Gap

10.5mm

Face Types Available

G4 | 4 Straight Forward Grooves
**  'Letter' from above relates to disc drawing below
