AP 13" Front Brake Kit - CP4567 Caliper - Ø277x25mm Brake Disc

AP 13" Front Brake Kit - CP4567 Caliper - Ø277x25mm Brake Disc

AP4567-277-25-G4

€2009.10 €2471.19
Sale Sold out
  • Feature Icon 13" BRAKE KIT
  • Feature Icon CP4567 CALIPERS
  • Feature Icon Ø277 x 25mm Brake Discs
  • Feature Icon G4 or GA FACE DESIGN BRAKE DISCS Available
  • Feature Icon COMPLETE KIT
Brake Disc Face Type

View full details

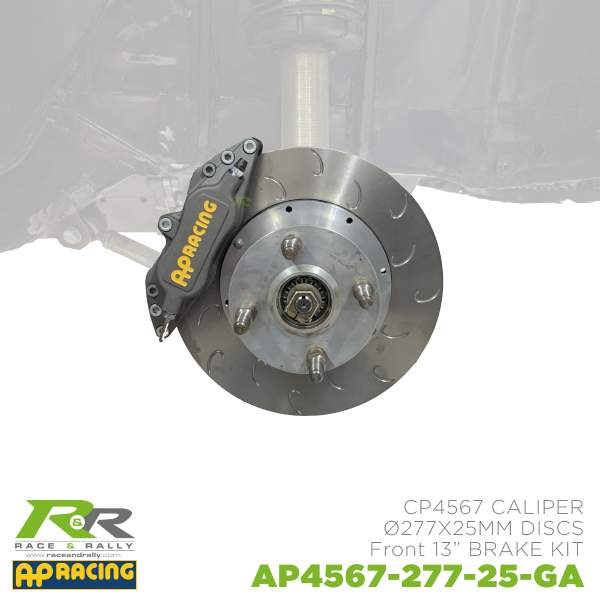

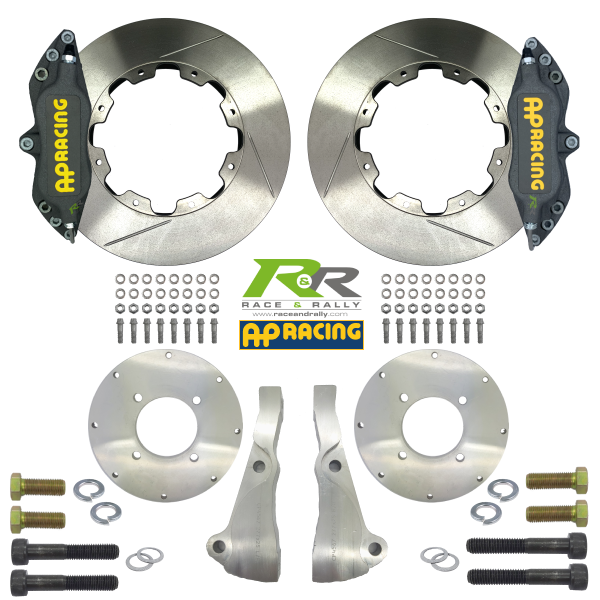

Ford Escort MK1 and MK2 modern spec 13" brake kit. The kit is complete with AP CP4567 4-pot Calipers, Ø277 x 25.40mm brake discs, and all required hardware for mounting to Escort Bilstein Struts.

KIT CONTENTS

  • 2x AP Radial Mounted 4 Pot Caliper

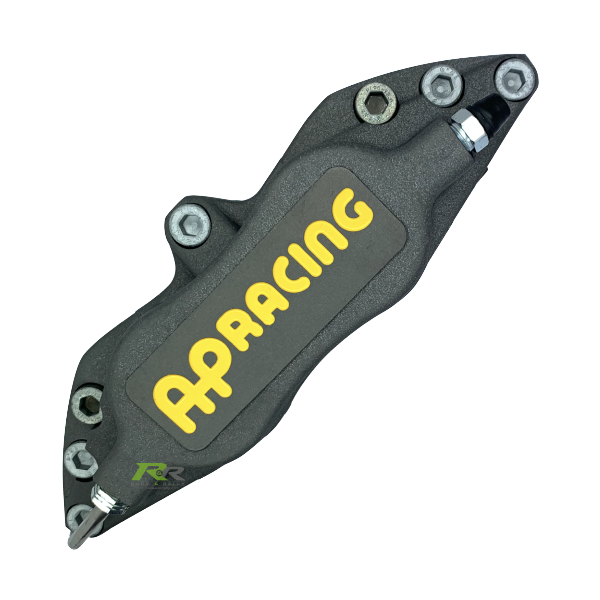

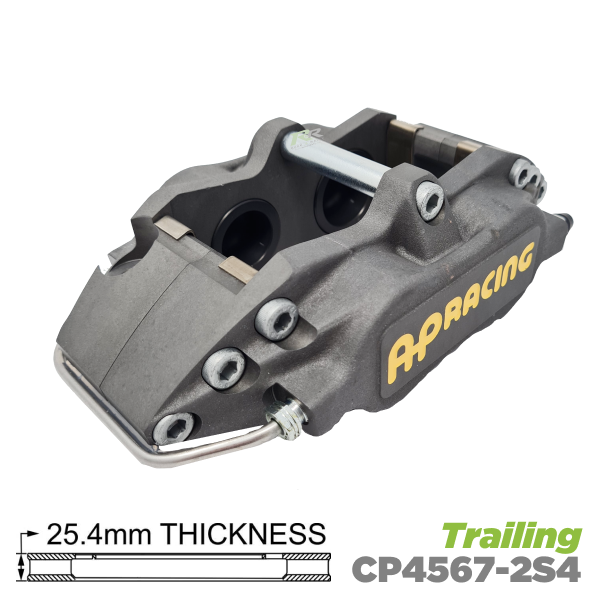

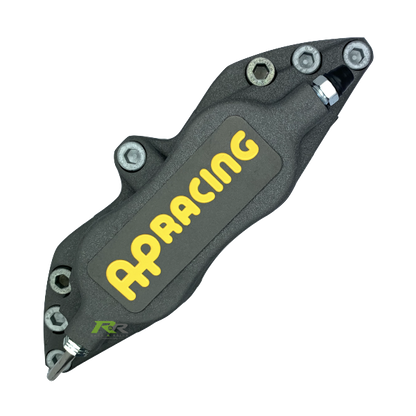

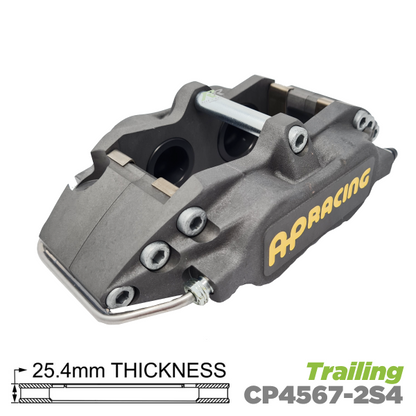

    • CP4567-2S4 - Right-hand Trailing

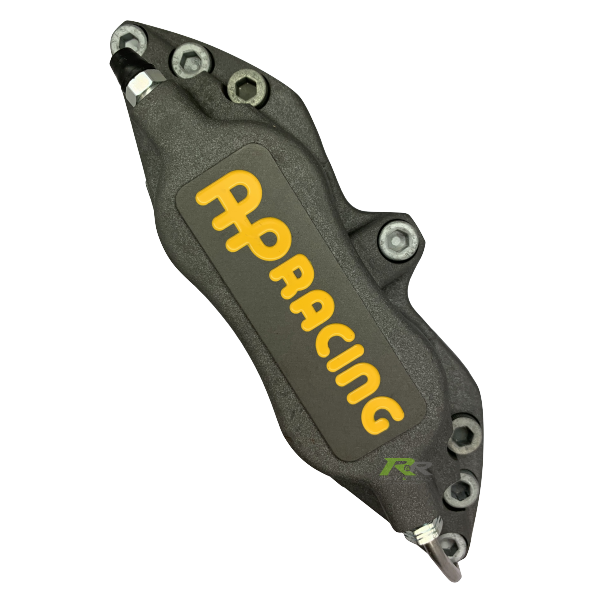

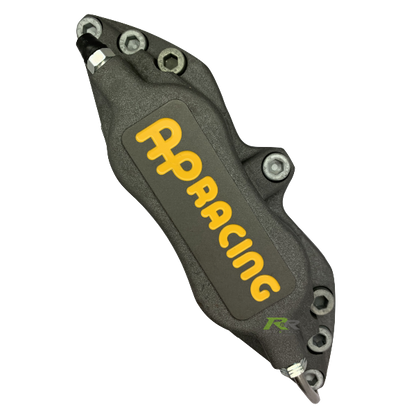

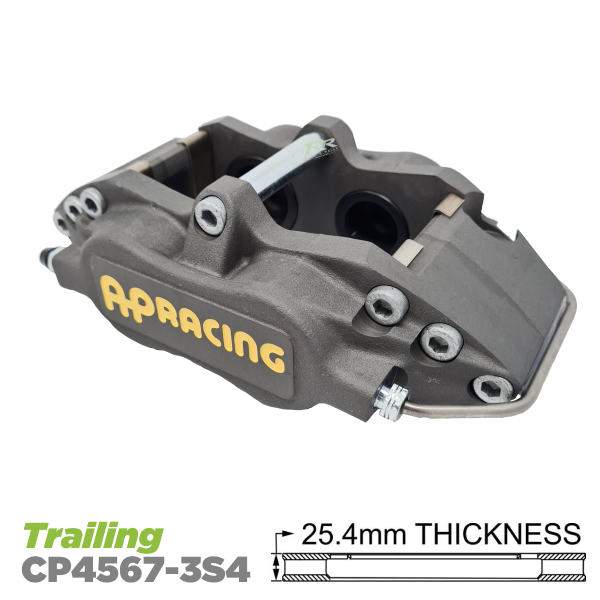

    • CP4567-3S4 - Left-hand Trailing
  • 1x Pair of caliper mounting brackets machined from Aluminium
    • RCR456727725
  • 8x Caliper mounting bolts & washers
  • 2x AP Racing brake discs - Ø277 x 25.40mm

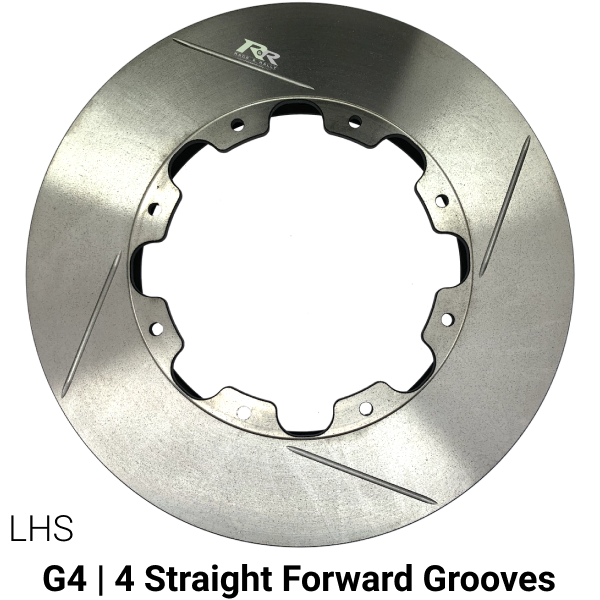

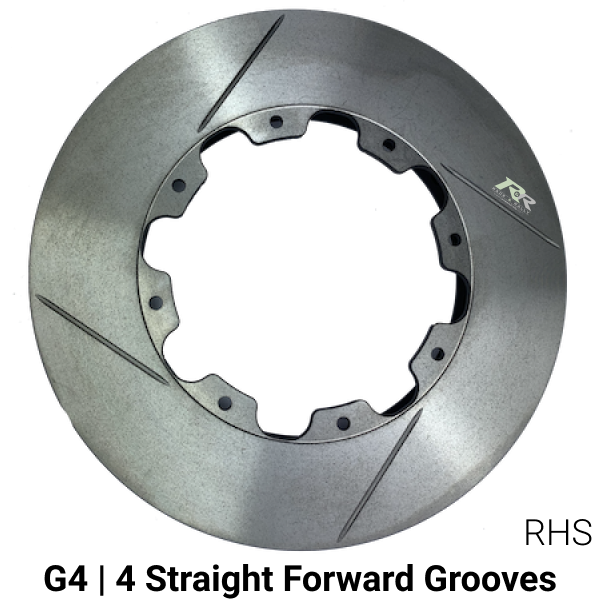

    • G4 | 4 Forward-facing grooves face
      • CP4448-410G4 - Right-hand ventilated brake disc
      • CP4448-411G4 - Left-hand ventilated brake disc

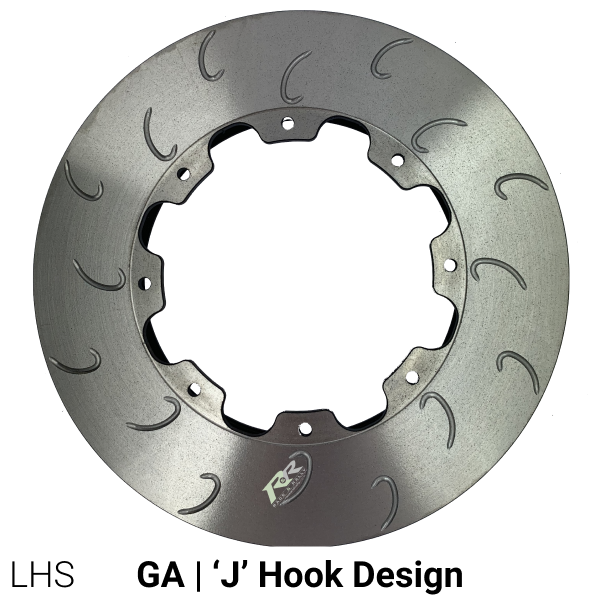

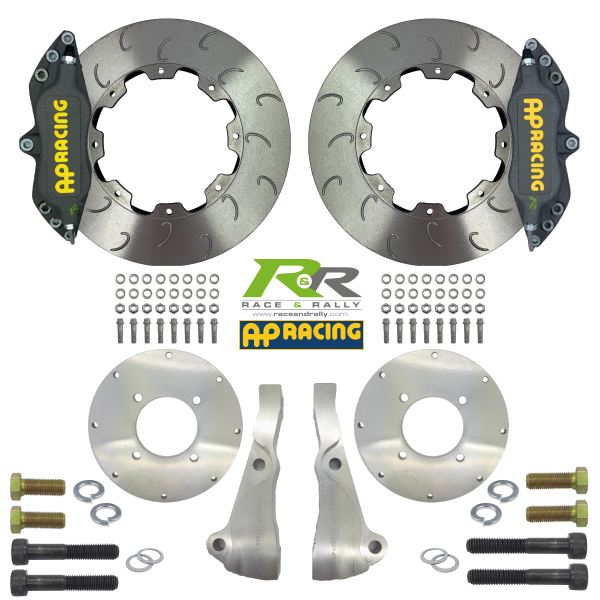

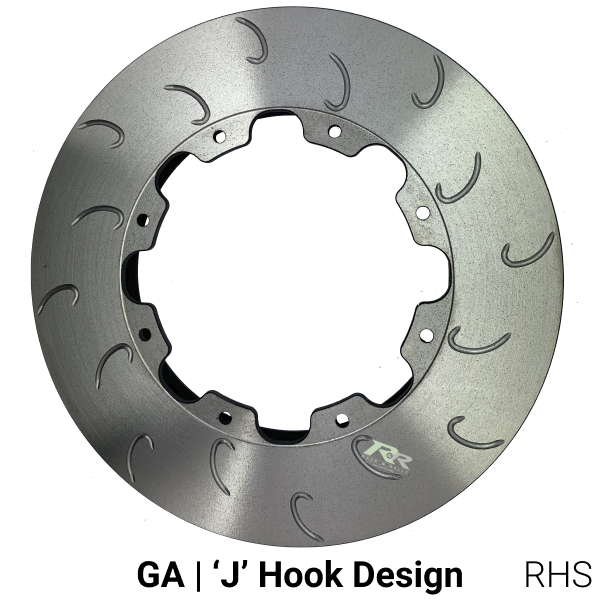

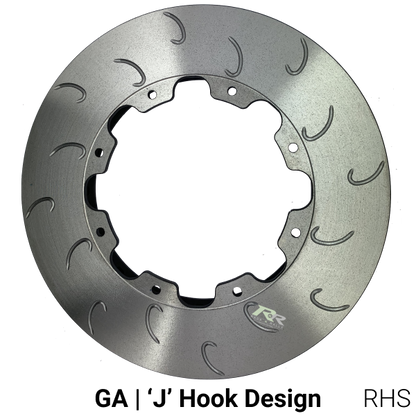

    • GA | 'J' Hook Face Design
      • CP4448-410GA - Right-hand ventilated brake disc
      • CP4448-411GA - Left-hand ventilated brake disc
  • 2x CNC Machined aluminum brake disc mounting bells
    • RBR27708B158
  • 1x Brake disc bell mounting kits
    • CP3845-100K08

CP4567 4-POT CALIPER

Piston Sizes

2x Ø34.9mm
2x Ø41.3mm

Piston Area

45.92cm²

Weight - No Pads

1.6kg

Hydraulic Threads

M10 x 1.0

Mounting Type

Radial
152mm Mounting Centres
30mm Mounting Offset
Ø10.20mm Mounting Hole

'PL' Dimension

50.5mm

Brake Pad Family

AP - CP3345D44
Ferodo - FRP219
PFC - 7745

Ø267 X 21.0MM VENTILATED BRAKE DISC

'A' Outside Diameter

277mm

'B' Thickness

25.40mm

'M' P.C.D.

158.80mm

Fixing Type: Bolted

8 Bolts
Ø6.40mm Mounting Hole

'C' Eye Diameter

174.10mm

'D' Inside Flange Diameter

141.00mm

'H' Mounting Flange Thickness

4.82mm

Max Pad Depth

D50

Number of Vanes

48

Air Gap

10.50mm

Face Types Available

G4 | 4 Straight Forward Facing Grooves
GA | 'J' Hook Face Design
**  'Letter' from above relates to the disc drawing below

Brand:

AP Racing

Manufacturer Part Number:

AP4567-277-25-G4, AP4567-277-25-GA
