AP 15" Front Brake Kit - CP5040 Caliper - Ø304x28mm Discs - 'J' Hook Face Design

AP 15" Front Brake Kit - CP5040 Caliper - Ø304x28mm Discs - 'J' Hook Face Design

AP5040-304-28-SGA

€2368.38 €2913.11
Sale Sold out
  • Feature Icon 15" BRAKE KIT
  • Feature Icon CP5040 Pro 5000 CALIPERS
  • Feature Icon Ø304MM - GA | 'J' HOOK FACE DESIGN BRAKE DISCS
  • Feature Icon SUITED FOR Bilstein SUSPENSION SETUP
  • Feature Icon COMPLETE KIT
View full details

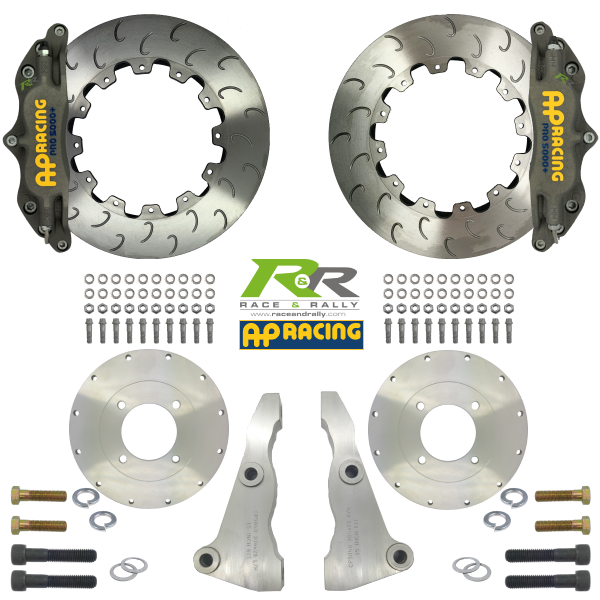

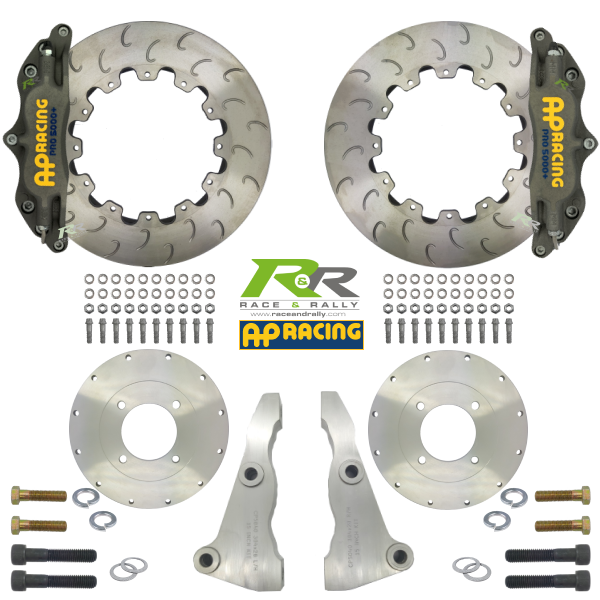

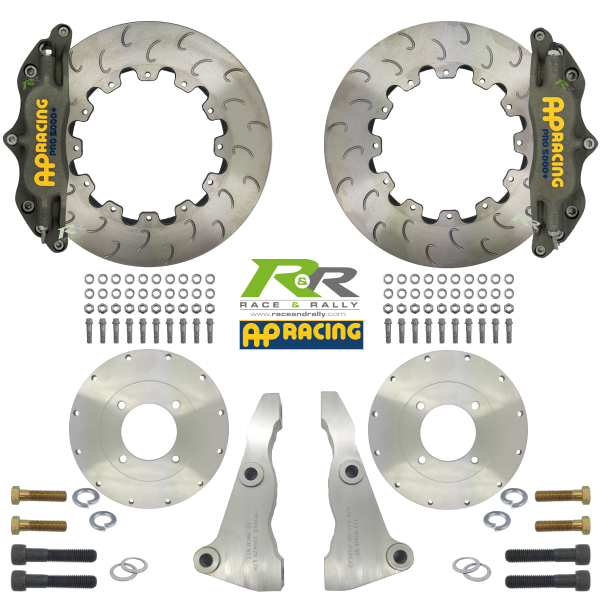

Ford Escort MK1 and MK2 modern spec 15" brake kit. Kit is complete with AP CP5040 4-pot Calipers, Ø304 x 28mm brake discs and all required hardware for mounting to Escort Bilstein Struts.

KIT CONTENTS

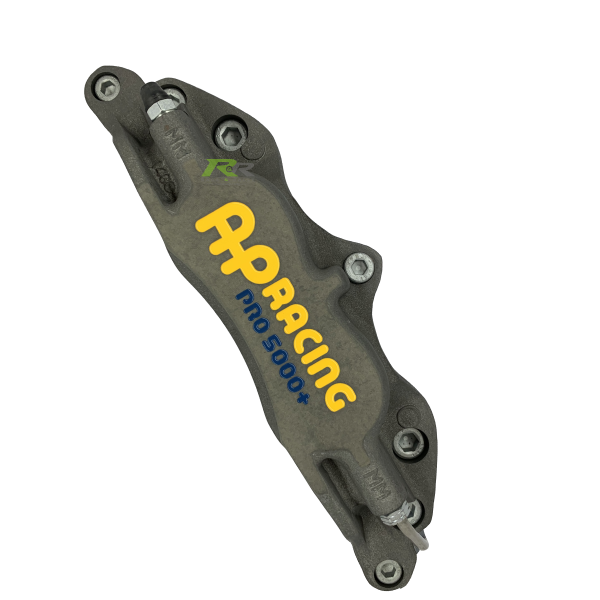

  • 2x AP Radial Mounted 4 Pot Caliper
    • CP5040-2S4L - Right hand
    • CP5040-3S4L - Left hand
  • 1x Pair of caliper mounting brackets machined from Aluminium to suit the selected setup
    • RCR504030428
  • 8x Caliper mounting bolts & washers
  • 2x AP Racing brake discs - Ø304x28mm
    • Standard: 48 Vanes (5.20 Kg)

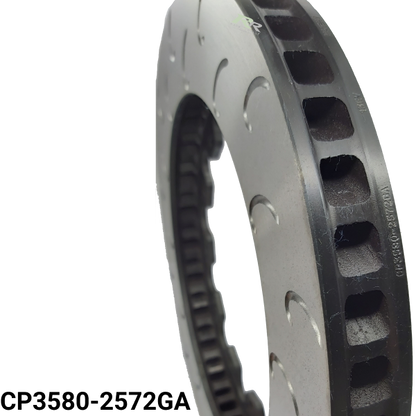

      • CP3580-2572GA - Right hand ventilated brake disc - GA | 'J' Hook Face Design

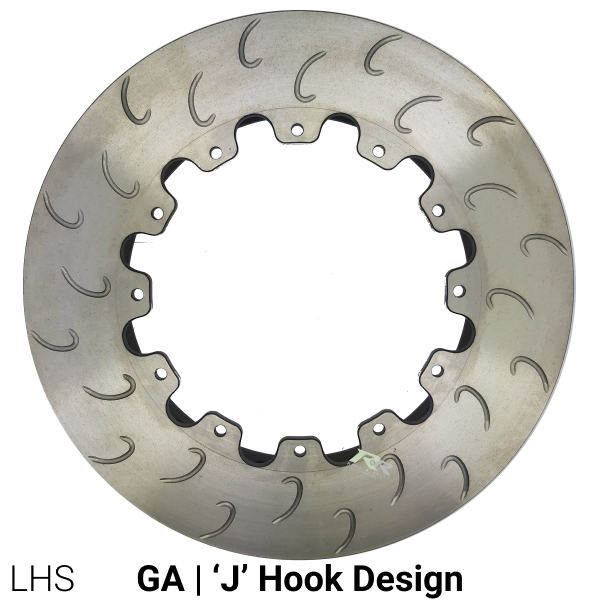

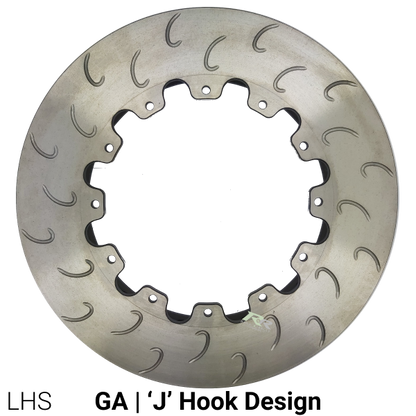

      • CP3580-2573GA - Left hand ventilated brake disc - GA | J' Hook Face Design
    • Lightweight: 54 Vanes (4.60 Kg)

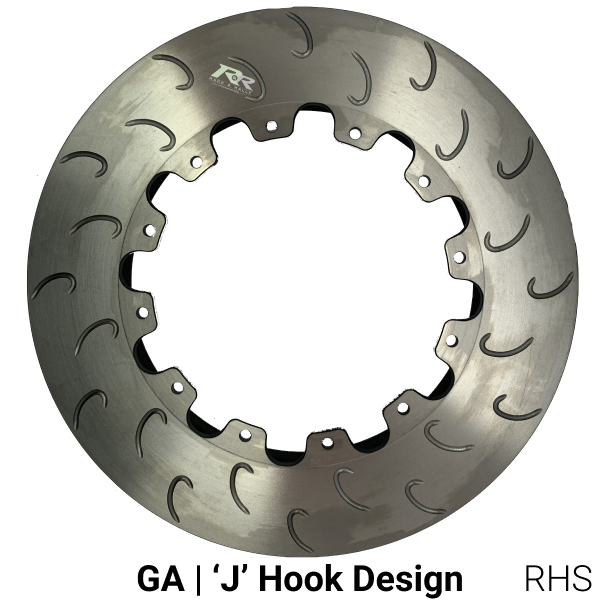

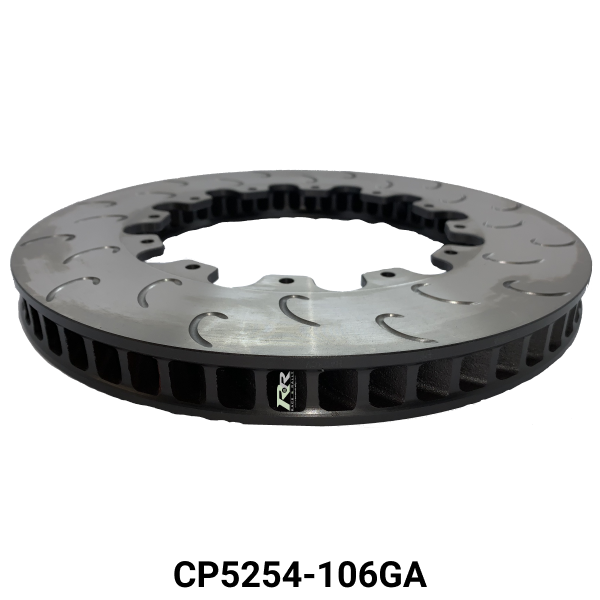

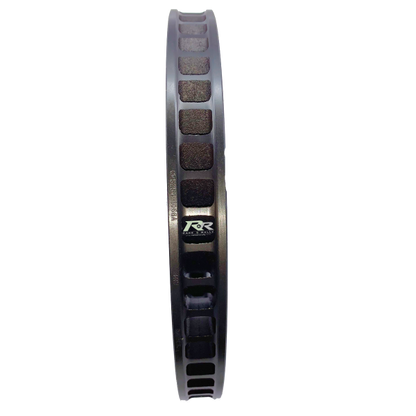

      • CP5254-106GA - Right hand ventilated brake disc - GA | 'J' Hook Face Design

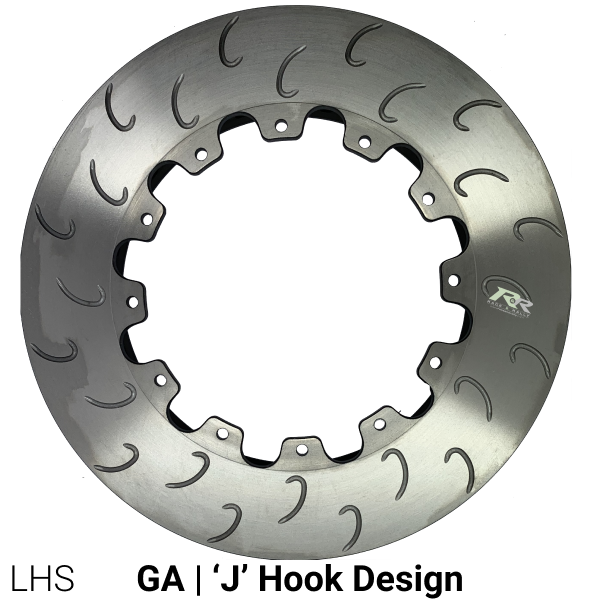

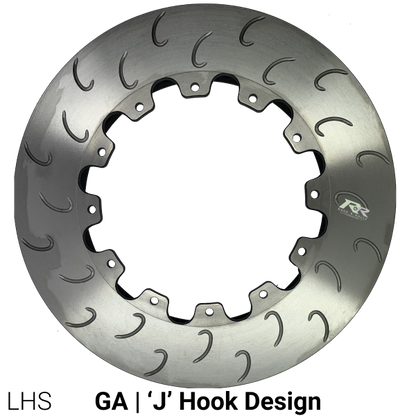

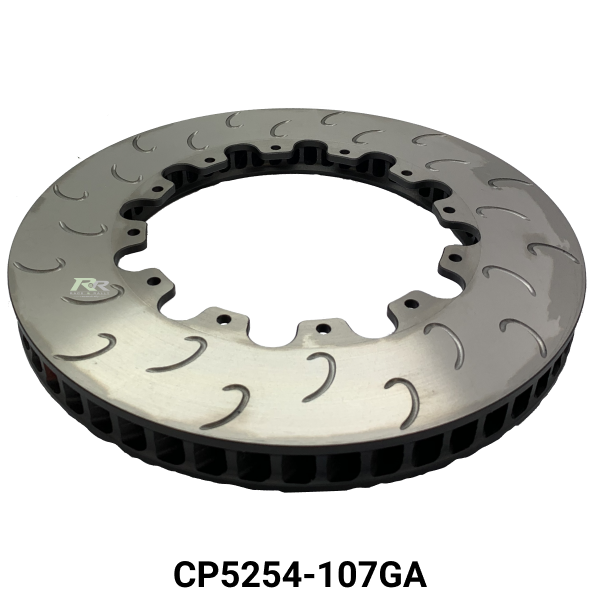

      • CP5254-107GA - Left hand ventilated brake disc - GA | J' Hook Face Design
  • 2x CNC Machined aluminum brake disc mounting bells
    • RBR30412B177
  • 2x Brake disc bell mounting kit
    • CP3845-101K12

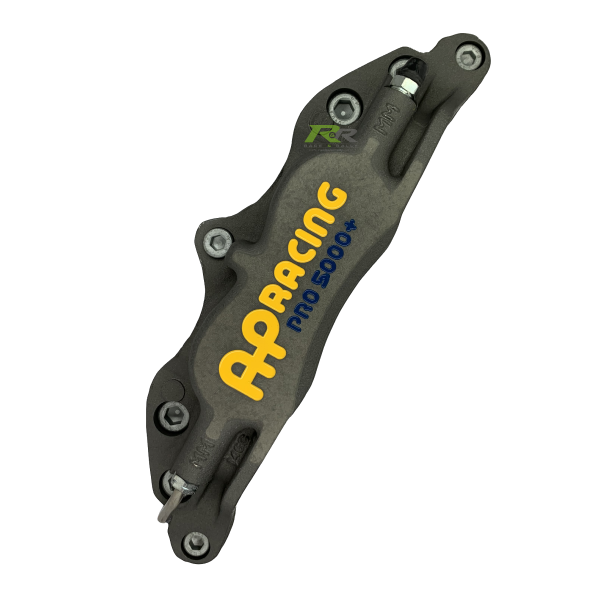

CP5040 4-POT CALIPERPRO 5000+

Piston Sizes

2x Ø38.1mm
2x Ø41.3mm

Piston Area

49.2cm²

Weight - No Pads

2.60kg

Hydraulic Threads

M10 x 1.0

Mounting Type

Radial
152mm Mounting Centres
44.10mm Mounting Offset
Ø12.20mm Mounting Hole

'PL' Dimension

57.8mm

Brake Pad Family

AP - CP3215D50
Ferodo - FRP216
CL Brakes - 5004W50T17
PFC - 7767

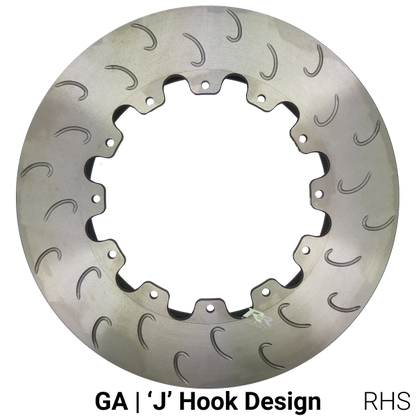

Ø304 X 28.0MM VENTILATED BRAKE DISC

'A' Outside Diameter

304mm

'B' Thickness

28mm

'M' P.C.D.

177.8mm

Fixing Type: Bolted

12 Bolts
Ø6.40mm Mounting Hole

'C' Eye Diameter

203.20mm

'D' Inside Flange Diameter

48 Vanes: 164.0mm
54 Vanes: 161.0mm

'H' Mounting Flange Thickness

5.60mm

Max Pad Depth

48 Vanes: D48
54 Vanes: D50

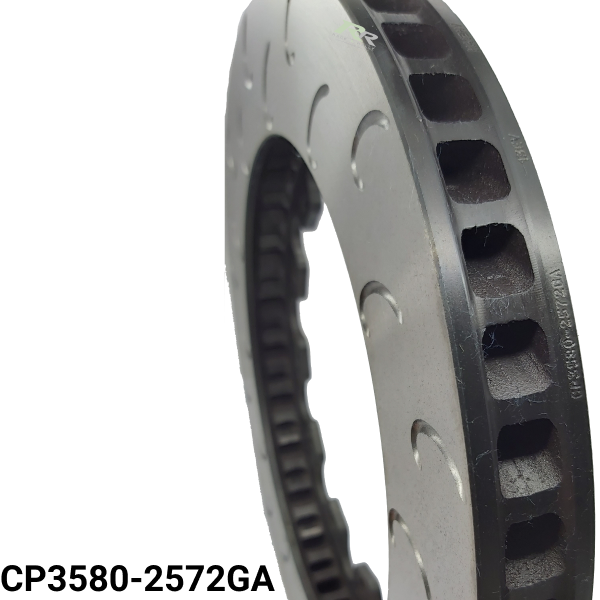

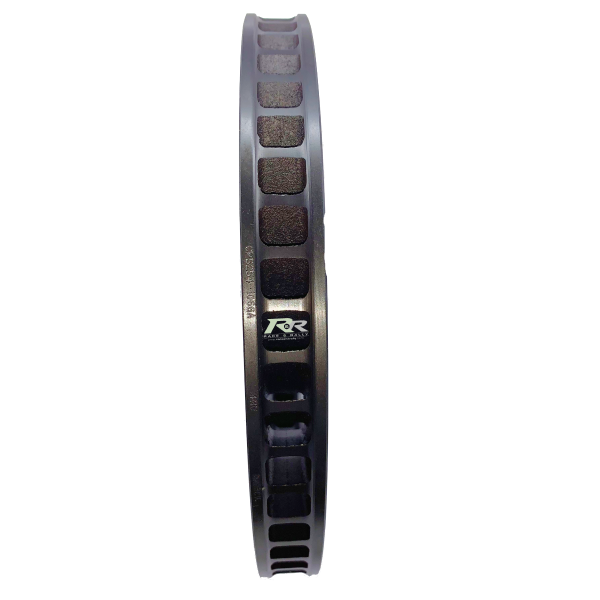

Number of Vanes

48
54

Air Gap

48 Vanes: 14.0mm
54 Vanes: 16.0mm

Weight

48 Vanes: 5.20 kg [per disc]
54 Vanes: 4.20 kg [per disc]

Face Types Available

GA | 'J' Hook Face Design
**  'Letter' from above relates to the disc drawing below

Brand AP Racing
Option SKU Barcode
Default Title AP5040-304-28-SGA

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.

Race and Rally are the official AP Racing Distributor for Northern Ireland
