AP 15" Front Brake Kit - CP9440 Caliper - Ø304x28mm Discs - 'J' Hook Face Design

AP 15" Front Brake Kit - CP9440 Caliper - Ø304x28mm Discs - 'J' Hook Face Design

AP9440-304-28-SGA

€2533.32 €3115.98
Sale Sold out
  • Feature Icon 15" BRAKE KIT
  • Feature Icon CP9440 Pro 5000 R CALIPERS
  • Feature Icon Ø304MM - GA | 'J' HOOK FACE DESIGN BRAKE DISCS
  • Feature Icon SUITED FOR Bilstein SUSPENSION SETUP
  • Feature Icon COMPLETE KIT

View full details

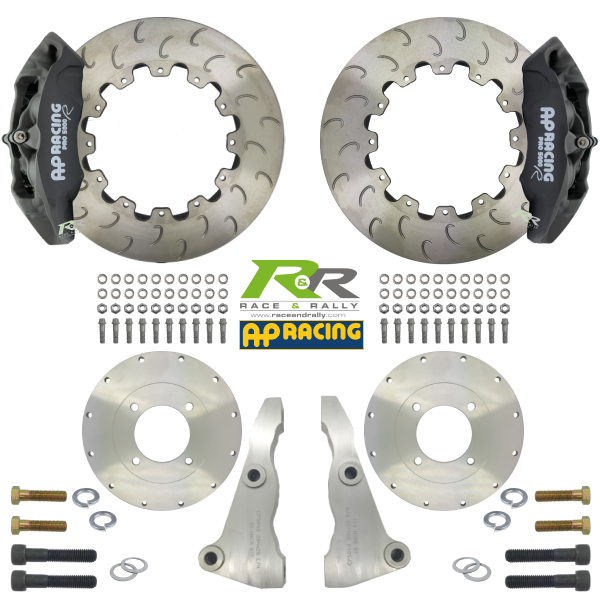

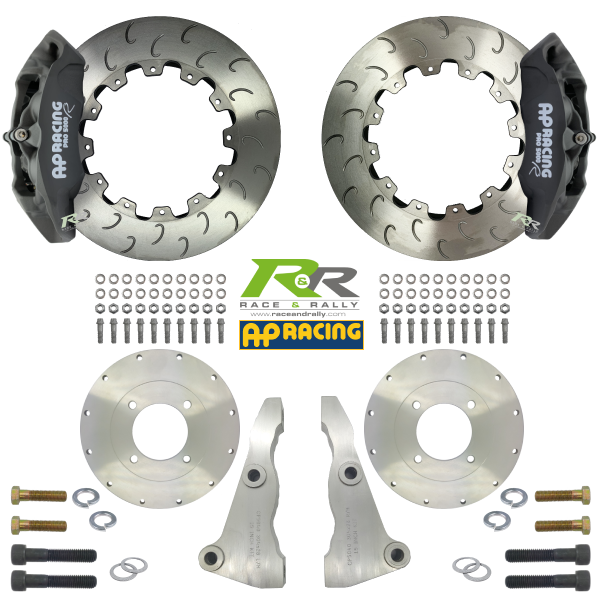

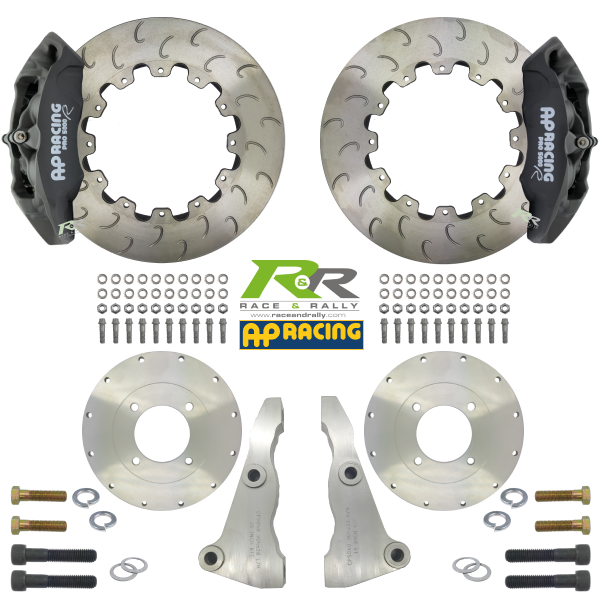

Ford Escort MK1 and MK2 modern spec 15" brake kit. Kit is complete with AP CP9440 4-pot Calipers, Ø304 x 28mm brake discs and all required hardware for mounting to Escort Bilstein Struts.

KIT CONTENTS

  • 2x AP Radial Mounted 4 Pot Caliper

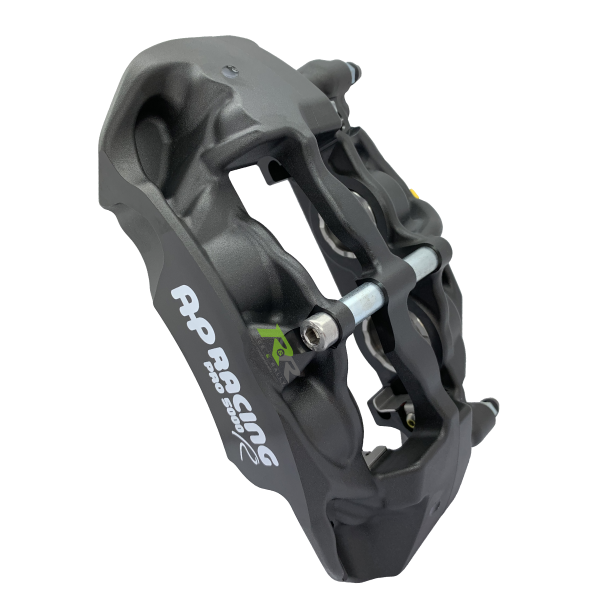

    • CP9440-2S4L - Right hand

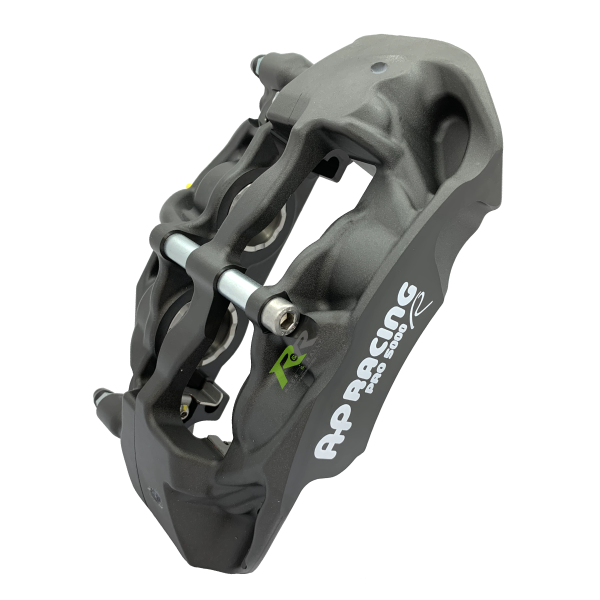

    • CP9440-3S4L - Left hand
  • 1x Pair of caliper mounting brackets machined from Aluminium to suit the selected setup
    • RCR504030428
  • 8x Caliper mounting bolts & washers
  • 2x AP Racing brake discs - Ø304x28mm
    • Standard: 48 Vanes (5.20 Kg)

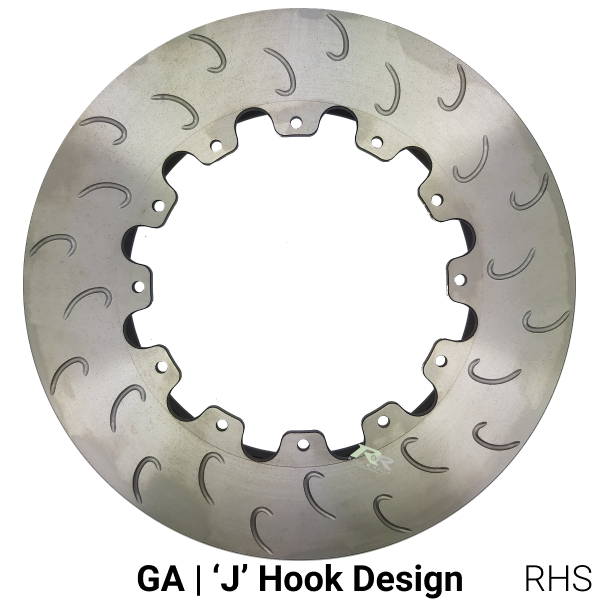

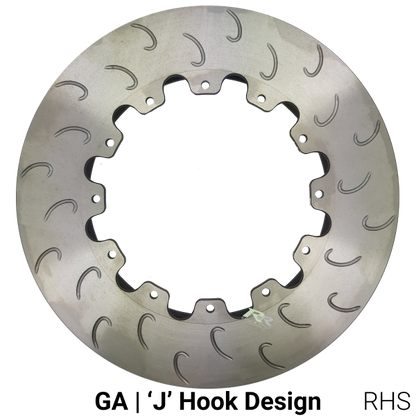

      • CP3580-2572GA - Right hand ventilated brake disc - GA | 'J' Hook Face Design

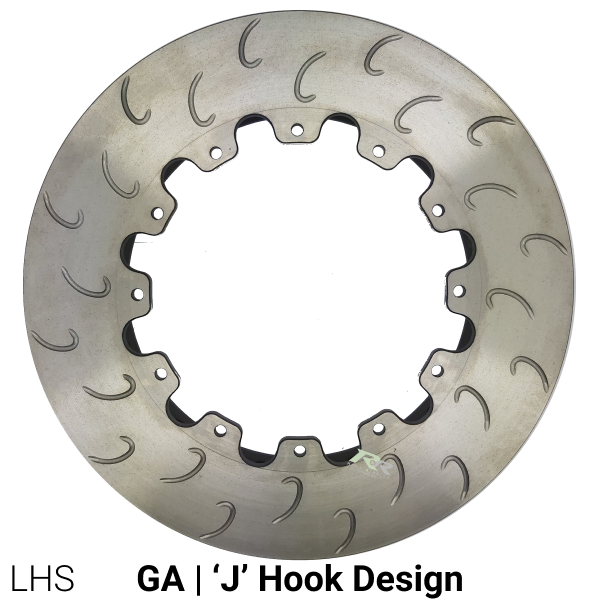

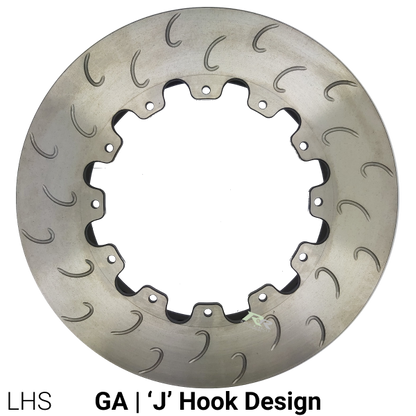

      • CP3580-2573GA - Left hand ventilated brake disc - GA | J' Hook Face Design
    • Lightweight: 54 Vanes (4.60 Kg)

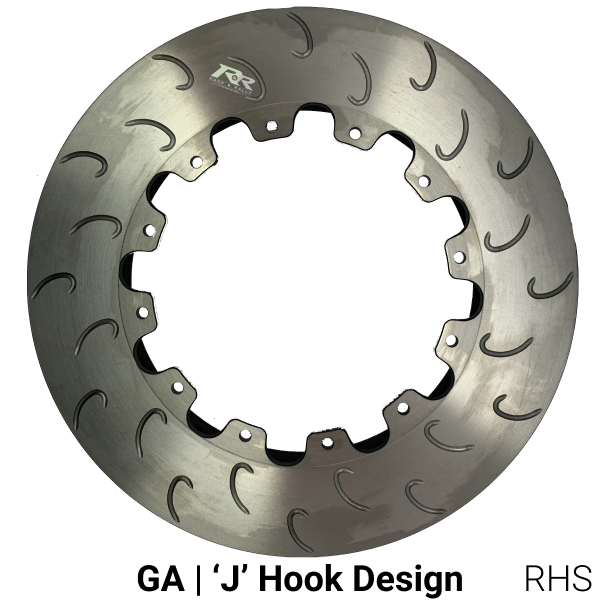

      • CP5254-106GA - Right hand ventilated brake disc - GA | 'J' Hook Face Design

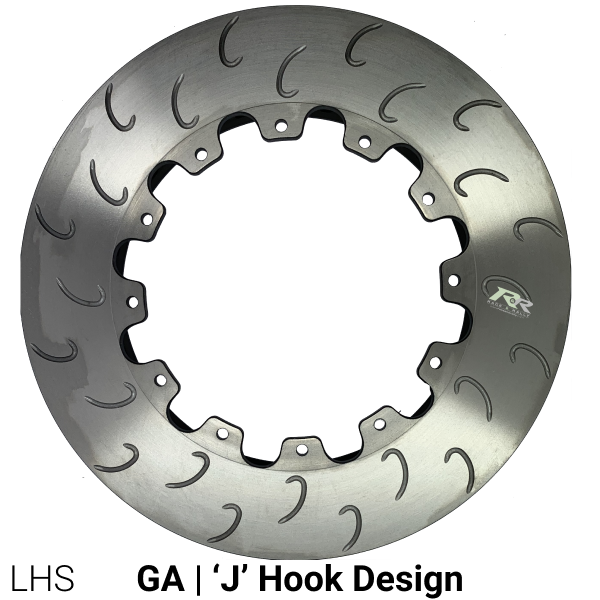

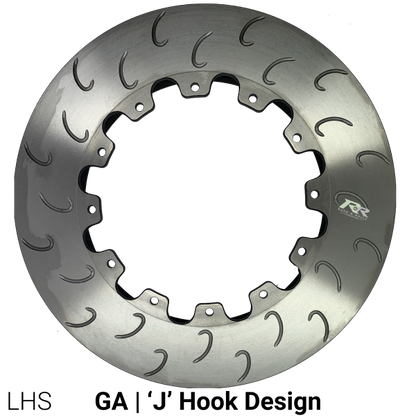

      • CP5254-107GA - Left hand ventilated brake disc - GA | J' Hook Face Design
  • 2x CNC Machined aluminum brake disc mounting bells
    • RBR30412B177
  • 2x Brake disc bell mounting kit
    • CP3845-101K12

CP9440 4-POT CALIPERPRO 5000 R

Piston Sizes

2x Ø36.0mm
2x Ø41.3mm

Piston Area

47.12cm²

Weight - No Pads

2.16kg

Hydraulic Threads

M10 x 1.0

Mounting Type

Radial
152mm Mounting Centres
44.10mm Mounting Offset
Ø12.20/12.10mm Mounting Hole

'PL' Dimension

57.8mm

Brake Pad Family

AP - CP3215D50
Ferodo - FRP216
CL Brakes - 5004W50T17
PFC - 7767

Ø304 X 28.0MM VENTILATED BRAKE DISC

'A' Outside Diameter

304mm

'B' Thickness

28mm

'M' P.C.D.

177.8mm

Fixing Type: Bolted

12 Bolts
Ø6.40mm Mounting Hole

'C' Eye Diameter

203.20mm

'D' Inside Flange Diameter

48 Vanes: 164.0mm
54 Vanes: 161.0mm

'H' Mounting Flange Thickness

5.60mm

Max Pad Depth

48 Vanes: D48
54 Vanes: D50

Number of Vanes

48
54

Air Gap

48 Vanes: 14.0mm
54 Vanes: 16.0mm

Weight

48 Vanes: 5.20 kg [per disc]
54 Vanes: 4.20 kg [per disc]

Face Types Available

GA | 'J' Hook Face Design
**  'Letter' from above relates to the disc drawing below

Brand:

AP Racing

Manufacturer Part Number:

AP9440-304-28-SGA
