AP 13" Front Brake Kit - CP4567 Caliper - Ø267x21mm Brake Disc

AP 13" Front Brake Kit - CP4567 Caliper - Ø267x21mm Brake Disc

AP4567-267-21-G4

€1740.08 €2140.30
Sale Sold out
  • Feature Icon 13" BRAKE KIT
  • Feature Icon CP4567 CALIPERS
  • Feature Icon Ø267 X 21MM BRAKE DISCS
  • Feature Icon G4 OR GA FACE DESIGN BRAKE DISCS AVAILABLE
  • Feature Icon COMPLETE KIT
Brake Disc Face Type
View full details

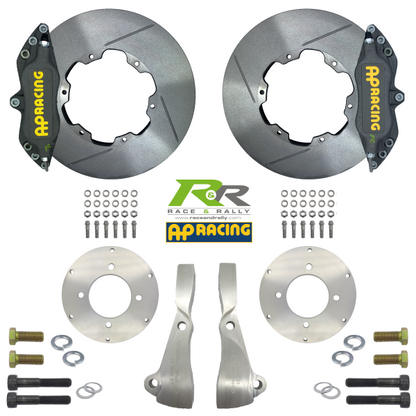

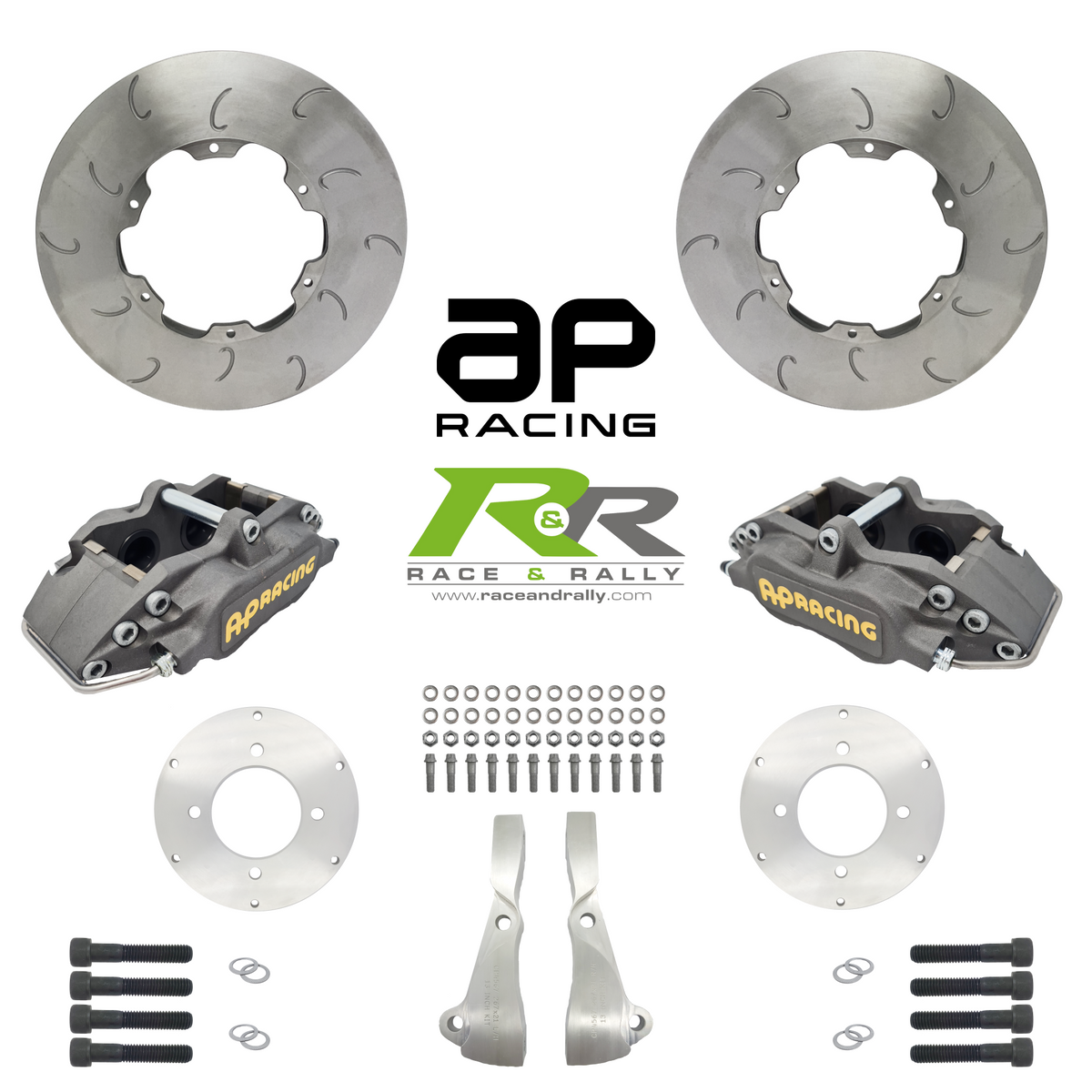

Ford Escort MK1 and MK2 modern spec 13" brake kit. The kit is complete with AP CP4567 4-pot Calipers, Ø267 x 21mm brake discs, and all required hardware for mounting to Escort Bilstein Struts.

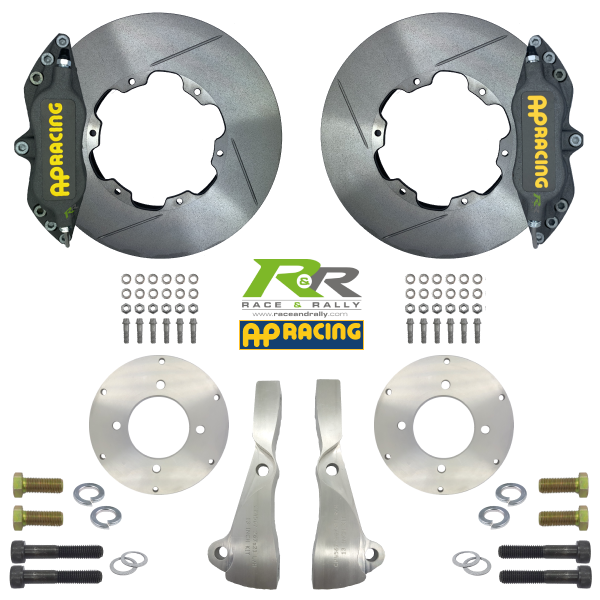

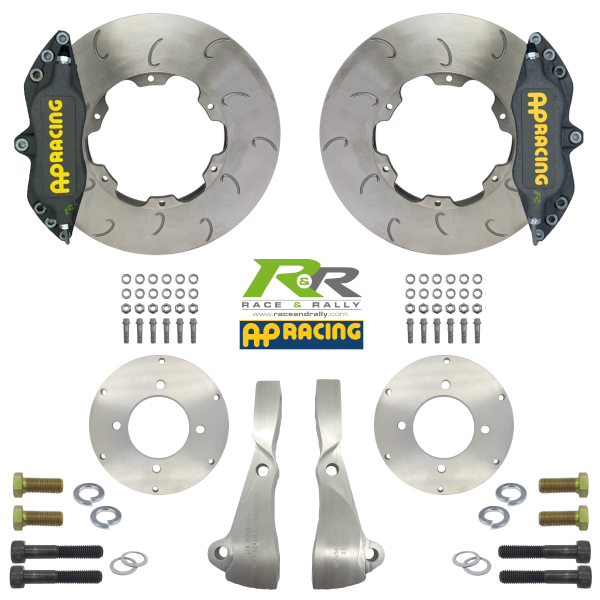

KIT CONTENTS

  • 2x AP Radial Mounted 4 Pot Caliper

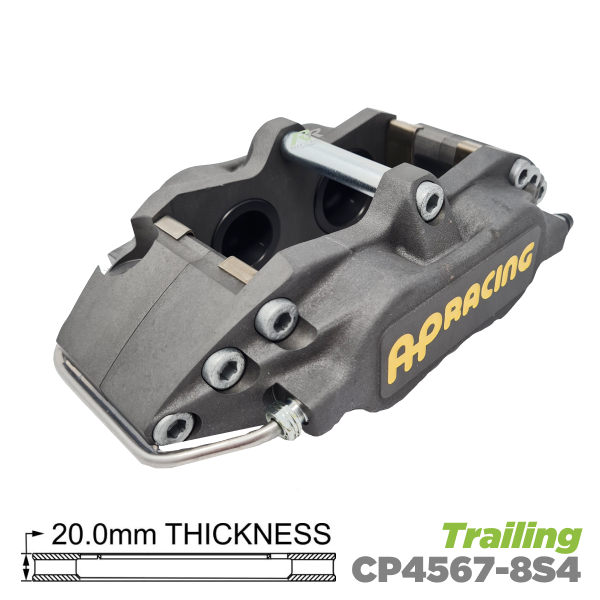

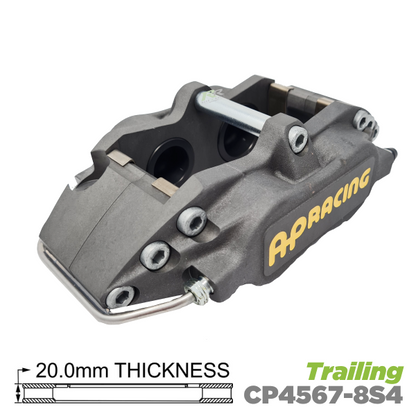

    • CP4567-8S4 - Right-hand Trailing

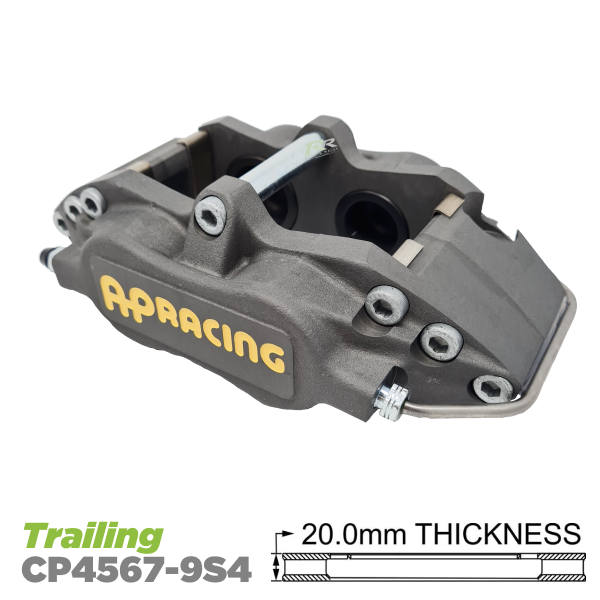

    • CP4567-9S4 - Left hand Trailing

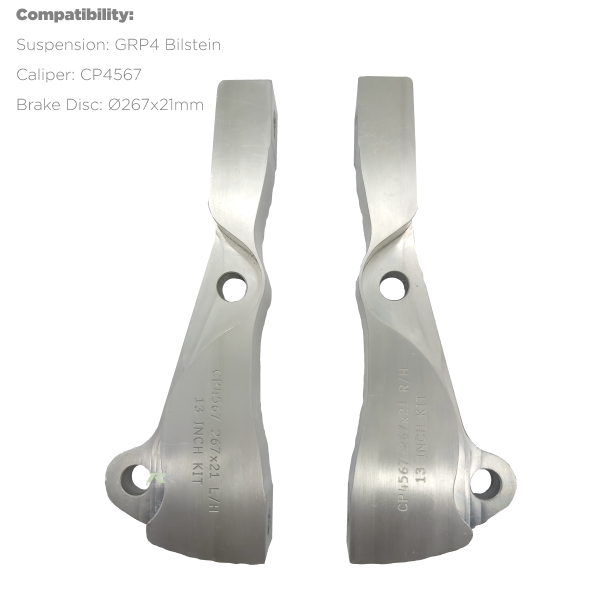

  • 1x Pair of caliper mounting brackets machined from Aluminium
    • RCR456726721
  • 8x Caliper mounting bolts & washers
  • 2x AP Racing brake discs - Ø267x21.0mm

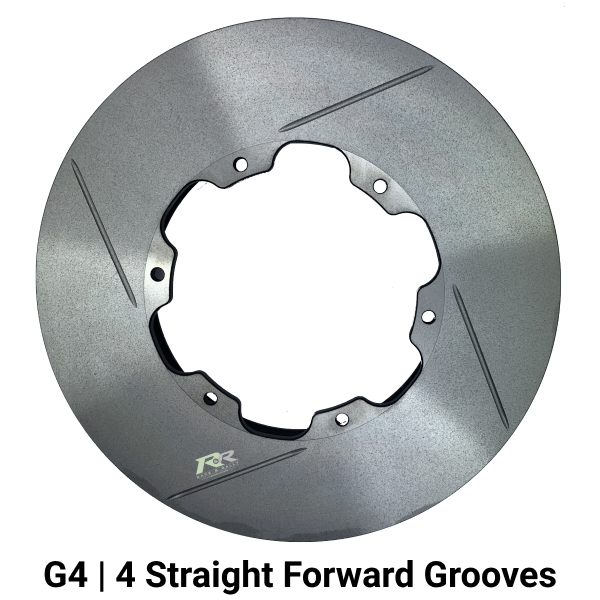

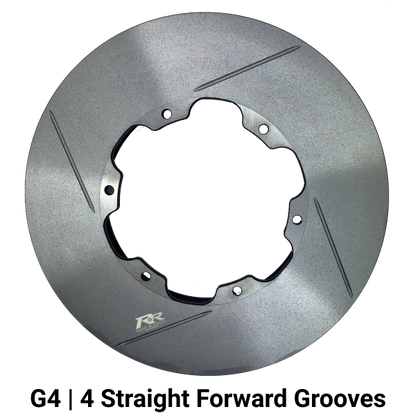

    • G4 | 4 Forward-facing grooves face

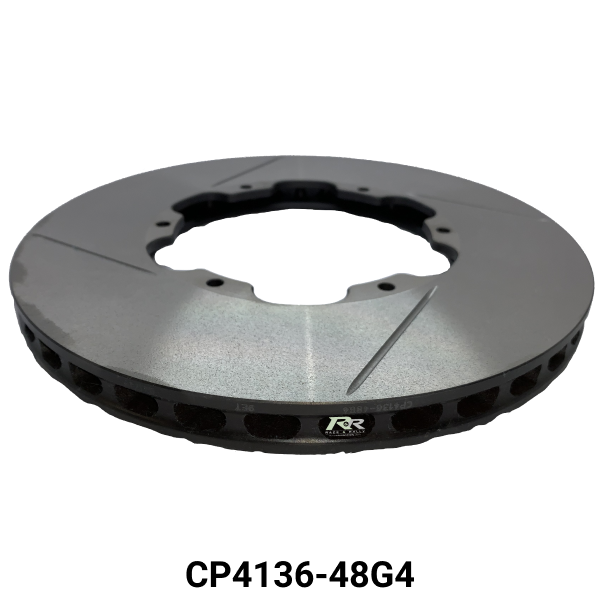

      • CP4136-48 - Non-sided ventilated brake disc

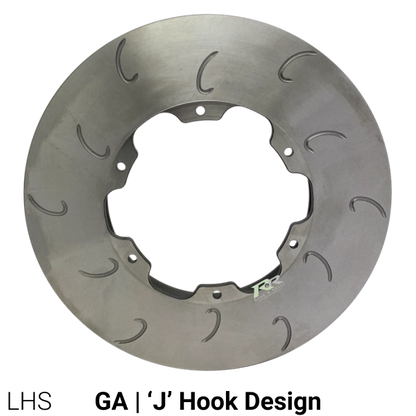

    • GA | 'J' Hook Face Design

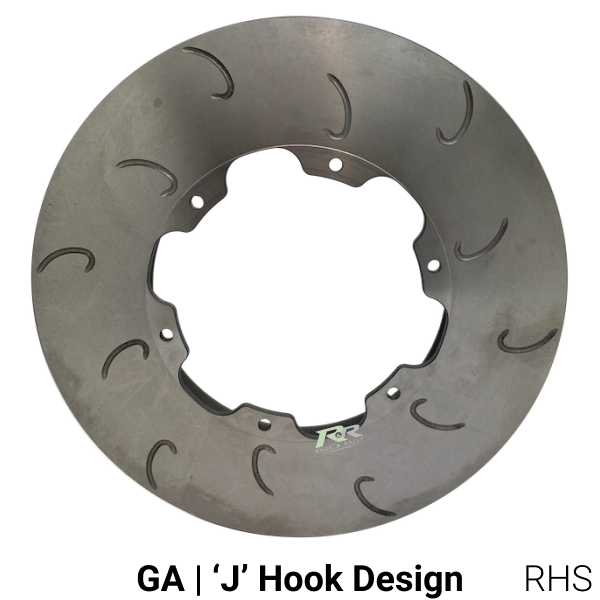

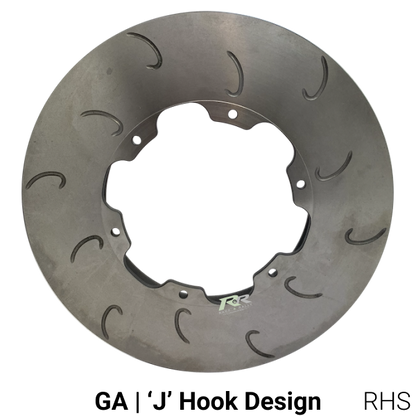

      • CP3947-48GA - Right-hand ventilated brake disc

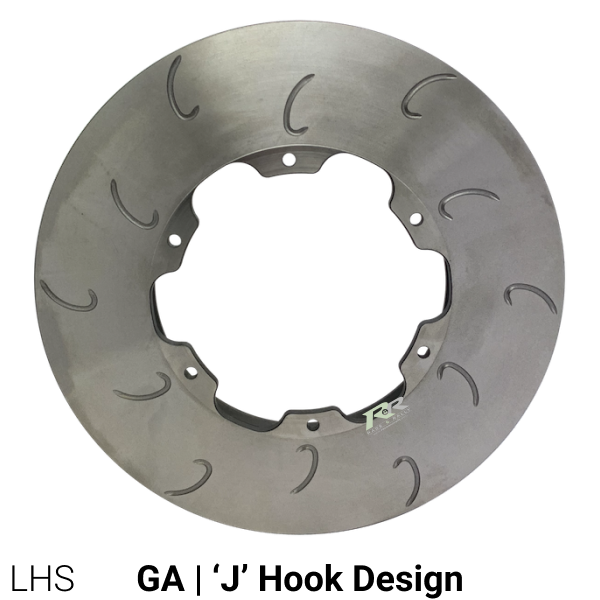

      • CP3947-49GA - Left-hand ventilated brake disc

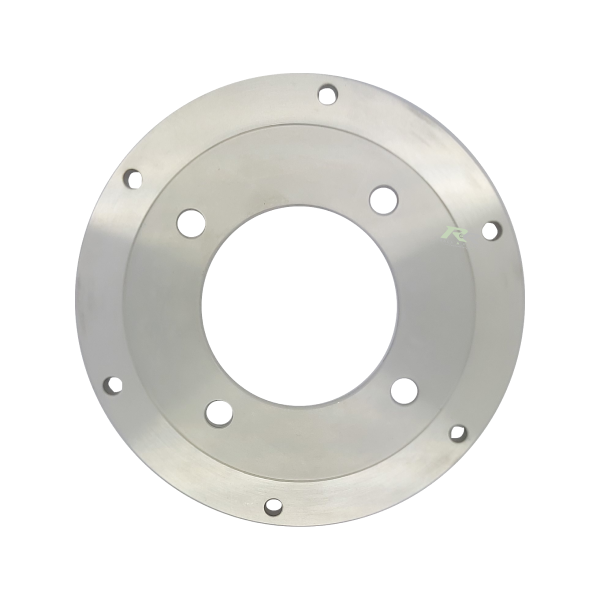

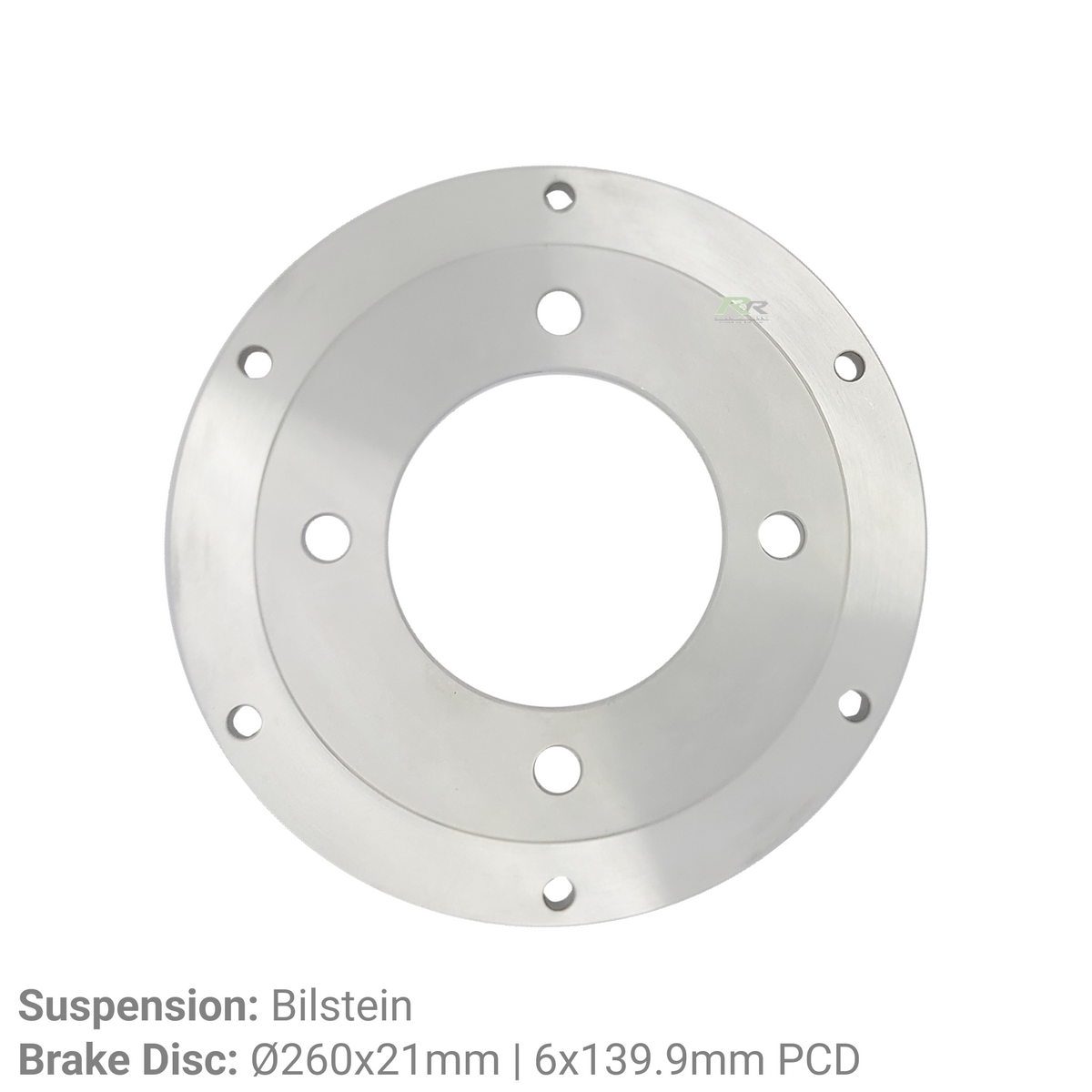

  • 2x CNC Machined aluminum brake disc mounting bells
    • RBR26006B139
  • 1x Brake disc bell mounting kits
    • CP3845-101K12

CP4567 4-POT CALIPER

Piston Sizes

2x Ø34.9mm
2x Ø41.3mm

Piston Area

45.92cm²

Weight - No Pads

1.6kg

Hydraulic Threads

M10 x 1.0

Mounting Type

Radial
152mm Mounting Centres
27.30mm Mounting Offset
Ø10.20mm Mounting Hole

'PL' Dimension

50.5mm

Brake Pad Family

AP - CP3345D44
Ferodo - FRP219
PFC - 7745

Ø267 X 21.0MM VENTILATED BRAKE DISC

'A' Outside Diameter

267mm

'B' Thickness

21.00mm

'M' P.C.D.

139.70mm

Fixing Type: Bolted

6 Bolts
Ø6.40mm Mounting Hole

'C' Eye Diameter

155.0mm

'D' Inside Flange Diameter

125.77mm

'H' Mounting Flange Thickness

5.40mm

Max Pad Depth

G4 | 4 Forward Facing Straight Grooves

D51

GA | 'J' Hook Face Design
D54

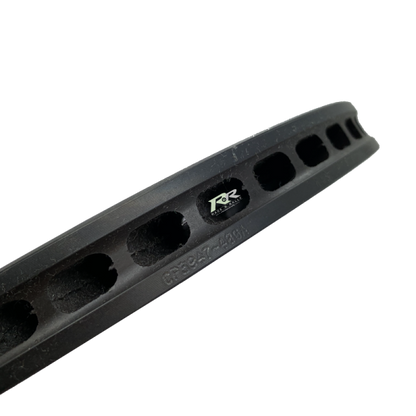

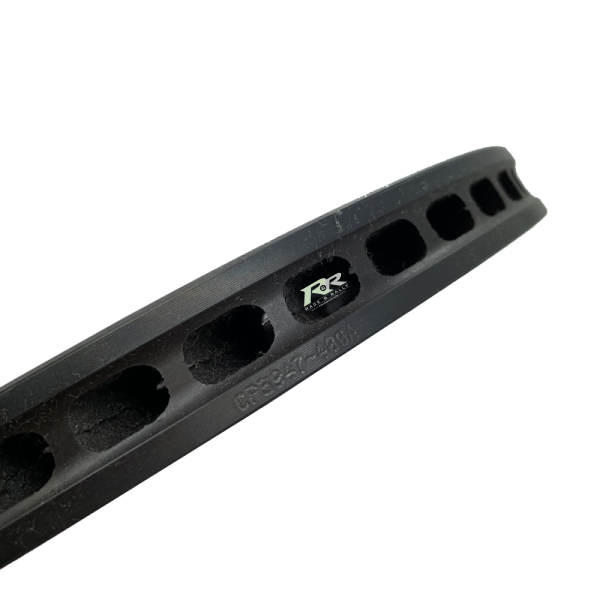

Number of Vanes

G4 | 4 Forward Facing Straight Grooves

48

GA | 'J' Hook Face Design

36
Air Gap

G4 | 4 Forward Facing Straight Grooves
9.3mm
GA | 'J' Hook Face Design
8.0mm

Face Types Available

G4 | 4 Straight Forward Facing Grooves
GA | 'J' Hook Face Design
**  'Letter' from above relates to the disc drawing below

Brand AP Racing
Option SKU Barcode
G4 | 4 Straight Forward Grooves AP4567-267-21-G4
GA | 'J' Hook Design AP4567-267-21-GA
