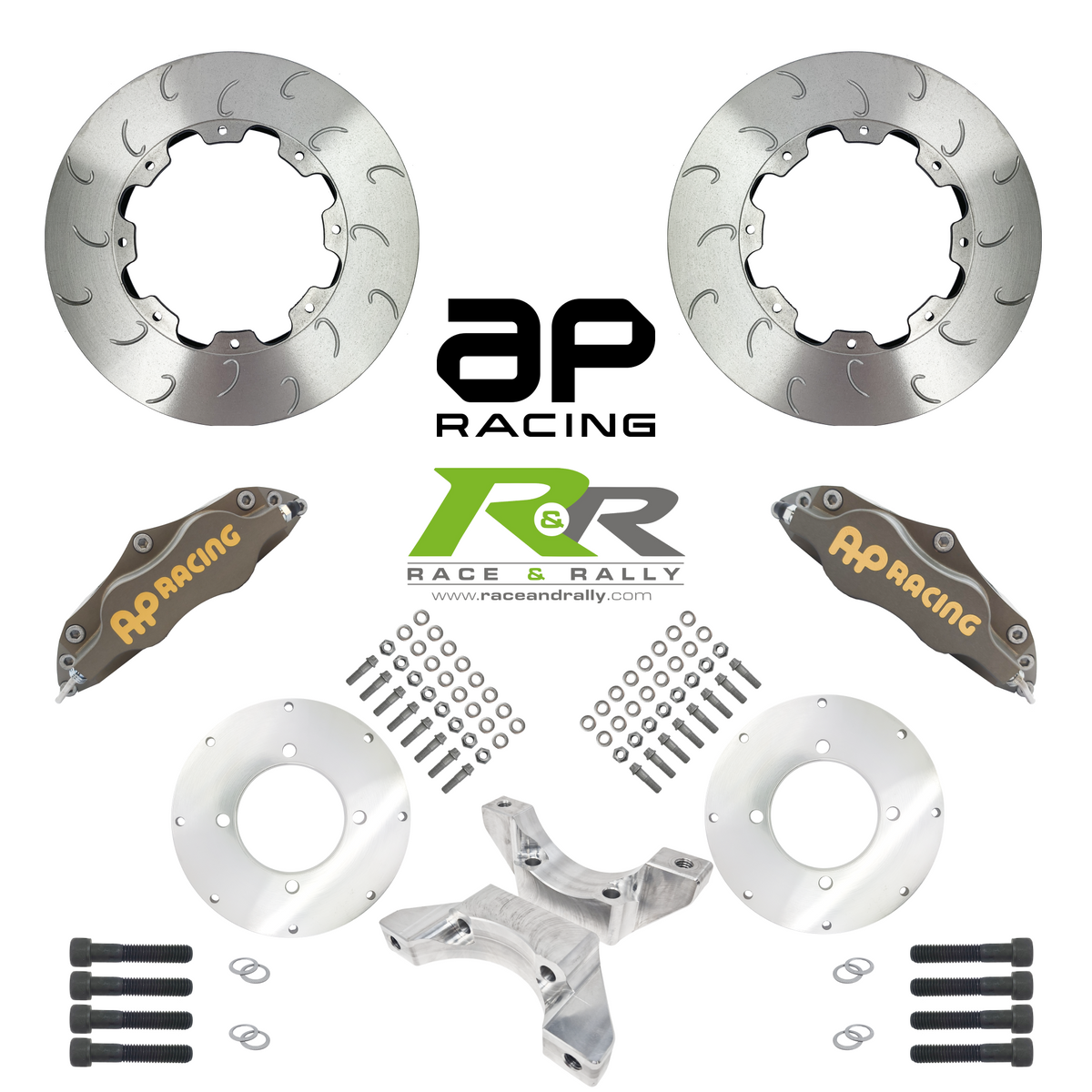

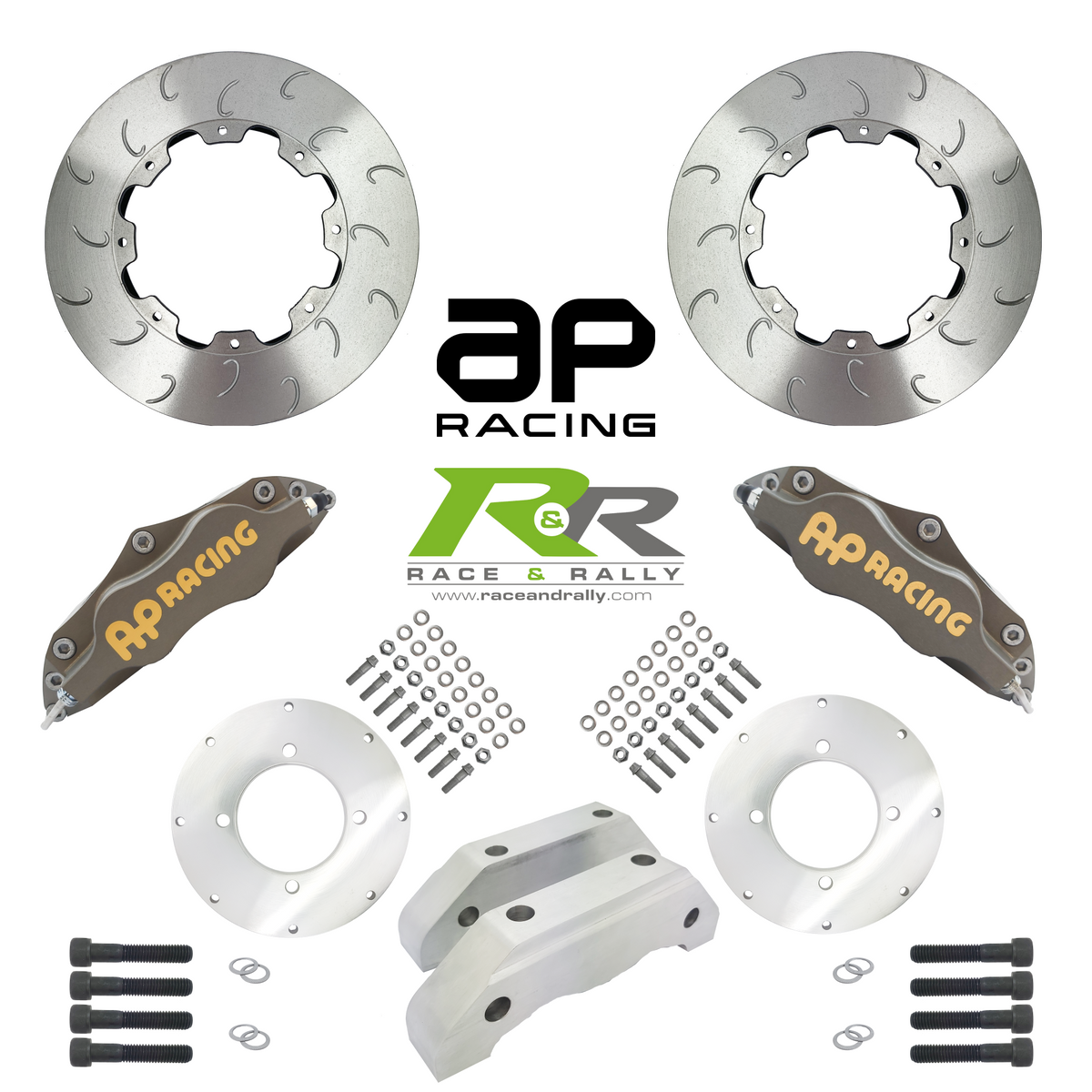

Image coming soon for AP 13" ULTIMATE Front Modular Brake Kit - CP5219 Caliper - Ø277x25mm Discs

AP 13" ULTIMATE Front Modular Brake Kit - CP5219 Caliper - Ø277x25mm Discs

AP 13" ULTIMATE Front Modular Brake Kit - CP5219 Caliper - Ø277x25mm Discs

APM5219-277-25-GA-RIX

€3153.00 €3878.19
Sale Sold out
  • Feature Icon 13" Ultimate Brake Kit
  • Feature Icon CP5219 Calipers
  • Feature Icon Ø277mm x 25mm Brake Disc
  • Feature Icon Modular Front Suspension Setup
  • Feature Icon Brake Pads Sold Separetely
Strut Type

Out of stock, contact for leadtime

View full details

Ford Escort MK1 and MK2 and Toyota Starlet ULTIMATE modern spec 13" brake kit. The kit is complete with AP Racing CP5219 4-pot billet Calipers, Ø277 x 25mm AP Racing brake discs and all required hardware for mounting to Ford Escort / Toyota Starelt Modualr RIX Engineering or GRP4 Fabrications Struts.

Note: CP5219 Caliper may not fit under ALL 13" Wheels

Applications:

  • 13" Wheels
  • CP5219 works with a 15" Brake Pad
  • Ford Modualr Strut - RIX Engineering or GRP4 Fabrications
  • Ford Escort MKI
  • Ford Escort MKII
  • Toyota Starlet

Kit Contents:

 Description

Specifications

Part Number

QTY
Brake Caliper 4-Piston Billet Caliper CP5219-16S0
CP5219-17S0
 1
1
Brake Caliper Mounting Bracket (pair) RIX Modular
OR
GRP4 Fabrications
 RCMR-5219-277-25-RIX
OR
RCMR-5219-277-25-GRP4 		1

1
Brake Disc 'J' Hooked - RHS
'J' Hooked - LHS		 CP4448-410GA
CP4448-411GA 		1
1
Brake Disc Bell RIX Modular
OR
GRP4 Fabrications 		RBMR-277-08B-158-RIX
OR
RBMR-277-08B-158-GRP4 		2

2
Brake Disc Bolt Mounting Kit Pack of 08 CP3845-100K08 2
Caliper Mounting Bolts M10 x 1.50 - 60mm
M12 x 1.75 - 65mm		 RNR1030-M1060
RNR1030-M1265		 4
4
Caliper Mounting Washers M10 Schnorr Washer
M12 Schnorr Washer		 RNR1016-M10
RNR1016-M12		 4
4



Brake Pads (sold separetely)

42mm Pad Depth

Pad Shape CP3215D42
CP3215D42 Brake Pad Set - APF403 Compound - Race and Rally
Pad Area 51.7cm²
Pad Depth 42.0mm
Thickness 16.8mm



50mm Pad Depth

Pad Shape CP3215D50
CP3215D50 Brake Pad Set - (R) DS3000 Compound - Race and Rally
Pad Area 57.4cm²
Pad Depth 50.3mm
Thickness 16.8mm



Applications:


Make Model Year
Ford Escort
Brand AP Racing
Option SKU Barcode
Rix Modular Suspension APM5219-277-25-GA-RIX
GRP4 Modular Suspension APM5219-277-25-GA-GRP4


AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.

Race and Rally are the official AP Racing Distributor for Northern Ireland
