AP 15"/16" Nissan Sunny/Pulsar GTiR Front Brake Kit

AP 15"/16" Nissan Sunny/Pulsar GTiR Front Brake Kit

SKU:AP9440-304-SUNNY

Regular price €2837.90 €3490.62
Sale Sold out
  • Feature Icon Nissan Sunny/Pulsar GTiR
  • Feature Icon FRONT BRAKE KIT
  • Feature Icon SUITED FOR 15/16" WHEELS
  • Feature Icon R&R DESIGNED
  • Feature Icon AP RACING DISCS AND CALIPERS

View full details

Race and Rally designed AP Racing front brake upgrade kit for Nissan Sunny/Pulsar running 15" or 16" wheels. The kit is complete with 4-pot AP Calipers, Ø304 x 28mm brake discs and all required hardware for mounting to Nissan Hub.

This kit will also suit a Nissan Micra K11 on 15" Wheels!

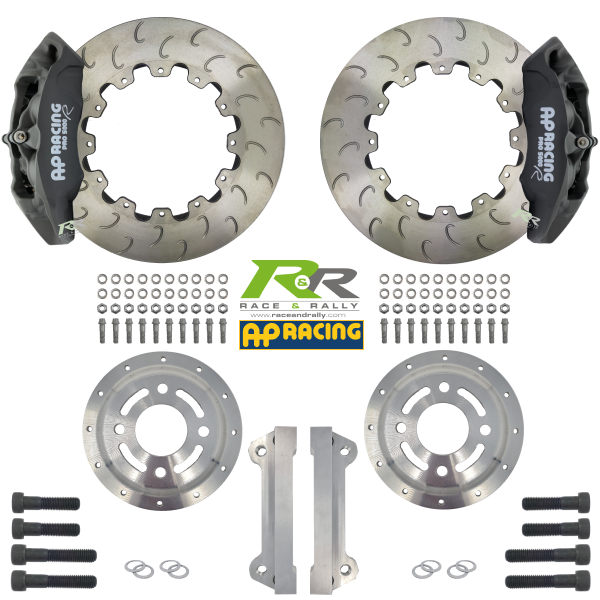

KIT CONTENTS

  • 2x AP Radial Mounted 4 Pot Caliper
    • CP9440-2S4L - Right hand Trailing

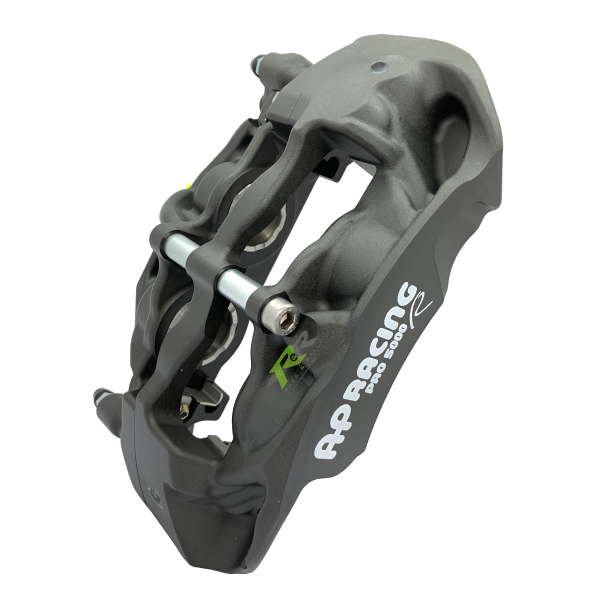

    • CP9440-3S4L - Left hand Trailing
  • 1x Pair of caliper mounting brackets machined from Aluminium
    • RCR944030428-SUNNY
  • 8x Caliper mounting bolts
    • 4x RNR1030-M1260-F - Caliper to mounting bracket
    • 4x RNR1030-M1230-F - Mounting bracket to hub
    • 8x RNR1016-M12 - Schnorr washers
  • 2x AP Racing brake discs - Ø304x28.0mm

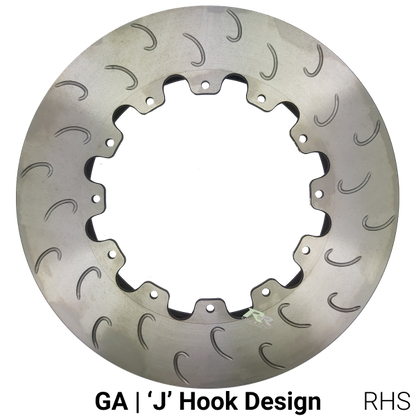

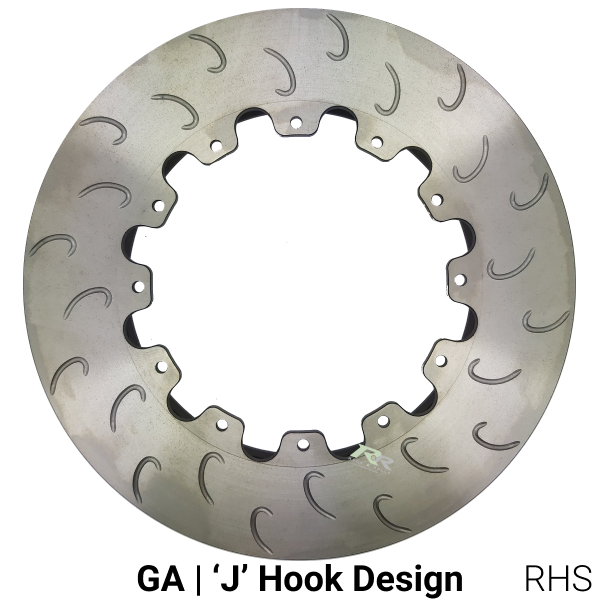

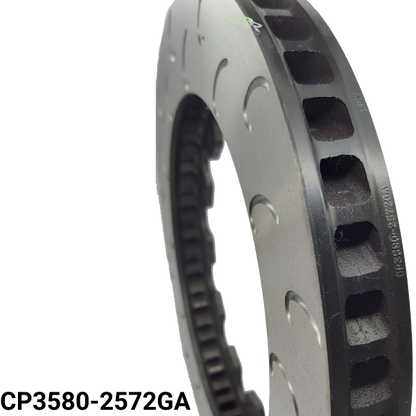

    • CP3580-2572GA - Right hand ventilated brake disc - GA | 'J' Hook Face Design

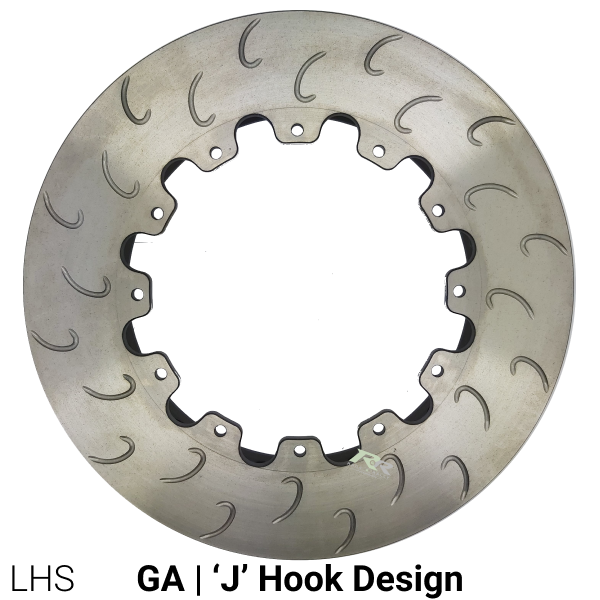

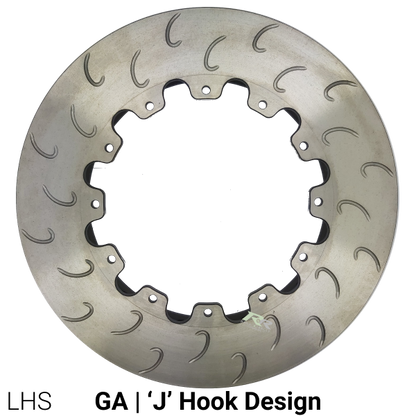

    • CP3580-2573GA - Left hand ventilated brake disc - GA | J' Hook Face Design
  • 2x CNC Machined aluminum brake disc mounting bells
    • RBR30412B177-SUNNY
  • 2x Brake disc bell mounting kits
    • CP3845-101K12

CP9440 4-POT CALIPER

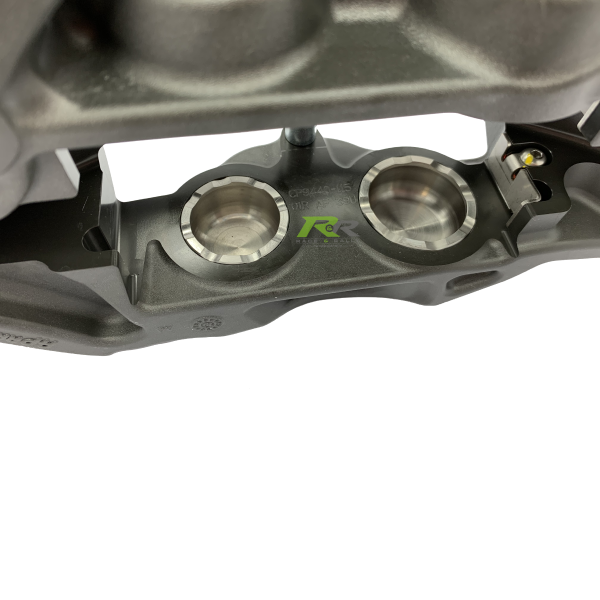

Piston Sizes

2x Ø36.0mm
2x Ø41.3mm

Piston Area

47.12cm²

Weight - No Pads

2.16kg

Hydraulic Threads

M10 x 1.0

Mounting Type

Radial
152mm Mounting Centres
44.0mm Mounting Offset
Ø12.5mm Mounting Hole

'PL' Dimension

57.8mm

Brake Pad Family

AP - CP3215D50
Ferodo - FRP216
PFC - 7767

Ø304 X 28.0MM VENTILATED BRAKE DISC

'A' Outside Diameter

304mm

'B' Thickness

28.0mm

'M' P.C.D.

177.8mm

Fixing Type: Bolted

12 Bolts
Ø6.40mm Mounting Hole

'C' Eye Diameter

203.2mm

'D' Inside Flange Diameter

164.00mm

'H' Mounting Flange Thickness

5.6mm

Max Pad Depth

D48

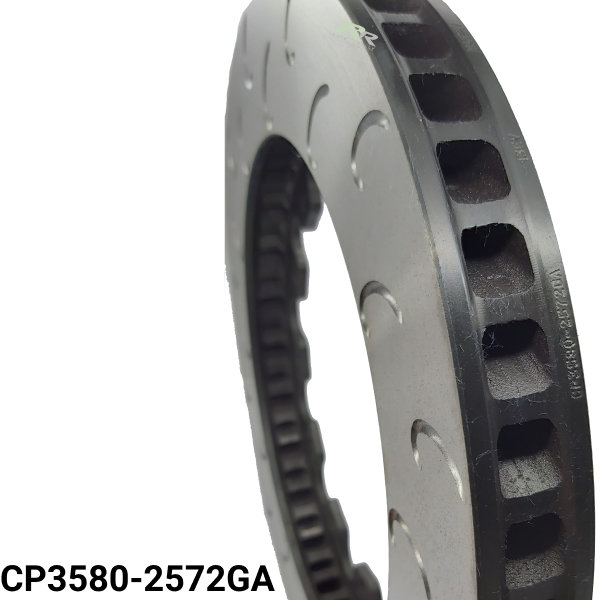

Number of Vanes

48

Air Gap

14.0mm

Weight

5.20kg [per disc]

Face Types Available

GA | 'J' Hook Face Design
**  'Letter' from above relates to disc drawing below

Brand:

AP Racing

Manufacturer Part Number:

AP9440-304-SUNNY
