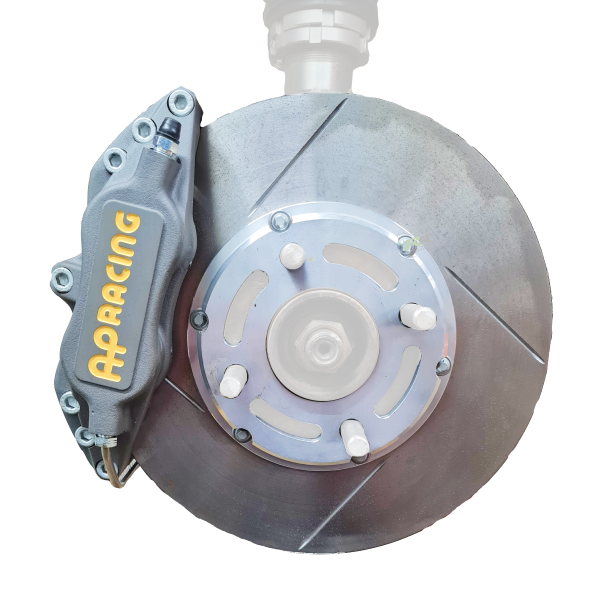

Race and Rally designed AP Racing front brake kit for Nissan Micra K11 running 14" or 15" wheels. Kit is complete with 4-pot AP Calipers, Ø267 x 21mm brake discs and all required hardware for mounting to Micra Hubs.
Spacers are required to suit 13" wheels.

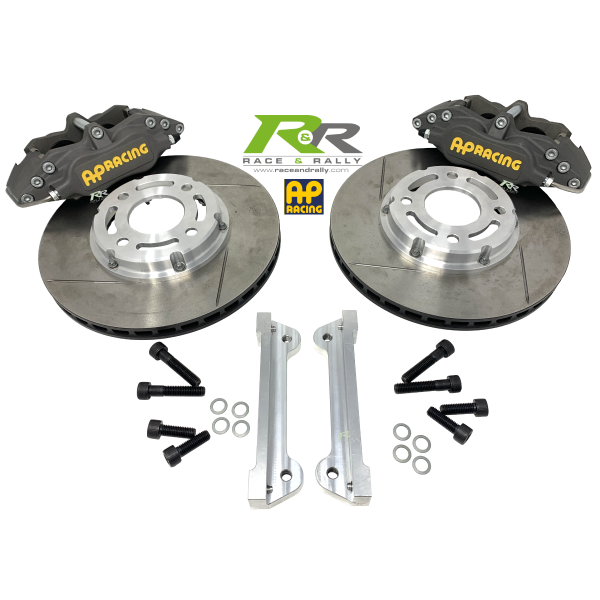

KIT CONTENTS
- 2x AP Radial Mounted 4 Pot Caliper
- CP4567-10S4 - Right hand Leading
- CP4567-11S4 - Left hand Leading
- 2x Caliper mounting brackets machined from Aluminium
- RCR456726721-MICRA
- 8x Caliper mounting bolts
- 4x RNR1020 - Caliper to mounting bracket
- 4x RNR1019 - Mounting bracket to strut
- 4x RNR1016 - Schnorr washers

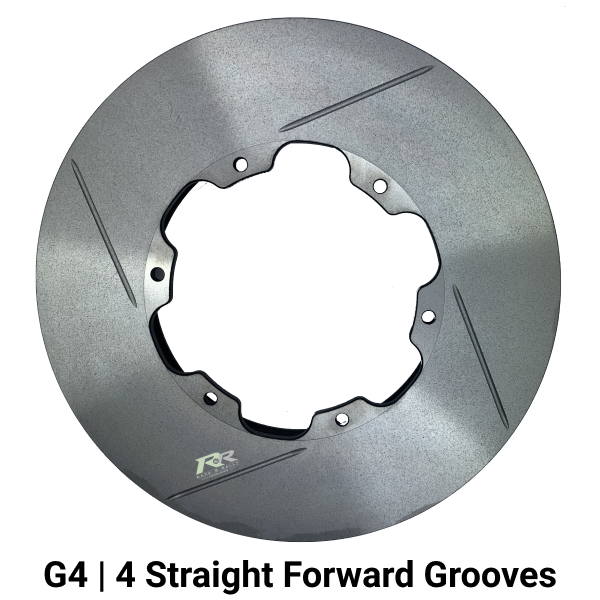

- 2x AP Racing brake discs - Ø267x21.0mm
- CP4136-48G4 - Non-handed ventilated brake disc - G4 | 4 Forward Facing Groove Face Design

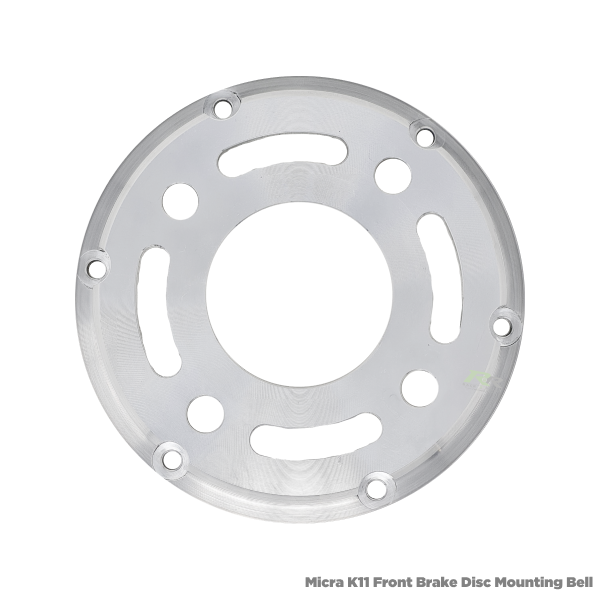

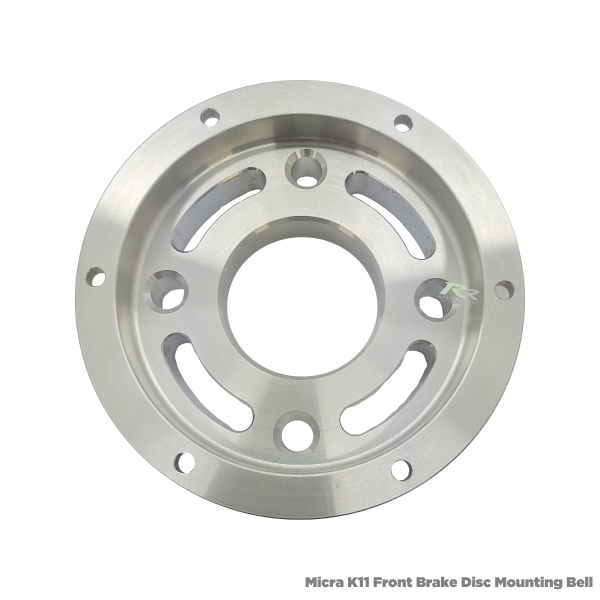

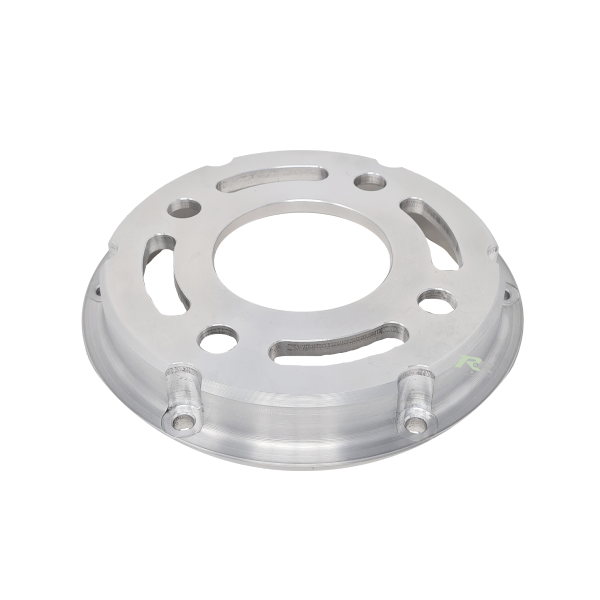

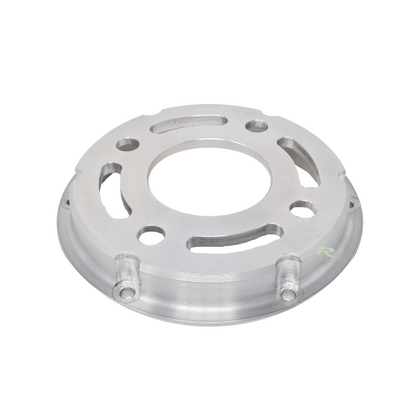

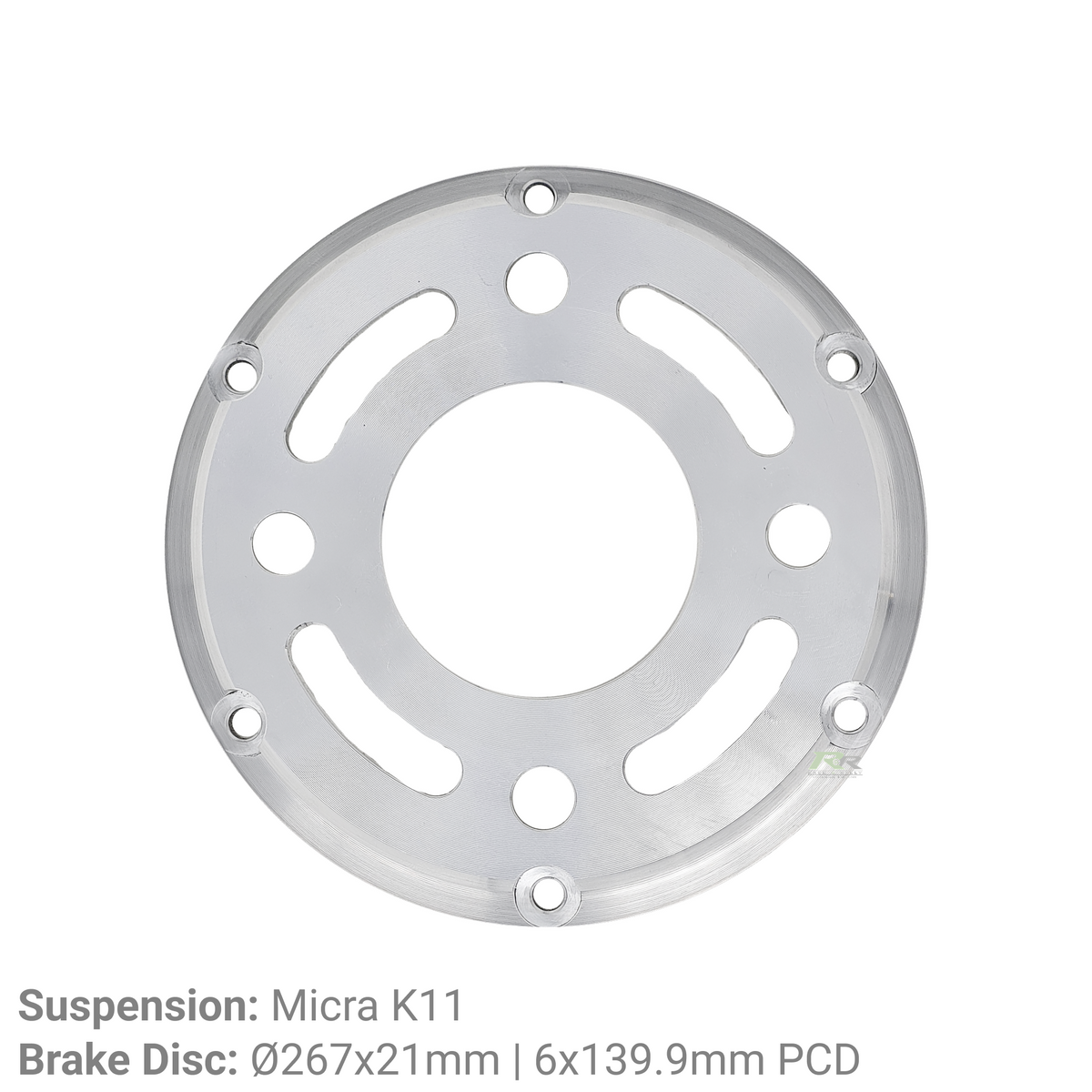

- 2x CNC Machined aluminium brake disc mounting bells
- RBR26706B139-MICRA
- 1x Brake disc bell mounting kits
- CP3845-101K12
CP4567 4-POT CALIPER
Piston Sizes
2x Ø34.9mm
2x Ø41.3mm
Piston Area
45.92cm²
Weight - No Pads
1.6kg
Hydraulic Threads
M10 x 1.0
Mounting Type
Radial
152mm Mounting Centres
27.30mm Mounting Offset
Ø10.20mm Mounting Hole
'PL' Dimension
50.5mm
Brake Pad Family
AP - CP3345D44
Ferodo - FRP219
PFC - 7745

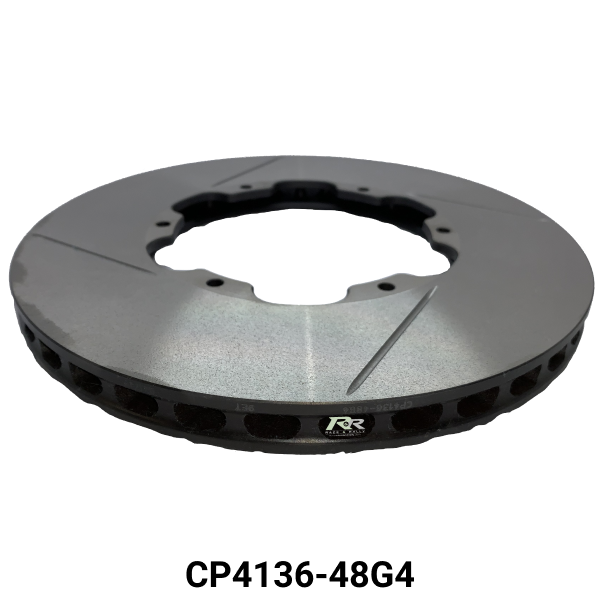

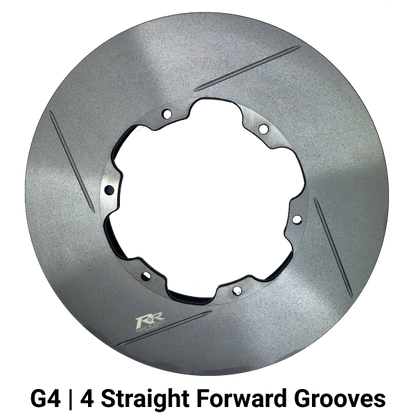

Ø267 X 21.0MM VENTILATED BRAKE DISC
'A' Outside Diameter
267mm
'B' Thickness
21.00mm
'M' P.C.D.
139.70mm
Fixing Type: Bolted
6 Bolts
Ø6.40mm Mounting Hole
'C' Eye Diameter
155.0mm
'D' Inside Flange Diameter
125.80mm
'H' Mounting Flange Thickness
5.60mm
Max Pad Depth
D54
Number of Vanes
36
Air Gap
9.3mm
Face Types Available
G4 | 4 Straight Forward Facing Grooves Face Design
** 'Letter' from above relates to disc drawing below
Brand:
AP Racing
Manufacturer Part Number:
AP4567-267-MICRA
