AP 13" Rear Brake Kit - CP7613 Caliper - Ø267x21mm Discs

AP 13" Rear Brake Kit - CP7613 Caliper - Ø267x21mm Discs

AP7613-267-21-G4

€1715.29 €2109.81
Sale Sold out
  • Feature Icon 13" Rear Brake Kit
  • Feature Icon CP7613 Caliper
  • Feature Icon Ø267mm x 21mm Brake Disc
  • Feature Icon Brake Pads Sold Separetely
Disc Face Type

Optional Extras

In stock
View full details

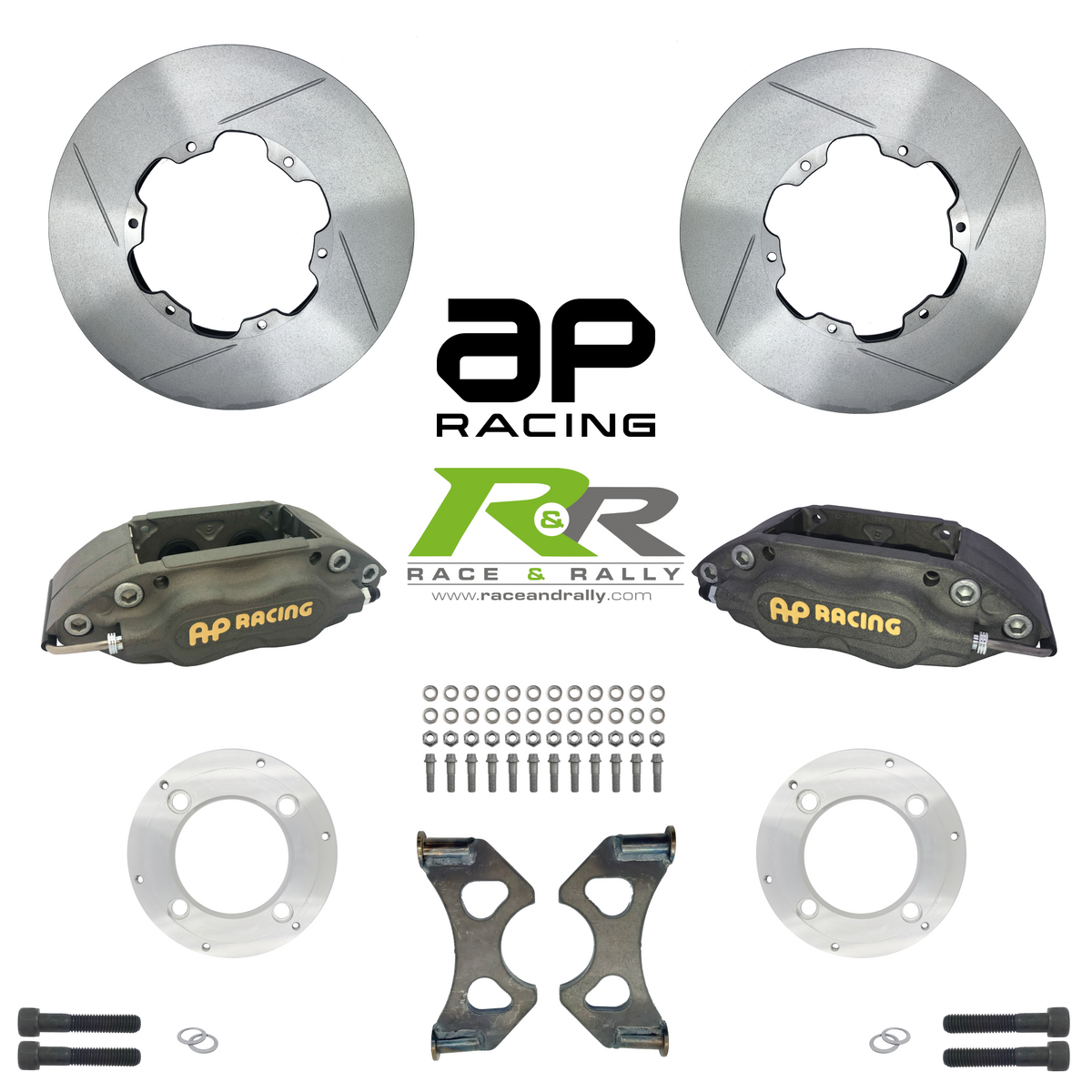

Ford Escort MK1 and MK2 modified 13" rear brake kit. The kit is complete with AP Racing CP7613 4-pot Calipers, Ø267 x 21.0mm AP Racing ventilated brake discs, and all required hardware for mounting to fully floating Atlas Axle.

Applications:

  • 13" Wheels
  • Fully floating Atlas Axle
  • Ford Escort MKI
  • Ford Escort MKII

Kit Contents:

 Description

Specifications

Part Number

QTY
Caliper 4-Pot Radial Caliper CP7613-6S0
CP7613-7S0 		1
1
Brake Caliper Mounting Bracket Weld-on RWR7613-260 1
Brake Disc Ø267x21mm CP4136-48G4 2
Brake Disc Mounting Bell Atlas Axle RBR-260-06F-139 2
Brake Disc Mounting Bolts Pack of 12 RR3845-099K12 1
Caliper Mounting Bolts M10 x 1.50 - 75mm
 RNR1030-M1075
 4
Caliper Mounting Washers M10 Schnorr Washer
 RNR1016-M10
 4



Brake Pads (sold separetely)

Pad Shape CP7600D46
CP7600D46 Brake Pad Set - APF404 Compound - Race and Rally
Pad Area 43.5cm²
Pad Depth 46.2mm
Thickness 16.0mm



Applications:


Make Model Year
Ford Escort
Toyota Starlet
Brand AP Racing
Option SKU Barcode
G4 - Grooved (Straight Forward) AP7613-267-21-G4


AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.
