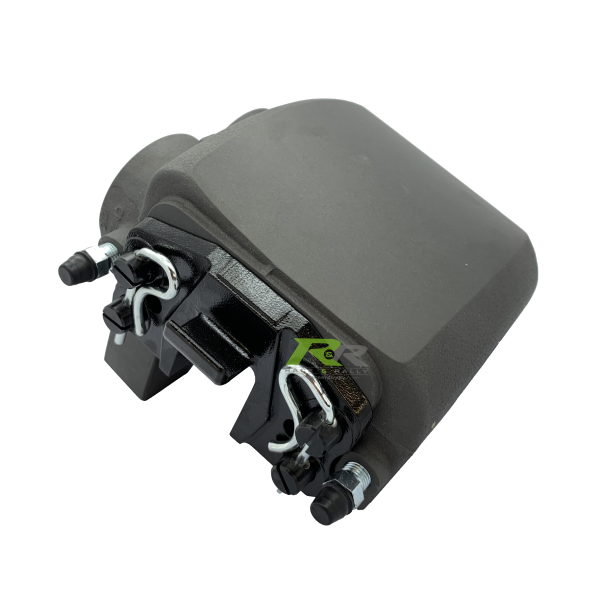

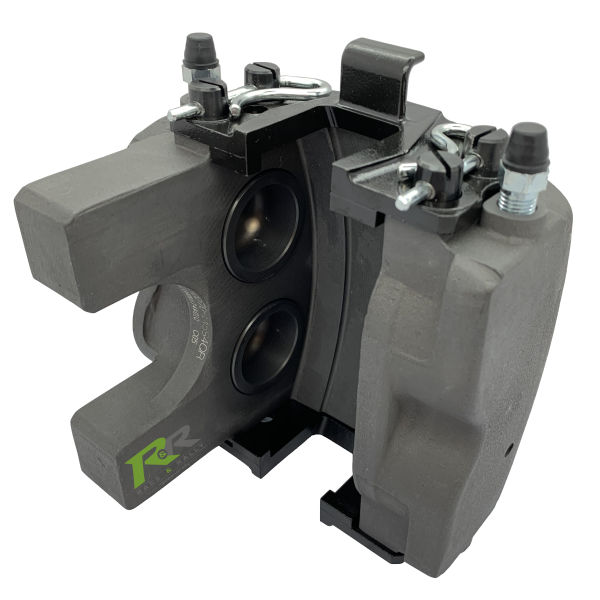

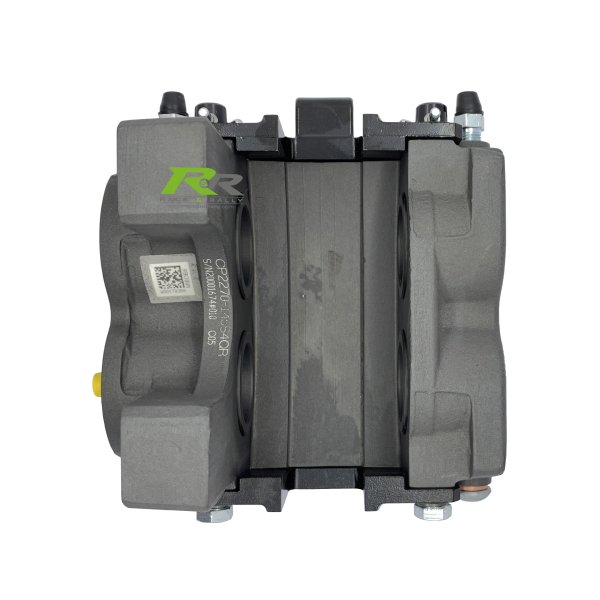

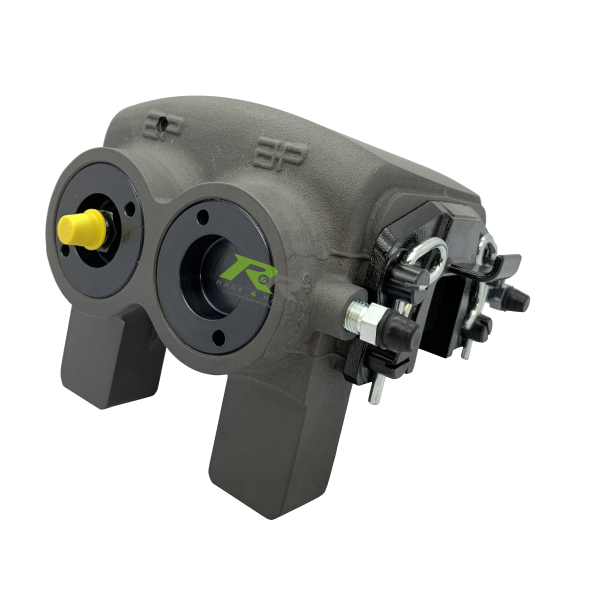

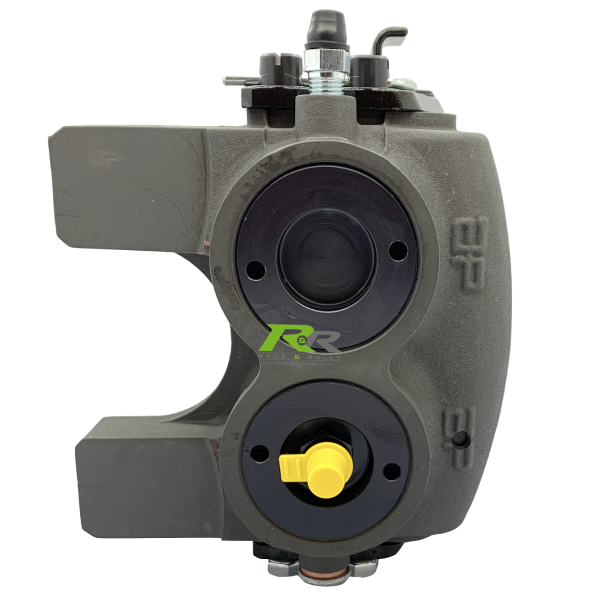

CP2270 - 4 Piston Closed Back Caliper

SKU:CP2270-144S4QR

€1071.21 €1317.59

Sale Sold out

Front Caliper suitable for 13" to 16" Wheels
Rally
Sports GT
Saloons

Piston Diameter Ø41.3mm x4

Caliper Hand Right Hand Left Hand

Quantity

Out of stock, contact for leadtime

View full details

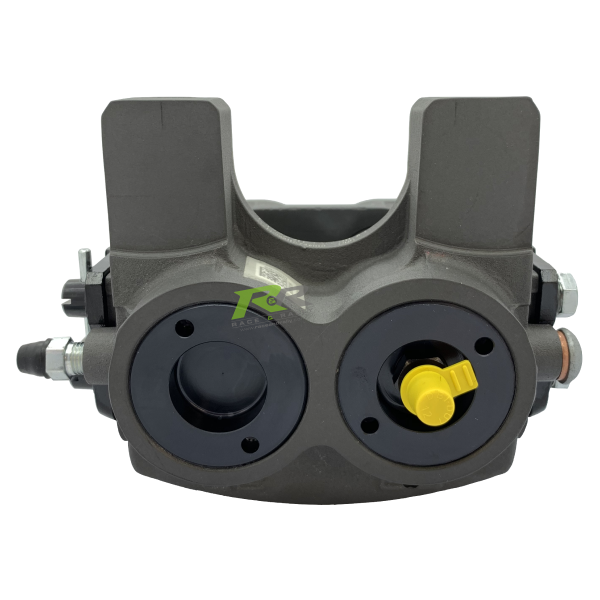

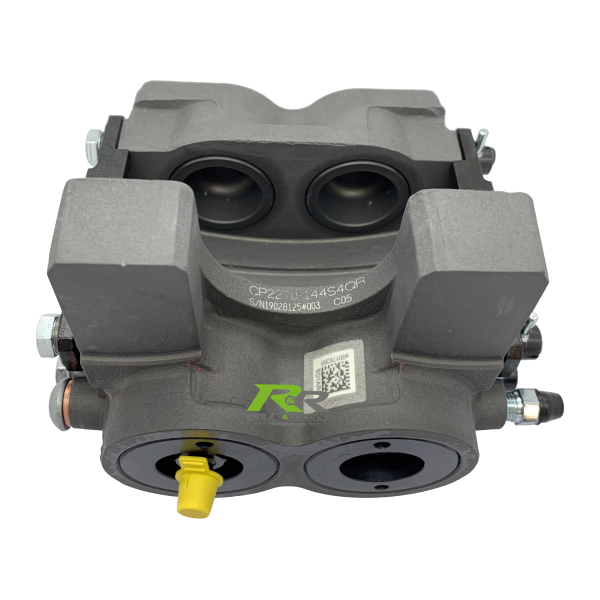

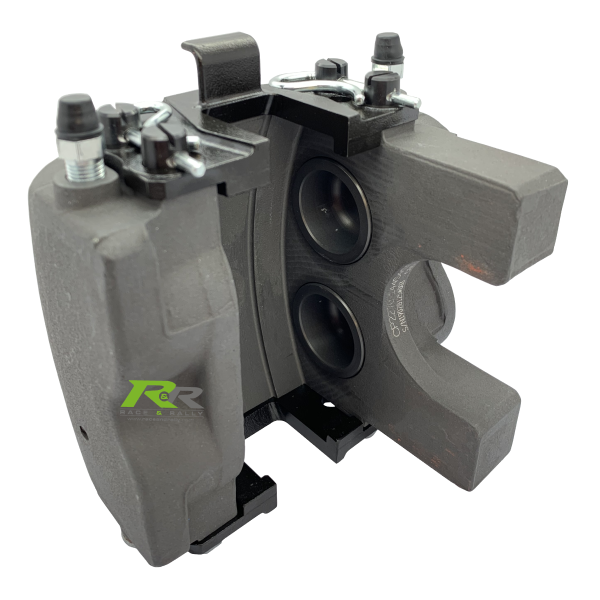

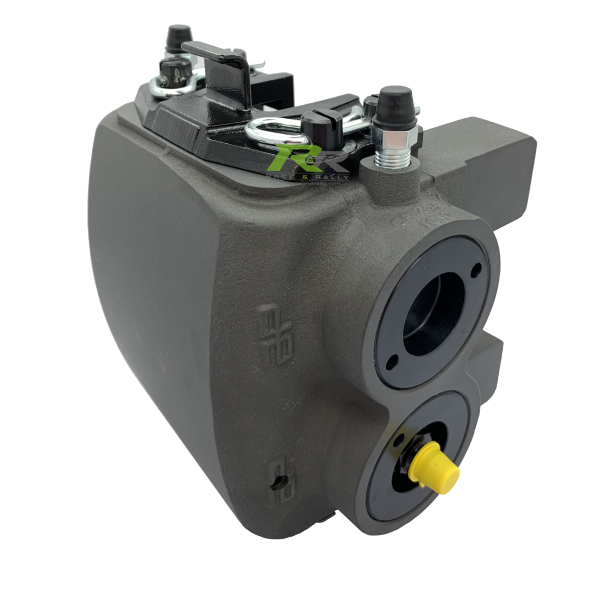

CP2270 - Closed back Caliper - Ø41.3mm Bores

Applications:

Front Caliper suitable for 13" to 16" wheels.
Rally.
Sports GT.
Saloons.

Features:

Blank Lug mount.
Closed back Aluminium alloy body.
Hard anodised surface treatment.
Suits Ø302.0 to 260.0 x 28.0mm disc.

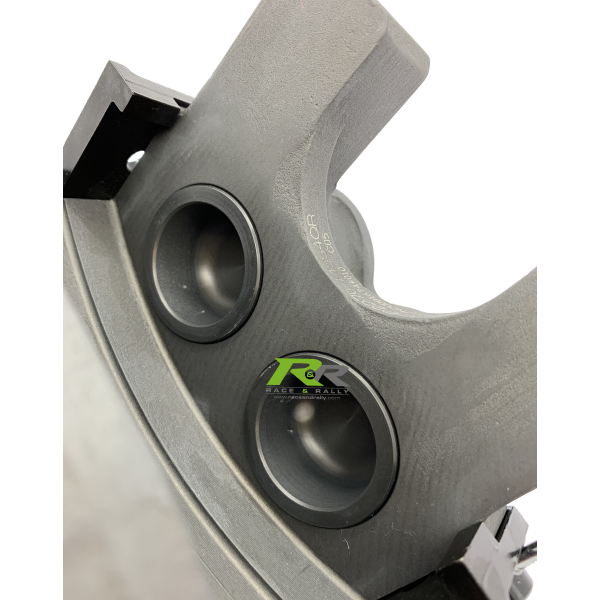

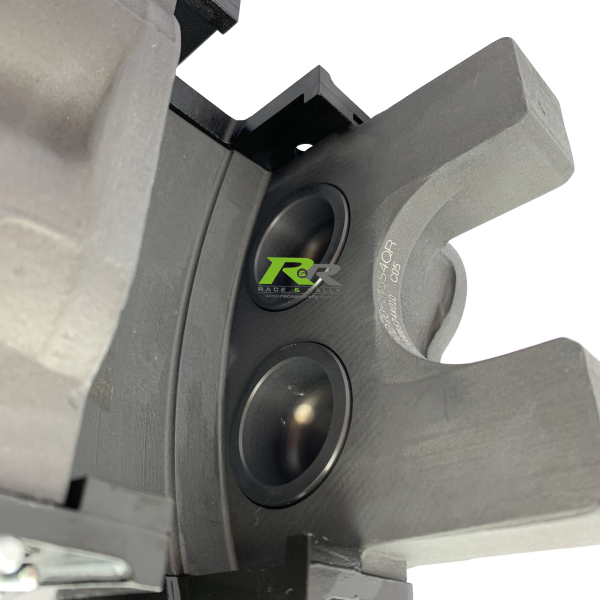

Aluminium alloy Pistons.
High temperature seals.

Part Numbers:

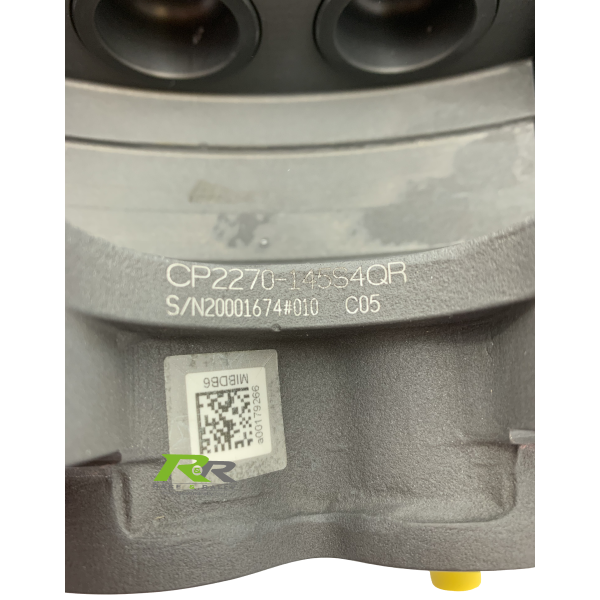

Right Hand = CP2270-144S4QR.
Left Hand = CP2270-145S4QR.

Technical Specifications:

Piston Sizes	Ø41.3mm x 4
Piston Area	53.8 cm²
Disc Diameter	Max - Ø302.0 Min - Ø260.0
Disc Thickness	26mm
Weight (no pads)	2.7 Kg
Hydraulic Threads	3/8"x24UNF
Mounting Type	Blank Lug
Mounting Centres	76.2mm / 94.0mm
Mounting Offset	33.3mm / 42.4mm
'PL' Dimension	66.3mm / 85.6mm
Bleed Screw Tightening Torque	17Nm

Spare Parts

Pistons	CP2270-92
Seal Repair Kit	CP4518-KK
Anti-knockback Springs	CP6518-4LBLL
Bleed Screw	CP3720-182

Brake Pads

Pad Shape	CP2270D50
Pad Area	56.3cm²
Pad Depth	50.3mm
Thickness	16.6mm

CP2270-1CD - Installation Drawing Spare Parts.pdf

Option	SKU	Barcode
Brand	AP Racing
Ø41.3mm x4 / Right Hand	CP2270-144S4QR
Ø41.3mm x4 / Left Hand	CP2270-145S4QR
